Controllers

Our compact electronic controls usually work digitally and have inputs, outputs and interfaces. Use these components to control your vehicle applications, machines, or systems. A programmable memory allows individual control instructions to be stored and executed via the outputs.

CAN I/O – CC16WP

Article number : 1.154.x

  • Operating voltage:  9-32 V
  • CAN interface(s):  2
  • In-/Outputs (total):  15
  • Inputs (total):  7
  • I/Os (total):  8
  • IP rating:  IP6K8

CAN I/O PLC Waterproof PRO V2

Article number : 1.128.x

  • Operating voltage:  9-32 V
  • CAN interface(s):  1
  • In-/Outputs (total):  15
  • Inputs (total):  7
  • I/Os (total):  8
  • IP rating:  IP6K8

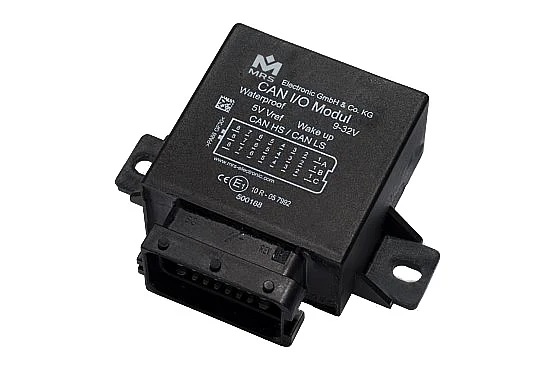

CAN I/O PLC Waterproof

Article number : 1.053.x

  • Operating voltage:  9-32 V
  • CAN interface(s):  1
  • In-/Outputs (total):  14
  • Inputs (total):  6
  • I/Os (total):  8
  • IP rating:  IP6K8

CAN I/O PLC

Article number : 1.033.x

  • Operating voltage:  9-32 V
  • CAN interface(s):  1
  • In-/Outputs (total):  14
  • Inputs (total):  6
  • I/Os (total):  8
  • IP rating:  IP53

Micro PLC CAN 9-30 V

Article number : 1.107.310.x

  • Operating voltage:  9-32 V
  • CAN interface(s):  1
  • In-/Outputs (total):  5
  • Inputs (total):  3
  • Outputs (total):  2
  • IP rating:  IP53

Micro PLC CAN 12V

Article number : 1.107.1x

  • Operating voltage:  12 V
  • CAN interface(s):  1
  • In-/Outputs (total):  4
  • Inputs (total):  2
  • Outputs (total):  2
  • IP rating:  IP53

Micro PLC CAN 24V

Article number : 1.107.2x

  • Operating voltage:  24 V
  • CAN interface(s):  1
  • In-/Outputs (total):  4
  • Inputs (total):  2
  • Outputs (total):  2
  • IP rating:  IP53

Micro PLC CAN 4 I/O

Article number : 1.111.311.00

  • Operating voltage:  9-32 V
  • CAN interface(s):  1
  • In-/Outputs (total):  4
  • I/Os (total):  4
  • IP rating:  IP6K8

Micro PLC CAN 4 ANA

Article number : 1.112.x

  • Operating voltage:  9-32 V
  • CAN interface(s):  1
  • In-/Outputs (total):  4
  • I/Os (total):  4
  • IP rating:  IP6K8

M2600 ECO CAN PLC

Article number : 1.261.x

  • Operating voltage:  9-32 V
  • CAN interface(s):  3
  • In-/Outputs (total):  26
  • Inputs (total):  14
  • Outputs (total):  12
  • IP rating:  IP65

M3600 CAN PLC

Article number : 1.300.x

  • Operating voltage:  9-32 V
  • CAN interface(s):  3
  • In-/Outputs (total):  38
  • Inputs (total):  18
  • Outputs (total):  10
  • I/Os (total):  10
  • IP rating:  IP68

CAN I/O PLC LHS

Article number : 1.129.x

  • Operating voltage:  9-32 V
  • CAN interface(s):  1
  • In-/Outputs (total):  14
  • Inputs (total):  6
  • I/Os (total):  8
  • IP rating:  IP53

CAN Relay Box

Article number : 1.047.x

  • Operating voltage:  9-32 V
  • CAN interface(s):  1
  • In-/Outputs (total):  25
  • Inputs (total):  13
  • Outputs (total):  12
  • IP rating:  IP53

PROP CAN

Article number : 1.108.310.00

  • Operating voltage:  9-32 V
  • CAN interface(s):  1
  • In-/Outputs (total):  3
  • Inputs (total):  2
  • Outputs (total):  1
  • I/Os (total):  1
  • IP rating:  IP6K8

PROP CAN 2CH

Article number : 1.168.

  • Operating voltage:  9-32 V
  • CAN interface(s):  1
  • In-/Outputs (total):  5
  • Inputs (total):  3
  • Outputs (total):  2
  • IP rating:  IP6K8

MicroPlex 7X

Article number : 1.132.300.00

  • Operating voltage:  9-32 V
  • CAN interface(s):  1
  • In-/Outputs (total):  7
  • Inputs (total):  3
  • I/Os (total):  4
  • IP rating:  IP67

MicroPlex 7H

Article number : 1.133.300.00

  • Operating voltage:  9-32 V
  • CAN interface(s):  1
  • In-/Outputs (total):  7
  • Outputs (total):  7
  • IP rating:  IP67

MicroPlex 7L

Article number : 1.134.300.00

  • Operating voltage:  9-32 V
  • CAN interface(s):  1
  • In-/Outputs (total):  7
  • Outputs (total):  7
  • IP rating:  IP67

CC27WP

Article number : 1.169

The CC27WP is a powerful and robust 32-bit controller with 27 inputs and outputs as well as 16 freely configurable I/Os with voltage and current diagnostics. The waterproof module is therefore very flexible and can be used in any industry. It is particularly suitable for your vehicles with many loads to be controlled and high load currents, such as ambulance vehicles. The CC27WP continuously detects the current of the consumers and can switch them off when a defined value is exceeded. This means you do not need a classic fuse box. You are also provided with a high degree of flexibility, as motors can also be controlled with the aid of 4 half-bridges and up to 3 CAN interfaces are available for processing or forwarding commands. Due to the use of CAN bus, cabling can also be simplified, e.g. by establishing a direct connection to HMI systems such as displays or control elements.

  • Operating voltage:  9-32 V
  • CAN interface(s):  1
  • In-/Outputs (total):  27
  • Inputs (total):  7
  • I/Os (total):  16
  • IP rating:  IP6K8

Micro PLC CAN DTM

Article number : 1.107.

  • Operating voltage:  9-32 V
  • CAN interface(s):  1
  • In-/Outputs (total):  4
  • Inputs (total):  2
  • Outputs (total):  2
  • IP rating:  IP6K8

Micro PLC CAN 4 ANA DTM

Article number : 1.112.9

  • Operating voltage:  9-32 V
  • CAN interface(s):  1
  • In-/Outputs (total):  4
  • Inputs (total):  4
  • I/Os (total):  4
  • IP rating:  IP6K8

PROP CAN 2CH DTM

Article number : 1.168.9

  • Operating voltage:  7-32 V
  • CAN interface(s):  1
  • In-/Outputs (total):  4
  • Inputs (total):  2
  • Outputs (total):  2
  • IP rating:  IP6K8
