Micro Gateway DTM
1.156.9 (11569)

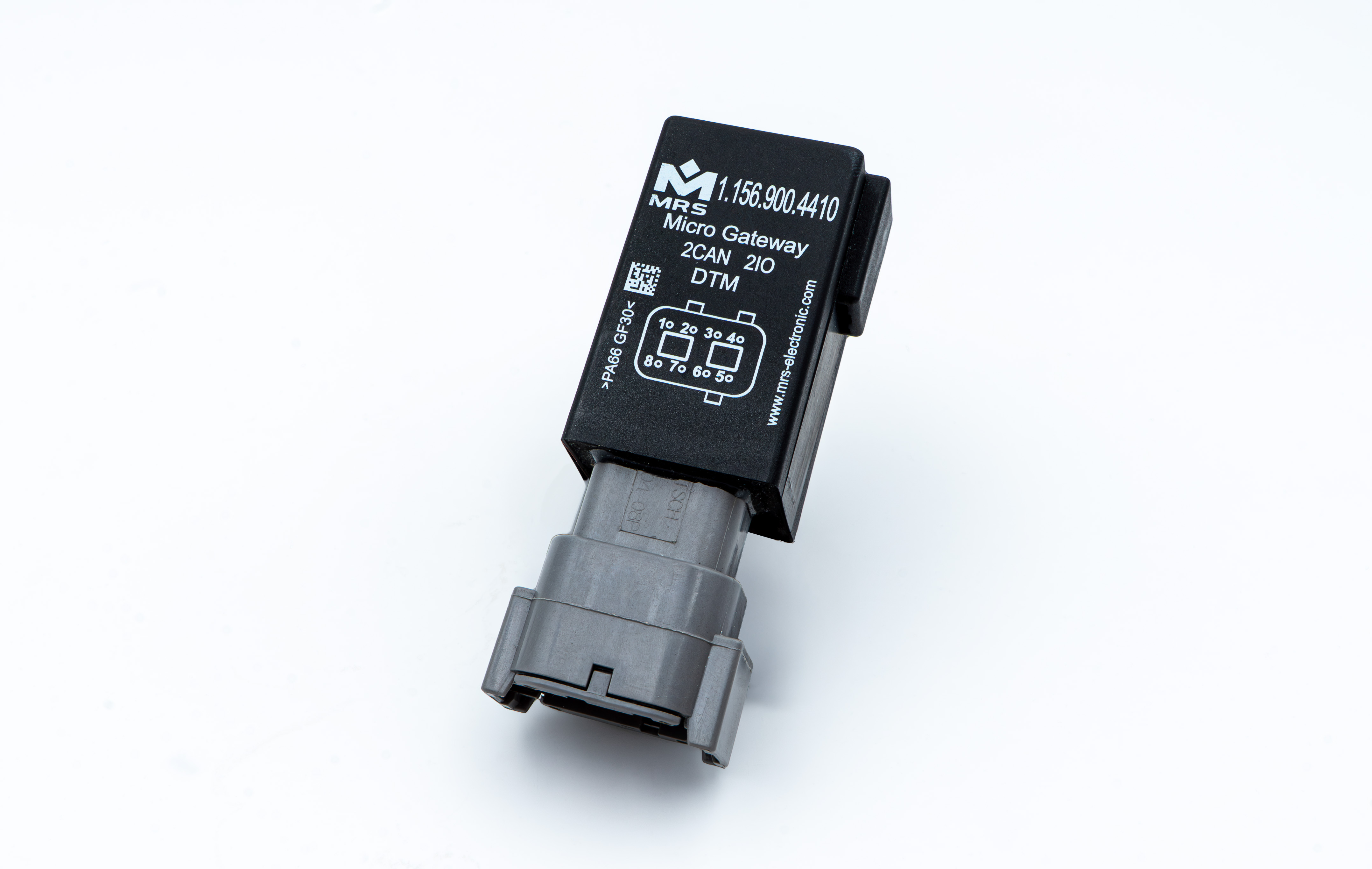

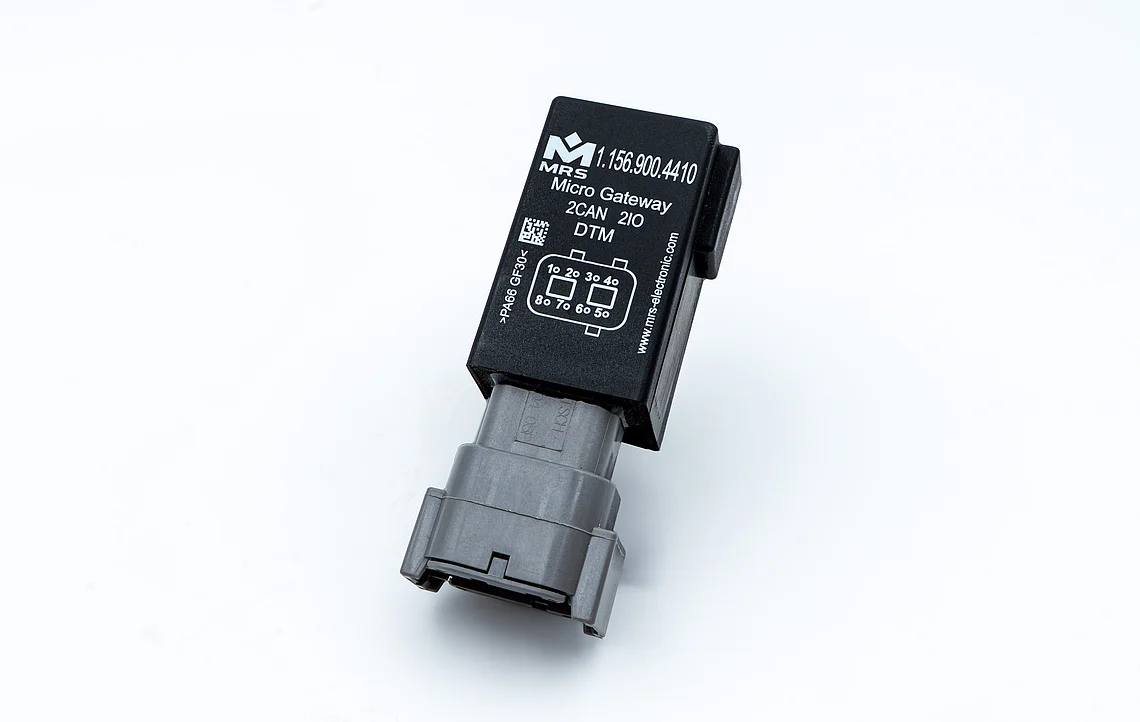

The new Micro Gateway DTM with DEUTSCH DTM connector is a compact gateway for automotive applications. The core, a 32-bit processor, delivers higher performance and thus secure routing and gateway functionality under high bus loads.

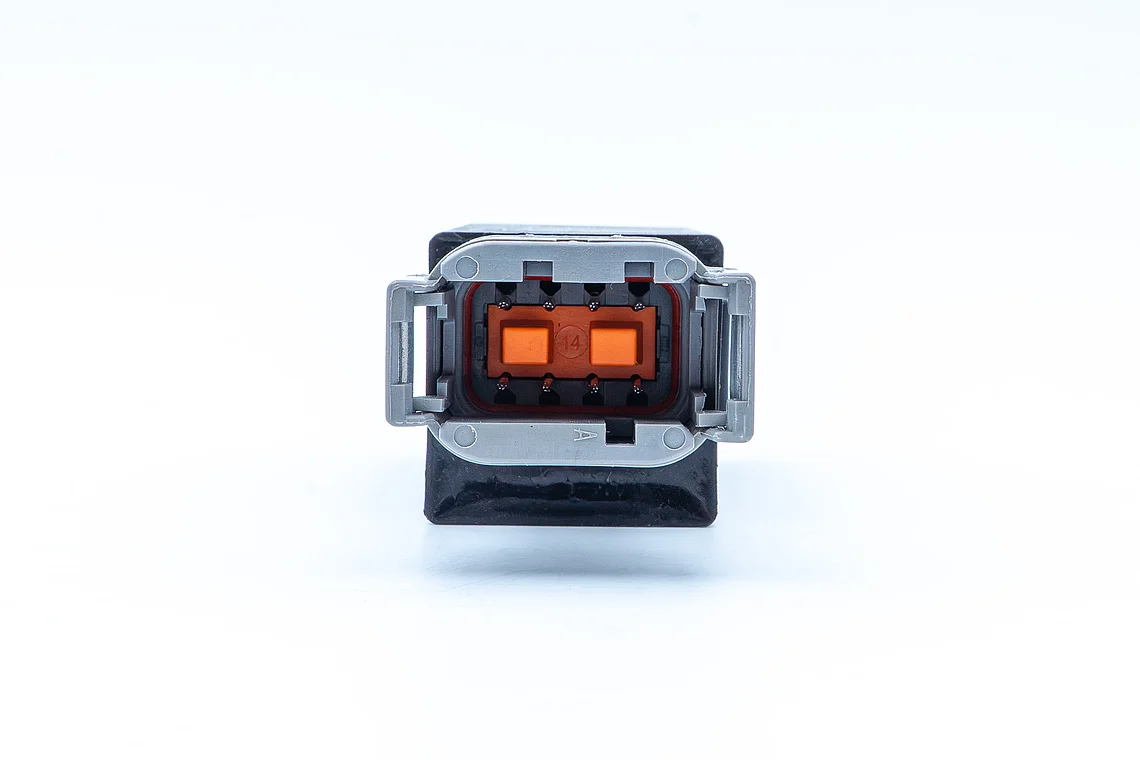

In combination with the DEUTSCH DTM connector, it offers you robust quality and is ideally suited for extreme environmental conditions.
Downloads
Technical details
Inputs and Outputs
| Number of pins | 8 |
|---|---|
| In-/Outputs (total) | 2 |
| I/Os (total) | 2 |
| I/Os (Input analog) | 2 |
| I/O (Output PWM capable) | 4 |
Interfaces
| CAN interface(s) | 1 |
|---|---|
| CAN FD interface(s) | 1 |
Mechanical Properties
| IP rating | Up to IP6K8 |
|---|---|
| Housing material | PA 66GF30 |
Programming
| Programming software | MRS Applics Studio |
|---|
General
| Temperature range | -40 °C to +85 °C |
|---|---|
| Operating voltage | 9-32 V |
| Current consumption | 70 mA |
| Quiescent current (12V) | 80 µA |
| Quiescent current (24V) | 100 µA |
