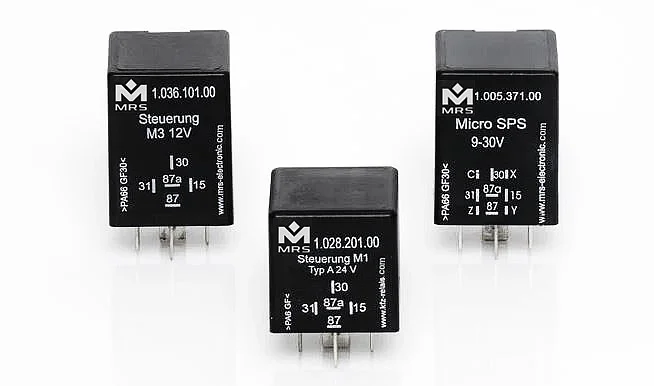

PLC Controls

The PLC controllers are programmable logic controllers. The modules do not have a CAN- or LIN-Bus interface, but have additional pins available for further functions. The same requirement profile, i.e., the same number of functions, can thus be realized with a more compact design.

Micro PLC 12V

Article number : 1.005.1x

Operating voltage: 10-16 V
In-/Outputs (total): 6
Inputs (total): 4
Outputs (total): 2
IP rating: IP6K8

Micro PLC 24V

Article number : 1.005.2x

Operating voltage: 16-32 V
In-/Outputs (total): 6
Inputs (total): 4
Outputs (total): 2
IP rating: IP6K8

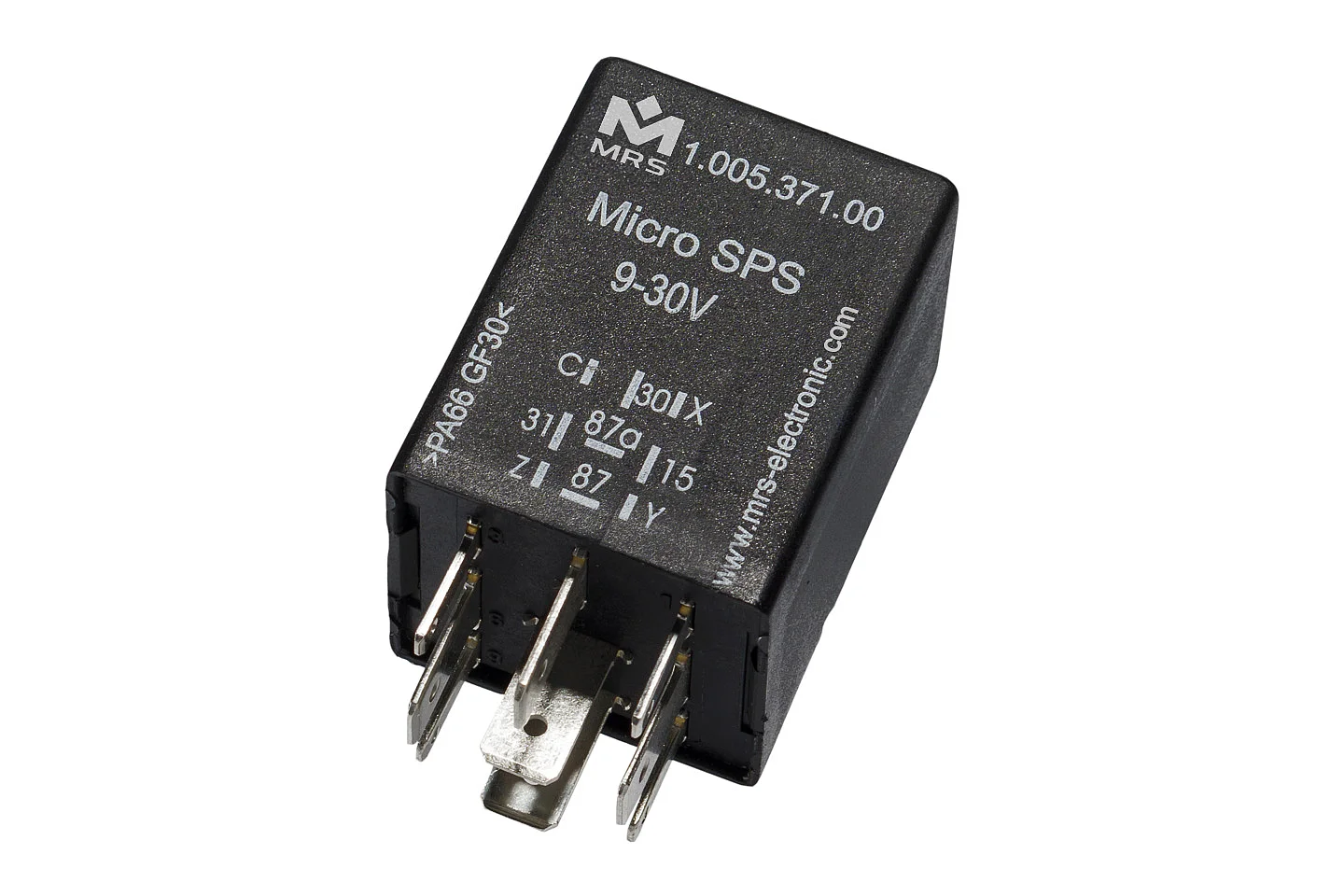

Micro PLC 9-30V

Article number : 1.005.3x

Operating voltage: 9-30 V
In-/Outputs (total): 7
Inputs (total): 4
Outputs (total): 3
IP rating: IP6K8

Controller M1 12V

Article number : 1.028.1x

Operating voltage: 7.2-16 V
In-/Outputs (total): 2
Inputs (total): 1
Outputs (total): 1
IP rating: IP53

Controller M1 24V

Article number : 1.028.2x

Operating voltage: 14-32 V
In-/Outputs (total): 2
Inputs (total): 1
Outputs (total): 1
IP rating: IP53

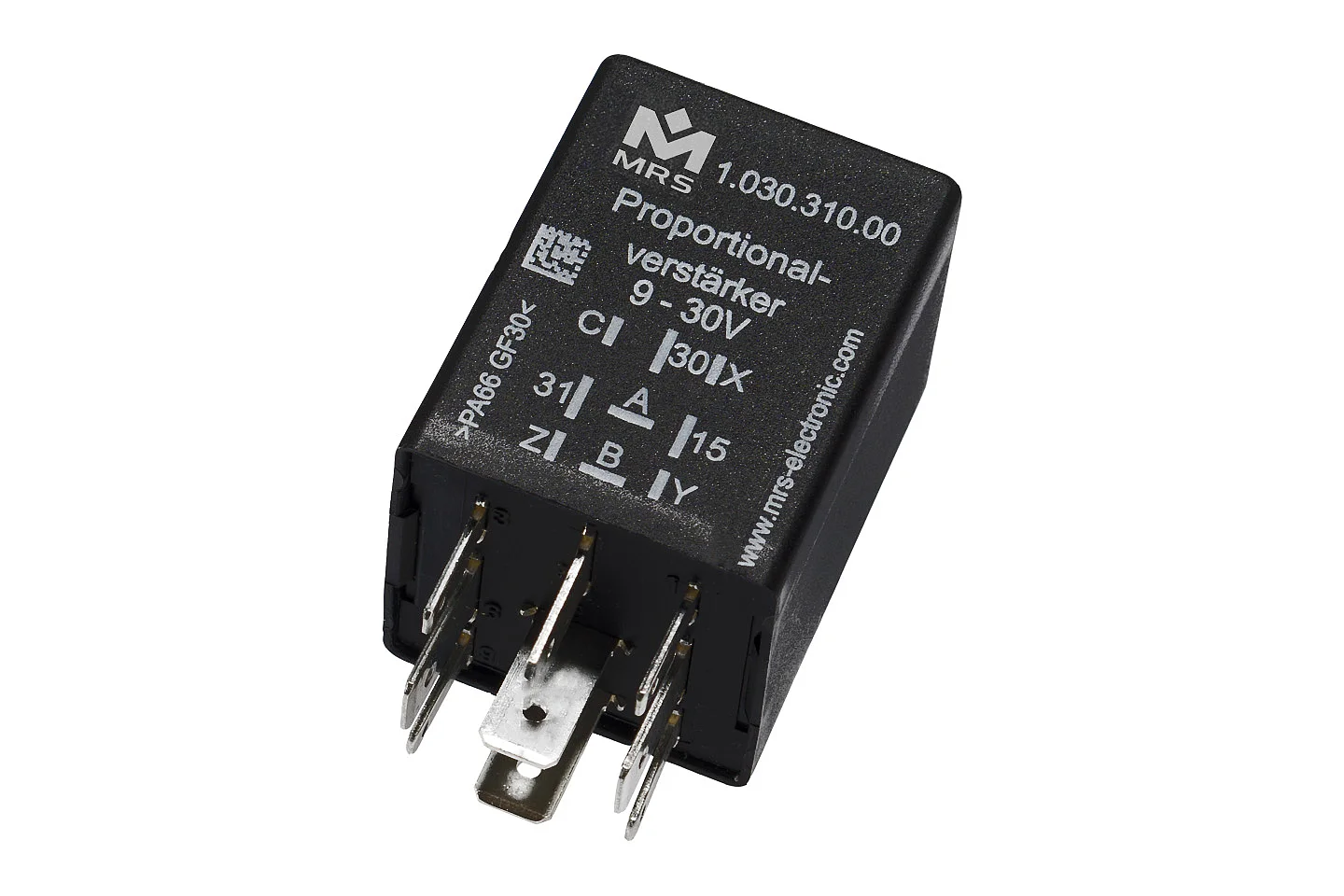

Proportional Amplifier 9-30V

Article number : 1.030.x

Operating voltage: 9-30 V
In-/Outputs (total): 5
Inputs (total): 4
Outputs (total): 1
IP rating: IP53

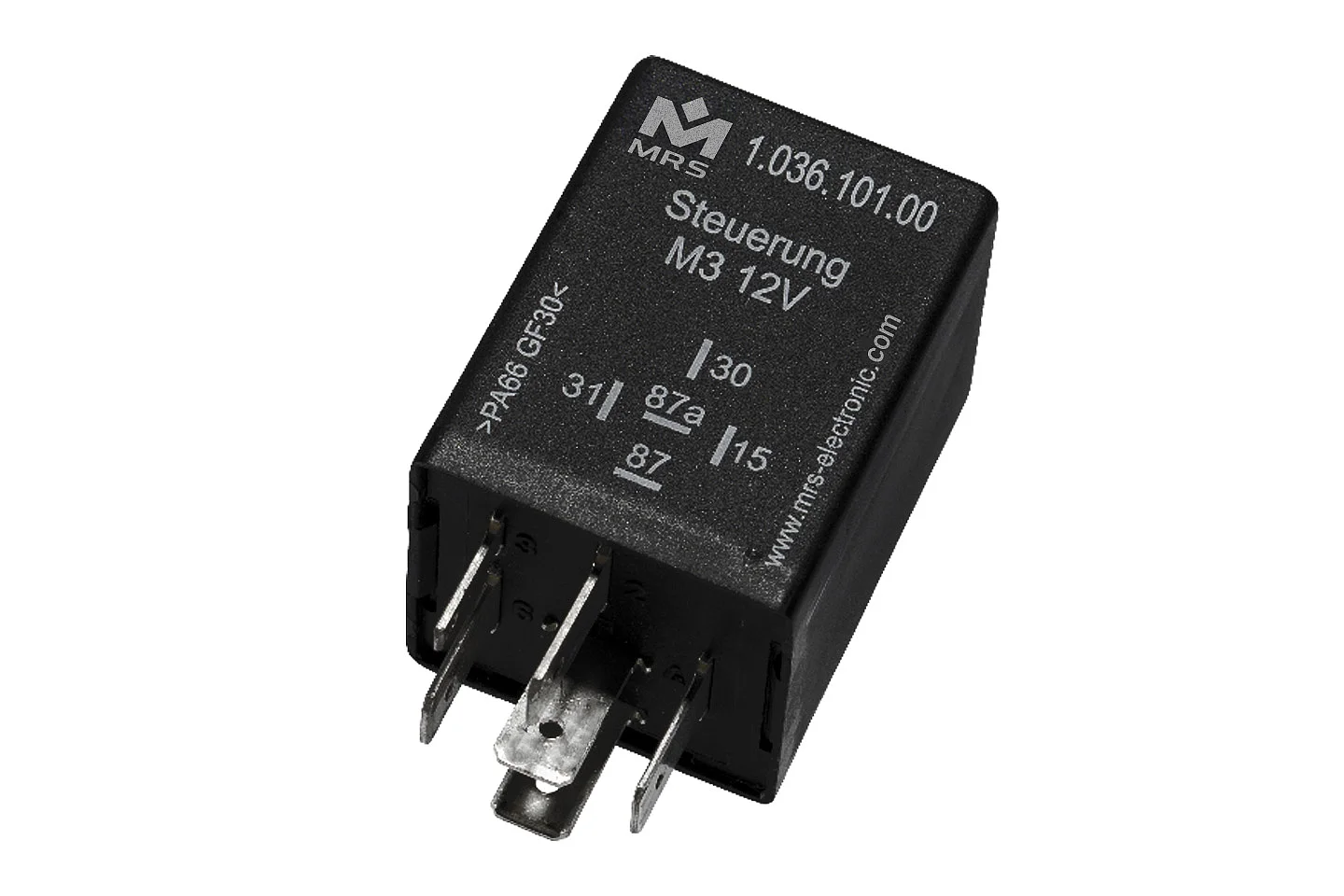

Controller M3 12V

Article number : 1.036.1x

Operating voltage: 9-16 V
In-/Outputs (total): 2
Inputs (total): 1
Outputs (total): 1
IP rating: IP6K8

Controller M3 24V

Article number : 1.036.2x

Operating voltage: 14-32 V
In-/Outputs (total): 2
Inputs (total): 1
Outputs (total): 1
IP rating: IP6K8
