MicroPlex CAN Controllers

Meet the smartest and smallest CAN Power Distribution Module (PDM) system that fits into any ISO 280 format fuse box: The MicroPlex™! With a drag-and-drop configuration tool, even non-software engineers can easily create and implement a very powerful as well as inexpensive IP67 CAN control and diagnostics systems.

Single MicroPlex Socket - Basic

M111036

Single MicroPlex Socket for one 12 pin relay or two 6 pin relays. Includes a mounting point in a slim, basic form factor.

Single MicroPlex Socket - Sealed

xxx

Single MicroPlex Socket for one 12 pin relay or two 6 pin relays. Includes latch and cushion to ensure the relay is secure.

MicroPlex® 7X

1.132.300.00

CAN Controllers with 7 I/Os available

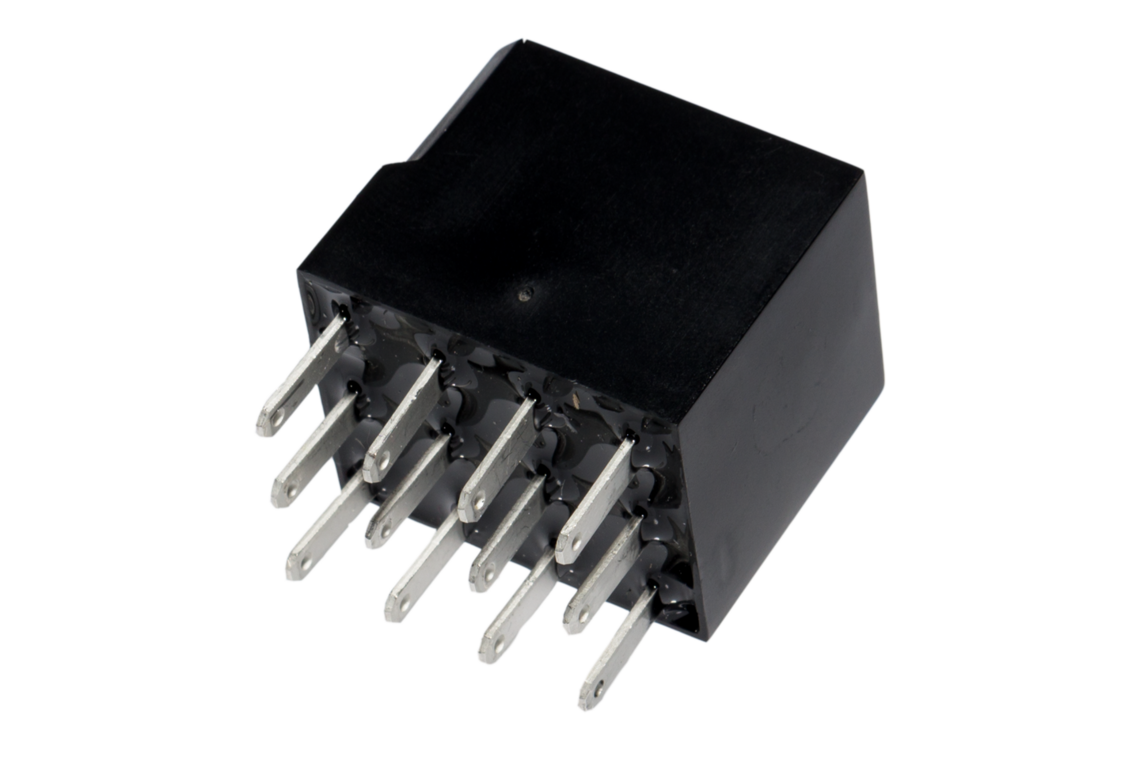

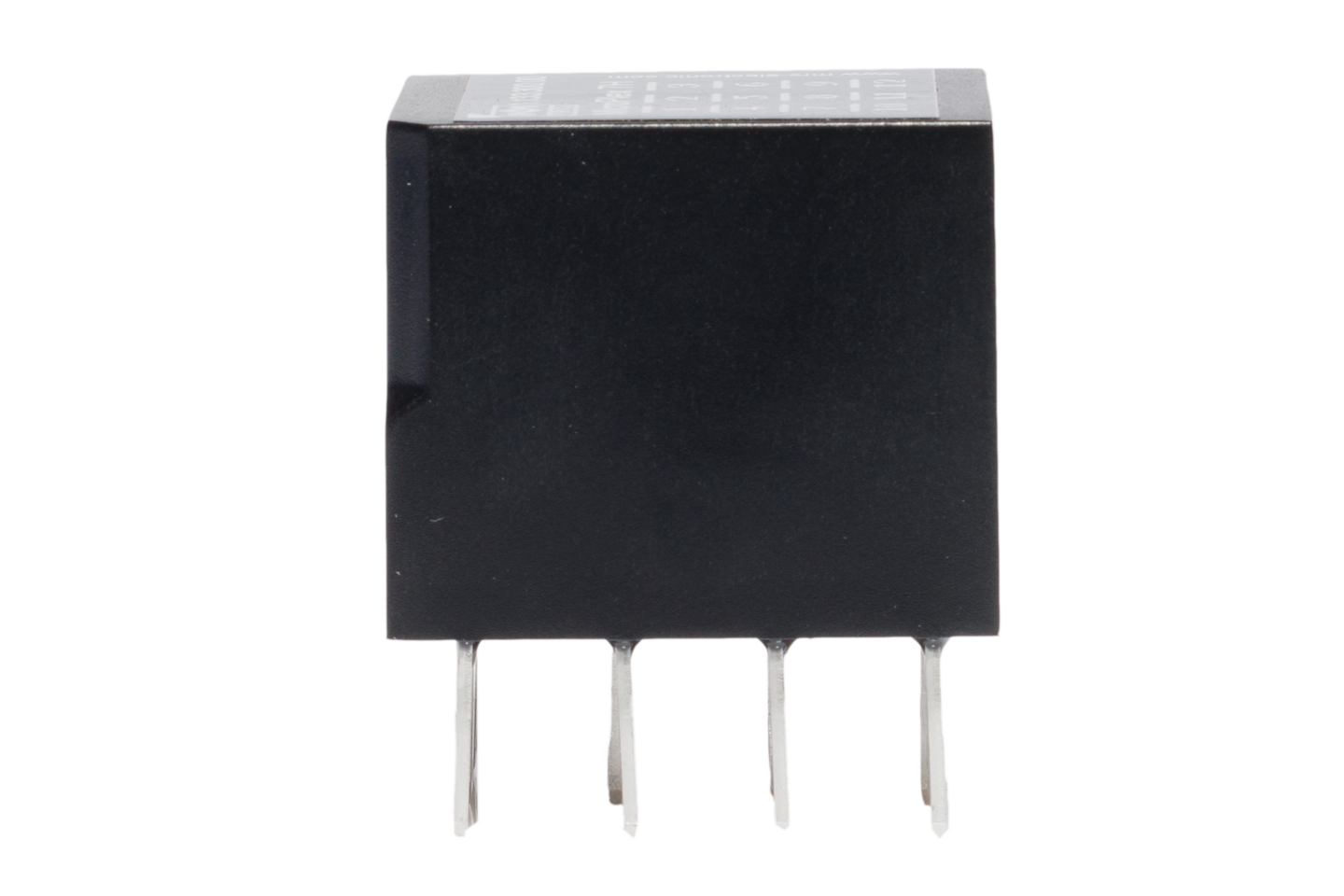

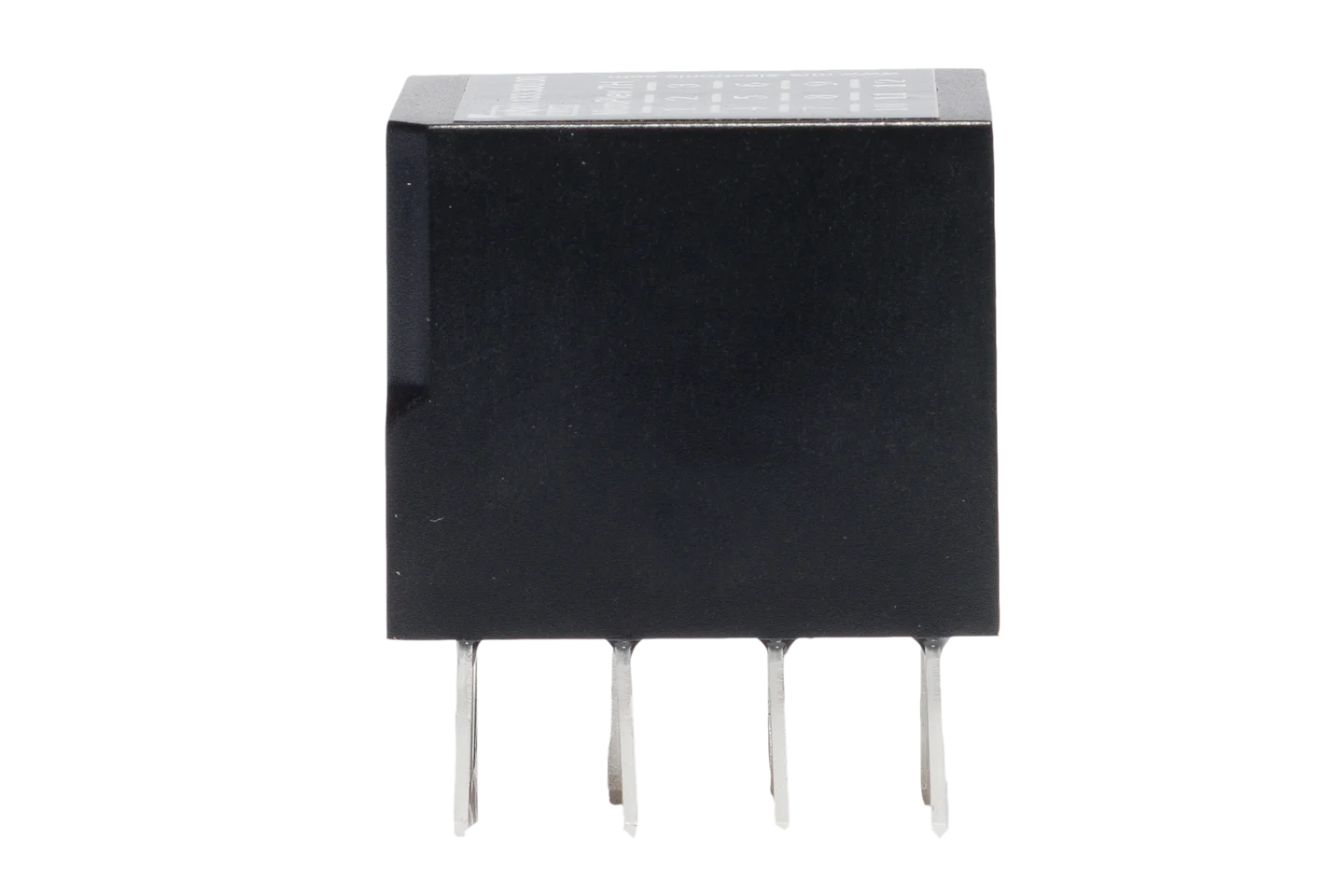

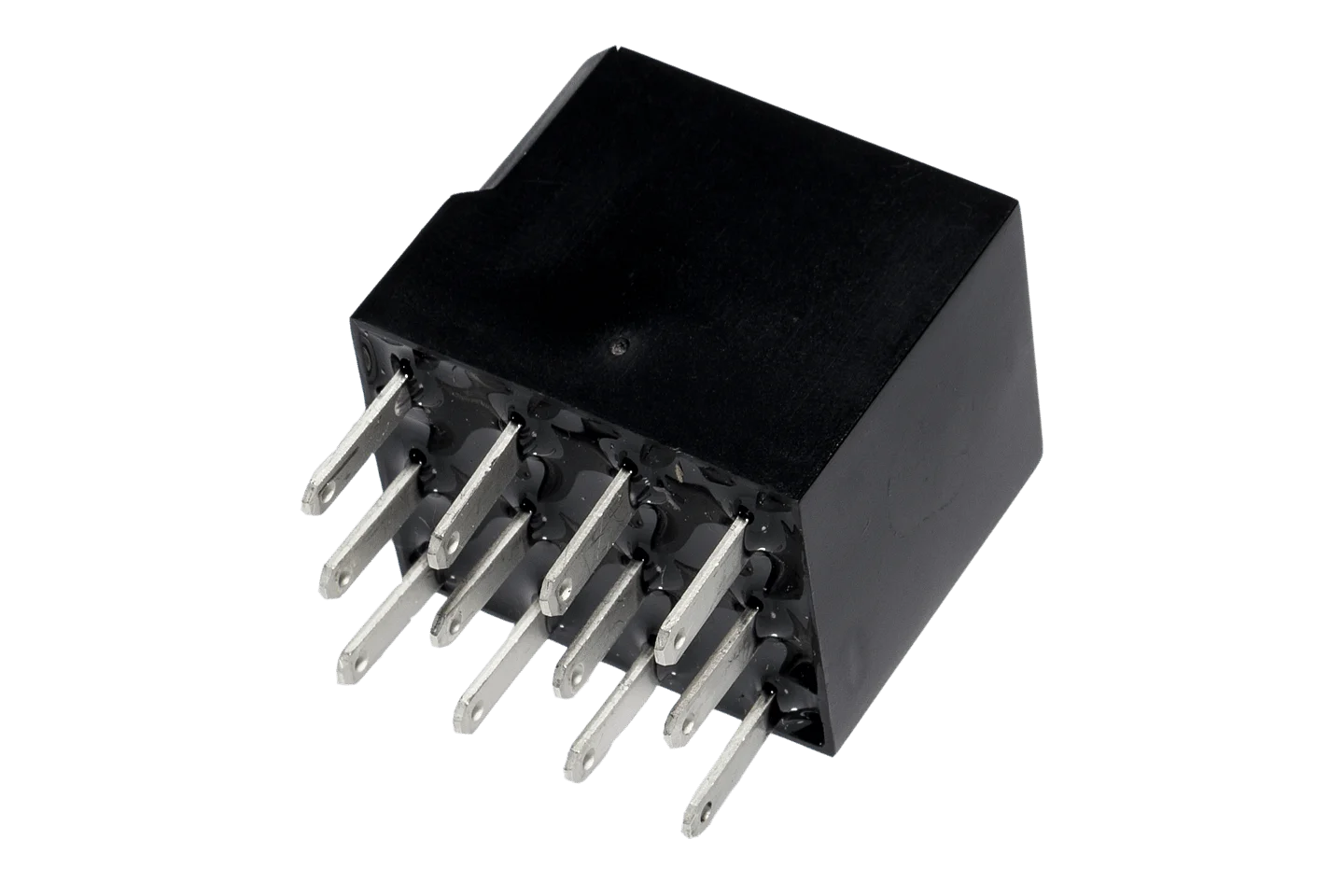

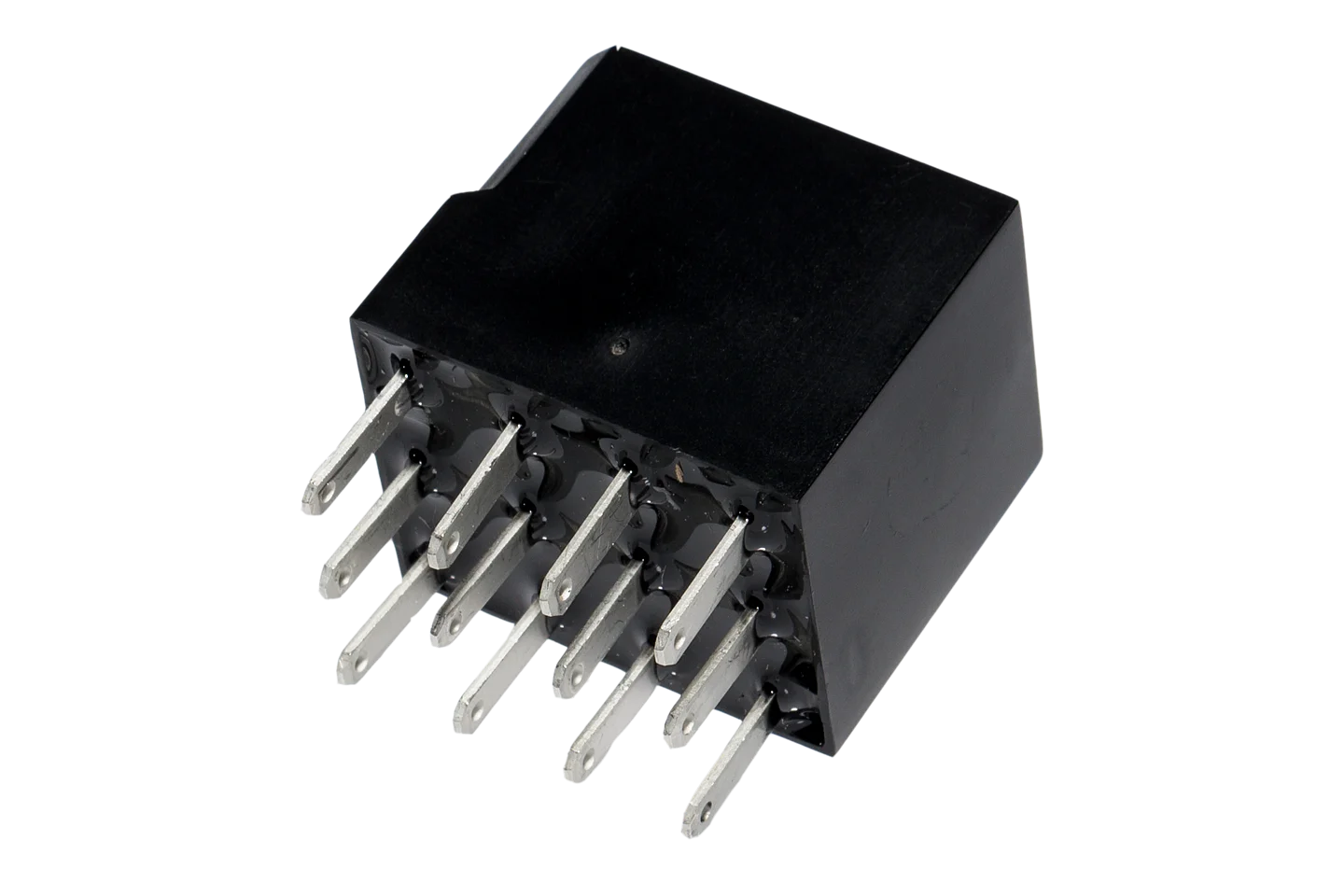

MicroPlex® 7H

1.133.300.00

7 PWM capable High Side Driver Outputs

MicroPlex® 7L

1.134.300.00

7 PWM capable Low Side Driver Outputs

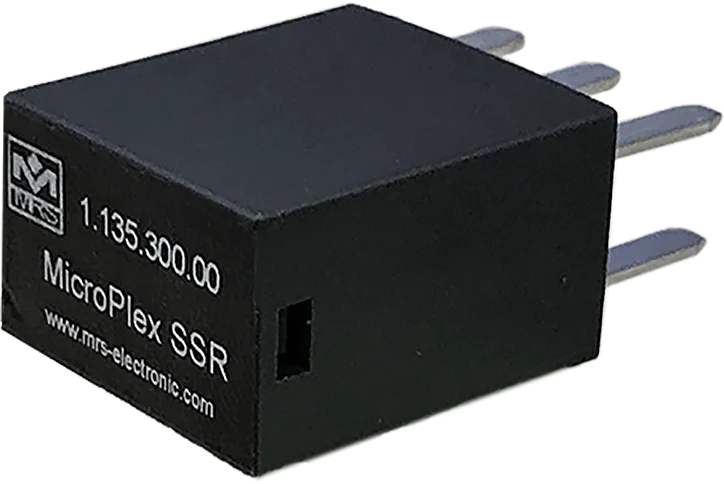

MicroPlex® SSR18 - TEMPORARILY UNAVAILABLE

1.135.300.00

18 Amp rated Solid State Relay with Standard 5-Terminal ISO280 footprint

MicroPlex® SSR30

1.135.330.00

30 Amp rated Solid State Relay with Standard 5-Terminal ISO280 footprint

MicroPlex® 1HB

1.137.300.00

Our MicroPlex 1HB is the smallest Motor Controller in the MRS product line, given its small size and easy installation, it offers a wide range of applications.

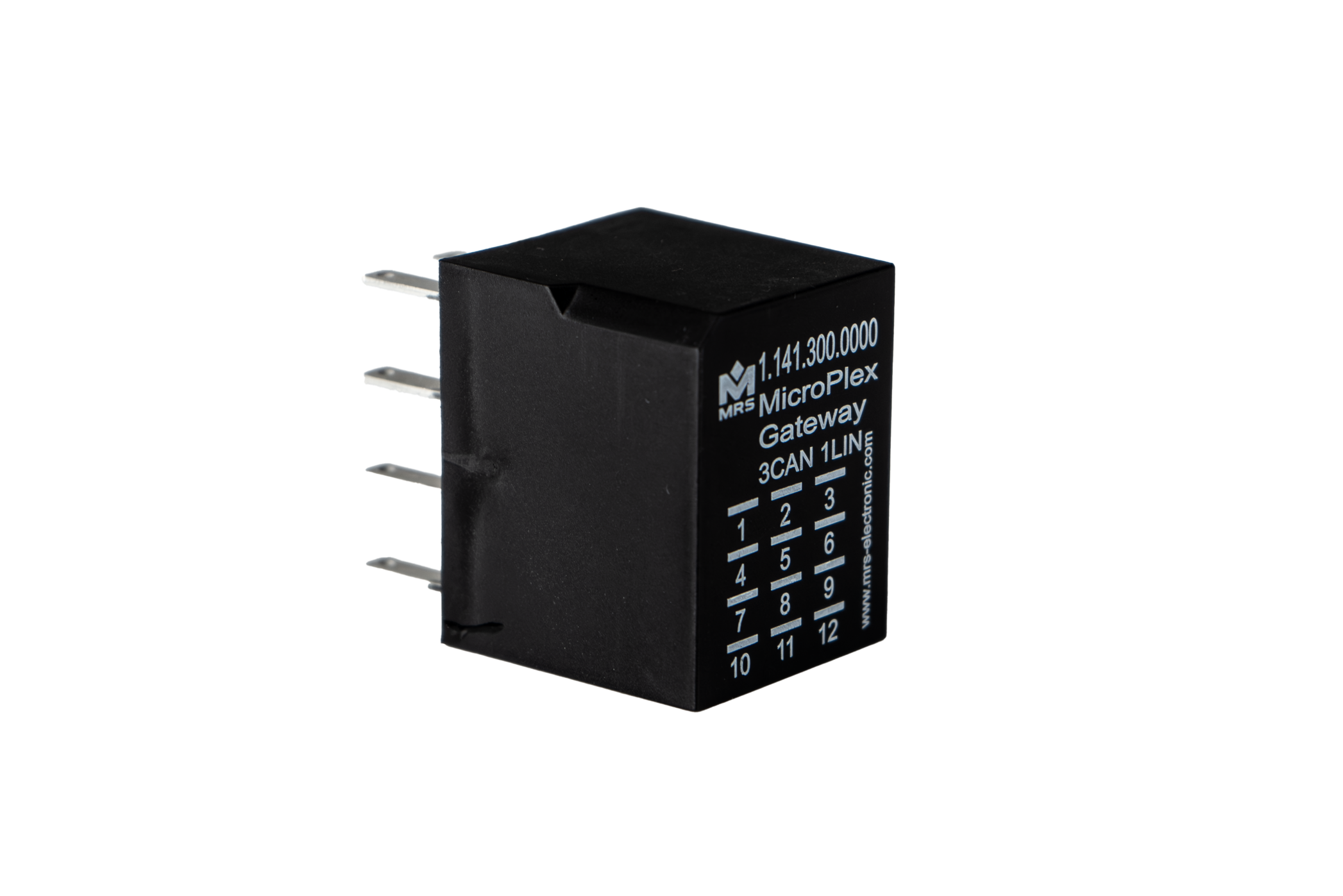

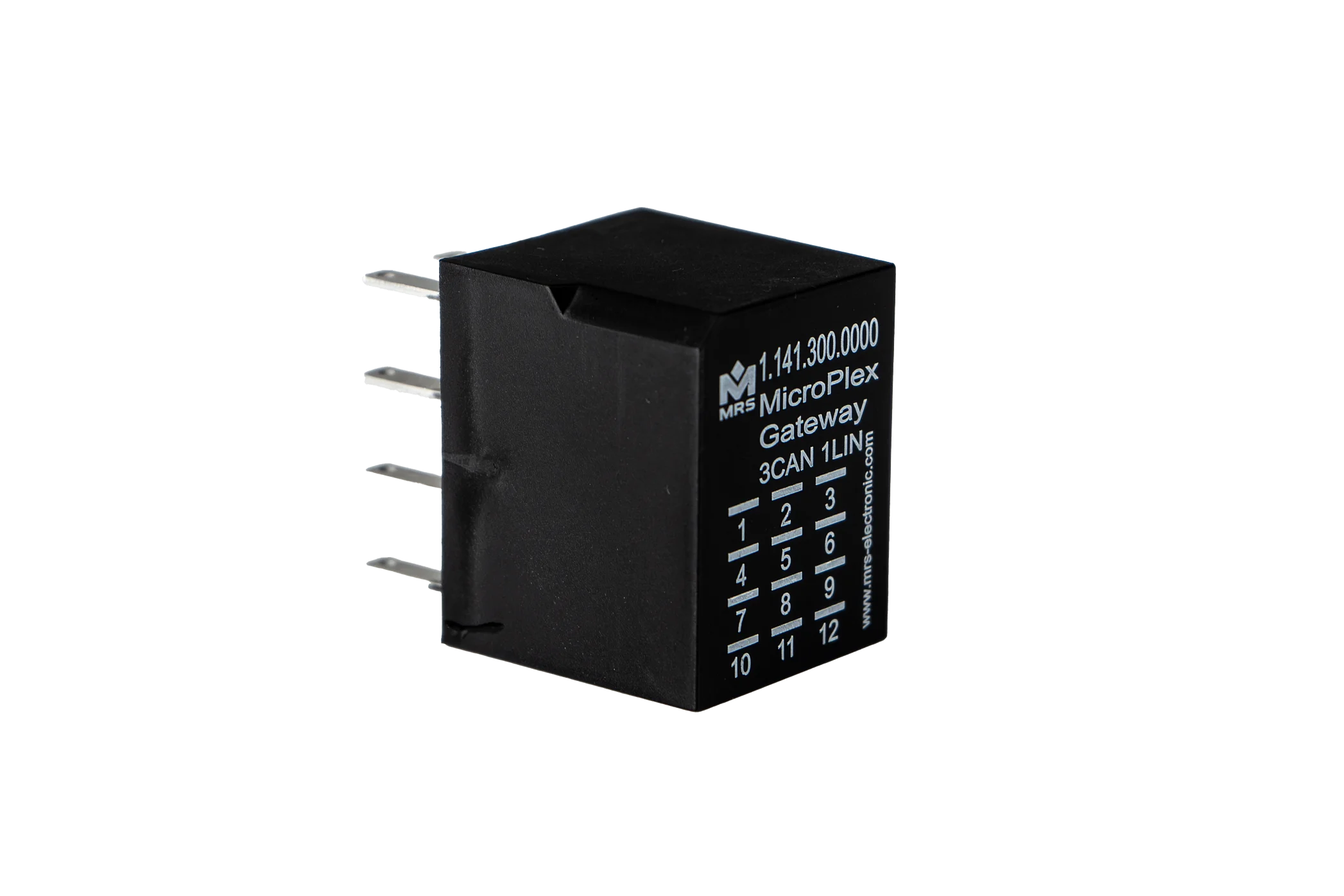

MicroPlex® Gateway

1.138.130.00

Our MicroPlex Gateway is the smallest CAN Gateway in the MRS product line, given its small size and easy installation, it offers a wide range of applications.
