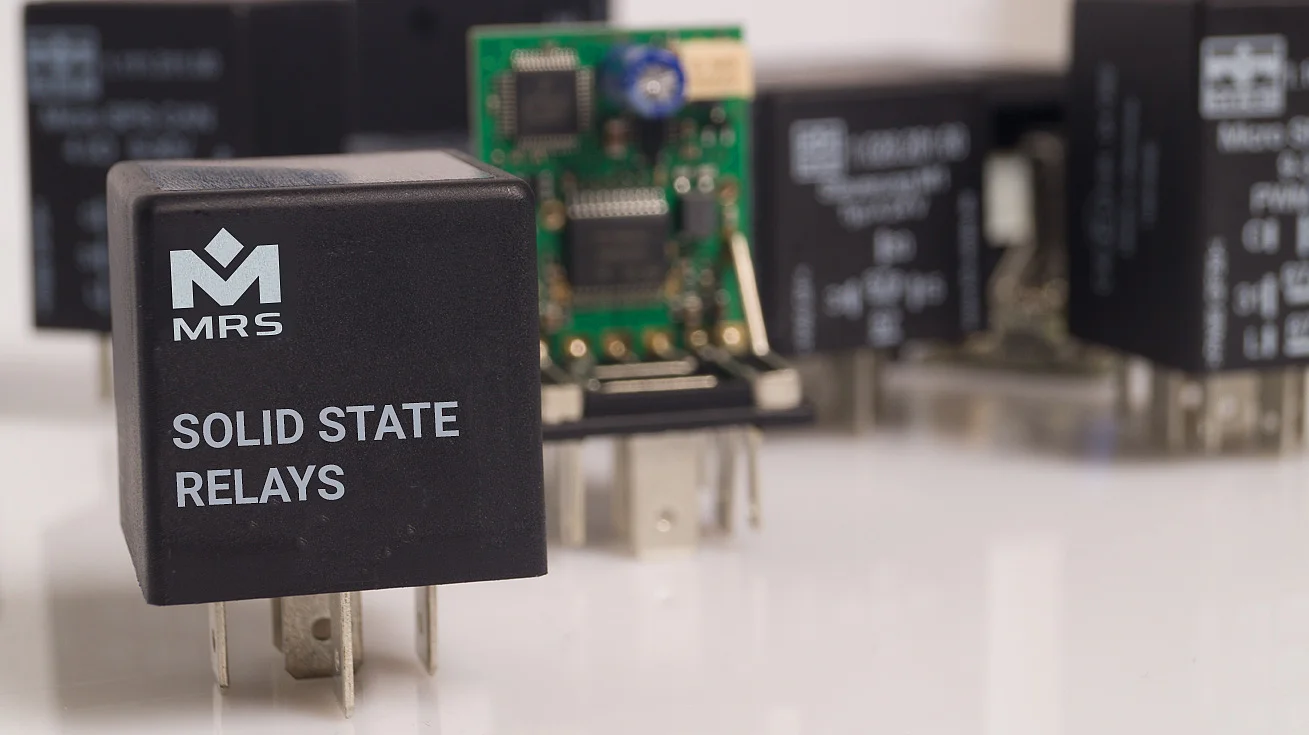

Solid State Relays

As a counterpart to classic mechanical relays, we offer electronic circuits made of semiconductor components and other electronic components. Semiconductor relays have no moving parts and are therefore wear-free. They are the electronic alternative to classic mechanical relays.

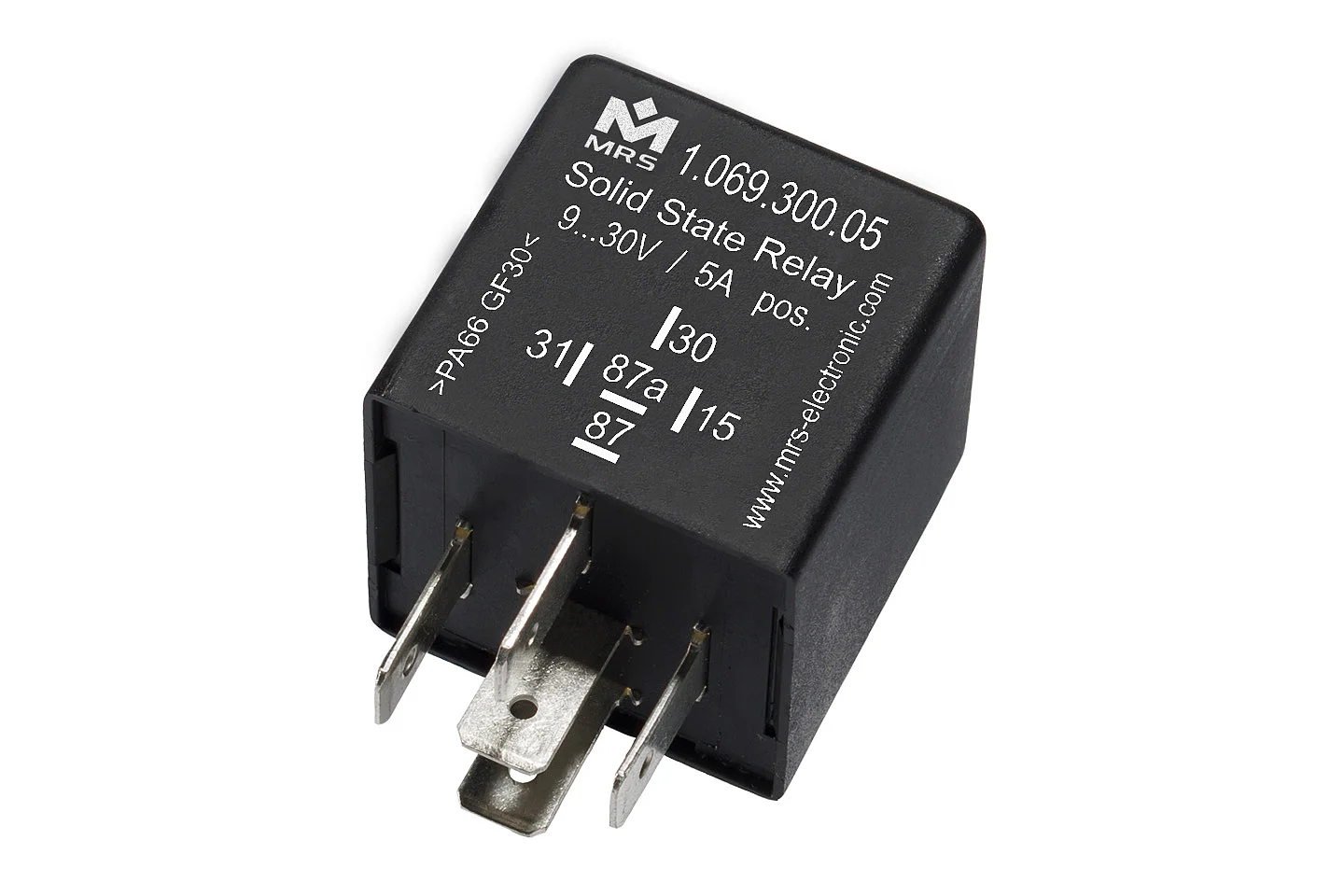

SSR 5A

Article number : 1.069.30x.05

Operating voltage: 9-32 V
Outputs (total): 1
Number of pins: 5
Switching current: 5A
IP rating: IP53

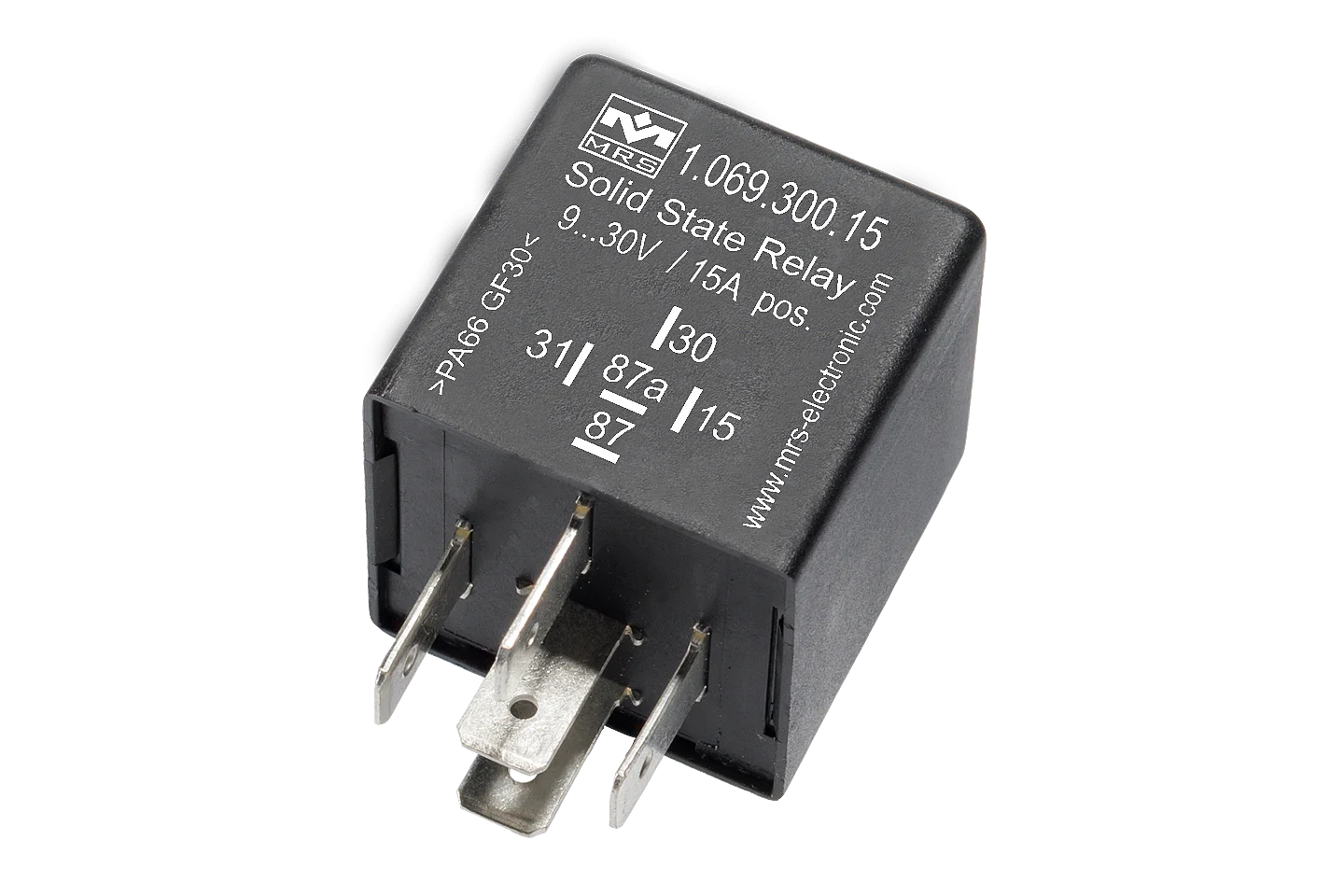

SSR 15A

Article number : 1.069.30x.15

Operating voltage: 9-32 V
Outputs (total): 1
Number of pins: 5
Switching current: 15A
IP rating: IP53

SSR 25A

Article number : 1.069.30x.25

Operating voltage: 9-32 V
Outputs (total): 1
Number of pins: 5
Switching current: 25A
IP rating: IP53

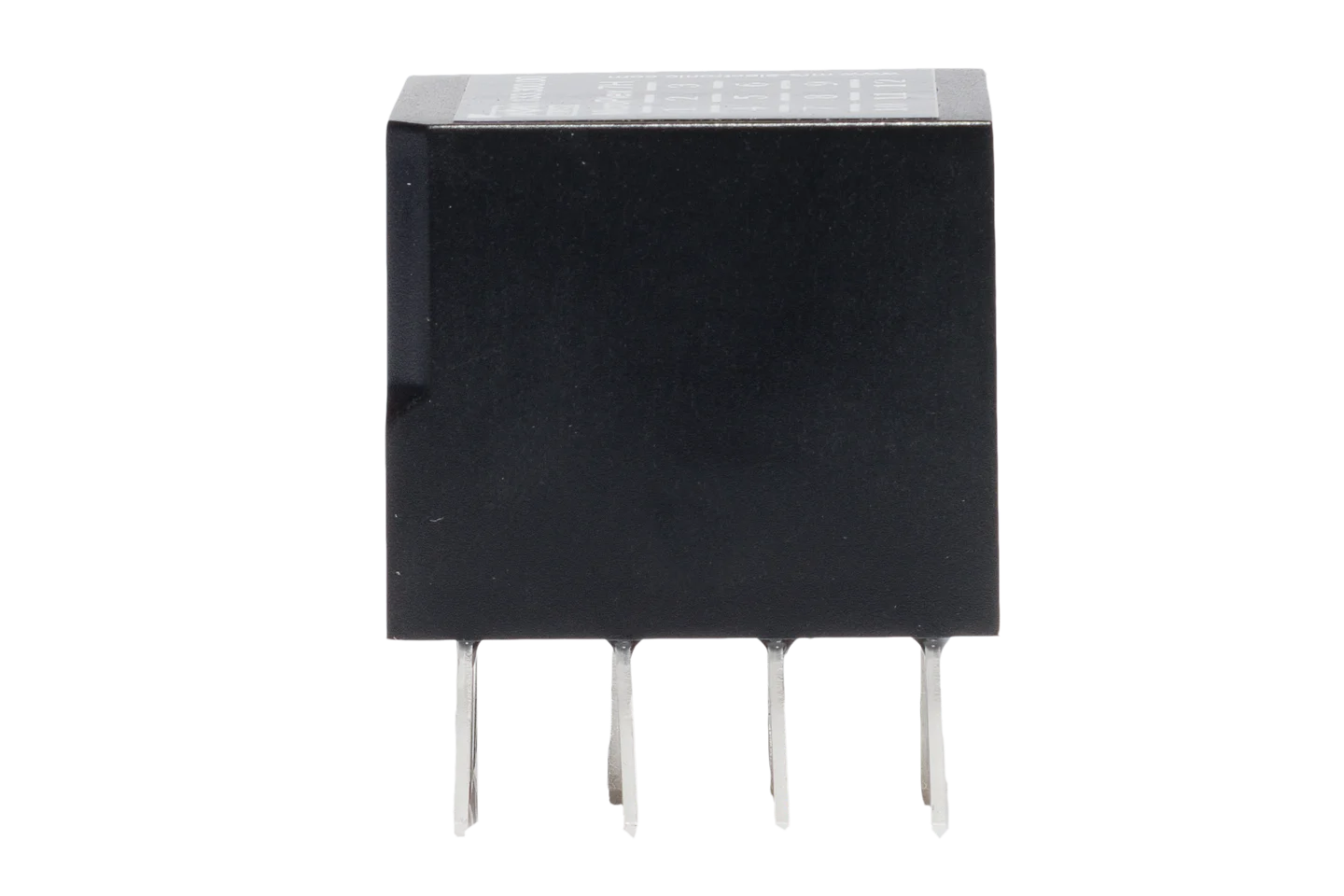

MicroPlex® SSR18

Article number : 1.135.300.00

Operating voltage: 12V
Number of pins: 5
IP rating: IP67

MicroPlex® SSR30

Article number : 1.135.330.00

Operating voltage: 12 V
Number of pins: 7
IP rating: IP67

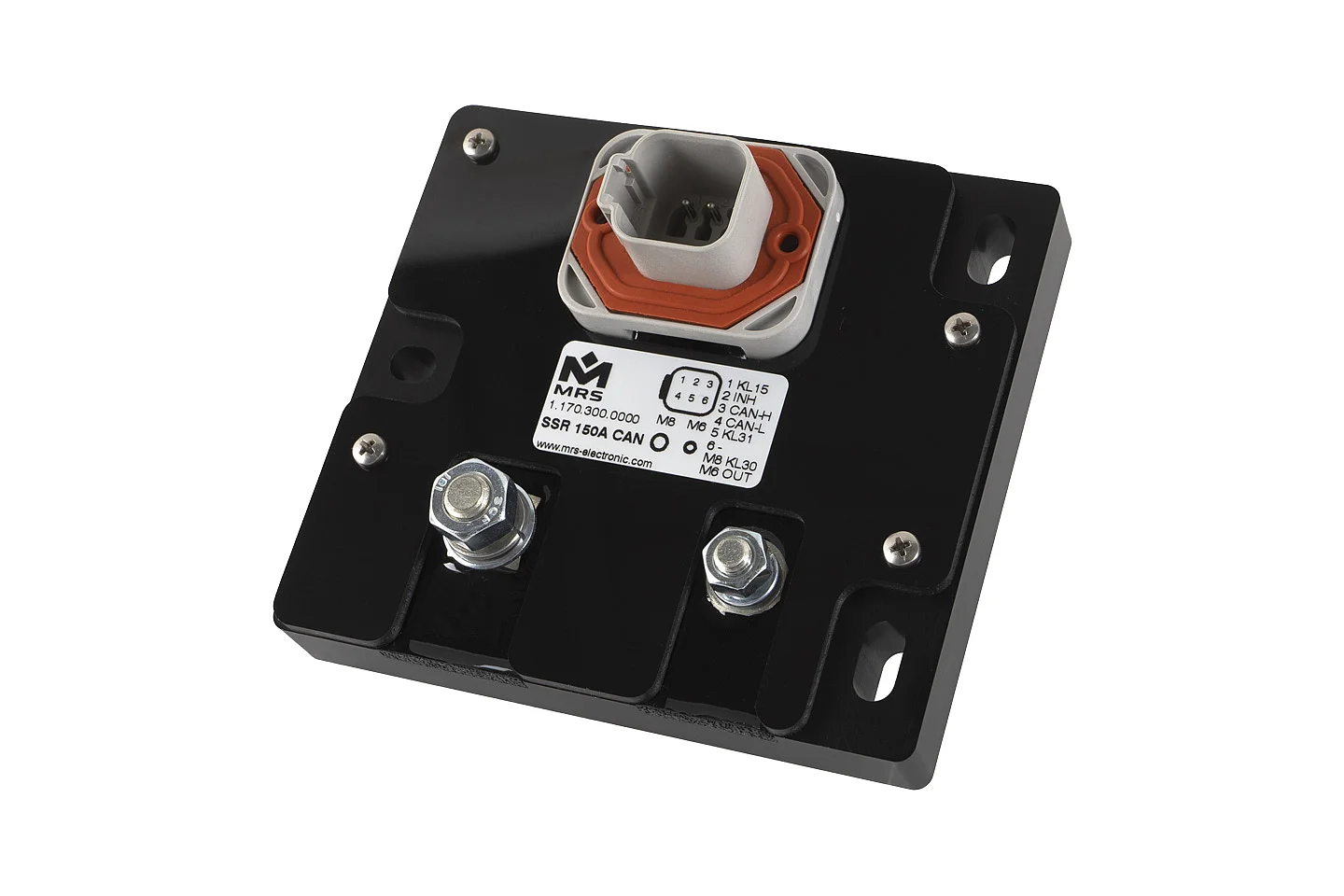

Solid State Relay SSR 150 A CAN

Article number : 1.170

The powerful SSR 150 A CAN solid state relay is designed for use in your vehicles and machines with an on-board voltage of 12 volts and 24 volts and switches loads up to a capacity of 200 A. This makes the module ideally suited for switching large loads such as heating, fans, or cooling elements in the agricultural or commercial vehicle sector and does not require a heat sink.

Operating voltage: 9-32 V
Outputs (total): 1
Quiescent current (12V): 27 µA
Quiescent current (24V): 21 µA
Switching current: 200A @ 25 °C
IP rating: IPX8
