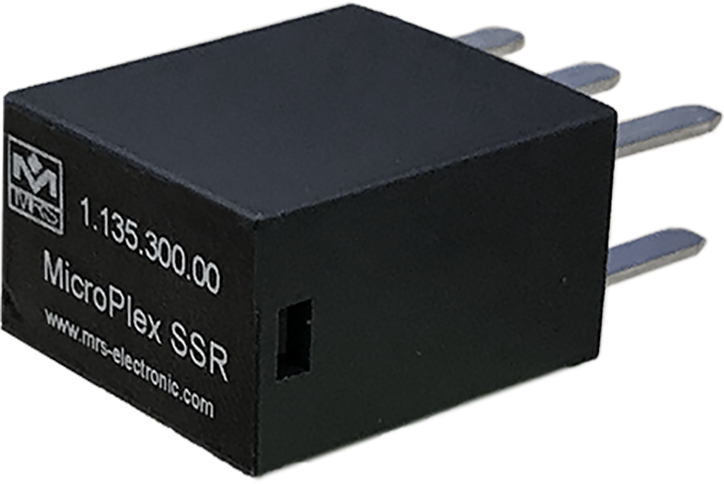

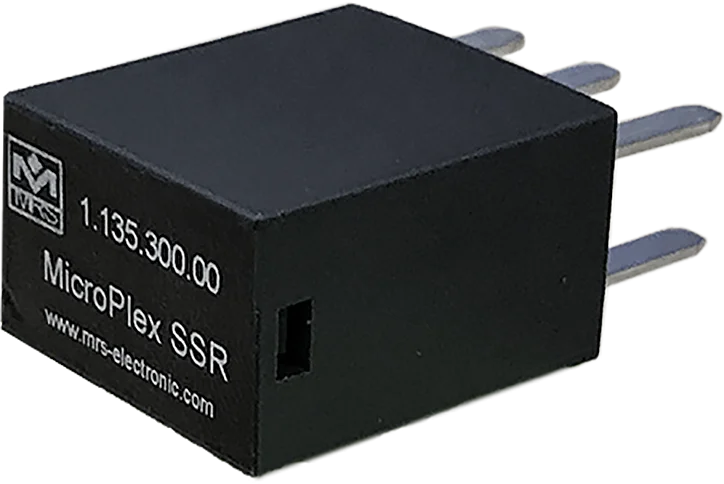

MicroPlex® SSR18
1.135.300.00 ( choose order option )(113530000)
The MicroPlex® SSR18 is a solid-state Relay that is built to the standard ISO280 relay footprint and will fit any standard fuse and relay box. The middle terminal is used for current monitoring and diagnostics by one of our MicroPlex® controllers.
| Name | Value |
|---|---|
| Weight | 50 g |
| Dimensions | 30.4 × 23.6 × 36.34 mm |
| Housing material | PA66 Nylon |
| Operating voltage | 12 V |
| Protection class | IP67 |
| Name | Value |
|---|---|
| Number of pins | 5 |
| I/Os | 3 |
| Inputs (digital) | 1 |
| Temperature range | -40 to 85 °C |
| Protection class | IP67 |
| Operating voltage | 12 V |
| Current sense output | 1 |
| Name | Model | Order no. | ||
|---|---|---|---|---|
| MicroPlex™ SSR18 Solid State Relay | 18 Ampere | 1.135.300.00 (113530000) |
| Required accessories | Article number | |
|---|---|---|

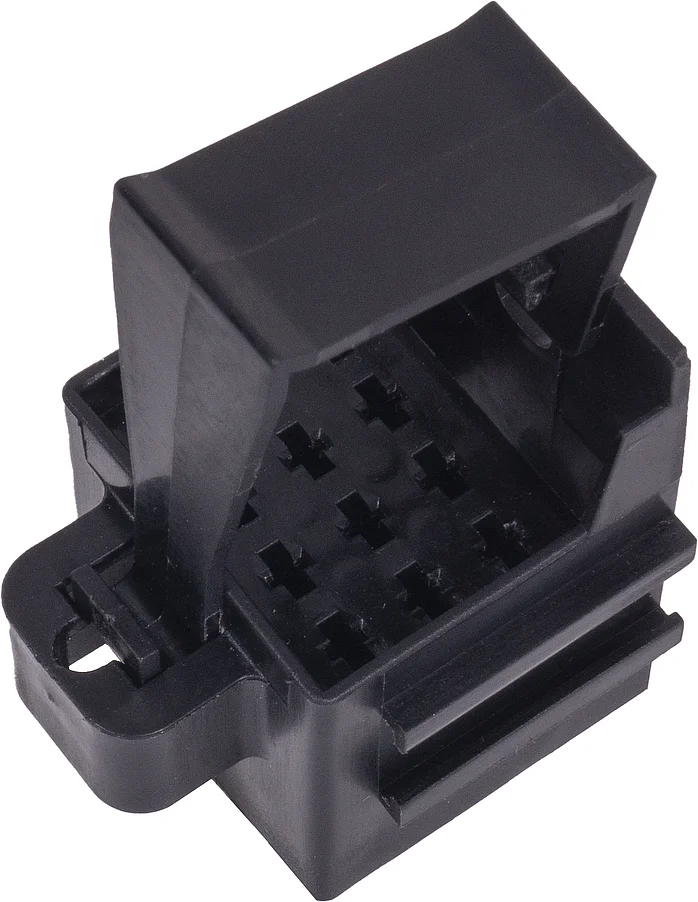

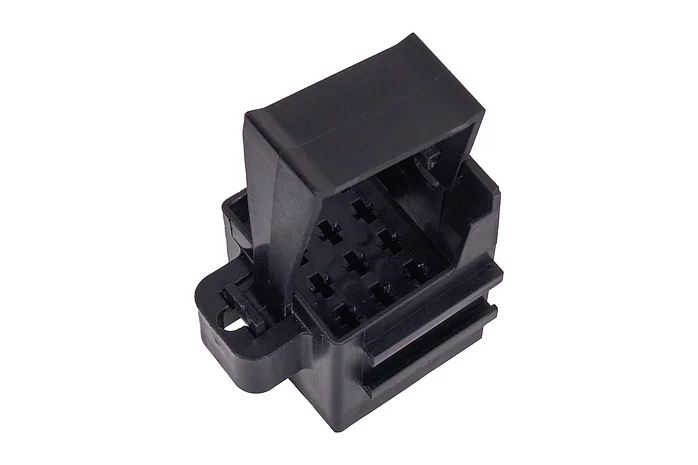

| Single MicroPlex Socket - Sealed | xxx | |

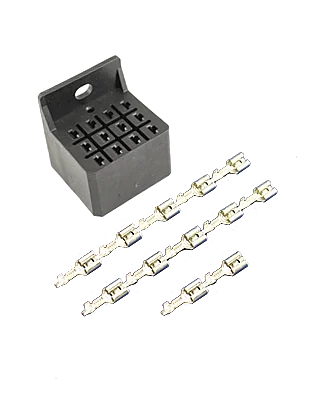

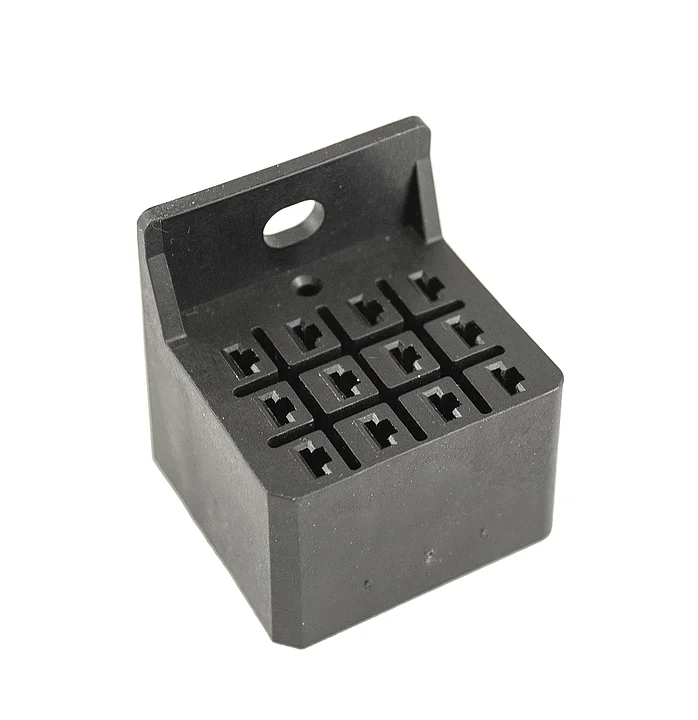

| Single MicroPlex Socket - Basic | xxx |
