Toggle Relays

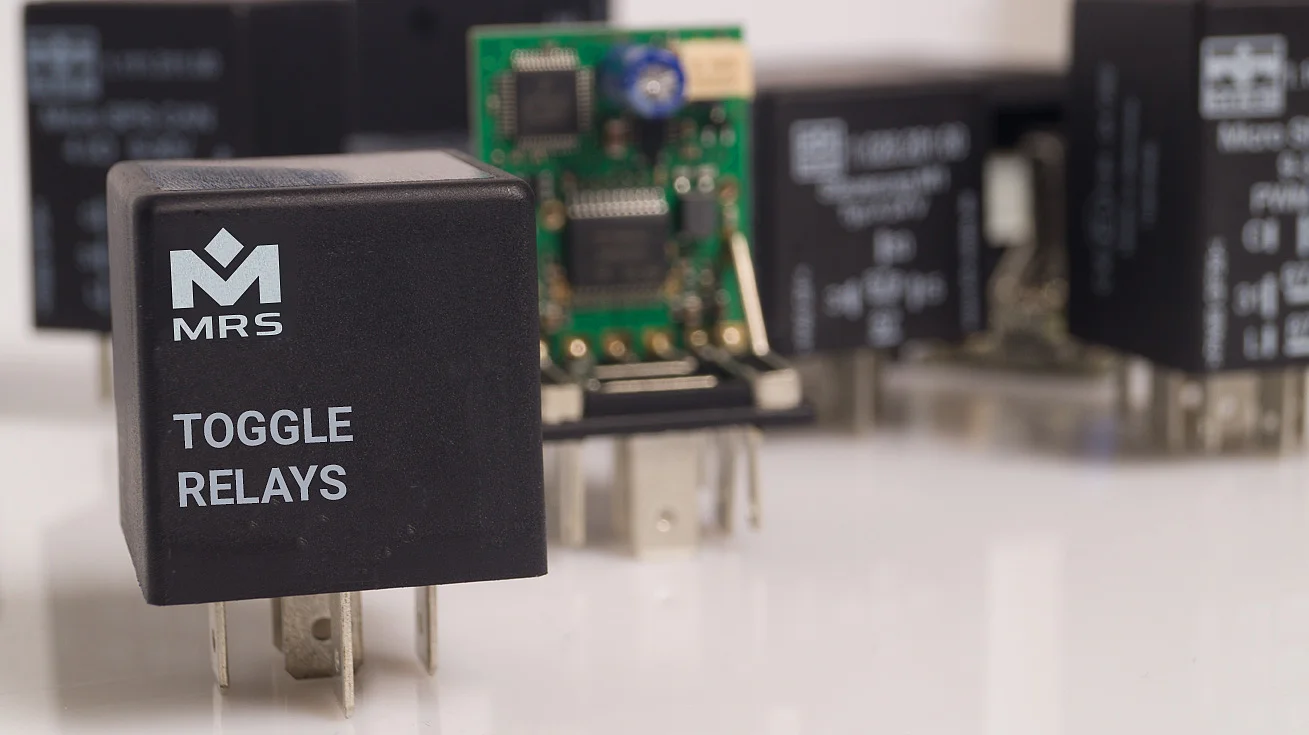

With toggle relays, load devices can be switched with a pushbutton. If a positive / negative pulse is applied to terminal 15, the relay switches and holds itself. With another pulse it switches again. Our toggle relays are available in electronic and mechanical version, two operating voltages and two different sizes.

Toggle Relay 12 V

Article number : 1.001.10x.01

Operating voltage: 9-16 V
Outputs (total): 1
Number of pins: 5
Relay outputs: 1
Switching current: NC 20 A / NO 20 A
IP rating: IP53

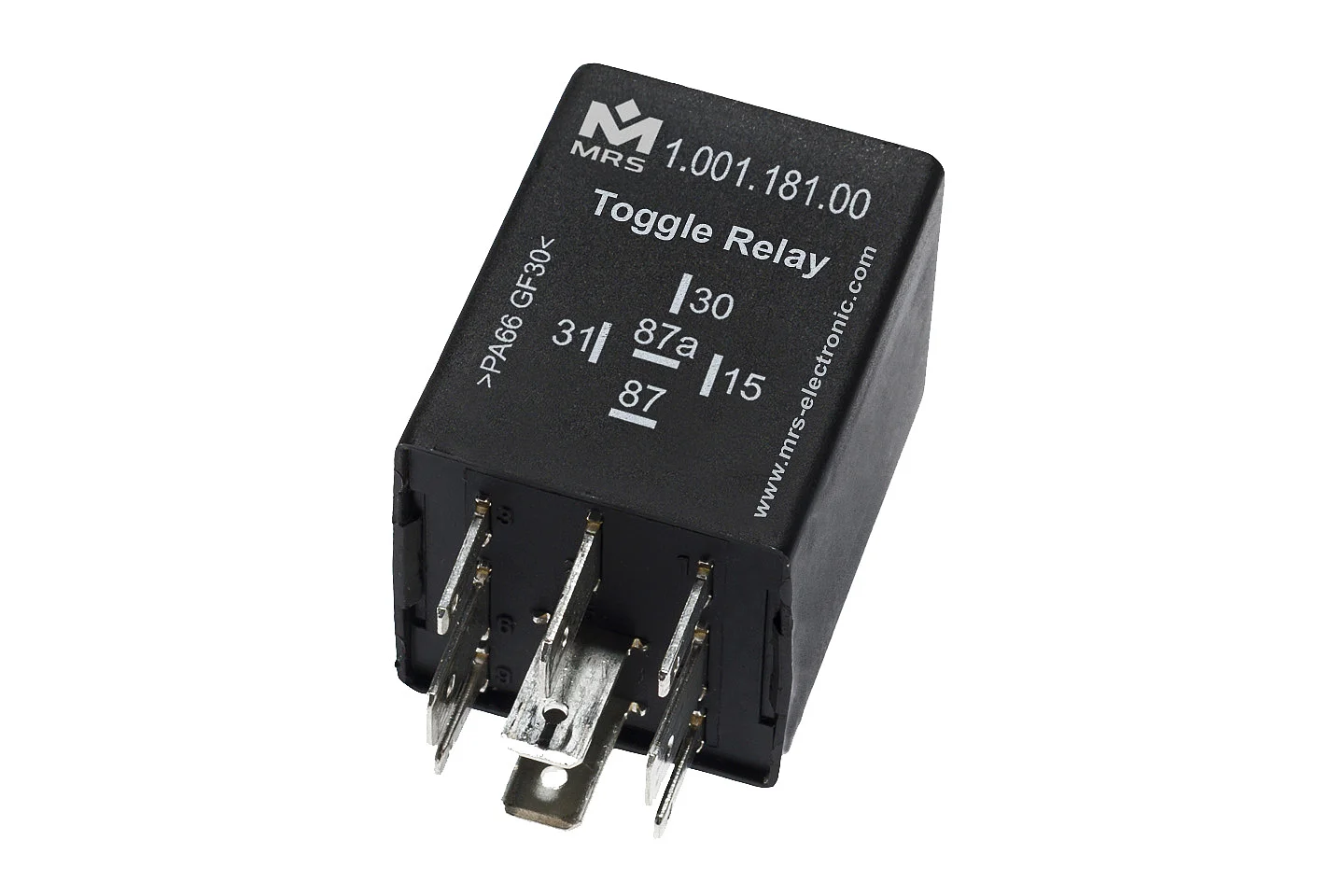

Toggle Relay M1 Compact 12 V

Article number : 1.001.18x.00

Operating voltage: 9-16 V
Outputs (total): 1
Number of pins: 5
Relay outputs: 1
Quiescent current (12V): 1 mA
Switching current: 20 A
Switching cycles: 100000
IP rating: IP53

Toggle Relay Time-limited & Compact M1 12V

Article number : 1.001.18x.xx

Operating voltage: 9-16 V
Outputs (total): 1
Number of pins: 5
Relay outputs: 1
Quiescent current (12V): 1 mA
Switching current: 20 A
Switching cycles: 100000
IP rating: IP53

Toggle Relay M3 12V

Article number : 1.001.19x.00

Operating voltage: 9-16 V
Outputs (total): 1
Number of pins: 5
Relay outputs: 1
Switching current: NO 20 A / NC 15 A
Switching cycles: 100000
IP rating: IP53

Toggle Relay Time Limited M3 12 V

Article number : 1.001.19x.xx

Operating voltage: 9-16 V
Outputs (total): 1
Number of pins: 5
Relay outputs: 1
Switching current: NO 20 A / NC 15 A
Switching cycles: 100000
IP rating: IP53

Toggle Relay 24V

Article number : 1.001.20x.001

Operating voltage: 16-32 V
Outputs (total): 1
Number of pins: 5
Relay outputs: 1
Switching current: NC 15 A / NO 15 A
IP rating: IP53

Toggle Relay M1 compact 24V

Article number : 1.001.28x.00

Operating voltage: 16-32 V
Outputs (total): 1
Number of pins: 5
Relay outputs: 1
Switching current: 15 A NC / 15 A NO
Switching cycles: 100000
IP rating: IP53

Toggle Relay M1 Compact & Time Limited 24V

Article number : 1.001.28x.xx

Operating voltage: 16-32 V
Outputs (total): 1
Number of pins: 5
Relay outputs: 1
Switching current: 15 A NC / 15 A NO
Switching cycles: 100000
IP rating: IP53

Toggle Relay M3 24 V

Article number : 1.001.29x.00

Operating voltage: 14-32 V
Outputs (total): 1
Number of pins: 5
Relay outputs: 1
Switching current: NC 15 A / NO 15 A
Switching cycles: 100000
IP rating: IP53

Toggle Relay Time Limited M3 24V

Article number : 1.001.29x.xx

Operating voltage: 14-32 V
Outputs (total): 1
Number of pins: 5
Relay outputs: 1
Switching current: NC 15 A / NO 15 A
Switching cycles: 100000
IP rating: IP53
