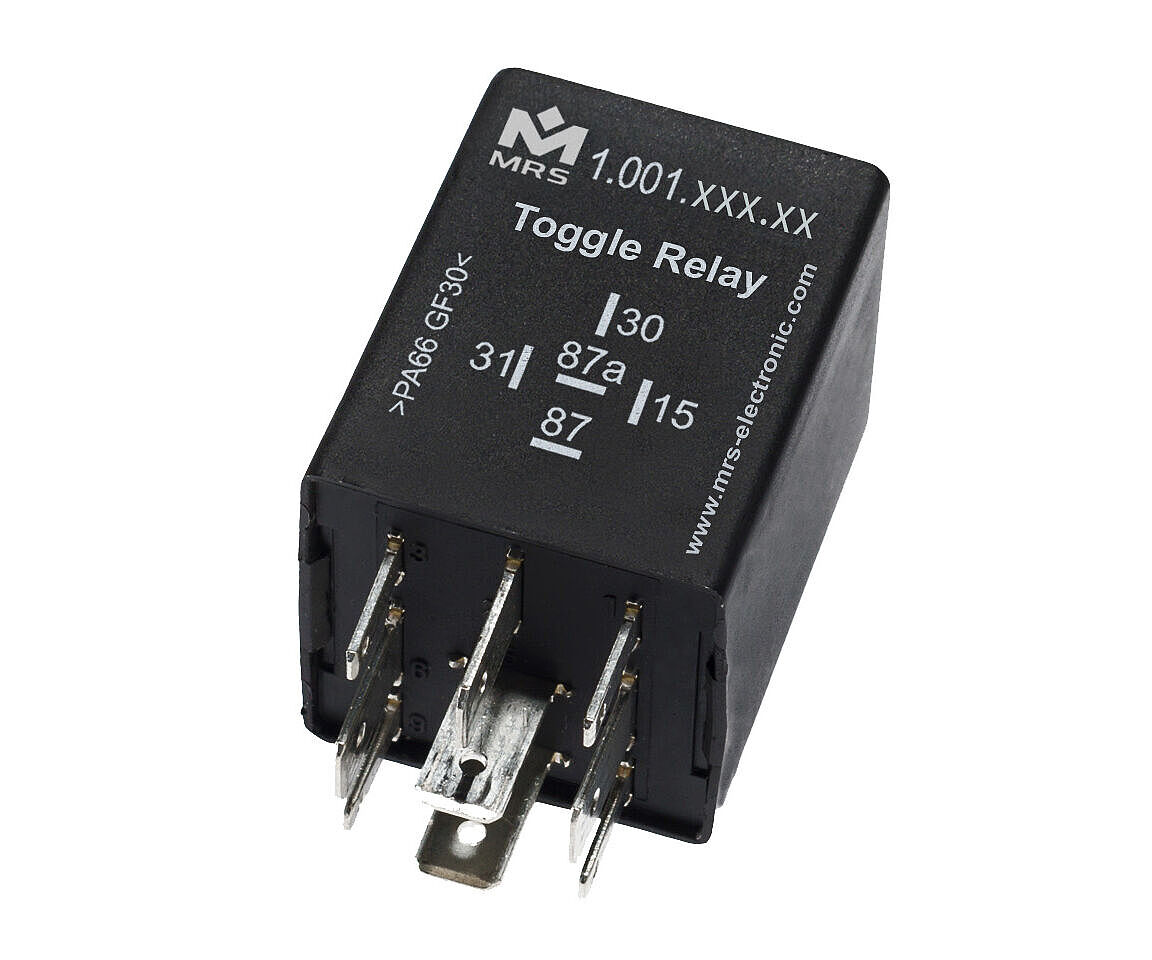

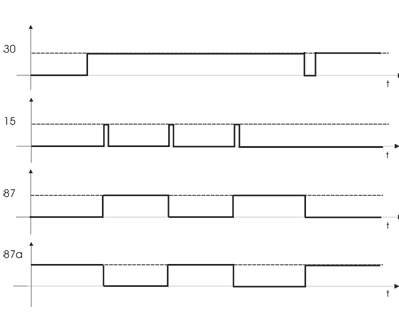

The application area of toggle relays is the switching on and off of loads via push-button operation. With the toggle relay a load can be switched by a push button. If a pulse is detected at terminal 15, the relay switches and holds itself. With a further impulse it switches again. (toggle switch or toggle flip-flop). Terminal 15 is debounced. For housing types see chapter housing and base body. These toggle relays are not programmable.
Name | Value |
---|---|
Dimensions | 30 × 30 × 40 mm |
Housing material | Plastic |
Number of pins | 5 |
In-/Outputs (total) | 1 |
Operating voltage | 12 V |
Name | Value |
---|---|
Number of pins | 5 |
In-/Outputs (total) | 1 |
Outputs (total) | 1 |
Relay outputs | 1 |
Temperature range | -40 to 85 °C |
Protection class | IP53 |
Operating voltage | 12 V |
Max. output current (87, 87a) | 20 A |
Quiescent current (12V) | 1 mA |
Lifetime | > 10.000.000 |

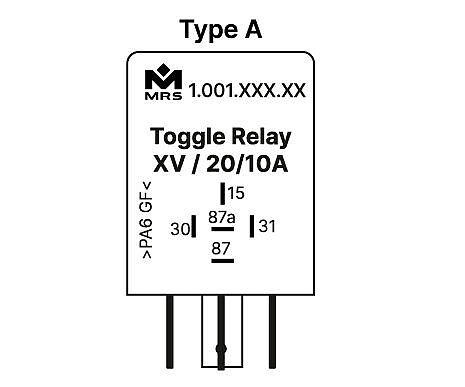

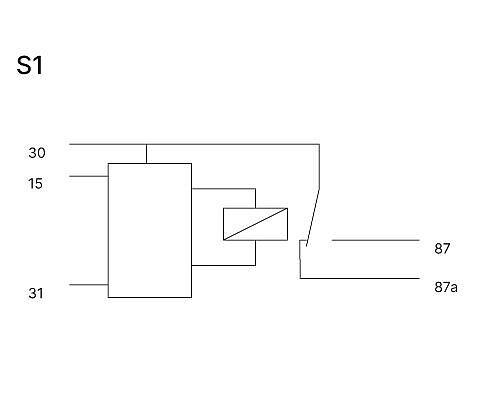

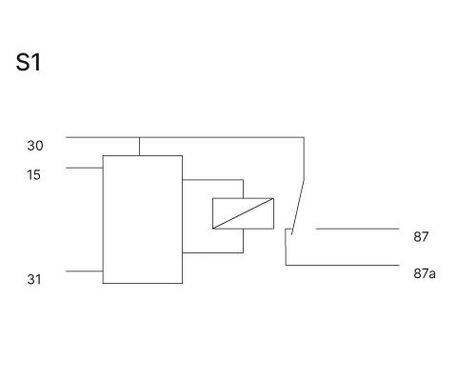

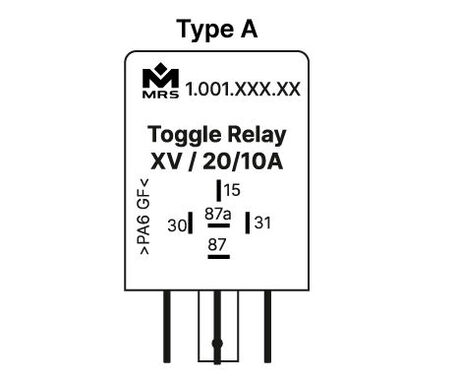

Name | Type | Model | Connection diagram | Order no. | ||
---|---|---|---|---|---|---|
Toggle Relay 12 V 20/20 A | A | KL 15 positive switching | S1 | 1.001.100.001E | ||
Toggle Relay 12 V 20/20 A | A | KL 15 switching to ground | S1 | 1.001.102.001E |
Required accessories | Article number | |
---|---|---|
Socket ST FL 9-pin 5 x 6.3 / 4 x 2.8 | 1.017.002.00 | |
Socket package watertight 40 mm | 1.017.010.40 | |
FASTON terminal for latching 2.8 mm 0.5 – 1.0 mm² | 105292 | |
FASTON terminal for latching 6.3 mm 1 mm² | 102355 | |
FASTON terminal for latching 6.3 mm 1.5 – 2.5 mm² | 103064 |
