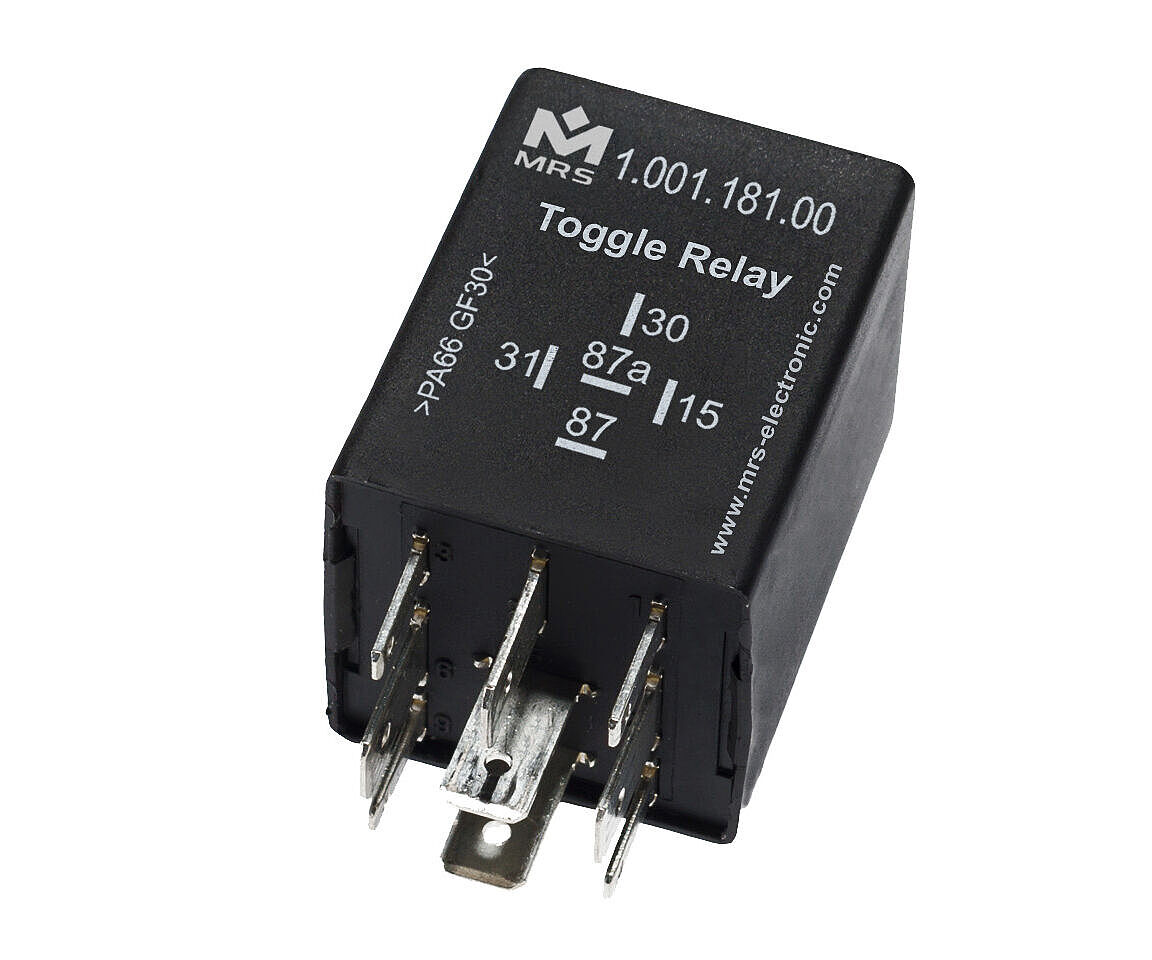

Toggle Relay 24 V

1.001.20x.00E ( choose order option )

The application area of toggle relays is the switching on and off of loads via push-button operation. With the toggle relay a load can be switched by a push button. If a pulse is detected at terminal 15, the relay switches and holds itself. With a further impulse it switches again. (toggle switch or toggle flip-flop). Terminal 15 is debounced. For housing types see chapter housing and base body. These toggle relays are not programmable.

Name Value
Dimensions 30 × 30 × 40 mm
Housing material Plastic
Number of pins 5
In-/Outputs (total) 1
Operating voltage 24 V
Name Value
Number of pins 5
In-/Outputs (total) 1
Outputs (total) 1
Relay outputs 1
Processor 8 bit
Temperature range -40 to 85  °C
Protection class IP53
Operating voltage 24 V
Max. output current (87, 87a) 15 A
Quiescent current (24V) 1 mA
Lifetime > 10.000.000

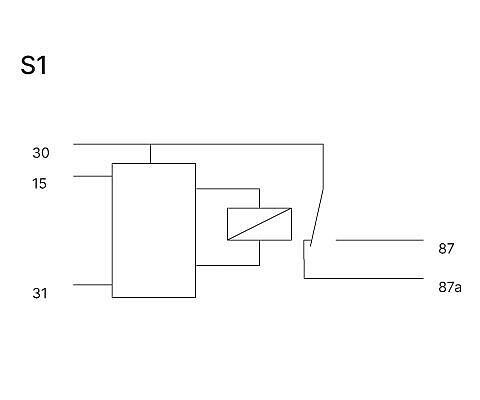

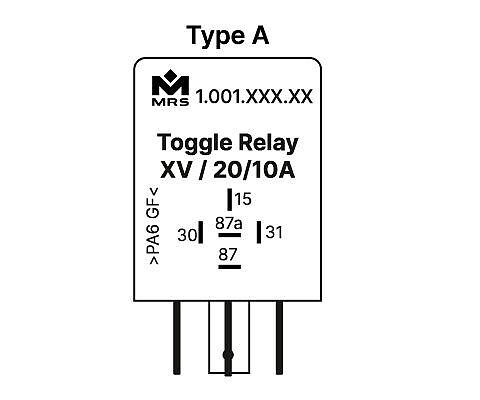

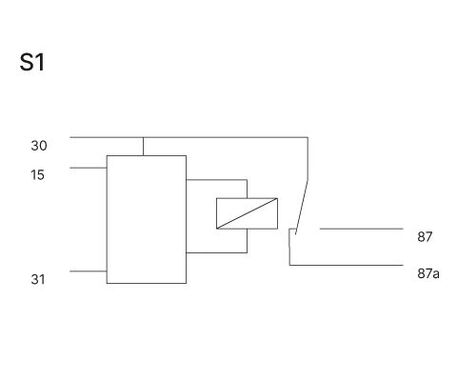

Name Type Model Connection diagram Order no.
Toggle Relay 24 V 15/15 A A KL 15 positive switching S1 1.​001.​200.​00E
Toggle Relay 24 V 15/15 A A KL 15 switching to ground S1 1.​001.​202.​00E
Required accessories Article number
Socket ST FL 9-pin 5 x 6.3 / 4 x 2.8 1.​017.​002.​00
Socket package watertight 40 mm 114265
FAS­TON ter­mi­nal for latching 2.8 mm 0.5 – 1.0 mm² 105292
FAS­TON ter­mi­nal for latching 6.3 mm 1 mm² 102355
FAS­TON ter­mi­nal for latching 6.3 mm 1.5 – 2.5 mm² 103064
