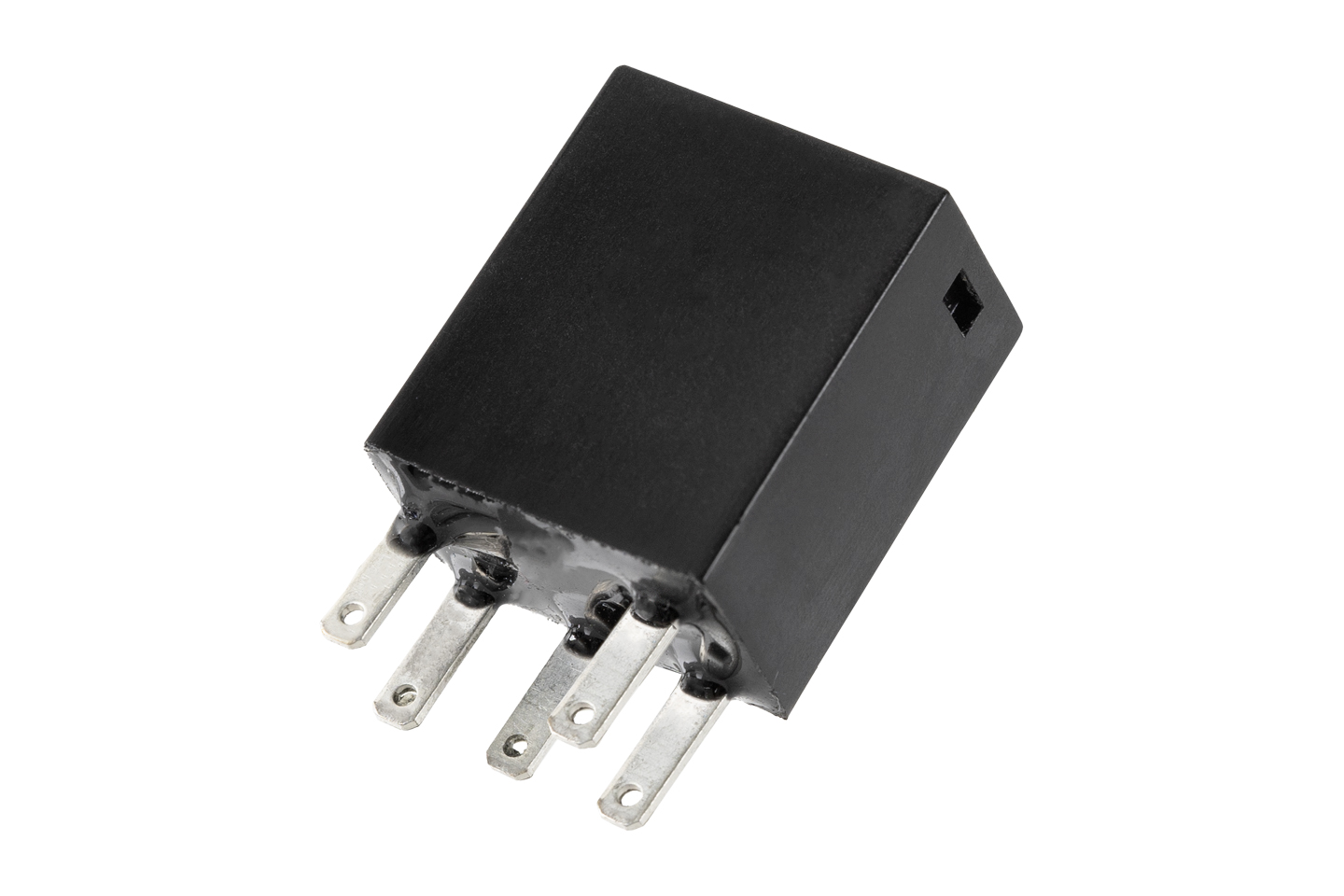

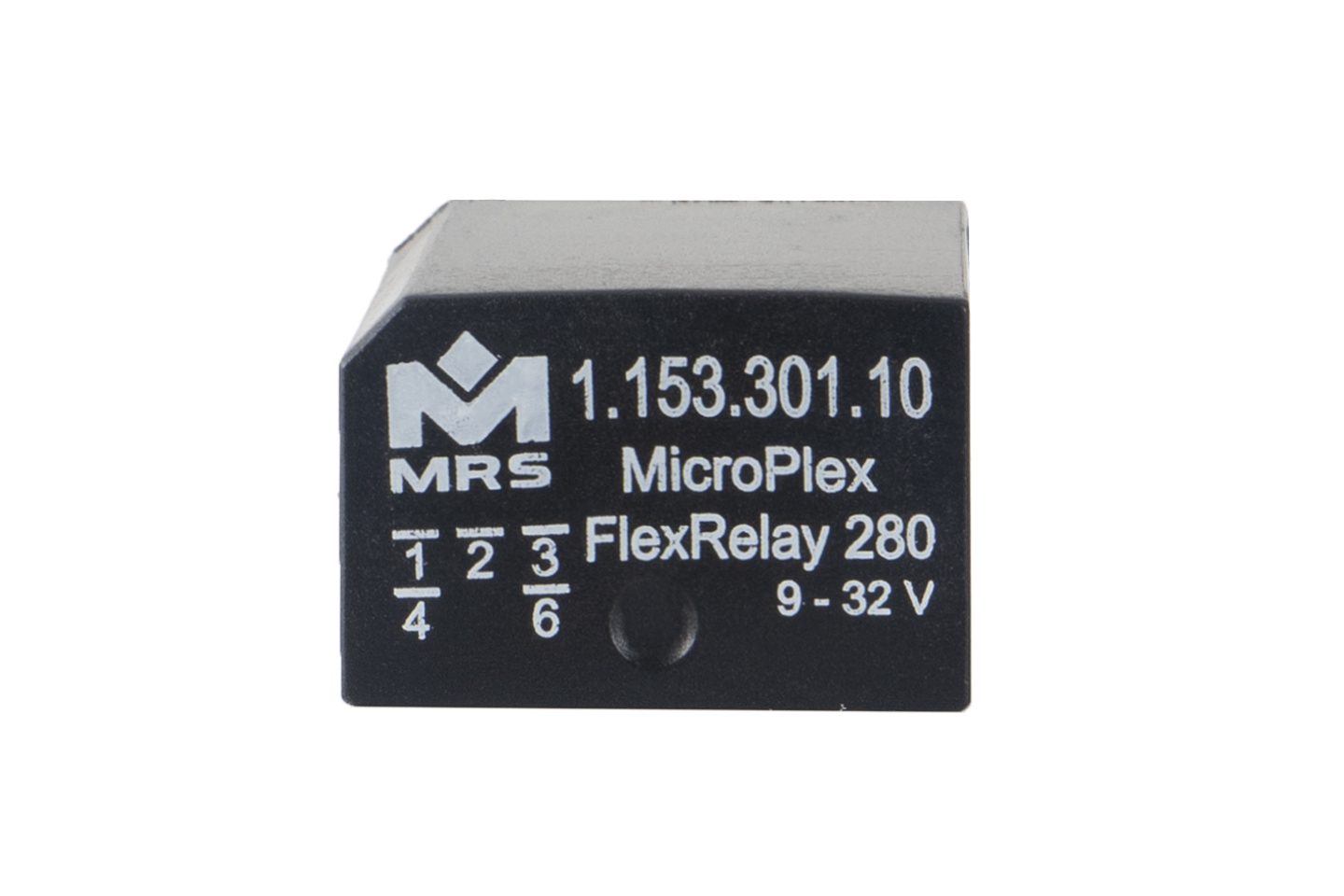

MicroPlex® FlexRelay 280
go to order options (115330x)
The MicroPlex® FlexRelay 280 is a powerful, cost-effective and, compact controller for a voltage range of 9 to 32 volts. This means you can use the module in on-board electrical systems with 12 V and 24 V. The MicroPlex® FlexRelay can be used for numerous applications such as: B. Parameterize time relays, pulse relays, stepper relays and many other functions.
Downloads
Technical details
Inputs and Outputs

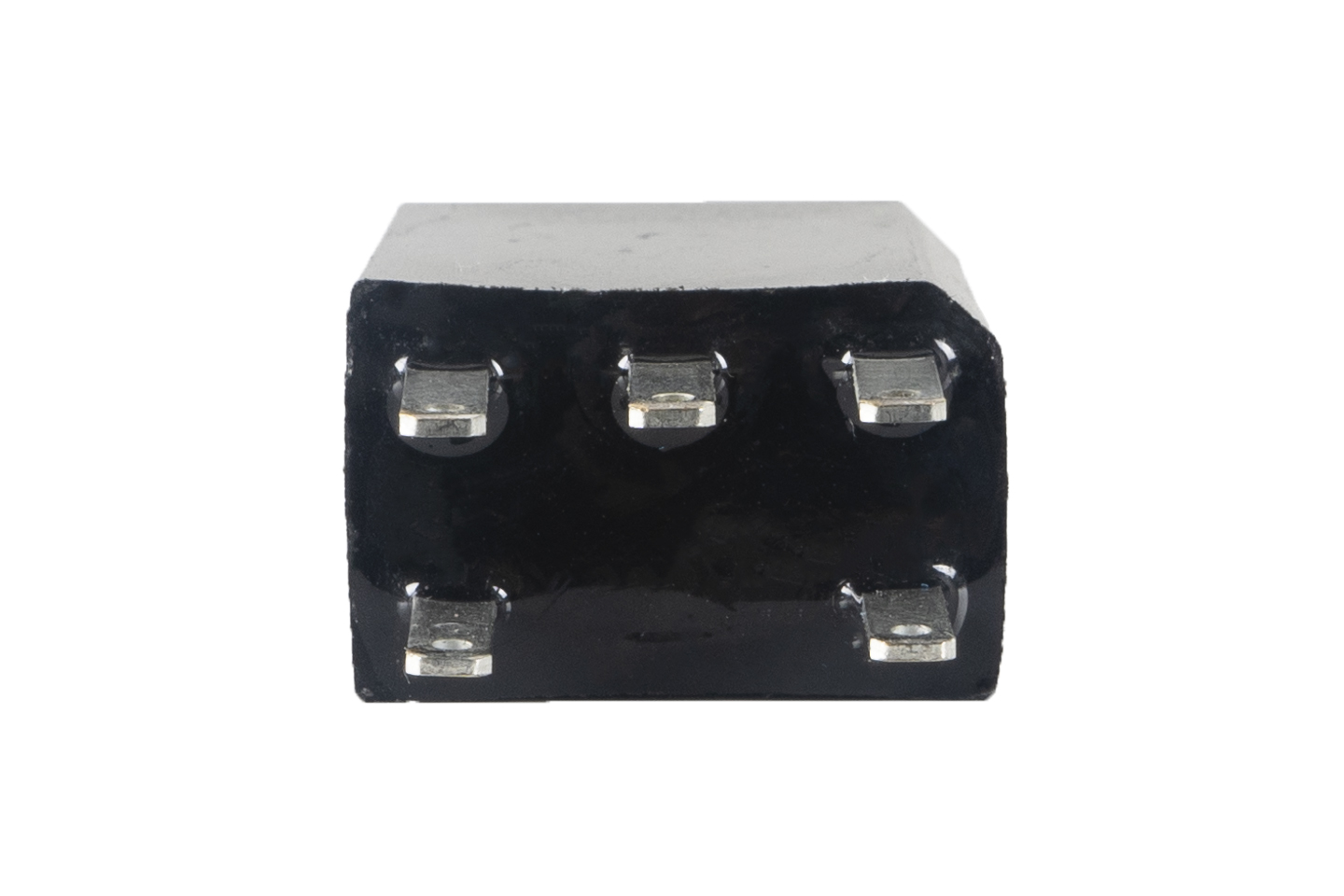

| Number of pins | 5 |
|---|---|
| In-/Outputs (total) | 2 |
| Inputs (total) | 1 |
| Inputs (digital) | 1 |
| Outputs (total) | 1 |
| Relay outputs | 1 |
Mechanical Properties
| IP rating | IP53 |
|---|---|
| Housing material | PA66GF30 |
| Dimensions | 22.5 × 15 × 26 mm |
Programming
| Programming software | MRS Realizer |
|---|
General
| Temperature range | -40°C to +85 °C |
|---|---|
| Operating voltage | 9-32 V |
| Current consumption | 5 mA |
Order options
| Order no. | Name |
|---|---|
| 1.153.301.00 (115330100) |
9-30V LB1 - Type A - Relay supply via terminal 30
|
| 1.153.301.10 (115330110) |
9-30V LB1 - Type A - Pullup
|
| 1.153.303.00 (115330300) |
9-30V LB2 - Type C - Supply via terminal 15
|
