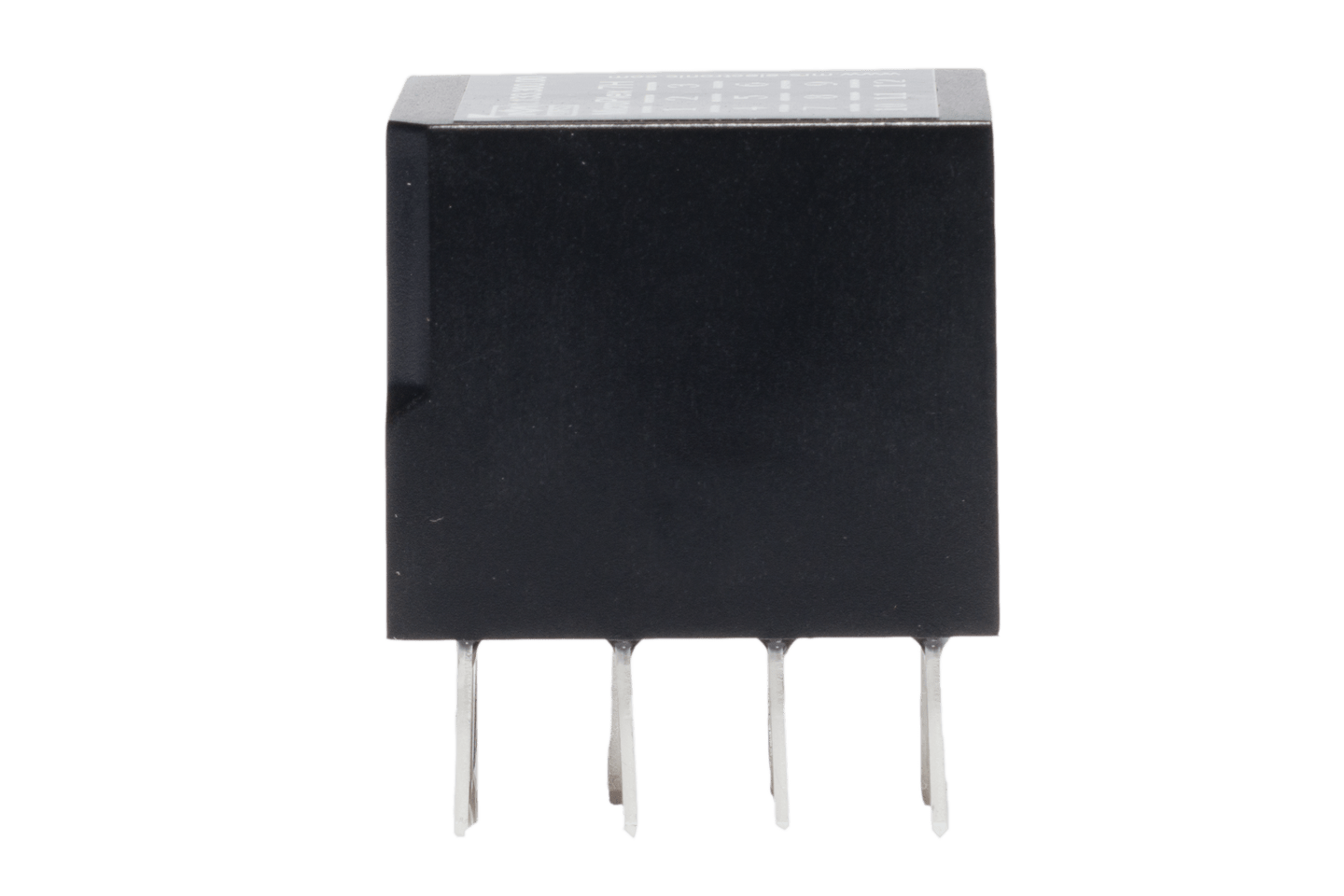

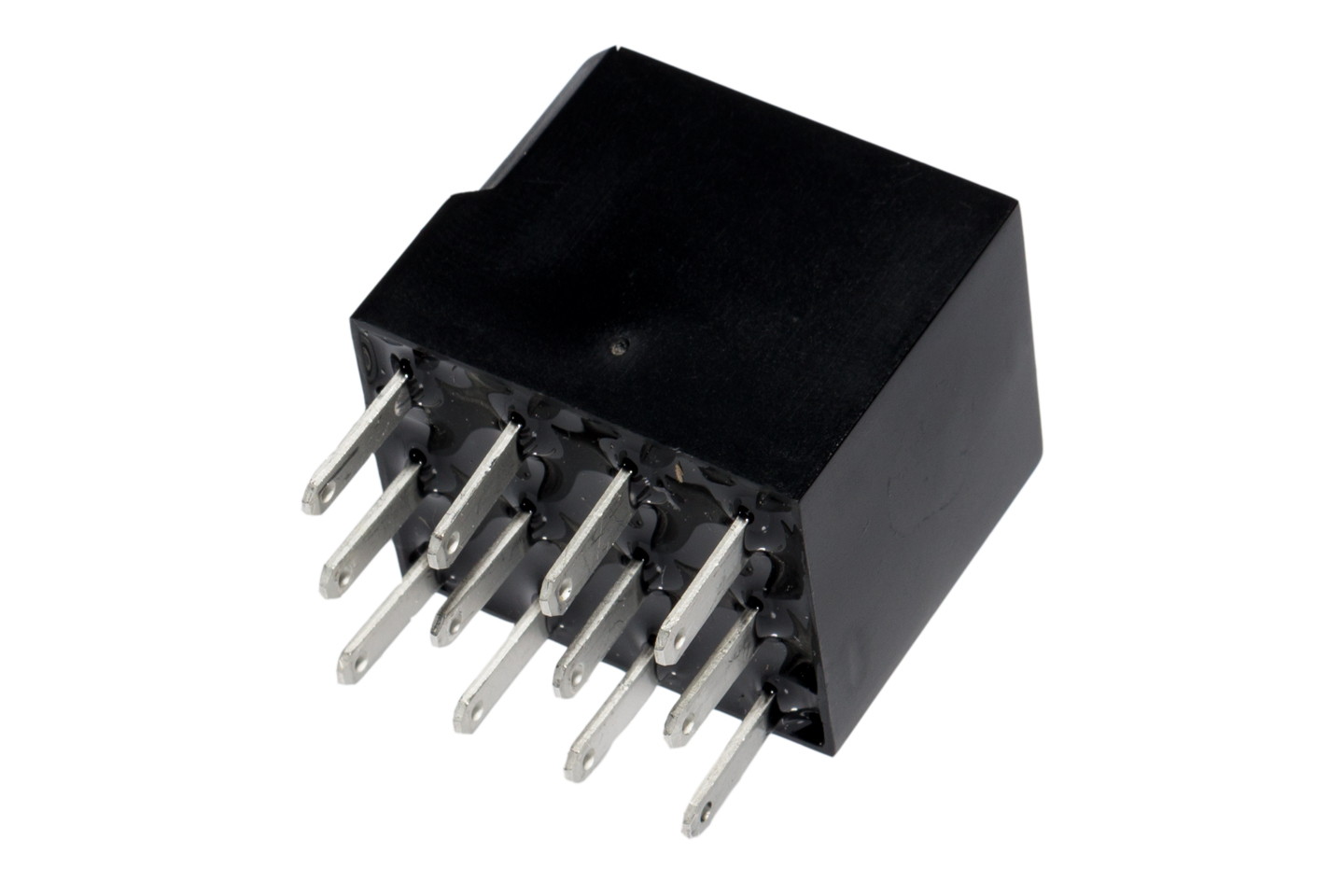

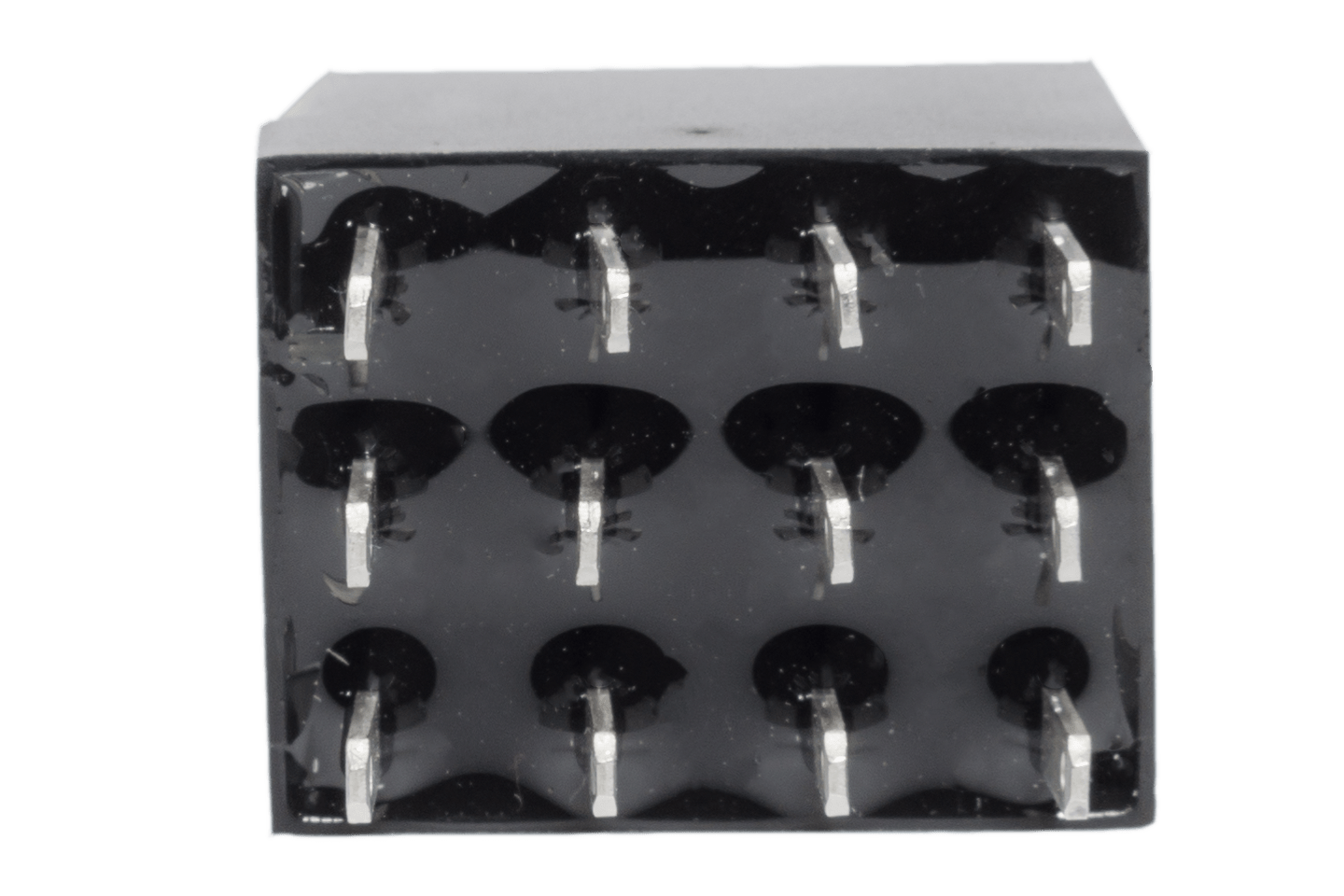

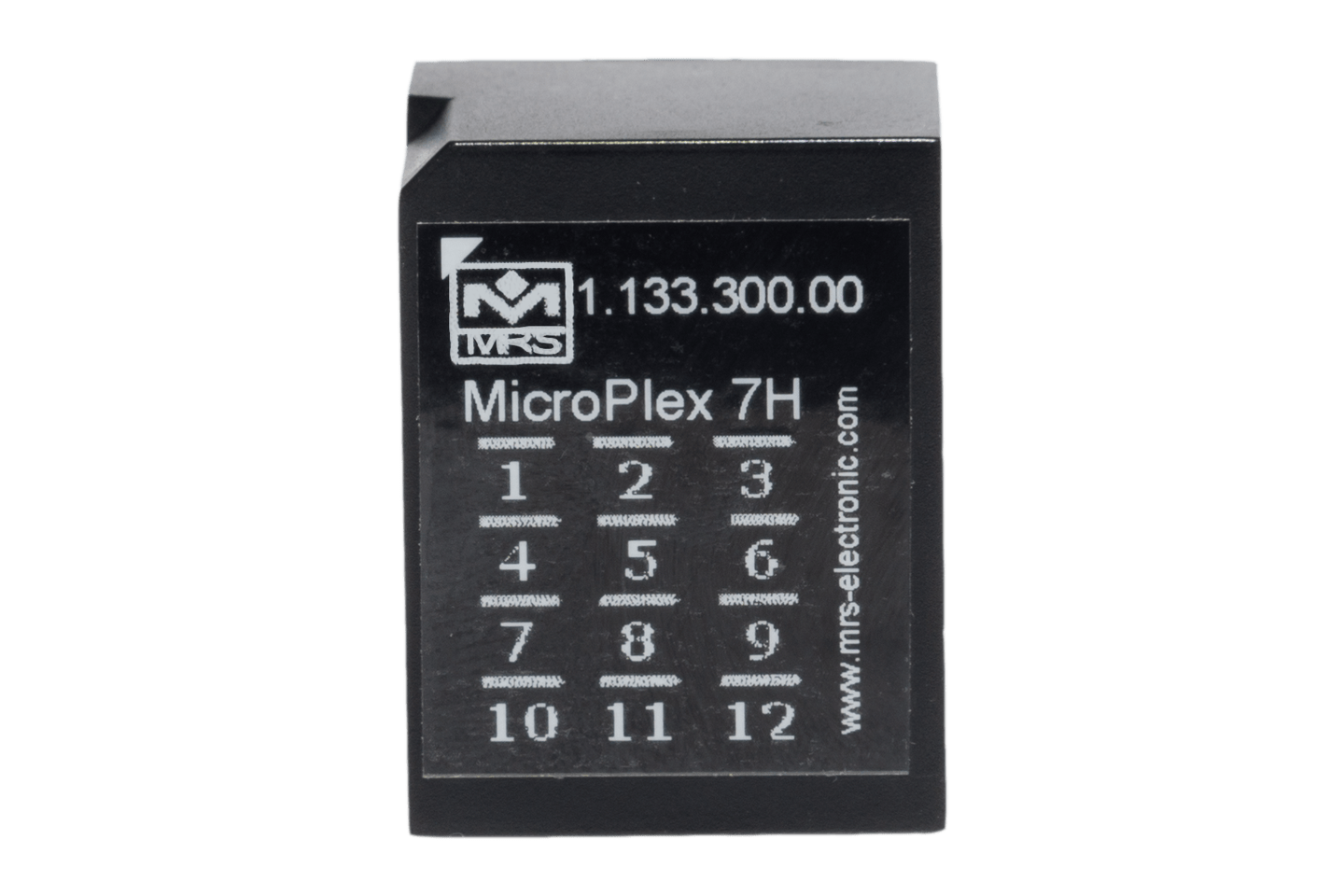

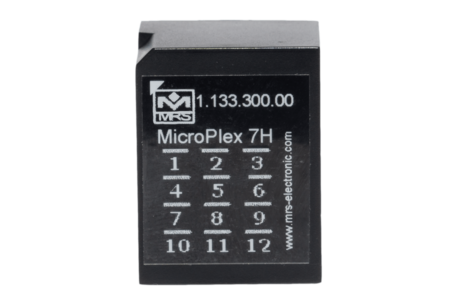

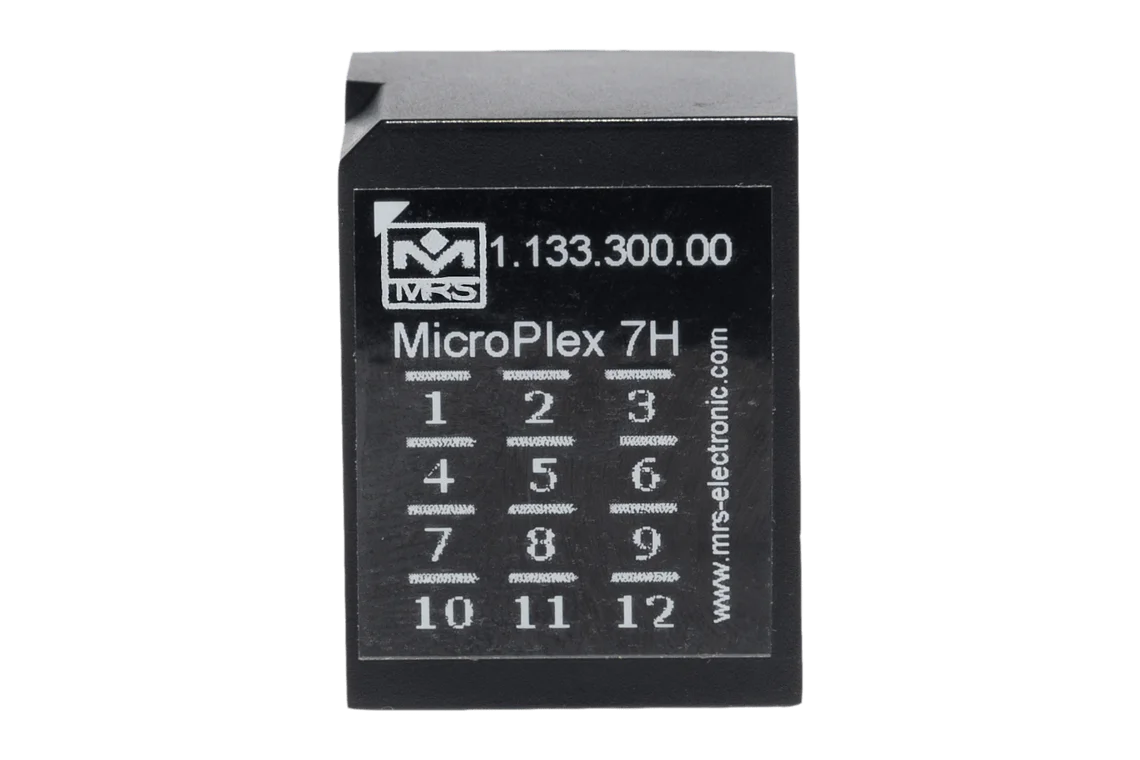

MicroPlex® 7H
go to order options (113330000)
The patented MicroPlex® is the smallest CAN controller with the highest integration level from MRS Electronic. This module has a footprint of 2 Micro 280 relays so you can easily build your own CAN bus capable power distribution systems. The 7H version has a total of 7 high-side driver outputs that switch the supply voltage. Of these, 6 are PWM-capable. In this way, the innovative MicroPlex® adapts perfectly to your needs.
The MicroPlex® can very quickly and easily generate an intelligent system with CAN bus communication from previously simple ISO 280 boxes. With the CAN interface, the Microplex® allows you to upgrade your existing systems with diagnostic capability.
Technical details
Inputs and Outputs
| Number of pins | 12 |
|---|---|
| In-/Outputs (total) | 7 |
| Outputs (total) | 7 |
| Outputs (PWM capable) | 6 |
| Outputs (digital) | 1 |
| Output type high side | 7 |
| Switching current | 2.5 A |
| Continuous current | 2.2 A |
Interfaces
| CAN interface(s) | 1 |
|---|
Mechanical Properties
| IP rating | IP67 |
|---|---|
| Housing material | PA66GF30 |
| Dimensions | 30.4 × 23.6 × 25.75 mm |
Programming
| Programming software | MRS Developers Studio |
|---|
General Information
| Temperature range | -40 to +85°C |
|---|---|
| Operating voltage | 9-32 V |
| Current consumption | 23 mA |
| Quiescent current (12V) | 170 µA |
| Quiescent current (24V) | 250 µA |
| Processor architecture | 8 bit |
Markings
Order options
| Order no. | Name |
|---|---|
| 1.133.300.00 (113330000) |
MicroPlex 7H
|
