MicroPlex® 7X
go to order options (113230000)

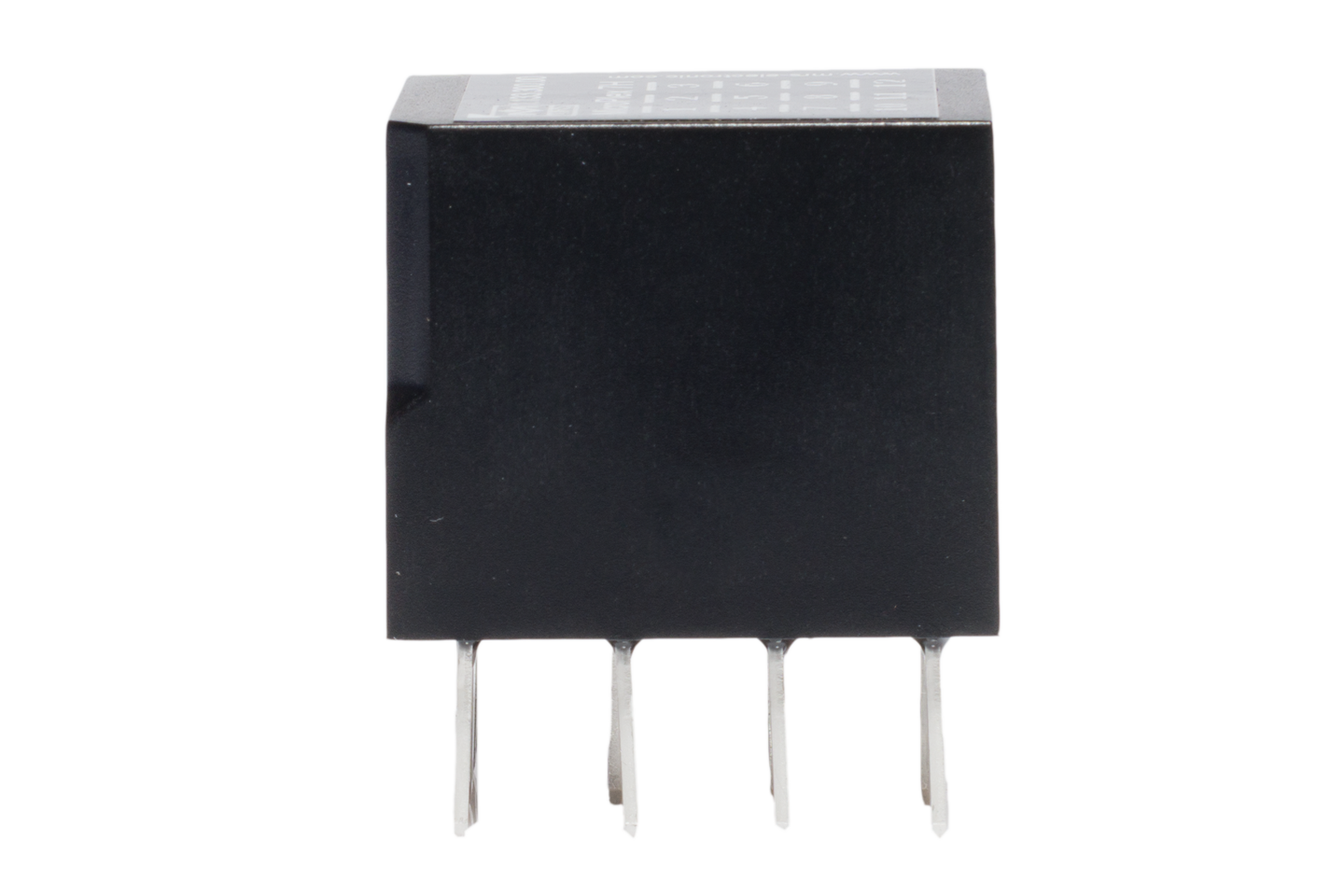

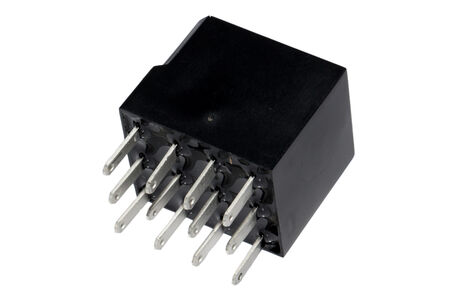

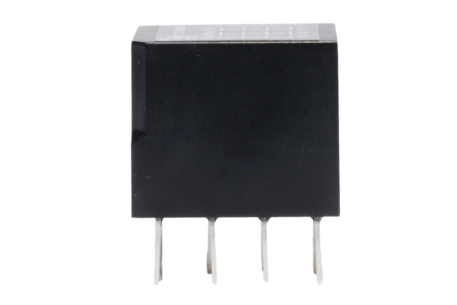

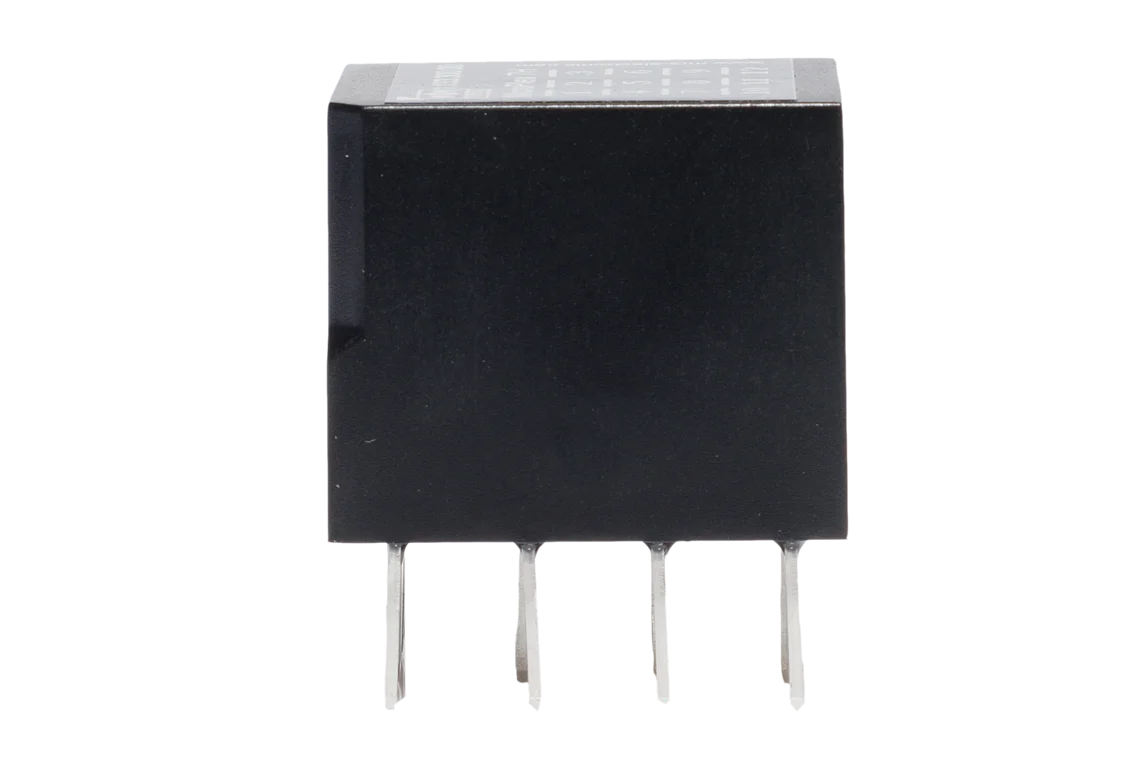

The patented MicroPlex® is the smallest CAN controller with the highest integration level from MRS Electronic. On the base area of the 2 Micro 280 relays you can easily build your own CAN bus capable power distribution systems. The 7X version has 7 inputs/outputs: 4 PWM-capable high-side driver outputs that you can configure as analog or digital inputs. And 3 analog or digital inputs that you can configure via software as frequency inputs, for negative enconder signals (pull-up resistor) or as current inputs (0-20 mA). In this way, the innovative MicroPlex® adapts perfectly to your needs.
The MicroPlex® can very quickly and easily generate an intelligent system with CAN bus communication from previously simple ISO 280 boxes. With the CAN interface the Microplex® allows you to upgrade your existing systems with diagnostic capability.
Technical details
Inputs and Outputs
| Number of pins | 12 |
|---|---|
| In-/Outputs (total) | 7 |
| Inputs (total) | 3 |
| Inputs (analog) | 3 |
| I/Os (total) | 4 |
| I/O (Output PWM capable) | 4 |
| Output type high side | 4 |
| Switching current | 2 A |
Interfaces
| CAN interface(s) | 1 |
|---|
Mechanical Properties
| IP rating | IP67 |
|---|---|
| Housing material | PA66GF30 |
| Dimensions | 30.4 × 23.6 × 25.75 mm |
Programming
| Programming software | MRS Developers Studio |
|---|
General
| Temperature range | -40 to +85°C |
|---|---|
| Operating voltage | 9-32 V |
| Current consumption | 36 mA |
| Quiescent current (12V) | 160 µA |
| Quiescent current (24V) | 220 µA |
| Processor architecture | 8 bit |
Markings
Order options
| Order no. | Name |
|---|---|
| 1.132.300.00 (113230000) |
MicroPlex 7X
|
