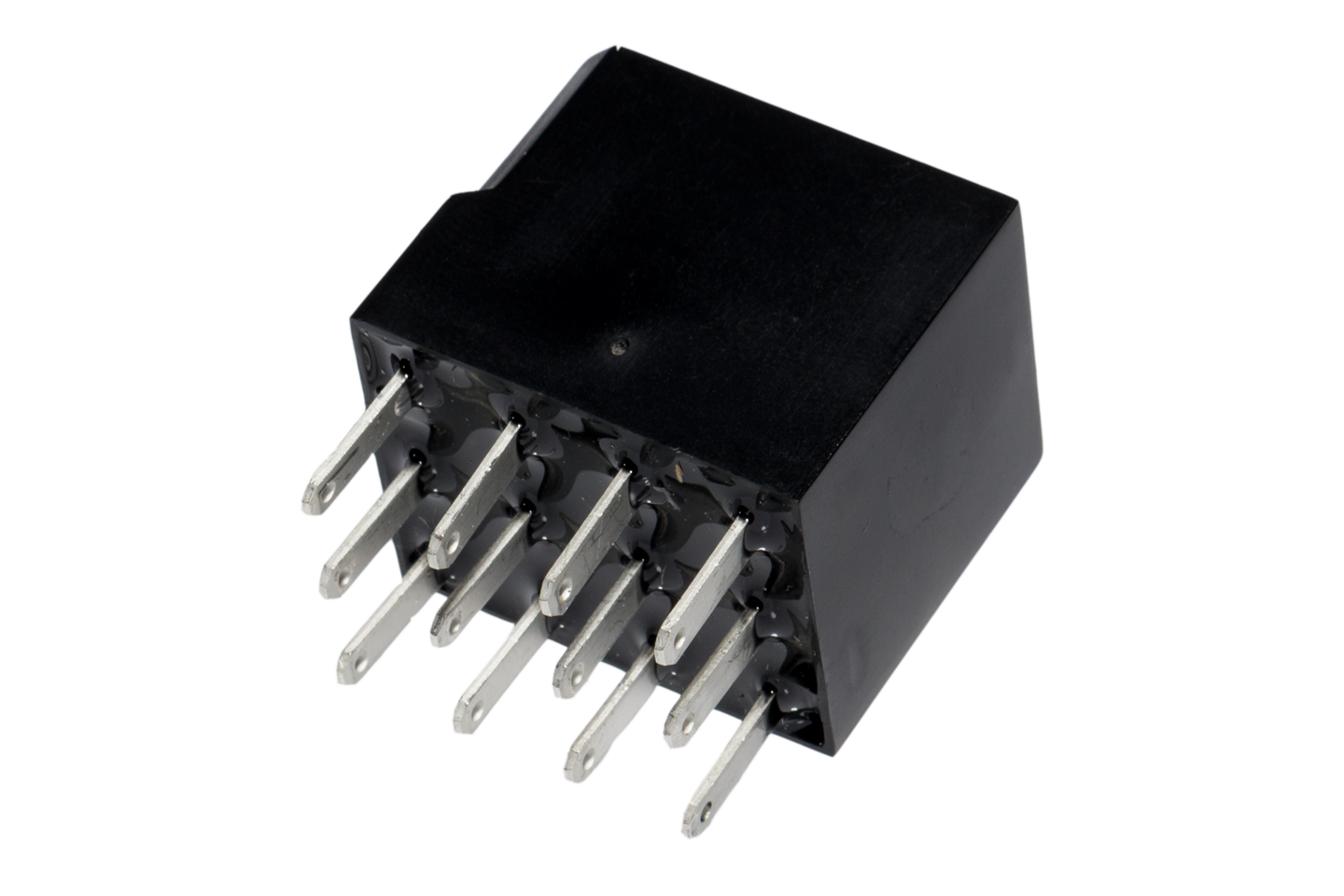

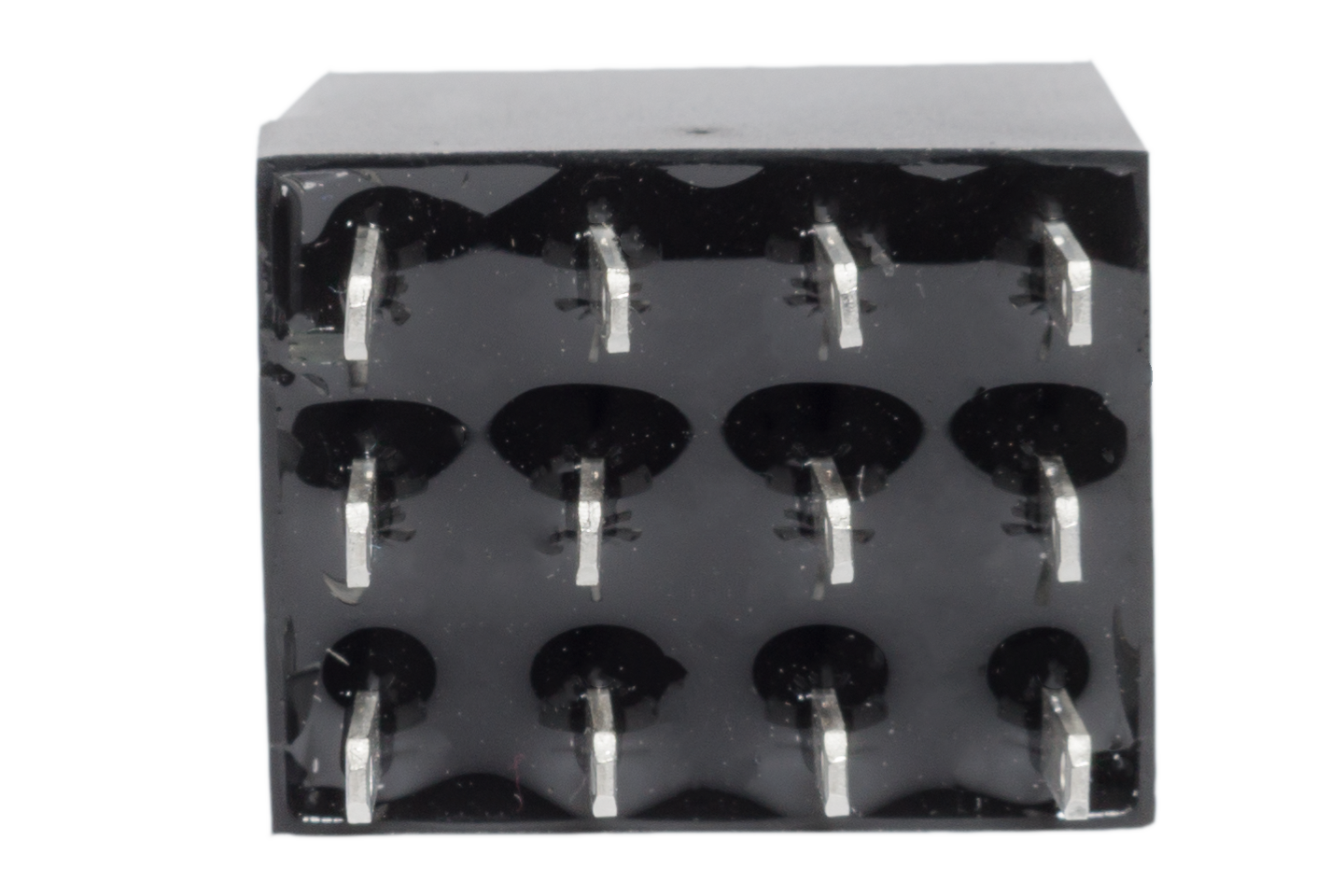

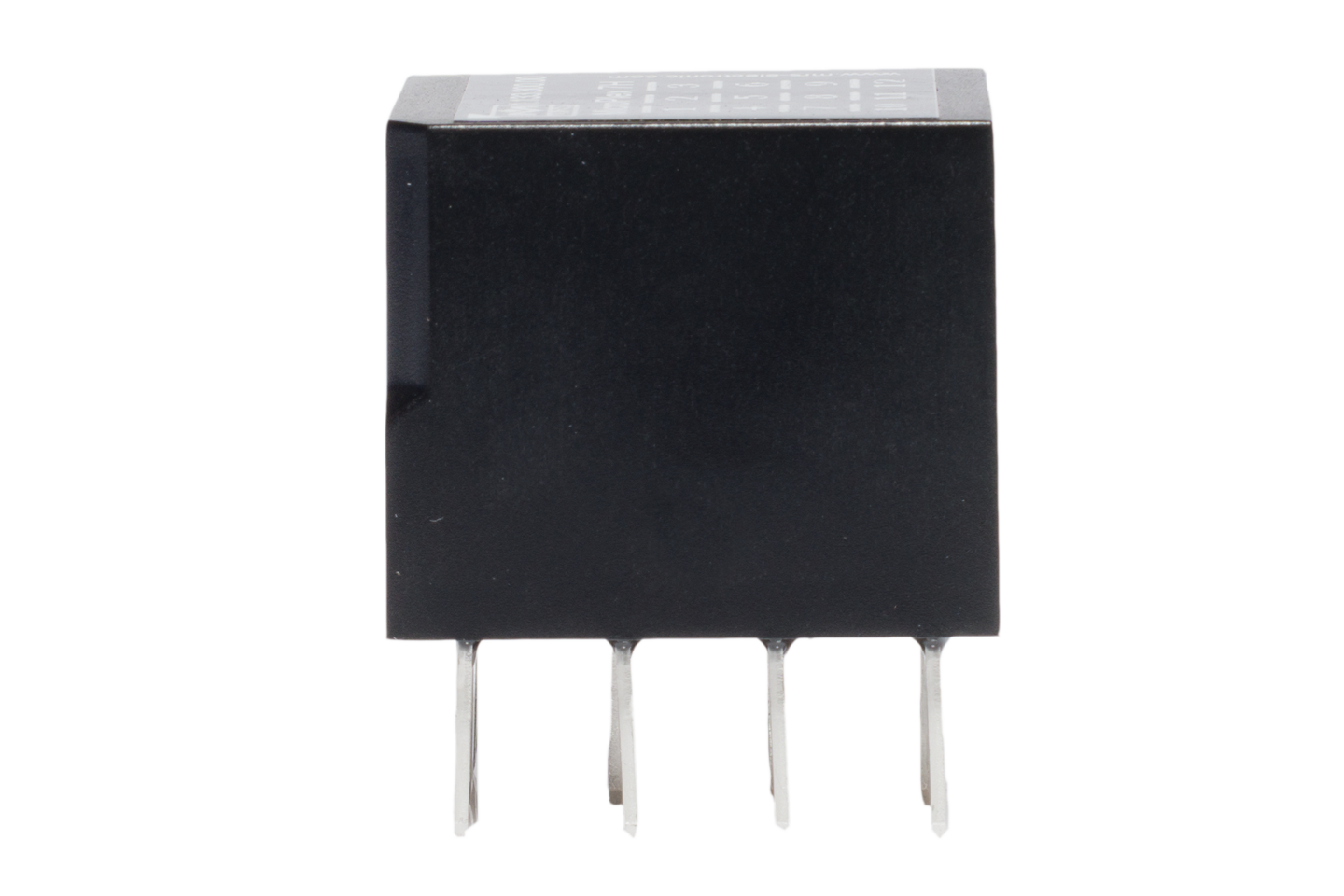

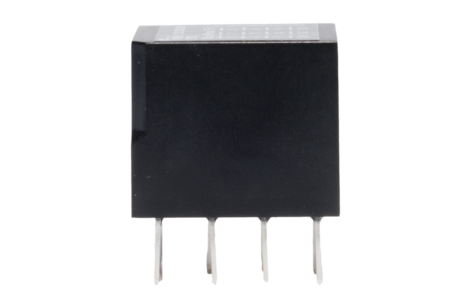

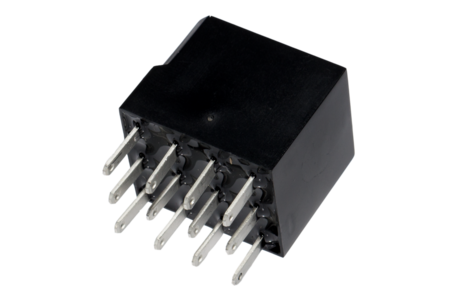

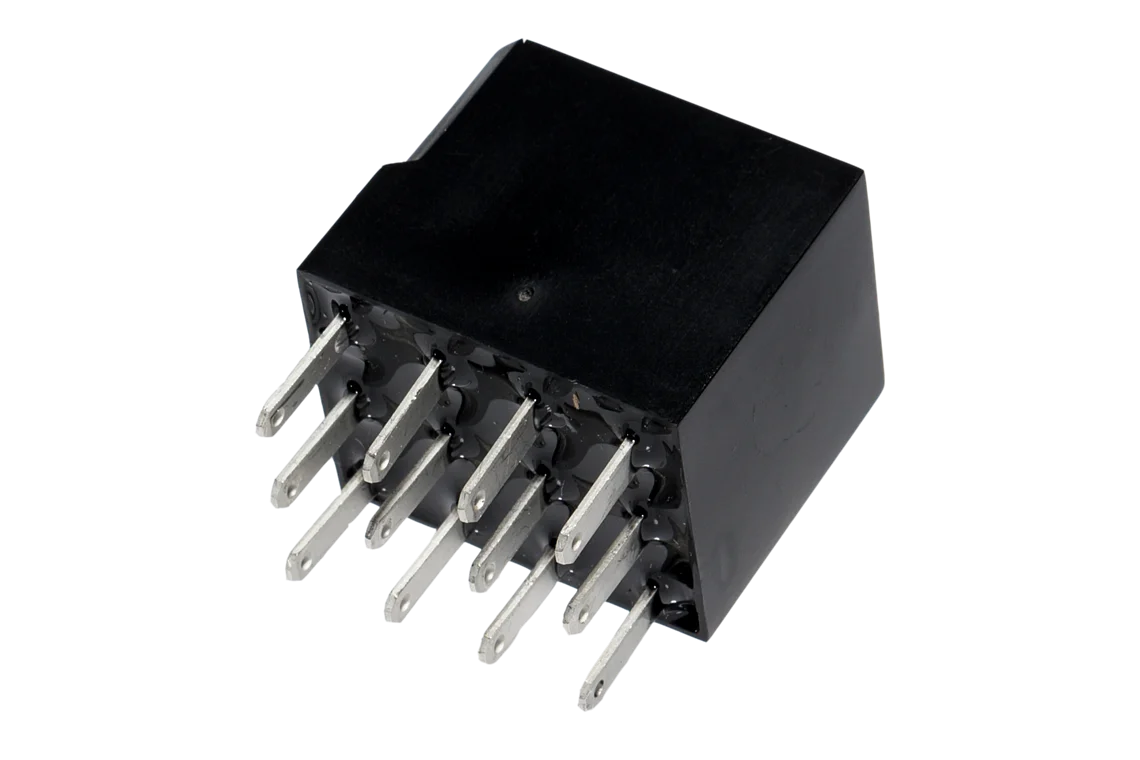

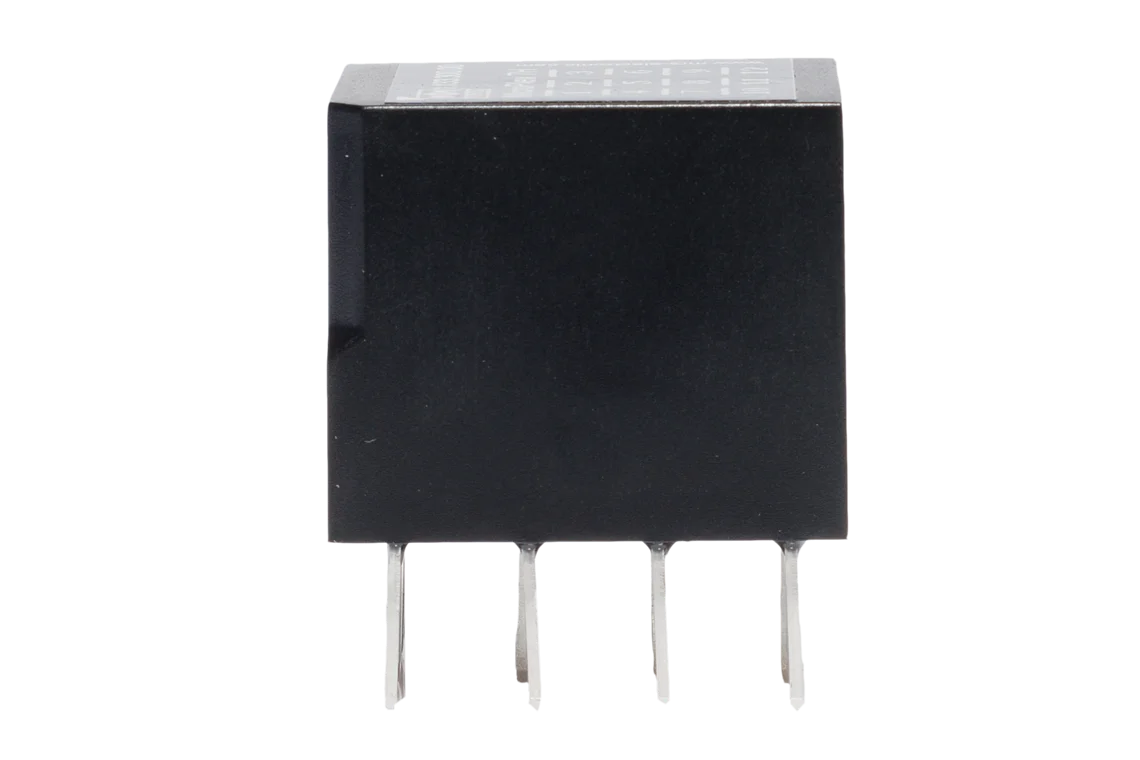

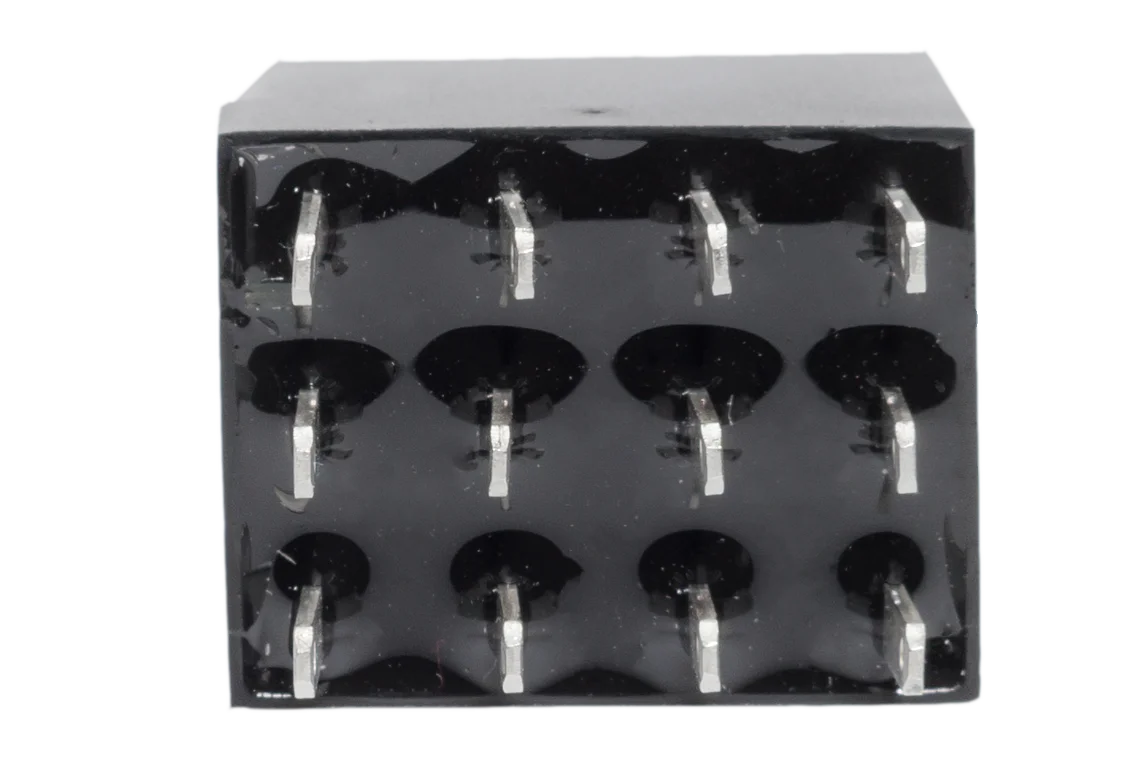

MicroPlex® Gateway

Our MicroPlex Gateway is the smallest Gateway in the MRS product line, given its small size and easy installation, it offers a wide range of applications. It has 12 pins with two CAN and LIN interfaces, as well as an optional RS232 interface. The product can be delivered as LIN Slave or as LIN Master circuitry and is perfect for tight installation spaces.

Name Value
Weight 56.69  g
Dimensions 30.48 × 23.5 × 25.9 mm
Housing material PA66 Nylon
In-/Outputs (total) 3
Operating voltage 9-30 V
Protection class IP67
Name Value
Number of pins 12
In-/Outputs (total) 3
Inputs (total) 3
Inputs (digital) 2
Inputs (analog) 3
Processor family NXP
Processor 8 bit
CAN interfaces 4
LIN interfaces 2
RS232 interfaces 2
Temperature range -40 to 85  °C
Operating voltage 9-30 V
Current consumption 60 mA
Programming system MRS Developers Studio
Quiescent current (24V) 124 µA
Quiescent current (12V) 50 µA
Required accessories Article number
Single MicroPlex Socket - Sealed xxx
Single MicroPlex Socket - Basic xxx
