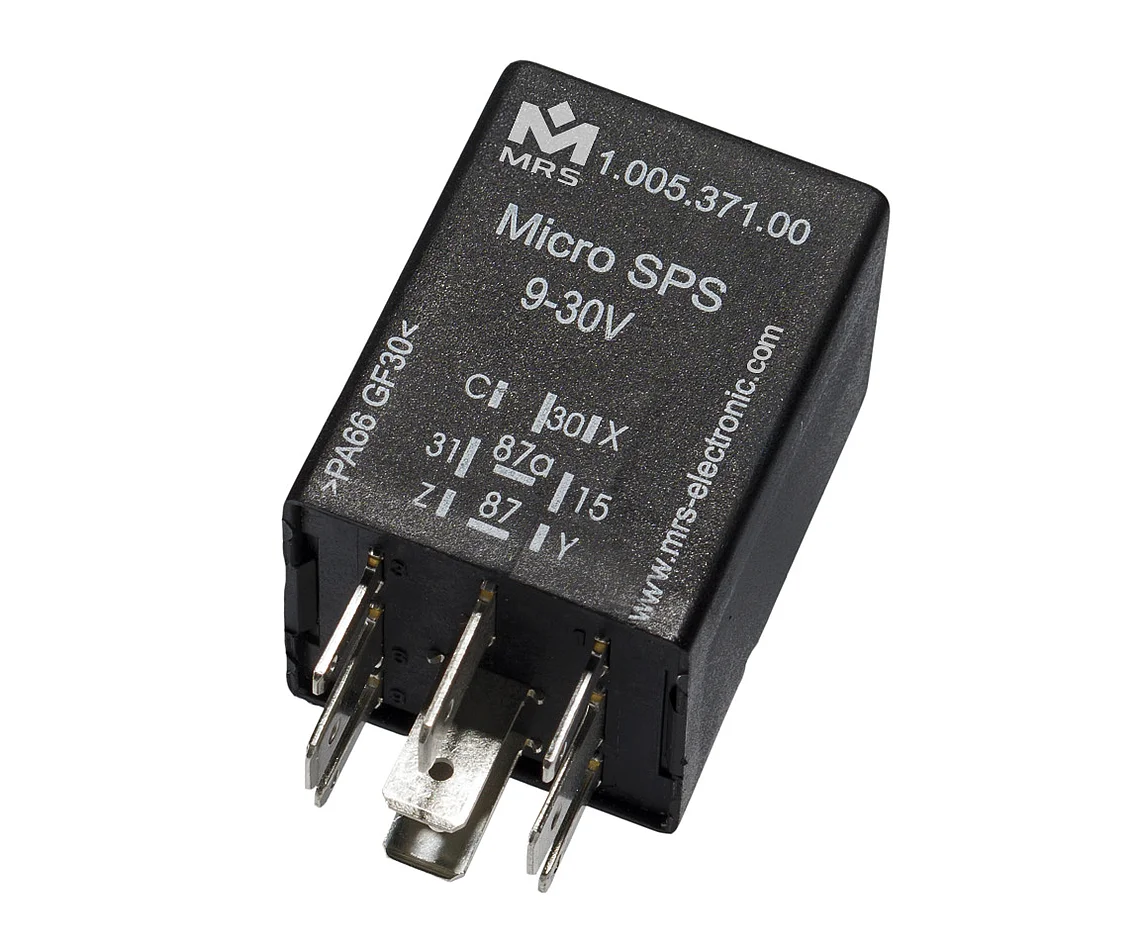

The Micro PLC is a small control for automotive applications. Free configuration, parameterization and programmability offer a wide range of application possibilities in the automotive sector.
Name | Value |
---|---|
Weight | 33.7 g |
Dimensions | 30 × 30 × 40 mm |
Housing material | Plastic |
Connector type | FASTON 6.3 mm, FASTON 2.8 mm |
In-/Outputs (total) | 6 |
Operating voltage | 12 V |
Protection class | IP53 |
Type-approval number | 05 8091 |
Type-approval | E1 UN ECE R 10 Rev. 05 |
Name | Value |
---|---|
Number of pins | 9 |
In-/Outputs (total) | 6 |
Inputs (total) | 4 |
Inputs (digital) | 3 |
Inputs (analog) | 1 |
Outputs (total) | 2 |
Outputs (digital) | 2 |
Processor family | Texas Instruments MSP 430 |
Processor | 16 bit |
Temperature range | -40 to 85 °C |
Protection class | IP53 |
Operating voltage | 12 V |
Quiescent current (12V) | 250 µA |
Programming system | MRS Realizer |
Continuous current limit | 10 A Open / 15A Close |

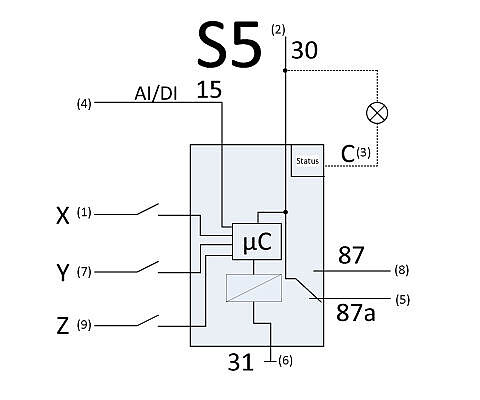

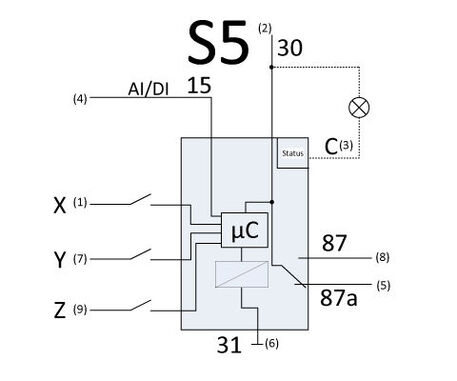

Name | Type | Model | Connection diagram | Order no. | ||
---|---|---|---|---|---|---|
Micro PLC 12 V E3 EA1 OR1 | A | 3 digital 1 analog inputs, 1 relay output | S2 | 1.005.151.00E | ||
Micro PLC 12 V E3 EA1 OR1 C | A | 3 digital 1 analog input, 1 relay output, 1 open collector output | S2 | 1.005.150.00E | ||
Micro PLC 12 V E3 EA1 OR1 | B | 3 digital 1 analog input, 1 relay output | S3 | 1.005.154.00E | ||
Micro PLC 12 V E3 EA1 OR1 C | C | 3 digital 1 analog input, 1 relay output, 1 open collector output | S4 | 1.005.153.00E |
Required accessories | Article number | |
---|---|---|
Software programming tool MRS Realizer | 1.100.000.01 | |
Housing bracket | 1.017.080.00 | |
Socket ST FL 9-pin 5 x 6.3 / 4 x 2.8 | 1.017.002.00 | |
Socket package watertight 40 mm | 1.017.010.40 | |
FASTON terminal for latching 2.8 mm 0.5 – 1.0 mm² | 105292 | |
FASTON terminal for latching 6.3 mm 1 mm² | 102355 | |
FASTON terminal for latching 6.3 mm 1.5 – 2.5 mm² | 103064 |
