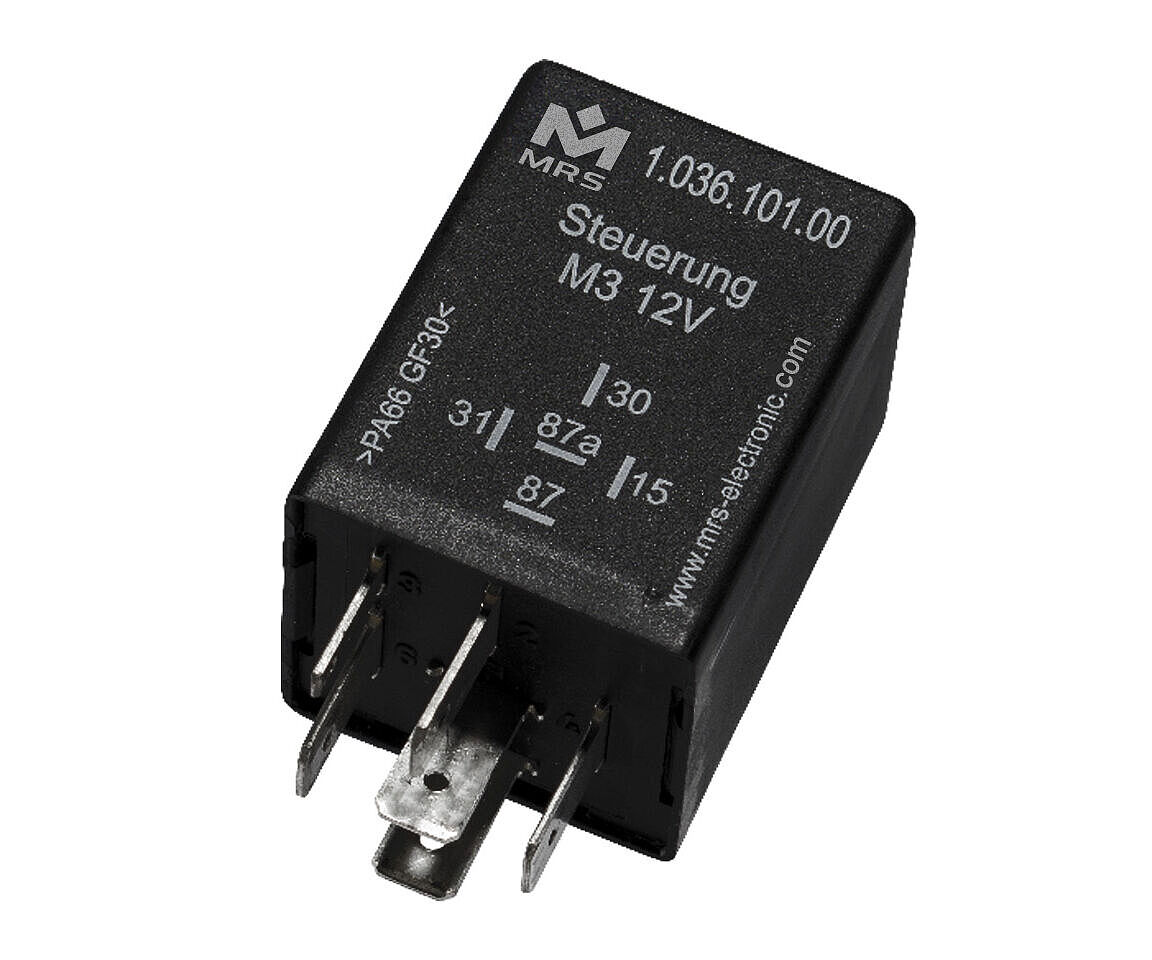

Controller M3 12 V

1.036.10x.xxE (choose order option)

The M3 controller is a powerful and cost-effective controller. In addition to the unprogrammed control M3 there is the control in the programmed versions: Pulse relay, step switch relay, blinker as well as other functions on request. The mentioned functions are stored by default and only have to be configured and parameterized. Of course, all standard functions can also be ordered preset directly from the factory.

Weight 42 g
Dimensions 30 × 30 × 40 mm
Housing material Plastic
Connector type FASTON 2,8 mm, FASTON 6,3 mm
In-/Outputs (total) 2
Operating voltage 12 V
Protection class IP53
Type-approval number 04 7282
Type-approval E1 - ECE R10

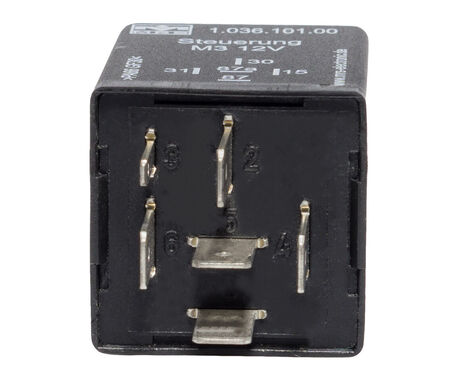

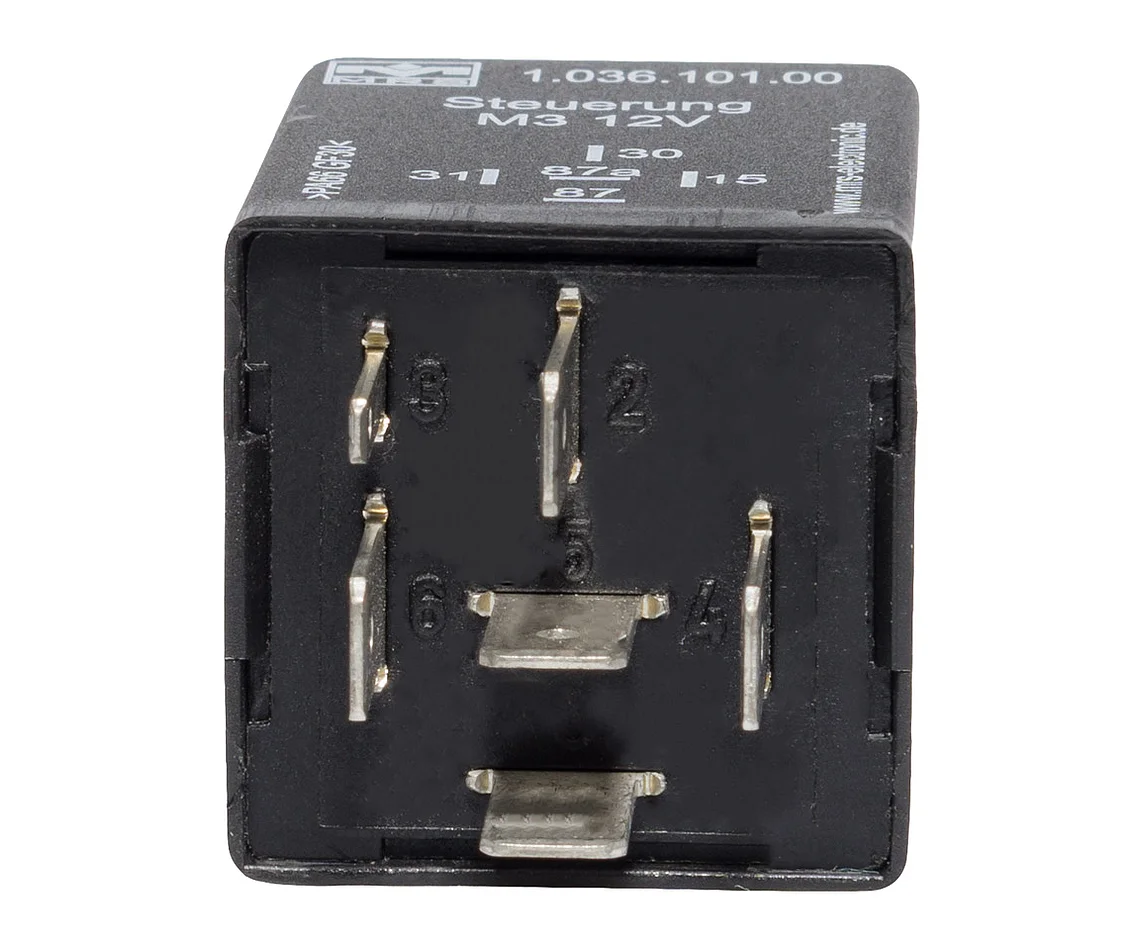

Number of pins 6
In-/Outputs (total) 2
Inputs (total) 1
Inputs (digital) 1
Outputs (total) 1
Relay outputs 1
Processor family Texas Instruments MSP 430
Processor 16 bit
Temperature range -40 to 85 °C
Protection class IP53
Operating voltage 12 V
Maximum continuous current 30 A
Quiescent current (12V) 1 mA
Programming system MRS Realizer
Max. switching current 75 VDC
Max. switch-on current 100 A
Max. switching current 60 A

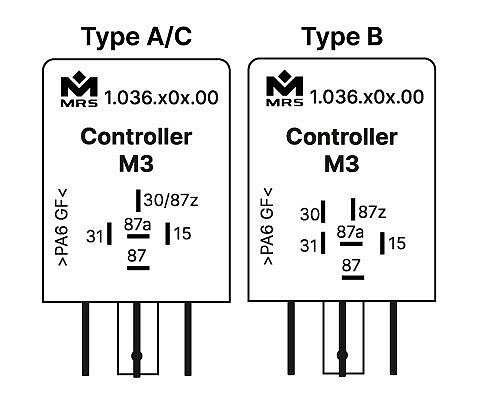

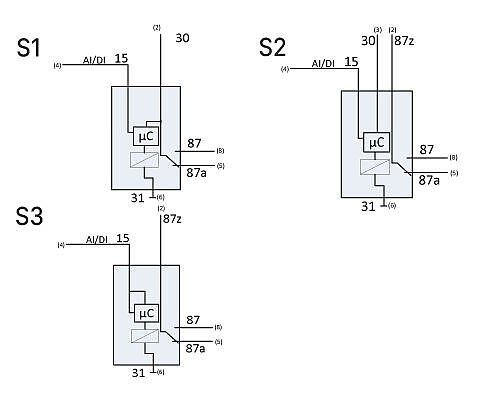

Name Type Connection diagram Order no.
Con­troller M3 LB1 12 V A S1 1.​036.​101.​00E
Con­troller M3 LB3 12 V B S2 1.​036.​102.​00E
Con­troller M3 LB2 12 V C S3 1.​036.​103.​00E
Required accessoriesArticle number
Software programming tool MRS Realizer 1.​100.​000.​01
Socket ST FL 9-pin 5 x 6.3 / 4 x 2.8 1.​017.​002.​00
FAS­TON ter­mi­nal for latching 2.8 mm 0.5 – 1.0 mm² 105292
FAS­TON ter­mi­nal for latching 6.3 mm 1 mm² 102355
FAS­TON ter­mi­nal for latching 6.3 mm 1.5 – 2.5 mm² 103064
