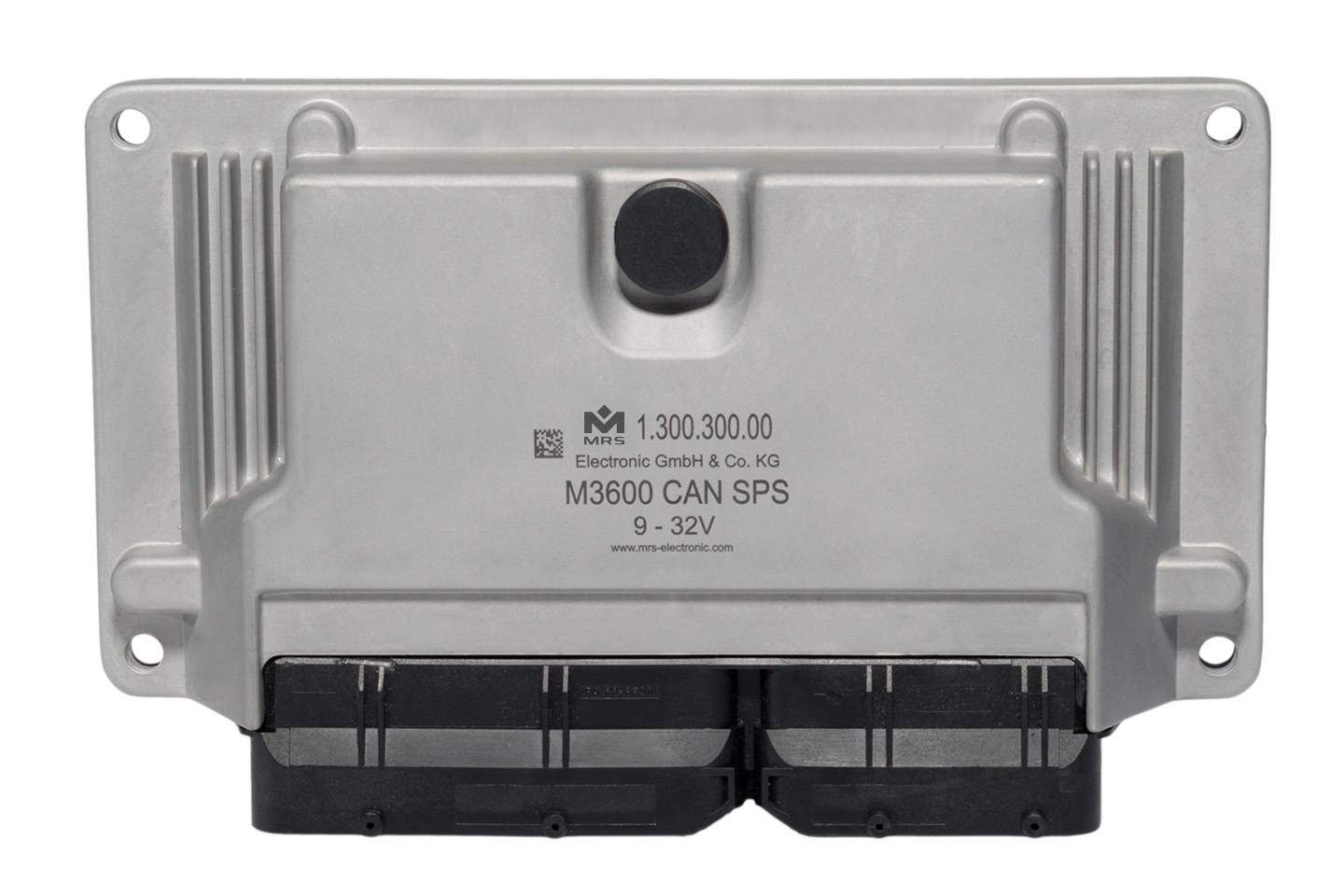

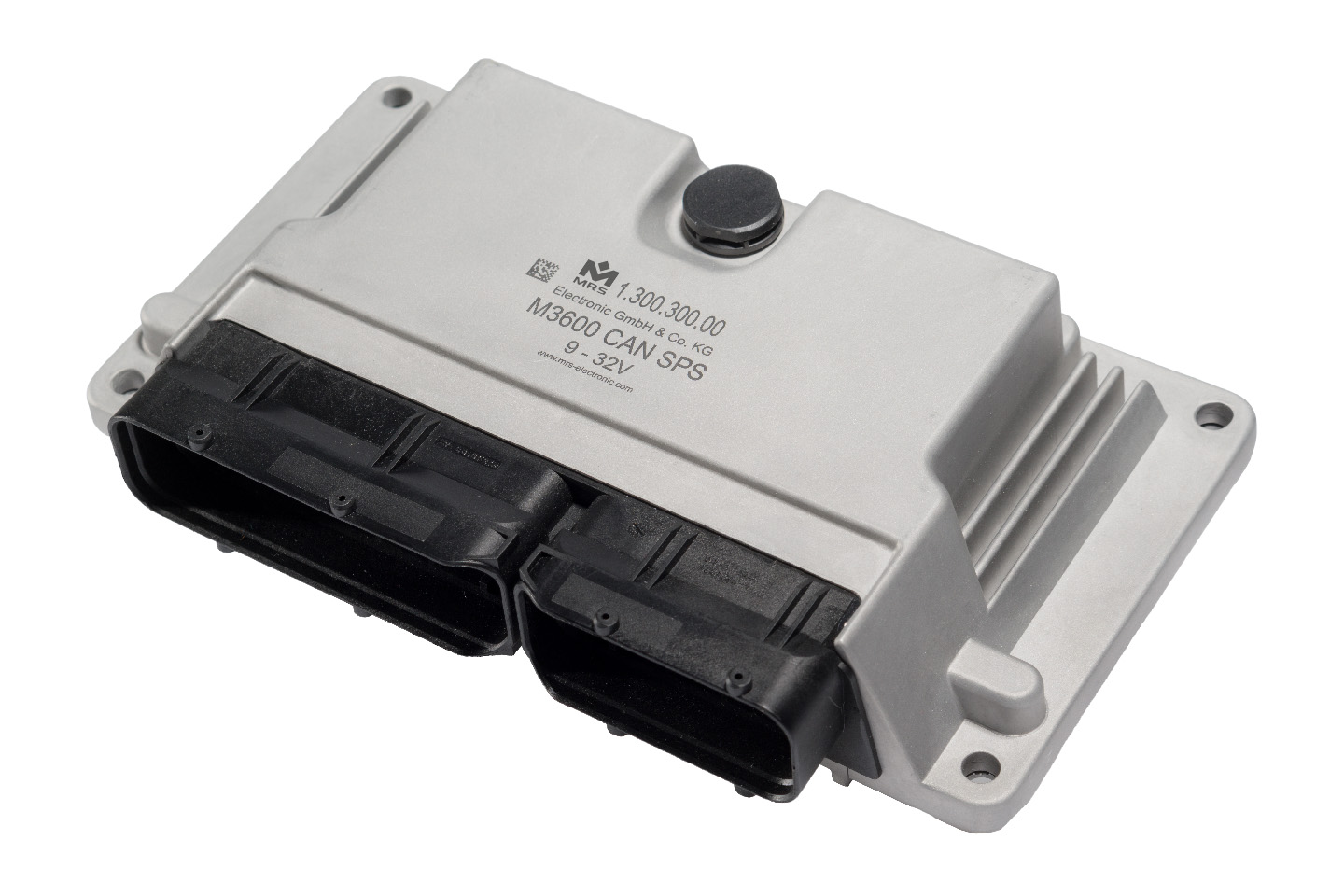

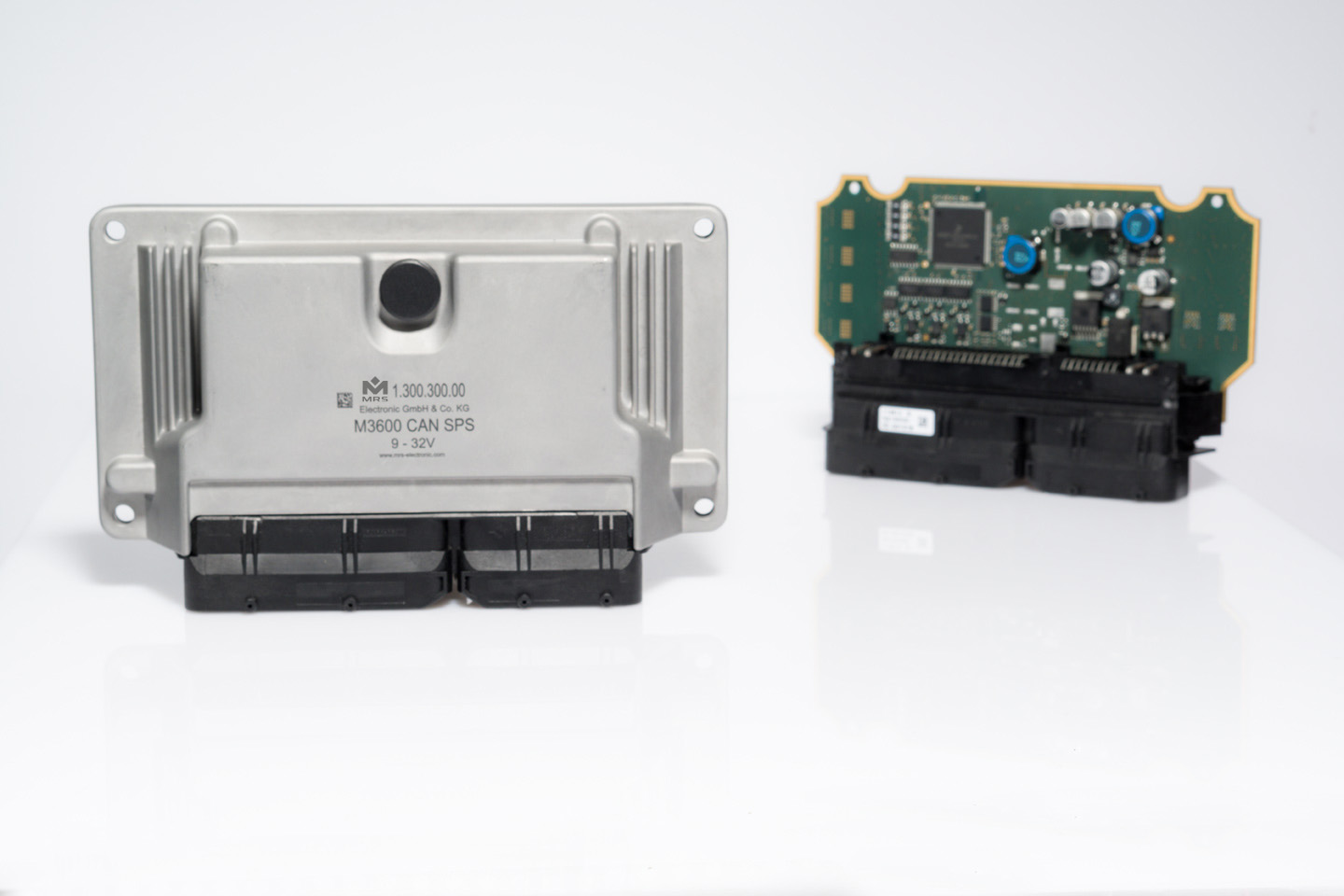

M3600 CAN PLC
1.300.300.00E ( choose order option )(130030000E)The large CAN controller M3600 from MRS Electronic with its 121 pins extends the product portfolio with a versatile all-rounder. With 3 CAN buses, the controller can either operate three stand-alone bus lines or serve as a hub for CAN bus communication. It has a total of 39 I/Os. 9 digital and 10 analog inputs, 10 I/Os and 10 outputs make the device a versatile product that promises the end user less wiring. The applications of these compact controllers are diverse and can be perfectly adapted to the requirements of the respective industry. Wherever the versatility of various actuators is needed, the M3600 is the ideal solution.
| Name | Value |
|---|---|
| Weight | 480 g |
| Dimensions | 39.3 × 110.4 × 179 mm |
| Housing material | Aluminum |

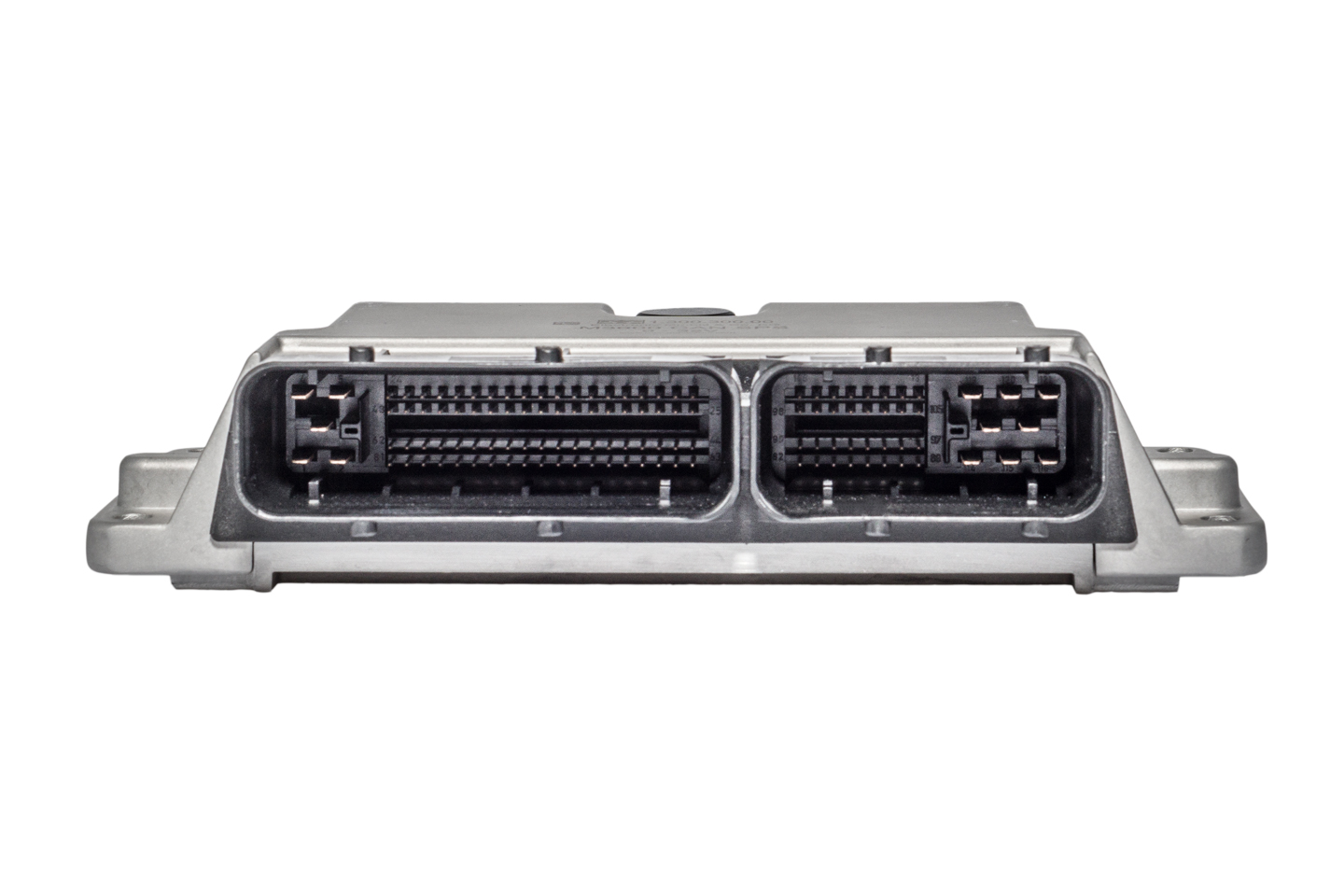

| Connector type | Tyco AMPMODU WP |
| In-/Outputs (total) | 39 |
| Operating voltage | 9-30 V |
| Protection class | IP68 |
| Type-approval number | 05 8037 |
| Type-approval | ECE-R10 |
| Protocols | CAN Interface 2.0 A/B ISO 11898-2, SAE J1939 |
| Name | Value |
|---|---|
| Number of pins | 121 |
| In-/Outputs (total) | 39 |
| I/Os | 10 |
| Inputs (total) | 19 |
| Inputs (digital) | 10 |
| Inputs (analog) | 9 |
| Outputs (total) | 20 |
| Outputs (PWM capable, integrated current measurement INA) | 4 |
| Outputs (digital) | 16 |
| Processor family | Freescale HCS12 |
| Processor | 16 bit |
| CAN interfaces | 3 |
| RS485 Interfaces | 1 |
| Temperature range | -40 to 85 °C |
| Protection class | IP68 |
| Operating voltage | 9-30 V |
| Switch-on voltage | 8 V |
| Overload protection (≥) | 33 V |
| Current consumption | 67 mA |
| Quiescent current (24V) | 3.35 mA |
| Quiescent current (12V) | 300 µA |
| Programming system | MRS Developers Studio |
| Name | Order no. | ||
|---|---|---|---|
| M3600 CAN PLC | 1.300.300.00E |
| Required accessories | Article number | |
|---|---|---|
| Software programming tool MRS Developers Studio | 1.100.100.xx | |

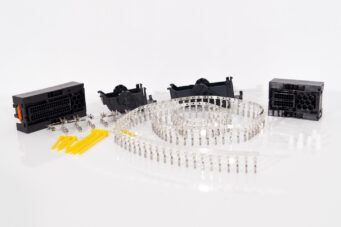

| Connector Kit for M3600 CAN PLC | 114159 | |
| Crimp terminals timer junior 1.50 – 2.50 mm² | 107665 | |
| Crimp terminal MQS 0.50 – 0.75 mm² | 109613 | |
| Single seal Junior Power Timer 1.5 mm² | 107304 | |
| PCAN-USB Interface | 105358 | |

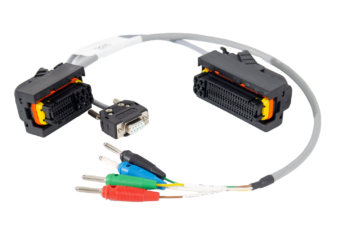

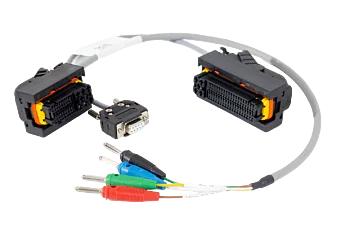

| Cable set to program M3600 CAN PLC | 501246 | |
| Cavity Plug package for M3600 CAN PLC | 300972 |
Is the order version 1.300.300.00 - Do I have the function "CAN-Wake-up" on all 3 CAN interfaces?
No, the standard variant has no CAN wakeup. On customer request, a placement variant with CAN wake-up can be created.
How fast can the ADC converter process the analogue values and at what time interval are they available to the program?
The ADC converter needs a few μs, the conversion is triggered every 10 ms.
That means that every 10 ms new values should be available to the program.
Can the HSD outputs also be switched in parallel?
Yes, the HSD outputs can be switched in parallel. This increases the switching current from 2.5 A to 5 A at the output
