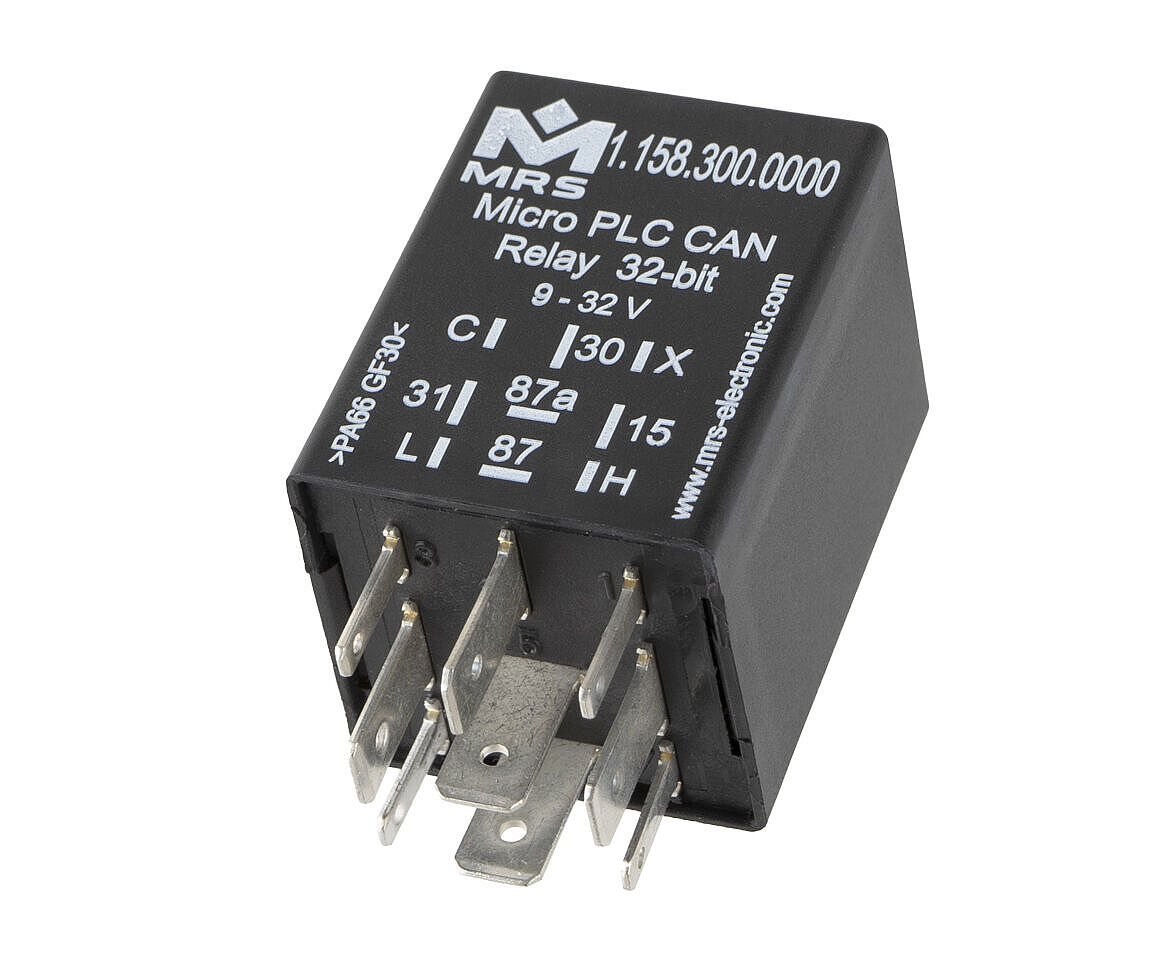

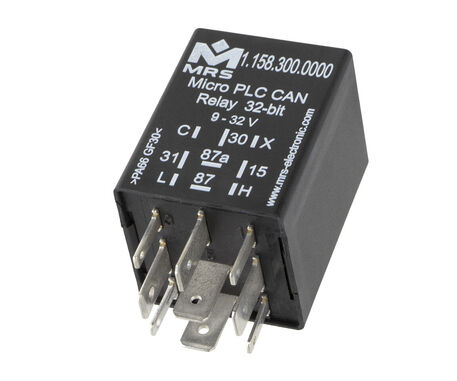

Micro PLC CAN Relay 32-bit

The Micro PLC CAN Relay 32-bit combines Micro PLC CAN 12 V and 24 V in one product and can be used flexibly in a voltage range of 9-32V. With its 32-bit processor, the compact CAN control delivers even more computing power than the previous version and offers you a wide range of possible uses in the automotive sector thanks to its free configuration, parameterization, and programmability.

Downloads

Data sheet Micro PLC CAN Relay 32-bit Micro PLC CAN Relay 32-bit STEP File

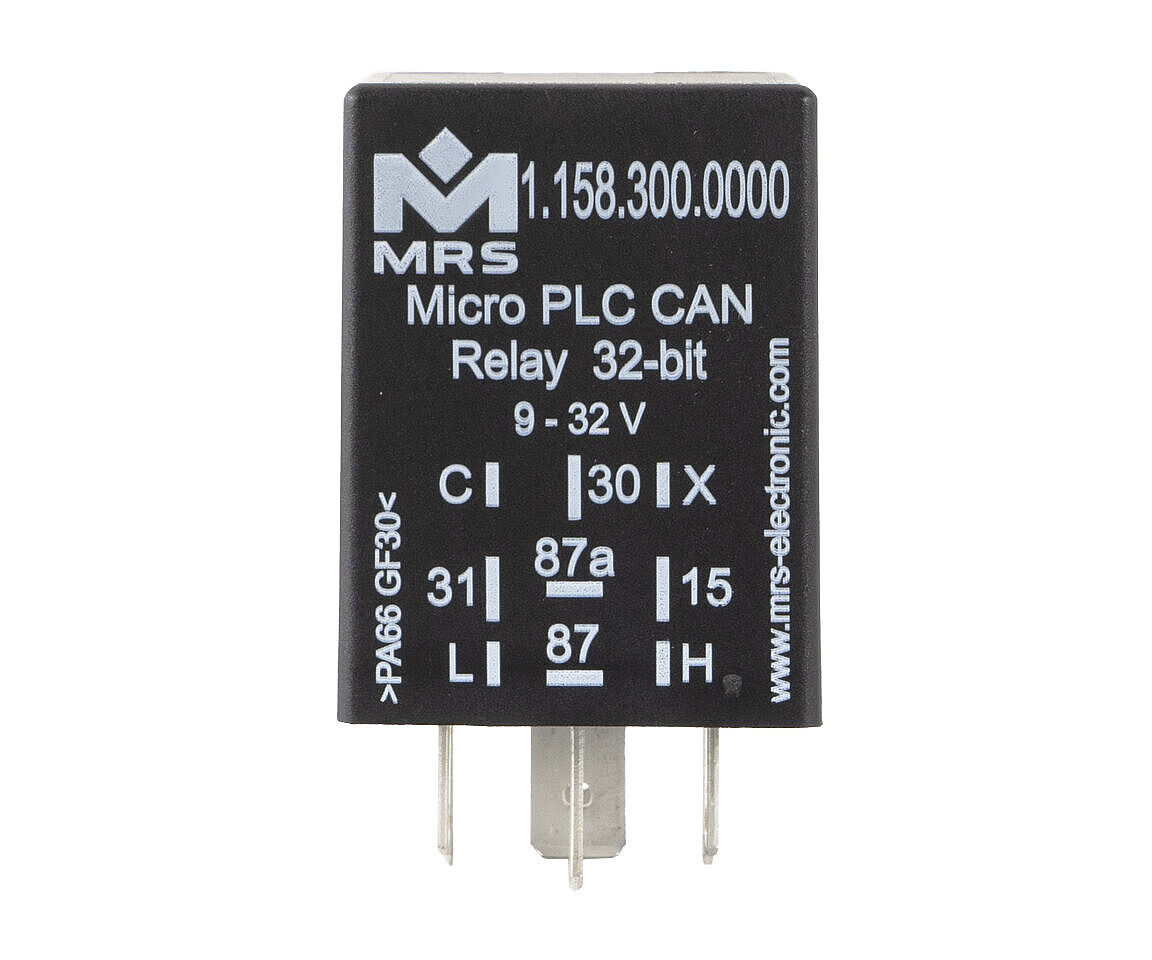

Frontal view

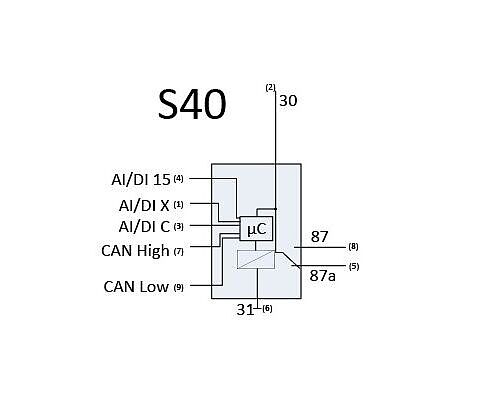

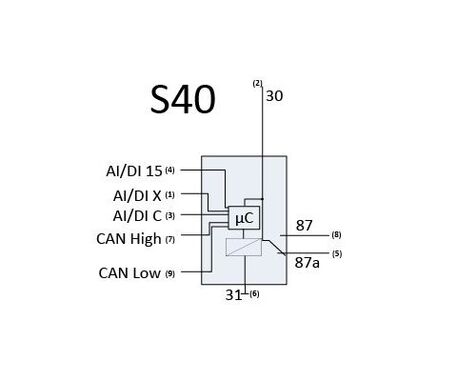

Connection diagram S40

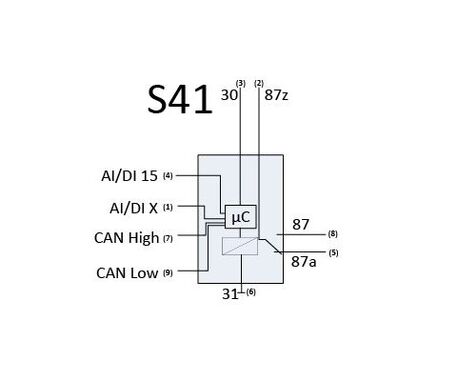

Connection diagram S41

Technical details

Inputs and Outputs

Number of pins	9
In-/Outputs (total)	4
Inputs (total)	2
Inputs (analog)	2
Outputs (total)	2
Relay outputs	2
Switching current	NO 10 A / NC 5 A

Interfaces

CAN interface(s)	1
CAN FD interface(s)	1

Mechanical Properties

IP rating	IP6K8
Housing material	Plastic PA66GF30
Dimensions	30 × 30 × 40 mm

Programming

Programming software	MRS Applics Studio

General

Temperature range	-40°C to +85 °C
Operating voltage	9-32 V
Current consumption	32 mA at 12 V / 19 mA at 24 V
Quiescent current (12V)	25 µA
Processor architecture	32 bit

Markings

Order options

Order no.	Name
1.158.300.0000 (11583000000)	CAN Wake-Up S40 KL15ON
1.158.301.0000 (11583010000)	CAN Wake-Up S41 KL15ON
1.158.310.0000 (11583100000)	CAN Wake-Up 120 Ohm terminating resistor S40 KL15ON
1.158.311.0000 (11583110000)	CAN Wake-Up 120 Ohm terminating resistor S41 KL15ON
1.158.320.0000 (11583200000)	CAN S40 KL15ON
1.158.321.0000 (11583210000)	CAN S41 KL15ON
1.158.330.0000 (11583300000)	CAN 120 Ohm terminating resistor S40 KL15ON
1.158.331.0000 (11583310000)	CAN 120 Ohm terminating resistor S41 KL15ON
