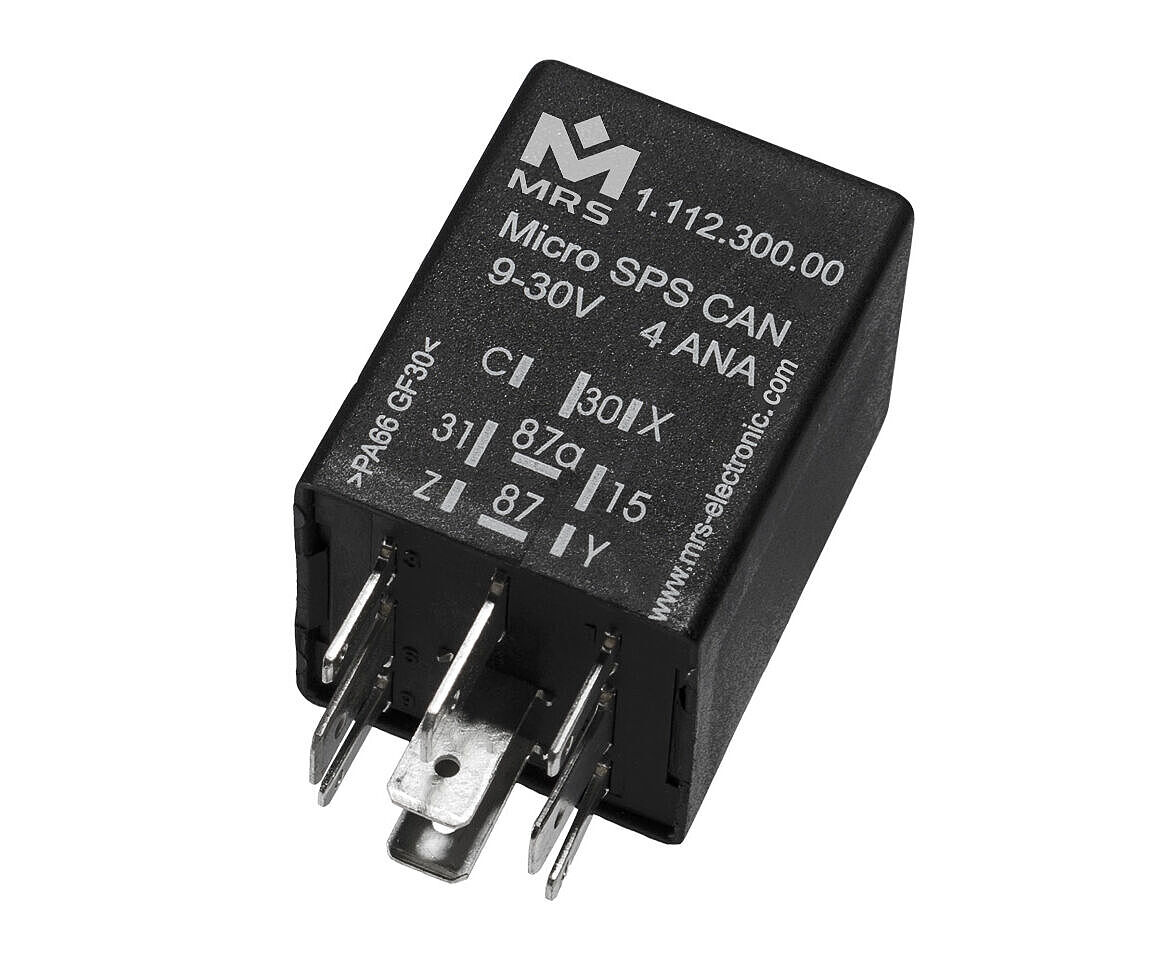

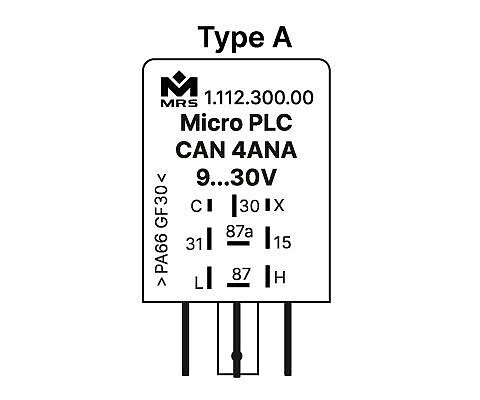

Micro PLC CAN 4 ANA
1.112.300.00E (choose order option)(111230000E)
The Micro PLC CAN 4 ANA offers many possible applications with its 5 inputs and outputs. One analog input and four I/Os, the function of which can be individually defined. These I/Os can be used as four analog outputs for current (0-24 mA) and voltages (0-10 V). Or you can configure them as four analog inputs. The controller also provides the option to configure two of the four I/Os as frequency inputs.
| Name | Value |
|---|---|
| Weight | 30.2 g |
| Dimensions | 30 × 30 × 40 mm |
| Housing material | Plastic |
| Connector type | FASTON 6.3 mm, FASTON 2.8 mm |
| In-/Outputs (total) | 5 |
| Operating voltage | 9-30 V |
| Protection class | IP53 |
| Type-approval number | 04 7522 |
| Type-approval | E1 - ECE R10 |
| Protocols | CAN Interface 2.0 A/B ISO 11898-2, SAE J1939 |
| Name | Value |
|---|---|

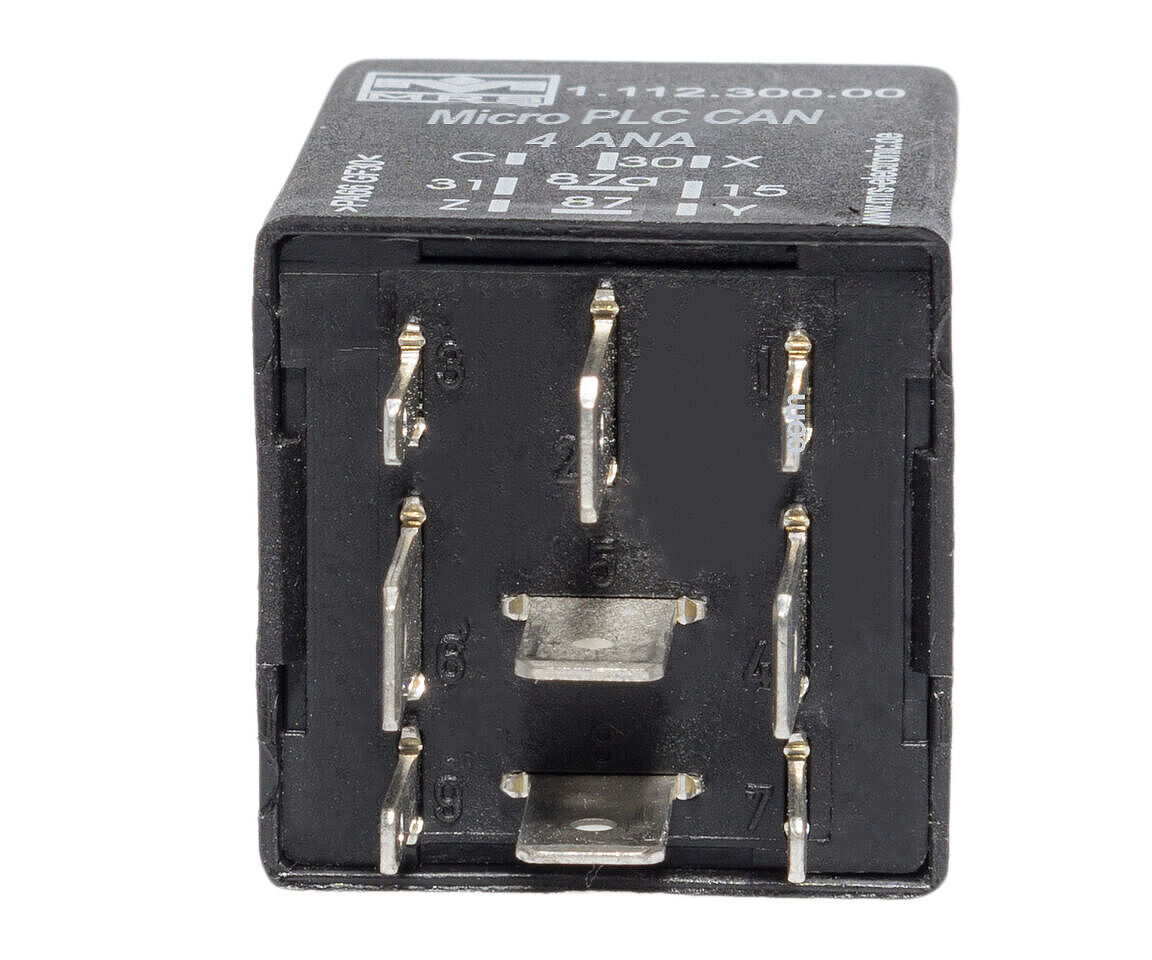

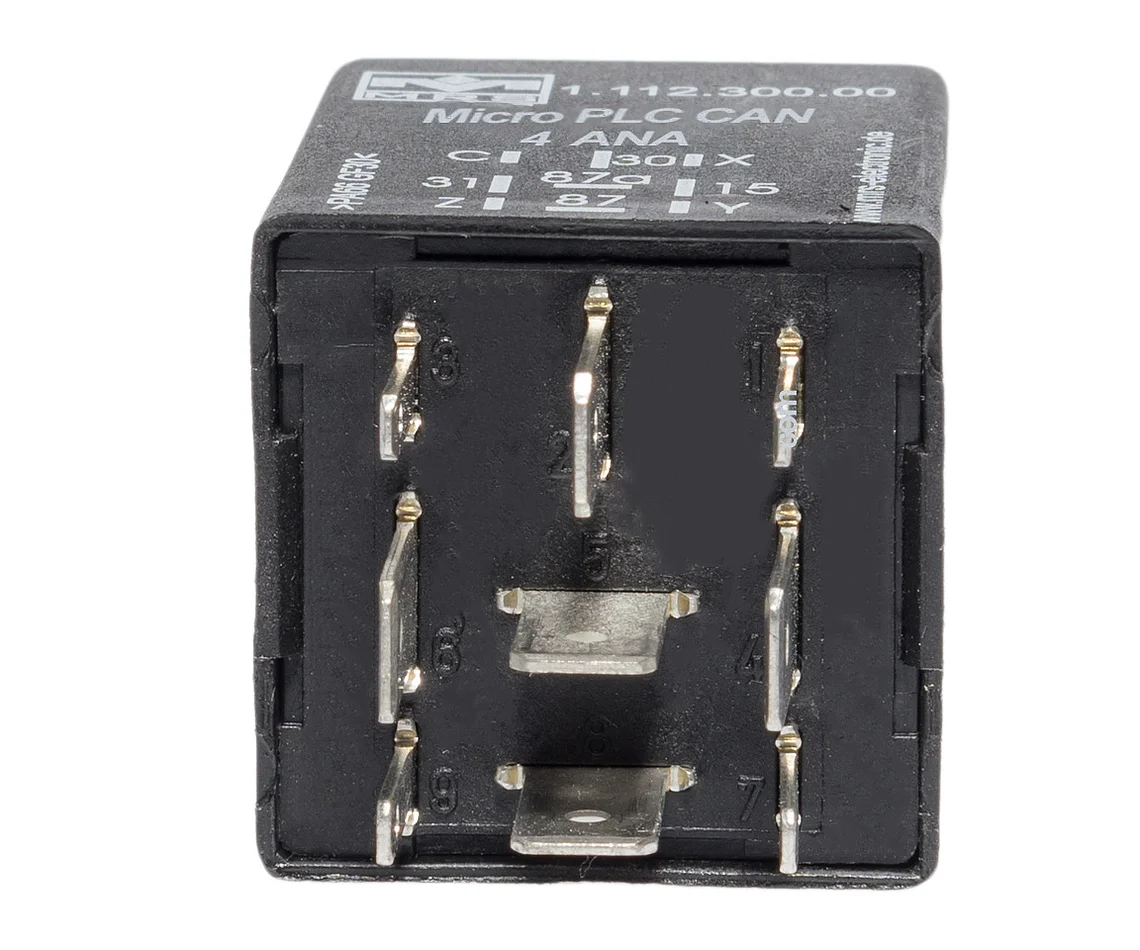

| Number of pins | 9 |
| In-/Outputs (total) | 5 |
| I/Os | 4 |
| Inputs (total) | 4 |
| Inputs (digital) | 4 |
| Inputs (analog) | 4 |
| Outputs (total) | 4 |
| Processor family | Freescale HSC08 |
| Processor | 8 bit |
| CAN interfaces | 1 |
| Temperature range | -40 to 85 °C |
| Protection class | IP53 |
| Operating voltage | 9-30 V |
| Current consumption (≤) | 25 mA |
| Programming system | MRS Developers Studio |
| Quiescent current | 250 µA |

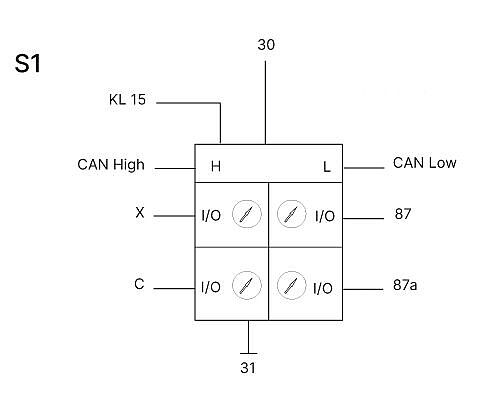

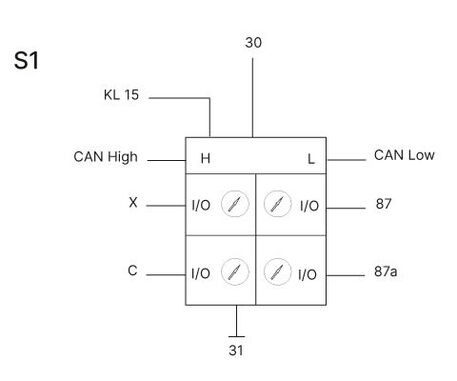

| Name | Model | Connection diagram | Order no. | ||
|---|---|---|---|---|---|
| Micro PLC CAN 4 ANA | S1 | 1.112.300.00E | |||
| Micro PLC CAN 4 ANA | CANopen | S1 | 1.112P.300.00E |
| Required accessories | Article number | |
|---|---|---|
| Starter Kit - Micro PLC CAN 4 ANA | 1.100.110.43 | |
| Softwaretool MRS Developers Studio Bundle | 1.100.100.09 | |
| Housing bracket | 1.017.080.00 | |
| PCAN-USB Interface | 105358 | |
| Cable set to programm Micro PLC CAN / PROP CAN | 109446 | |
| Cable FLRY 2 x 0.50 mm² white/green SL20 | 113085 | |
| Socket package watertight 40 mm | 114265 | |
| Socket ST FL 9-pin 5 x 6.3 / 4 x 2.8 | 1.017.002.00 | |
| FASTON terminal for latching 2.8 mm 0.5 – 1.0 mm² | 105292 | |
| FASTON terminal for latching 6.3 mm 1 mm² | 102355 | |
| FASTON terminal for latching 6.3 mm 1.5 – 2.5 mm² | 103064 |
How can the analog input be switched from voltage to current?
The DO_I_XX is responsible for this.
This not only switches between current and voltage output, but also the input function.
DO_I_X = 1 switches eg. enter the power input of AI_X.
Which minimum output voltage does the Micro PLC CAN 4 ANA provide?
The analog output does not completely go down to 0 V. There remains a minimum voltage of 120 mV at the output
