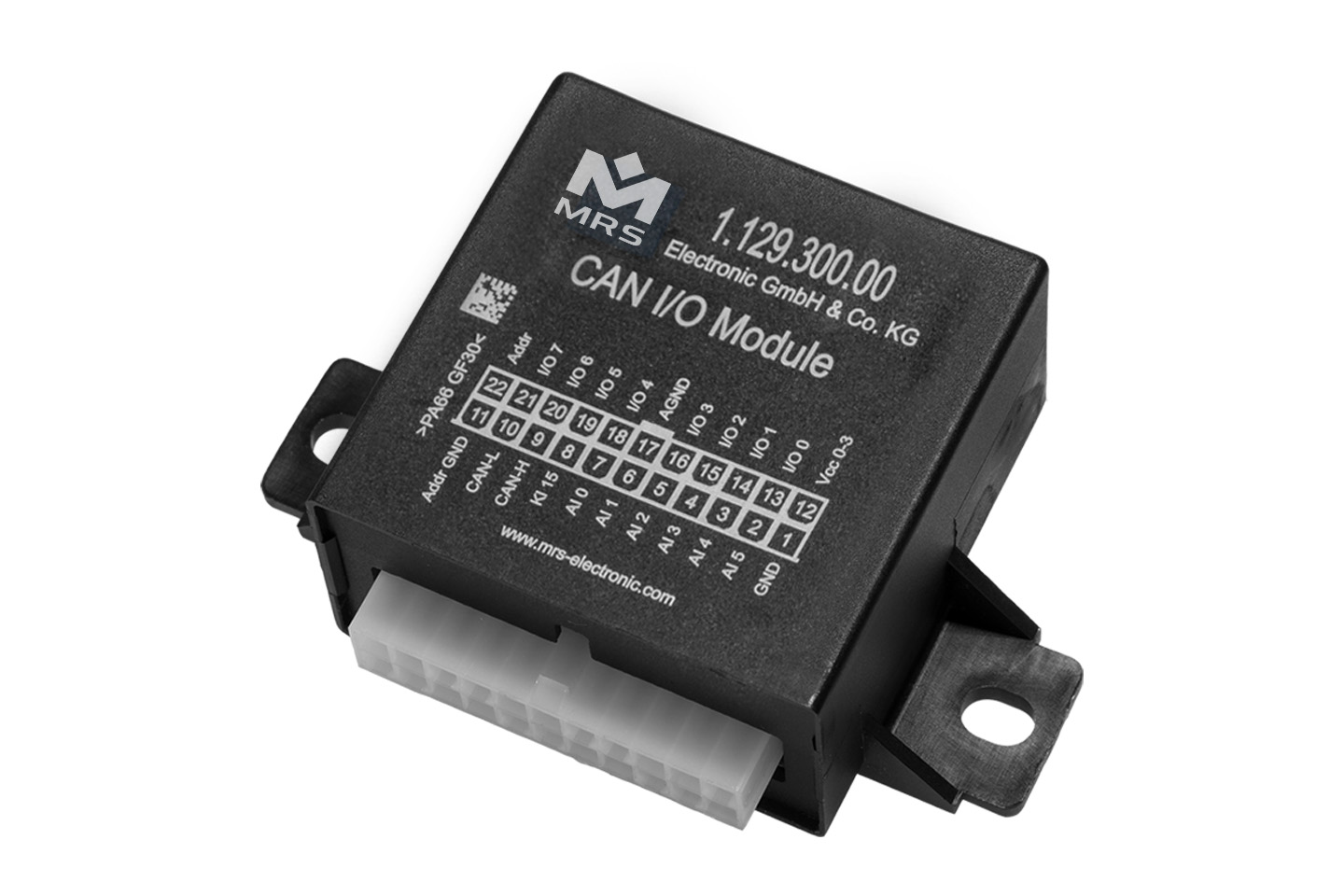

CAN I/O PLC LHS
1.129.3xx.xxE ( choose order option )(11293xxxxE)The compact CAN I/O controller in the lowside and highside version offers four additional lowside outputs in addition to the standard four highside outputs. The perfect solution for controlling mass-controlled actuators and motor bridges.
| Name | Value |
|---|---|
| Weight | 75 g |
| Dimensions | 60 × 60 × 30 mm |
| Housing material | Plastic |
| Connector type | Molex Mini Fit Junior |
| In-/Outputs (total) | 14 |
| Operating voltage | 9-30 V |
| Protection class | IP53 |
| Type-approval number | 068369 |
| Type-approval | E1 - UN/ECE-R10 |
| Protocols | CAN Interface 2.0 A/B ISO 11898-2, SAE J1939 |
| Name | Value |
|---|---|
| Number of pins | 22 |
| In-/Outputs (total) | 14 |
| I/Os | 8 |
| Inputs (total) | 14 |
| Inputs (digital) | 14 |
| Inputs (analog) | 6 |
| Outputs (total) | 8 |
| Outputs (PWM capable) | 6 |
| Outputs (digital) | 2 |
| Processor family | Freescale HCS08 |
| Processor | 8 bit |
| CAN interfaces | 1 |
| LIN interfaces | 1 |
| Temperature range | -40 to 85 °C |
| Protection class | IP53 |
| Operating voltage | 9-30 V |
| Switch-on voltage | 8 V |
| Overload protection (≥) | 33 V |
| Current consumption | 30 mA |
| Quiescent current (24V) | 200 µA |
| Quiescent current (12V) | 150 µA |
| Programming system | MRS Developers Studio |
| Outputs lowside | 4 |
| Name | Model | Order no. | ||
|---|---|---|---|---|
| CAN I/O PLC LHS 5 V Ref | 5 Vref | 1.129.300.00E | ||
| CAN I/O PLC LHS 2x Freq-IN | 2x Freq-IN | 1.129.301.0001E | ||
| CAN I/O PLC LHS + LIN | CAN and LIN Bus | 1.129.312.0001E | ||
| CANI I/O SPS LHS + LIN (Master) + 2xFreq In | CAN and LIN Bus (M) and 2x Freq In | 1.129.322.0001E |
| Required accessories | Article number | |
|---|---|---|
| Softwaretool MRS Developers Studio Bundle | 1.100.100.09 | |

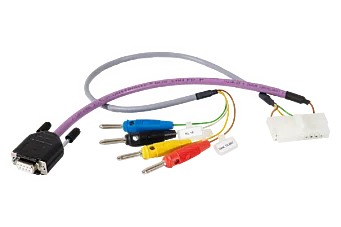

| Cable set to programm CAN I/O / RS485 Gateway / RS232 Gateway / CAN I/O PLC LHS | 106817 | |
| Connector Kit for CAN I/O Module / RS485 Gateway / RS232 Gateway / CAN I/O PLC LHS | 106940 | |
| PCAN-USB Interface | 105358 |
Can the module be ordered as Master or Slave?
Yes, please state an information in your order.
What is the quiescent current in sleep mode?
The quiescent current is 50 μA
Does the Micro PLC CAN LIN also have CAN wake-up?
Yes, the module has CAN wake-up
Does the Micro PLC CAN LIN also have LIN wake-up?
Yes, the module also has LIN wake-up
