CAN I/O – CC16WP
go to order options (1154x)

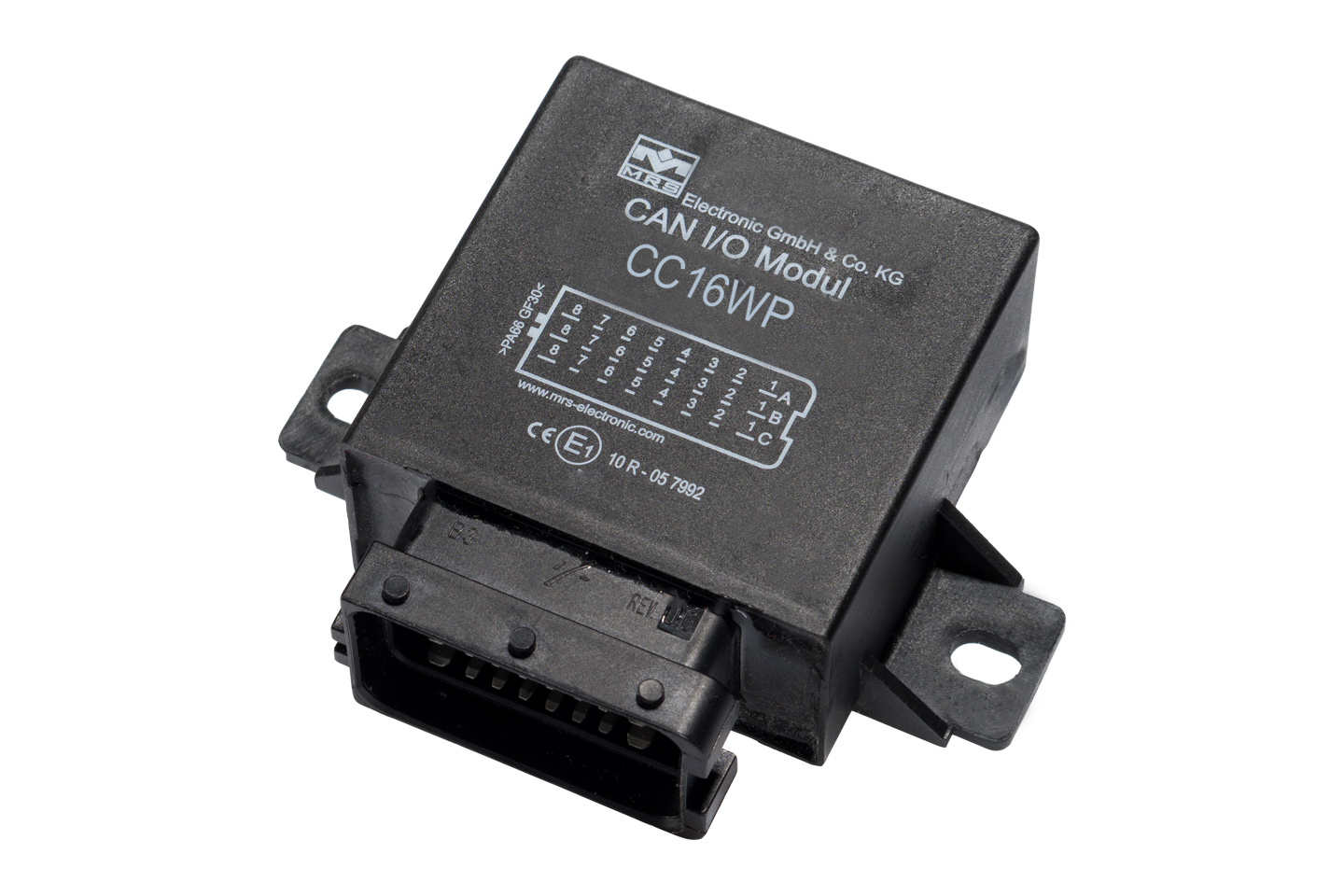

The CC16WP is a part of the most advanced CAN I/O generation from MRS Electronic. The core, the 32-bit processor, provides you with more computing power and thus faster computing cycle times. You also benefit from a more powerful gateway functionality and complex programming options for your applications. Due to the extremely high flexibility of the multifunction inputs, the CAN I/O is well prepared for the most diverse, cross-industry areas of application.
All in all, the compact CC16WP offers maximum application flexibility in the smallest installation spaces in order to implement applications cost-effectively and efficiently. With the correct installation position, the high protection class IP6K8 can still be achieved. The AEF-certified order variant with a 2 MB flash memory is also compatible with different ISOBUS stacks and can communicate with other linked components such as the terminals or implements. The module is also CAN FD capable.
Technical details
Inputs and Outputs
| Number of pins | 24 |
|---|---|
| In-/Outputs (total) | 15 |
| Inputs (total) | 7 |
| Inputs (analog) | 7 |
| I/Os (total) | 8 |
| I/Os (Input analog) | 8 |
| I/O (Output PWM capable, integrated current measurement INA) | 8 |
| Output type high side | 8 |
| Switching current | 3 A @ 85°C |
Interfaces
| CAN interface(s) | 2 |
|---|---|
| CAN FD interface(s) | 1 |
| LIN interface(s) | 1 |
| Serial Interface(s) | 1 |
Mechanical Properties
| IP rating | IP6K8 |
|---|---|
| Housing material | PA66GF30 |
| Dimensions | 60 × 77 × 30 mm |
Programming
| Programming software | MRS Applics Studio |
|---|
General
| Temperature range | -40 to +85°C |
|---|---|
| Operating voltage | 9-32 V |
| Quiescent current (12V) | 25 µA |
| Quiescent current (24V) | 25 µA |
| Vref current limit | 500 mA |
| Processor architecture | 32 bit |
Markings
Order options
| Order no. | Name |
|---|---|
| 1.154.300.00 (115430000) |
CAN-CAN, 2x CAN Bus
|
| 1.154.300.00-C (115430000-C) |
CAN-CAN, CANopen
|
| 1.154.310.00 (115431000) |
CAN-LIN, 1x CAN Bus, 1x LIN Bus
|
| 1.154.320.00 (115432000) |
CAN-RS232, 1x CAN Bus, 1x RS232
|
| 1.154.300.10 (115430010) |
KL15ON, 2x CAN bus, Ignition KL15, Load Circuit KL30
|
| 1.154.330.00 (115433000) |
CAN-2xDI, 1x CAN Bus, 2x Digital Inputs
|
| 1.154.211.00 (115421100) |
CAN-LIN 12V, 1x CAN bus, 1x LIN bus with 12V LIN level at 24V Supply Voltage
|
| 1.154.302.00 (115430200) |
2x CAN bus, 2MB, AEF certified
|
