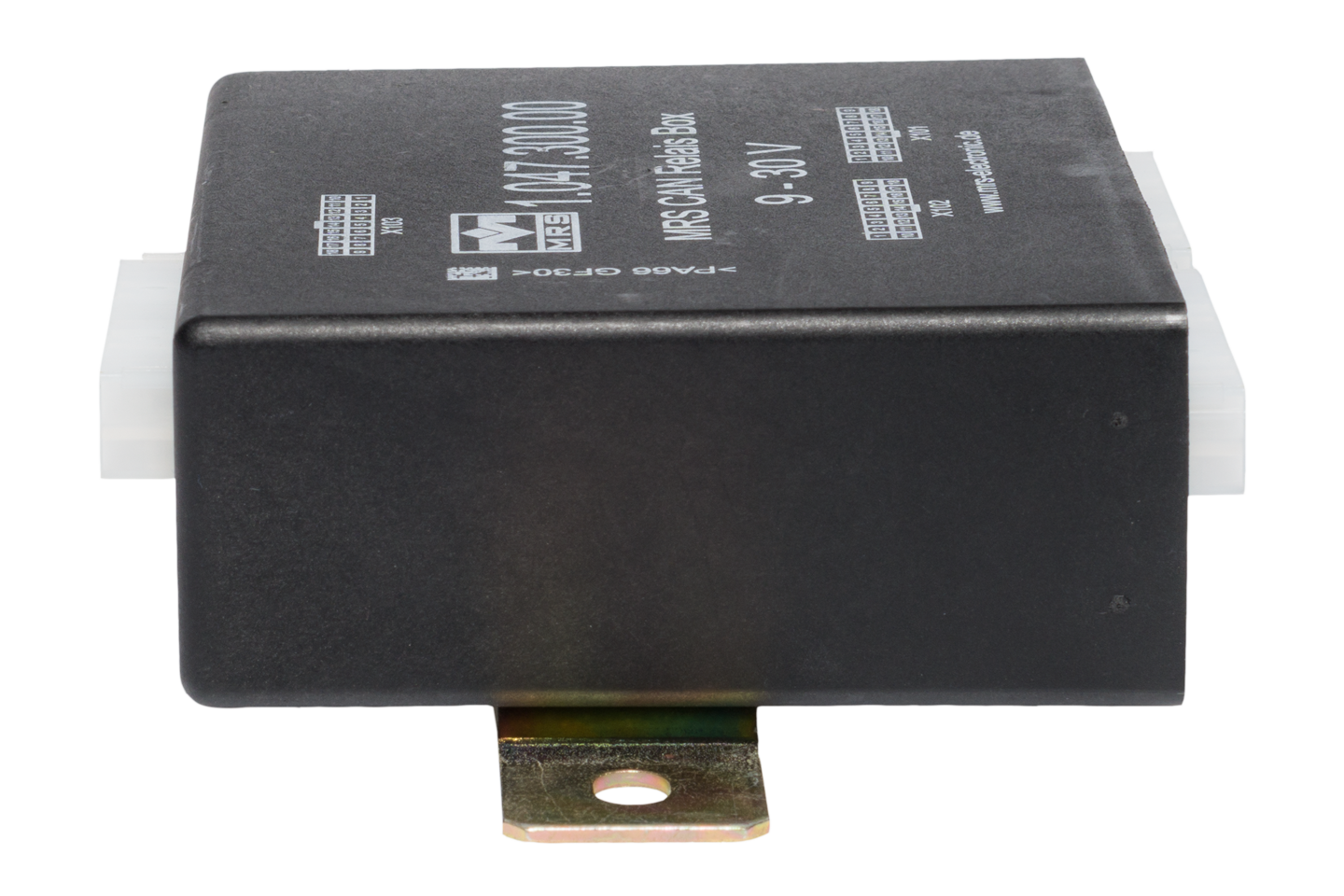

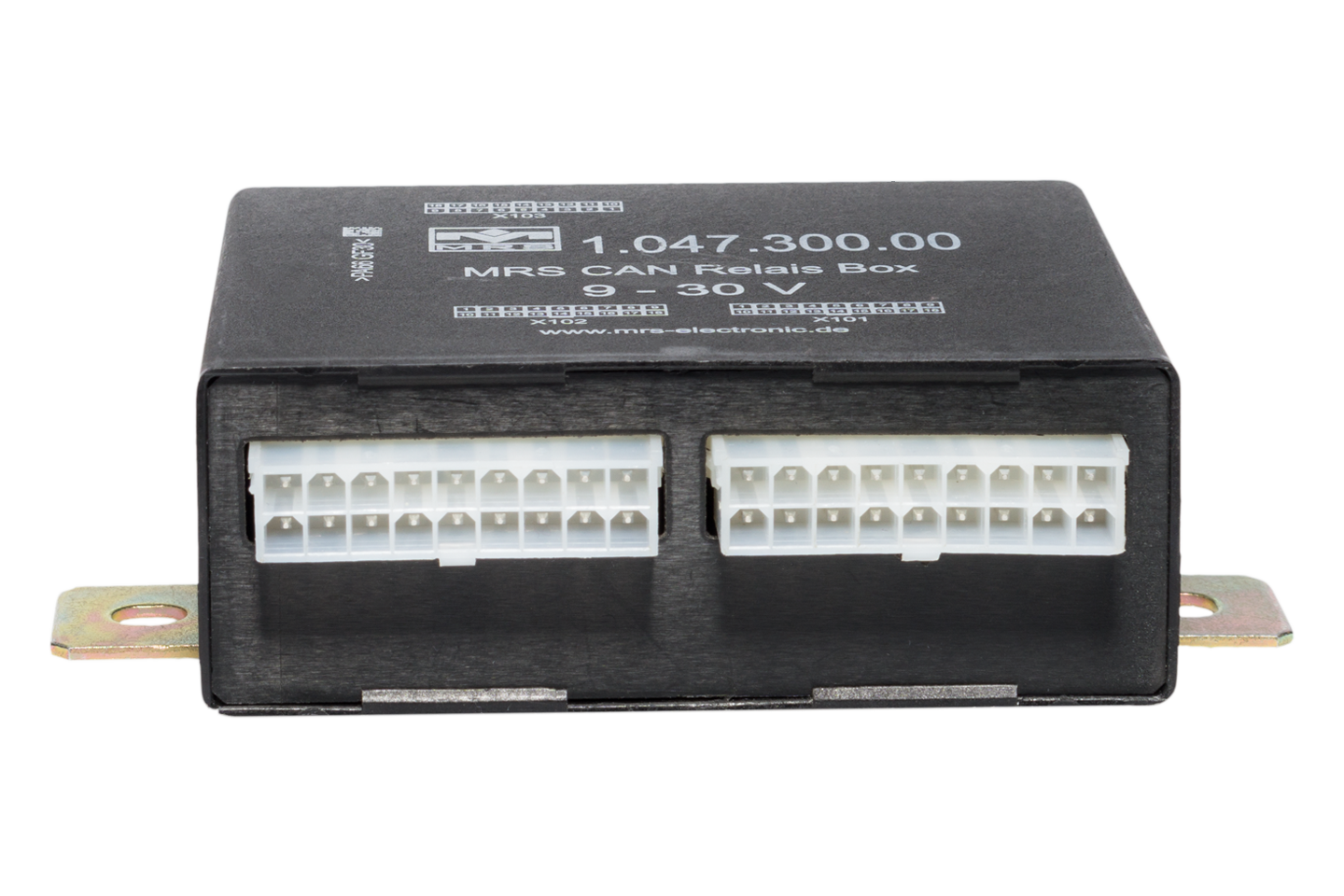

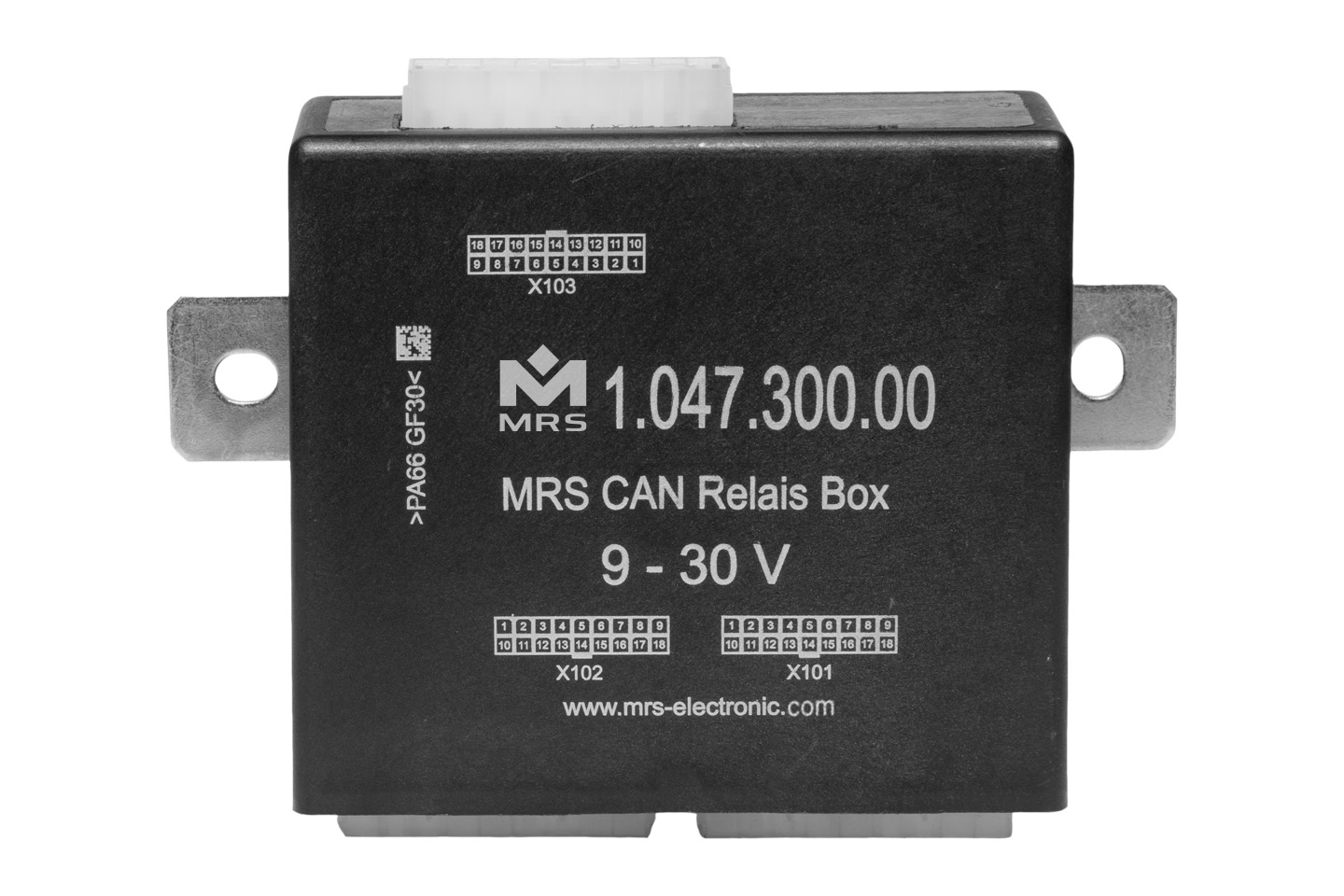

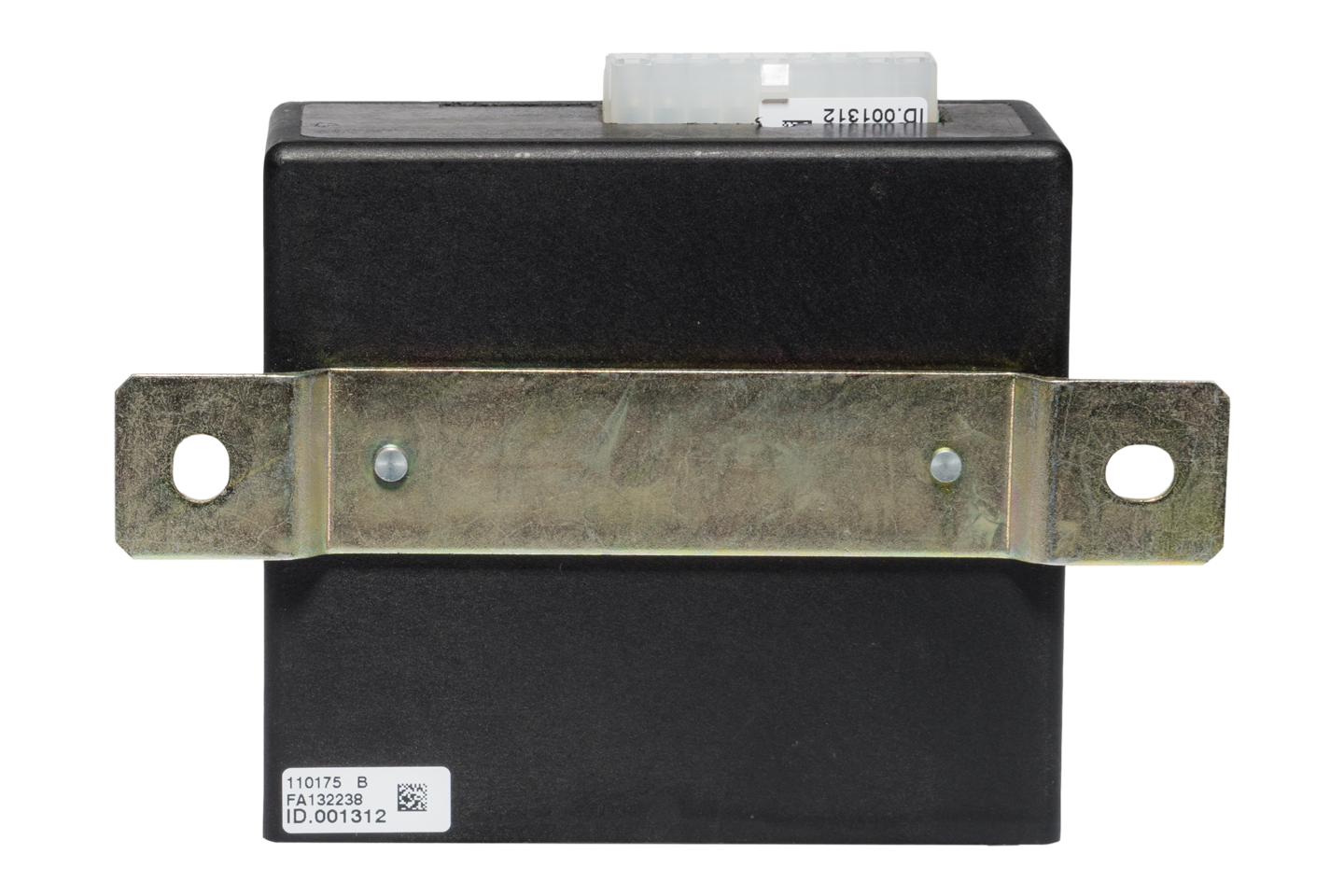

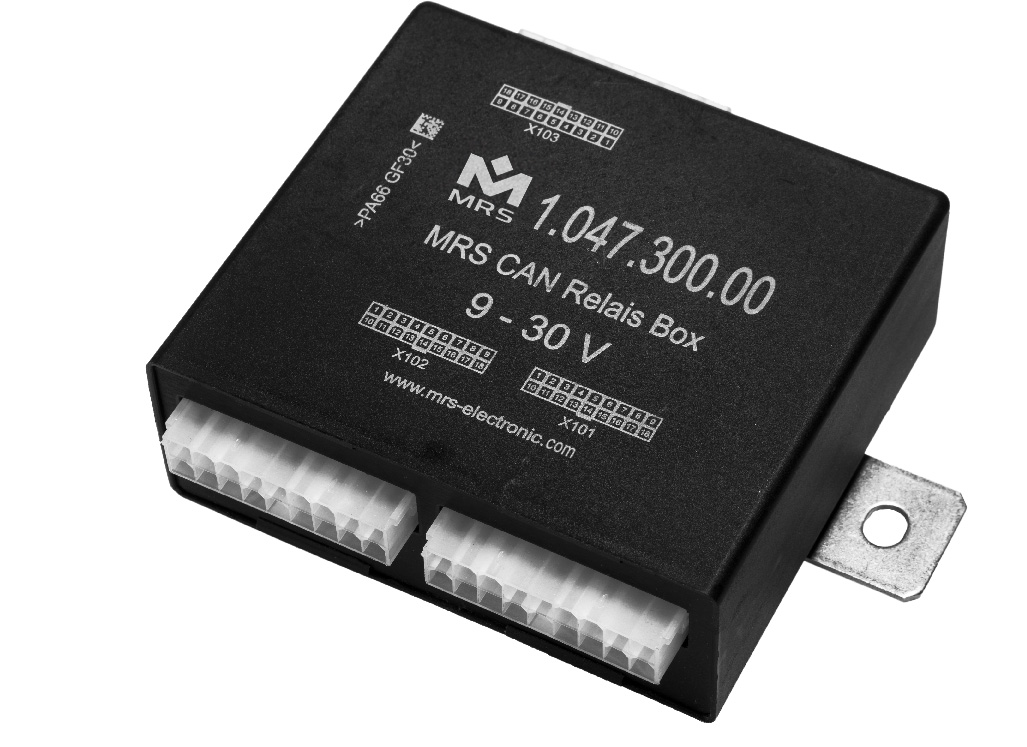

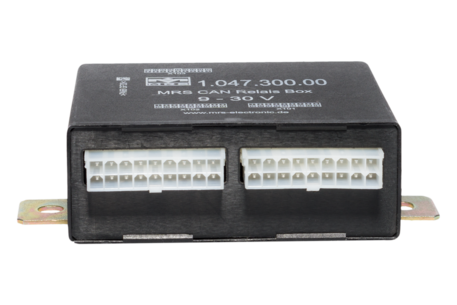

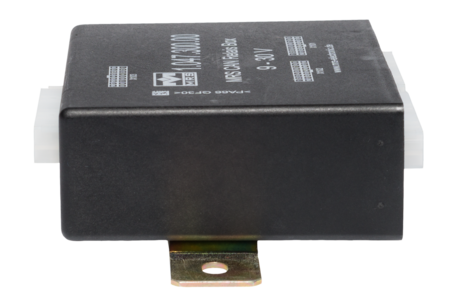

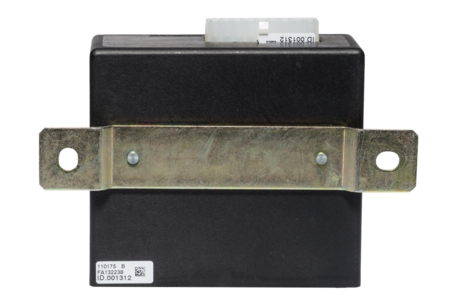

CAN Relay Box

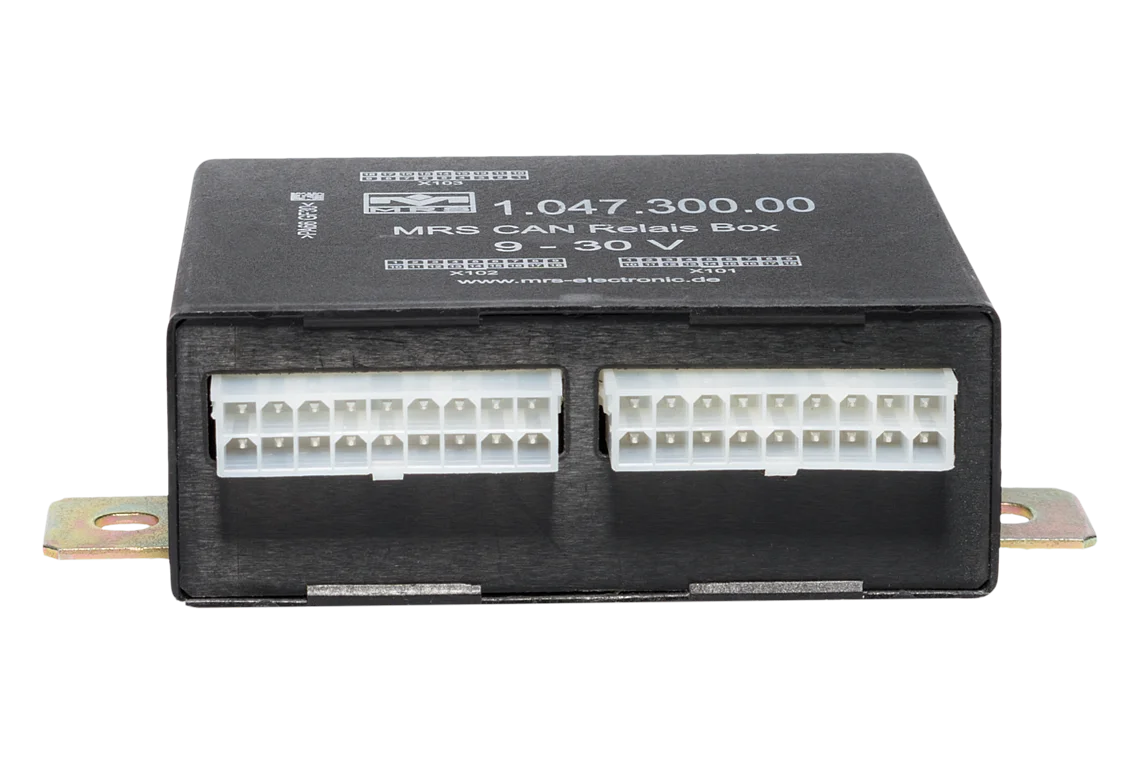

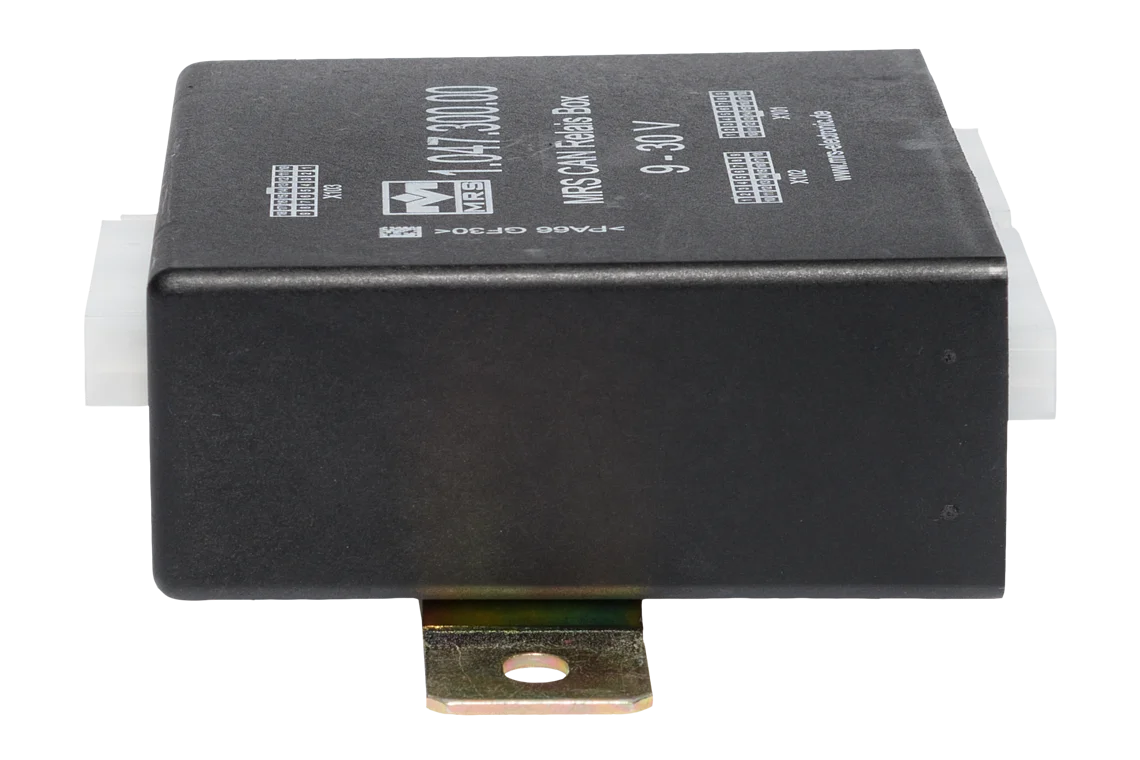

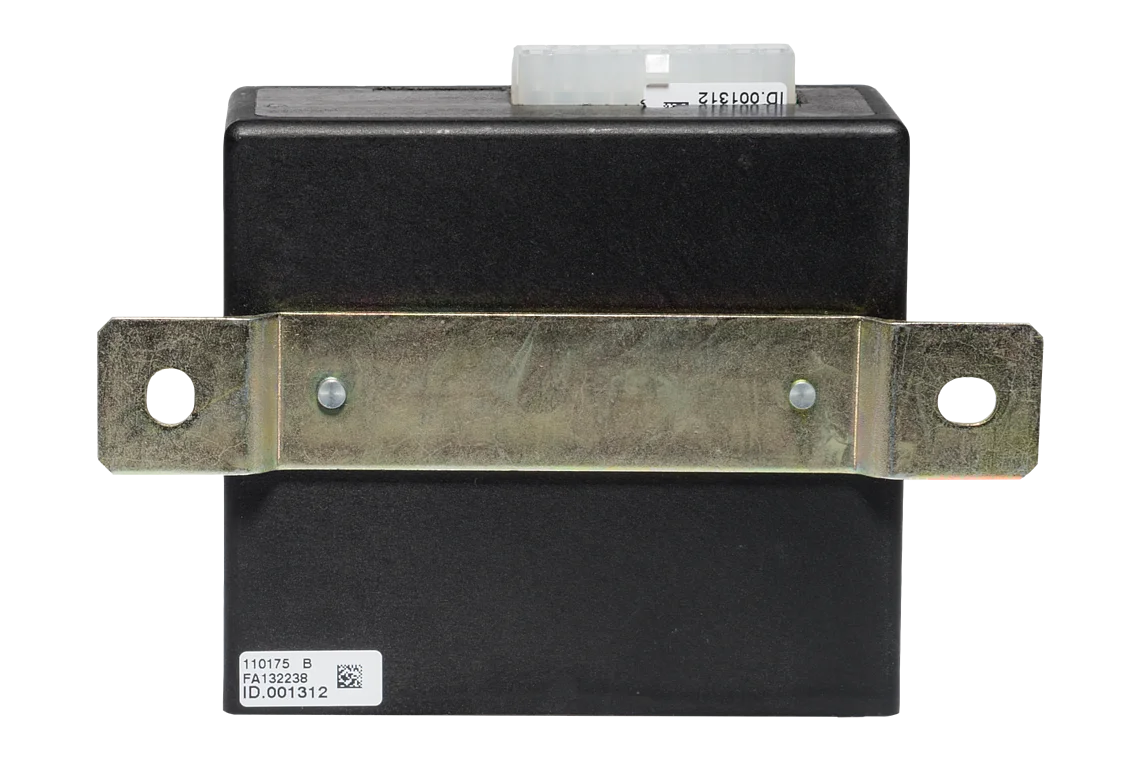

1.047.3xx.xxE ( choose order option )(10473xxxxE)The CAN Relay Box is the appropriate product when you want to determine potential-free, switching output signals that must be connected. You can set the signal potential yourself and individually for your application. The 12 potential-free relays can be activated using CAN messages. The module can be integrated into your network as a separate PLC or as a simple I/O module.
The box is very compact and thus space-saving, but still very versatile because relays and control functions are integrated into one device. This reduces the wiring outlay in your application.
| Name | Value |
|---|---|
| Dimensions | 89 × 95 × 35 mm |
| Housing material | Plastic |
| Connector type | 3x 18-position Molex Mini Fit Junior |
| In-/Outputs (total) | 25 |
| Operating voltage | 9-30 V |
| Protection class | IP53 |
| Name | Value |
|---|---|
| Number of pins | 54 |
| In-/Outputs (total) | 25 |
| Inputs (total) | 13 |
| Inputs (analog) | 13 |
| Outputs (total) | 12 |
| Relay outputs | 12 |
| Processor family | Freescale HCS08 |
| Processor | 8 bit |
| CAN interfaces | 1 |
| Temperature range | -40 to 85 °C |
| Protection class | IP53 |
| Operating voltage | 9-30 V |
| Current consumption ( ≤ ) | 1 A |
| External overcurrent protection | 1 A |
| Quiescent current (24V) | 500 µA |
| Quiescent current (12V) | 210 µA |
| Programming system | MRS Developers Studio |
| Current per relay | 4 A permanent load |
| Name | Model | Order no. | ||
|---|---|---|---|---|
| CAN Relay Box HS | High-Speed | 1.047.300.00E | ||
| CAN Relay Box LS | Low-Speed | 1.047.310.00E | ||
| CAN Relay Box HS | High-Speed, CANopen (CiA401) | 1.047P.300.00E |
| Required accessories | Article number | |
|---|---|---|
| Softwaretool MRS Developers Studio Bundle | 1.100.100.09 | |
| PCAN-USB Interface | 105358 | |

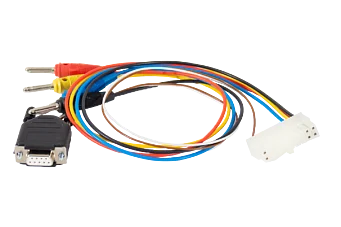

| Cable set to program CAN Gateway Module / CAN Relay Box | 109639 | |
| Connector Kit CAN Gateway Module / CAN Relay Box | 109637 | |
| Cable FLRY 2 x 0.50 mm² white/green SL20 | 113085 |
What is the quiescent current of the CAN relay box?
The quiescent current is:
12 V => 0.21 mA
24 V => 0.50 mA
Is the CAN relay box CAN wake-up capable?
Yes, the CAN wake-up functionality can be set via the DIP switches.
For further information please contact our support.
Is there a terminating resistor on the CAN relay box?
Yes, the DIP switch on the board must be set to ON for this.
For more information, please contact our support.
