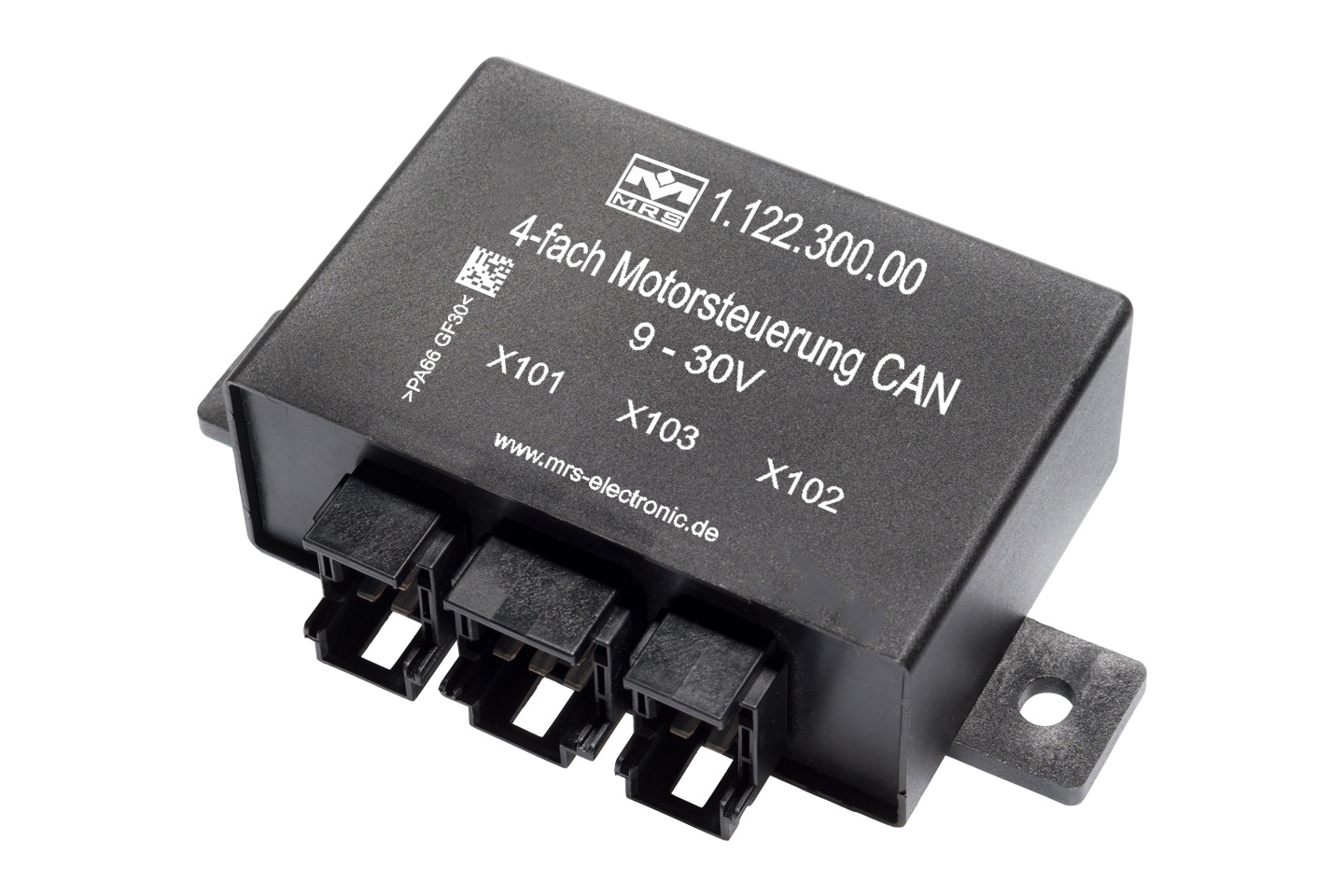

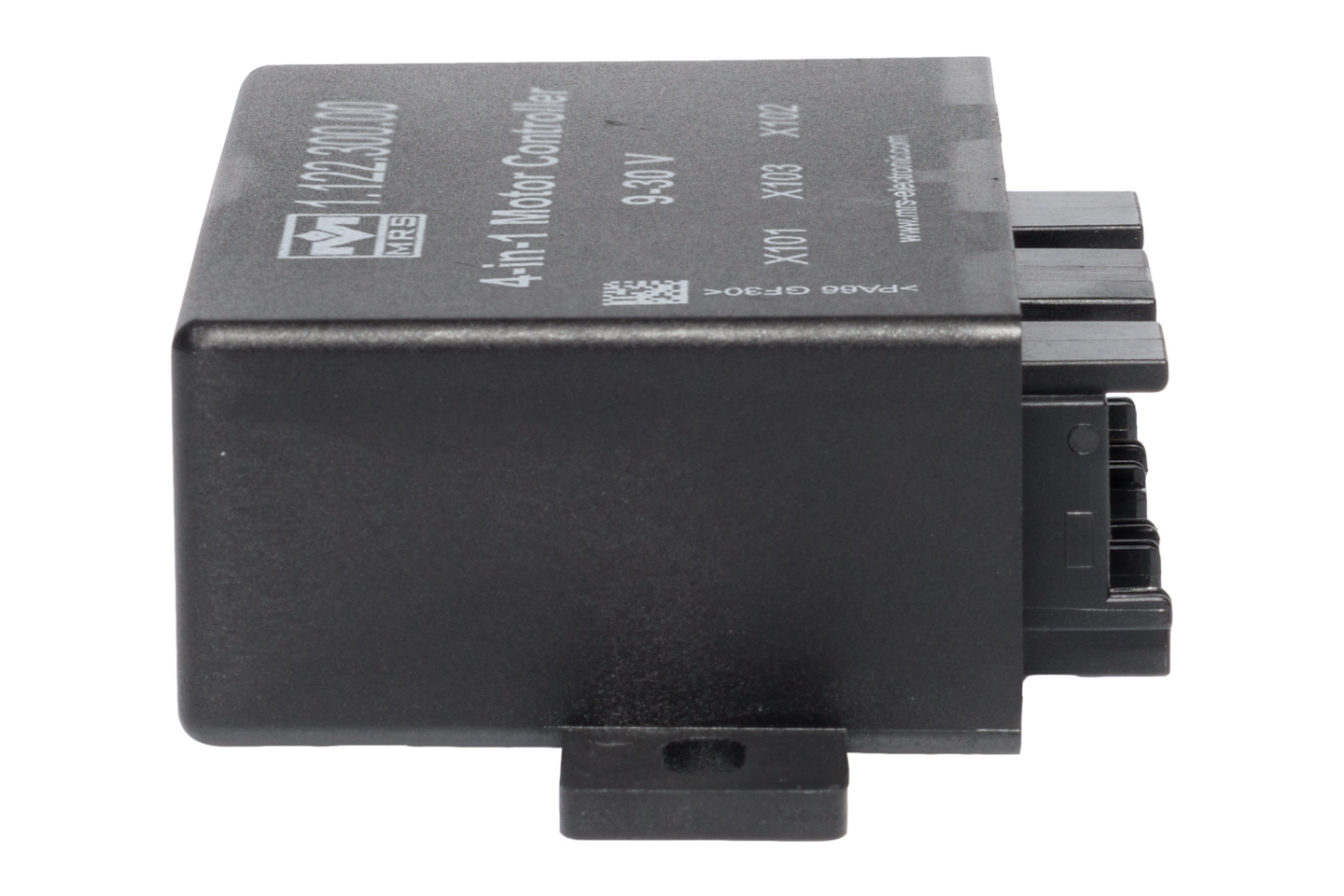

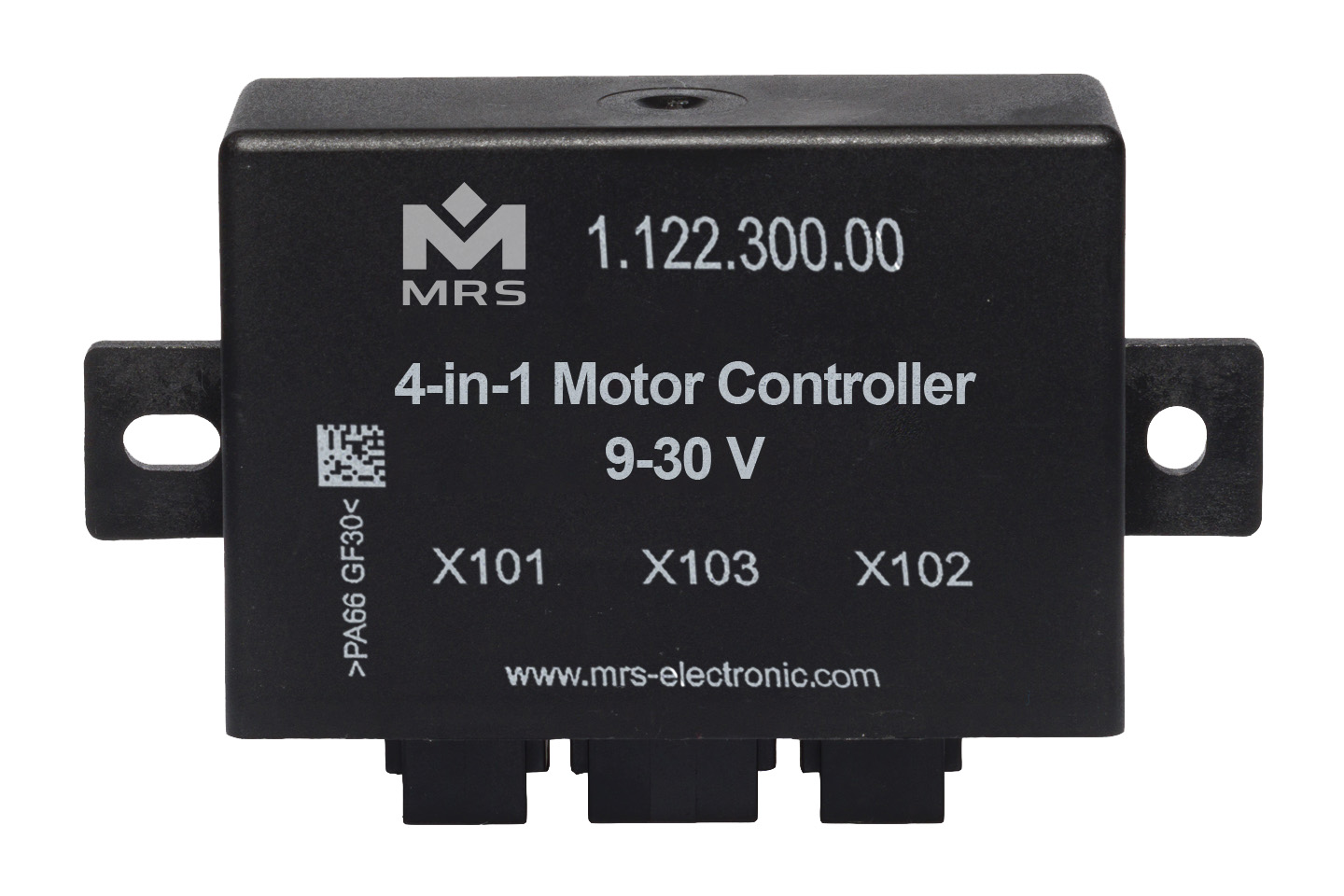

4-in-1 Motor Controller
1.122.300.00E ( choose order option )(112230000E)
Motor control with 4x5 A motor outputs for DC motors and integrated current monitoring. In many outdoor electronics applications, there is an increasing demand for small motor control units that can drive several DC motors cost-effectively via different bus systems.

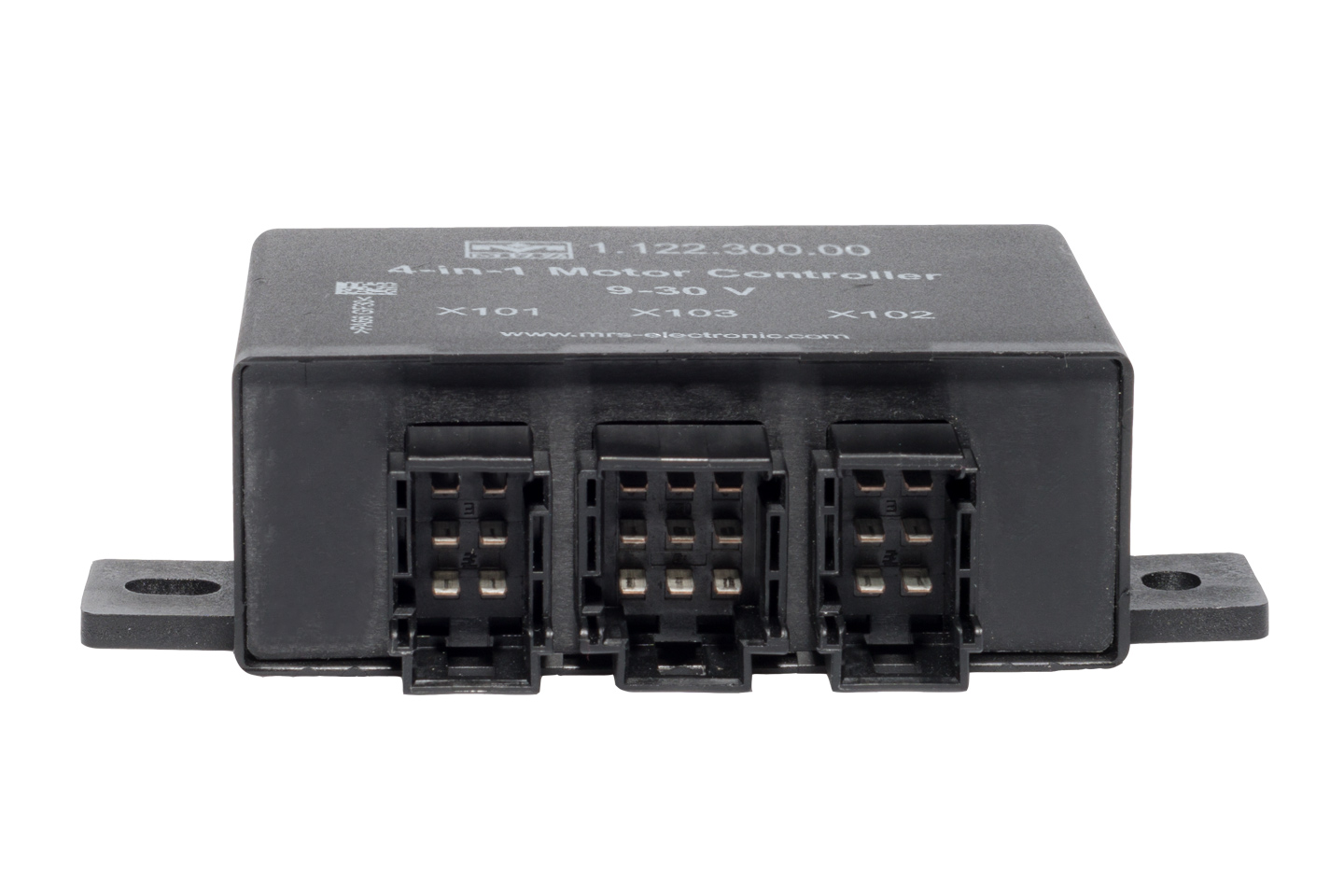

| Name | Value |
|---|---|
| Weight | 137 g |
| Dimensions | 95 × 65 × 35 mm |
| Housing material | Plastic |
| Connector type | 2x KFZ-Stecker Tyco JPT 90° 6pol. (3x2), 1x KFZ-Stecker Tyco JPT 90° 9pol. (3x3) |
| In-/Outputs (total) | 10 |
| Operating voltage | 9-30 V |
| Protection class | IP53 |
| Type-approval number | 05 7815 |
| Type-approval | E1 - ECE R10 |
| Name | Value |
|---|---|
| Number of pins | 21 |
| In-/Outputs (total) | 10 |
| Inputs (total) | 3 |
| Inputs (analog) | 3 |
| Outputs (total) | 7 |
| Outputs (PWM capable) | 4 |
| Processor family | Freescale HCS08 |
| Processor | 8 bit |
| CAN interfaces | 1 |
| Temperature range | -40 to 85 °C |
| Protection class | IP53 |
| Operating voltage | 9-30 V |
| Current consumption | 0 A |
| Programming system | MRS Developers Studio |
| Motor outputs, controllable simultaneously | 2 |
| Motor full-bridge | 4 |
| Quiescent current | 250 µA |
| Name | Order no. | ||
|---|---|---|---|
| 4-in-1 Motor Controller CAN | 1.122.300.00E |
| Required accessories | Article number | |
|---|---|---|
| Softwaretool MRS Developers Studio Bundle | 1.100.100.09 | |

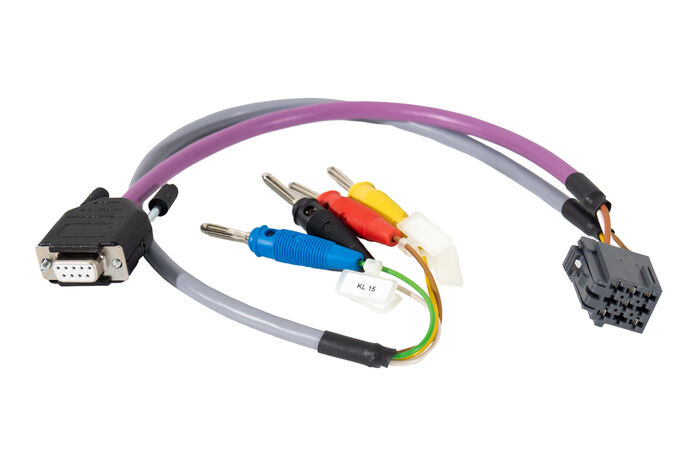

| Cable set for 4-in-1 Motor Controller | 500349 | |

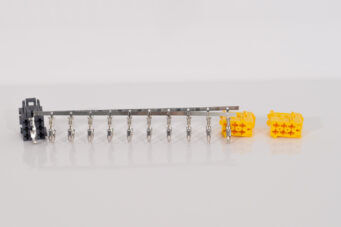

| Connector package for 4-fold Motor Controller | 300187 | |
| PCAN-USB Interface | 105358 |
