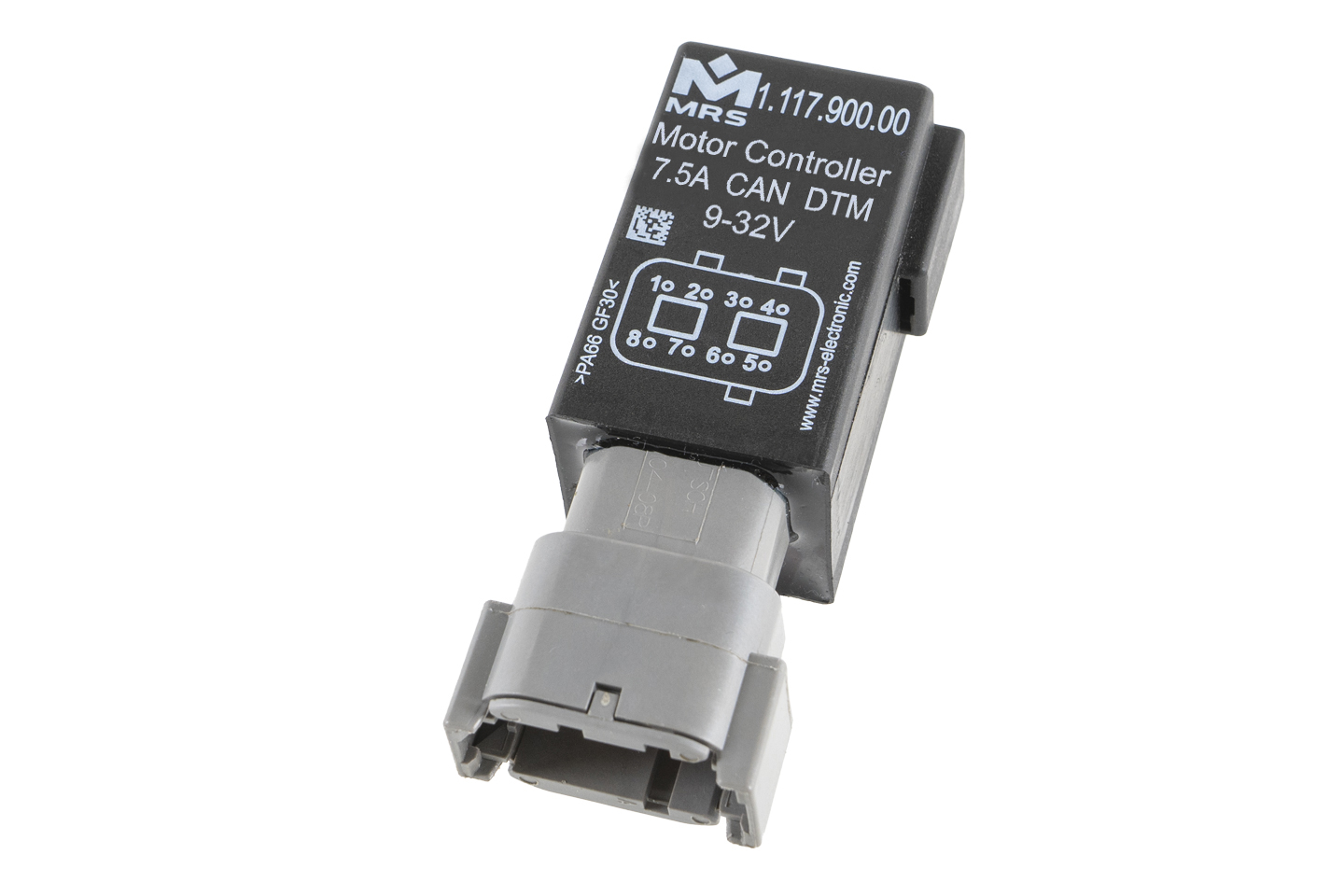

Motor Controller 7.5 A CAN DTM
go to order options (11179)

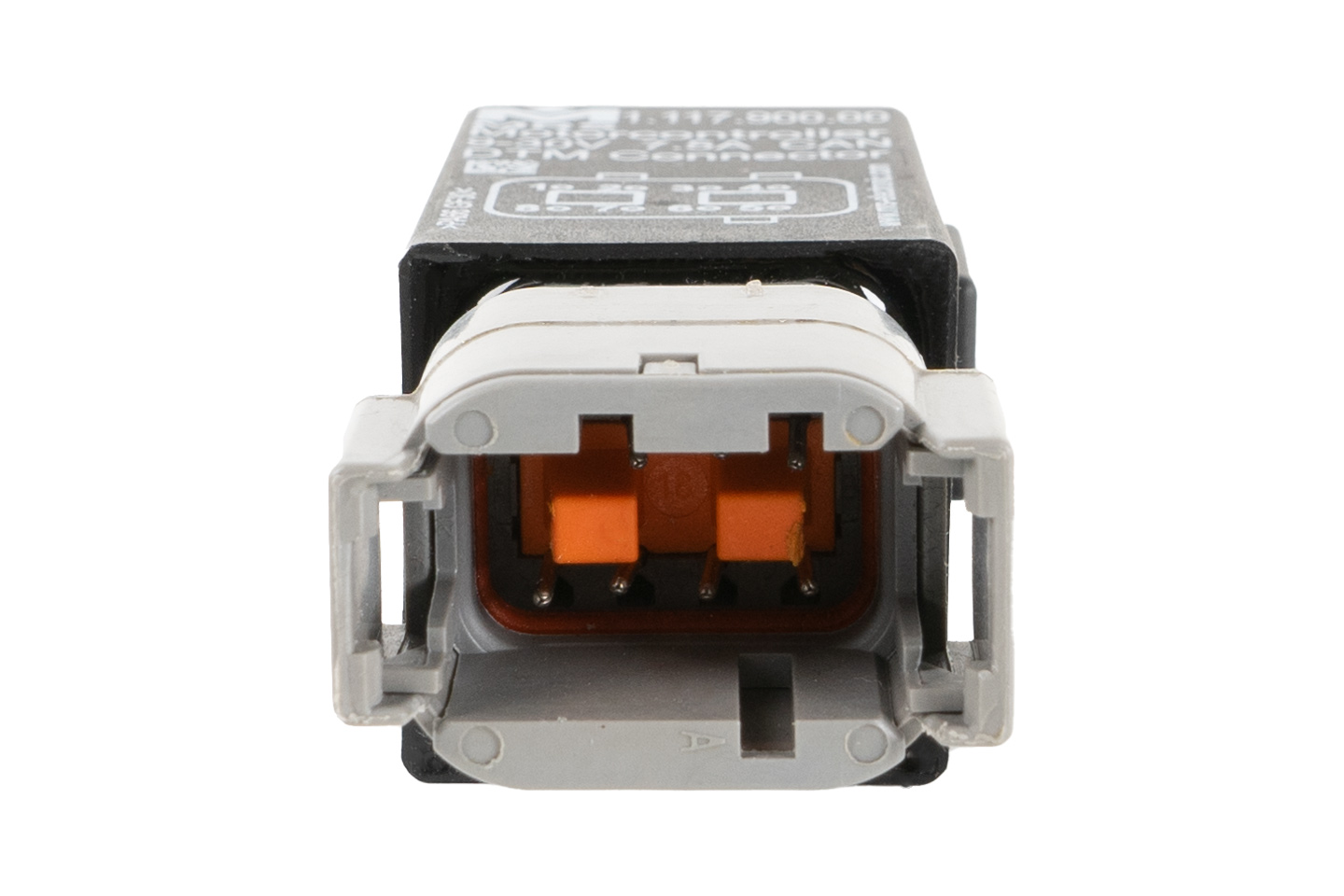

The Motor Controller 7.5 A CAN DTM is used for the control of DC motors. Due to the free programmability and the compact design, you can implement a wide range of applications in the smallest of spaces. In combination with the DEUTSCH DTM connector, it offers you robust quality and is ideally suited for extreme environmental conditions.
Technical details
Inputs and Outputs
| Number of pins | 8 |
|---|---|
| In-/Outputs (total) | 2 |
| Inputs (total) | 1 |
| Inputs (analog) | 1 |
| Outputs (total) | 1 |
| Fullbridge | 1 |
| Switching current | 7.5 A |
Interfaces
| CAN interface(s) | 1 |
|---|
Mechanical Properties
| IP rating | IP6K8 |
|---|---|
| Housing material | PA66GF30 |
Programming
| Programming software | MRS Developers Studio |
|---|
General
| Temperature range | -40 °C to +85 °C |
|---|---|
| Operating voltage | 6-32 V |
| Current consumption | 23 mA |
| Quiescent current (12V) | 700 µA |
| Quiescent current (24V) | 1280 µA |
| Processor architecture | 8 bit |
Markings
Order options
| Order no. | Name |
|---|---|
| 1.117.900.0000 (11179000000) |
Wake Up Option KL15, CAN High Side
|
