Micro PLC CAN 12 V
1.107.11x.xxE ( choose order option )(110711xxxE)The Micro PLC CAN is a small control system for automotive applications. Free configuration and programmability offer a wide range of applications in the automotive sector. Control and readout are done via the CAN bus (ISO 11898-2). In addition, the controller has a Freescale processor with Flash technology (option of multiple programming). There are 2 analogue and/or 1 analogue input/1 digital output and 2 overload-proof Highside power outputs (alternative relay output) available. Complex applications can be realized in C. The functions as well as the measured values are controllable and readable via the CAN bus. Programming is possible using the software Mrs Developers studio, graphically with CANgraph. The use of the powerful processor makes the Micro PLC CANopen and SAE J1939 capable.
| Name | Value |
|---|---|
| Weight | 31 g |
| Dimensions | 30 × 30 × 40 mm |
| Housing material | Plastic |
| Connector type | FASTON 6.3 mm, FASTON 2.8 mm |
| In-/Outputs (total) | 4 |
| Operating voltage | 12 V |
| Protection class | IP53 |
| Type-approval number | 04 7362 |
| Type-approval | E1 - ECE R10 |
| Protocols | CAN Interface 2.0 A/B ISO 11898-2, SAE J1939 |
| Name | Value |
|---|---|
| Number of pins | 9 |
| In-/Outputs (total) | 4 |
| Inputs (total) | 3 |
| Inputs (analog) | 3 |
| Outputs (total) | 1 |
| Relay outputs | 1 |
| Processor family | Freescale HCS08 |
| Processor | 8 bit |
| CAN interfaces | 1 |
| Temperature range | -40 to 85 °C |
| Protection class | IP53 |
| Operating voltage | 12 V |
| Switch-on voltage | 8.5 V |
| Overload protection (≥) | 33 V |
| Current consumption ( ≤ ) | 27 mA |
| Quiescent current (12V) | 26 mA |
| Programming system | MRS Developers Studio |

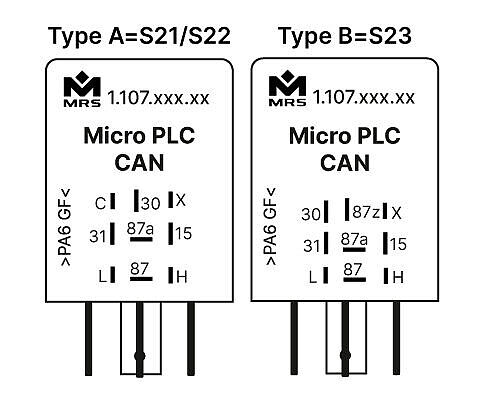

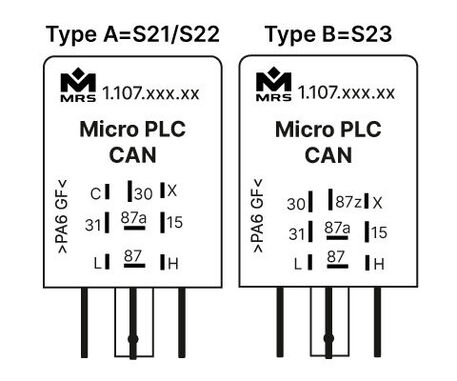

| Name | Type | Model | Connection diagram | Order no. | ||
|---|---|---|---|---|---|---|
| Micro PLC CAN 12 V | A | relay, changeover switch | S22 | 1.107.110.00E | ||
| Micro PLC CAN 12 V | A | With Frequency Input | S22 | 1.107.110.01E | ||
| Micro PLC CAN 12 V | A | With Potentiometer | S22 | 1.107.110.03E | ||
| Micro PLC CAN 12 V | A | Pin 4: 0-33,6 V | S22 | 1.107.110.0AE | ||
| Micro PLC CAN 12 V | B | relais, changeover switch | S23 | 1.107.112.00E | ||
| Micro PLC CAN 12 V | B | Voltage monitoring KL15 | S23 | 1.107.114.00E |
| Required accessories | Article number | |
|---|---|---|
| Softwaretool MRS Developers Studio Bundle | 1.100.100.09 | |
| PCAN-USB Interface | 105358 | |
| Cable set to programm Micro PLC CAN / PROP CAN / Micro Gateway | 109446 | |
| Cable FLRY 2 x 0.50 mm² white/green SL20 | 113085 | |
| Socket package watertight 40 mm | 1.017.010.40 | |
| Socket ST FL 9-pin 5 x 6.3 / 4 x 2.8 | 1.017.002.00 | |
| FASTON terminal for latching 2.8 mm 0.5 – 1.0 mm² | 105292 | |
| FASTON terminal for latching 6.3 mm 1 mm² | 102355 | |
| FASTON terminal for latching 6.3 mm 1.5 – 2.5 mm² | 103064 |
