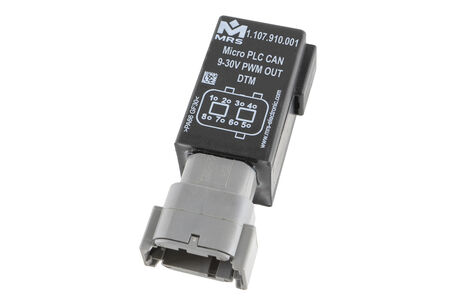

Micro PLC CAN DTM
go to order options (11079)
The Micro PLC CAN DTM is a small controller system for automotive applications. Free configuration and programmability offer a wide range of applications in the automotive sector. Control and readout are done via the CAN bus (ISO 11898-2). In addition, the controller has a Freescale processor with flash technology (option of multiple programming).
In combination with the DEUTSCH DTM connector, this module is made to robust quality standards and is ideal for extreme environmental conditions.
Downloads
Micro PLC CAN DTM
Technical details
Inputs and Outputs
| Number of pins | 8 |
|---|---|
| In-/Outputs (total) | 4 |
| Inputs (total) | 2 |
| Inputs (analog) | 2 |
| Outputs (total) | 2 |
| Outputs (PWM capable) | 2 |
| Switching current | 4.5 A / 4.5 A |
Interfaces
| CAN interface(s) | 1 |
|---|
Mechanical Properties
| IP rating | IP6K8 |
|---|---|
| Housing material | PA66GF30 |
Programming
| Programming software | MRS Developers Studio |
|---|
General
| Temperature range | -40°C to +85 °C |
|---|---|
| Operating voltage | 9-32 V |
Markings
Order options
| Order no. | Name |
|---|---|
| 1.107.910.001 (1107910001) |
2x PWM Out
|
