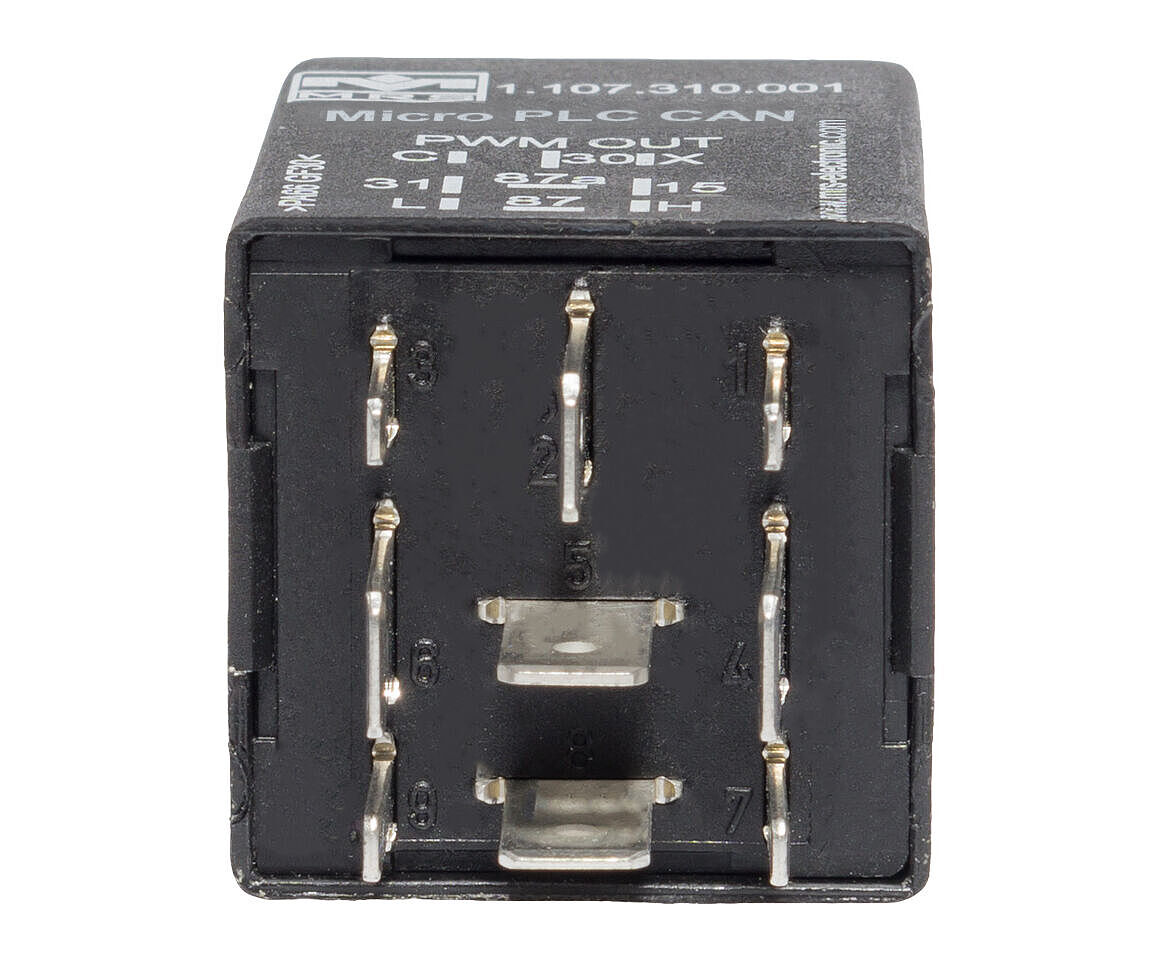

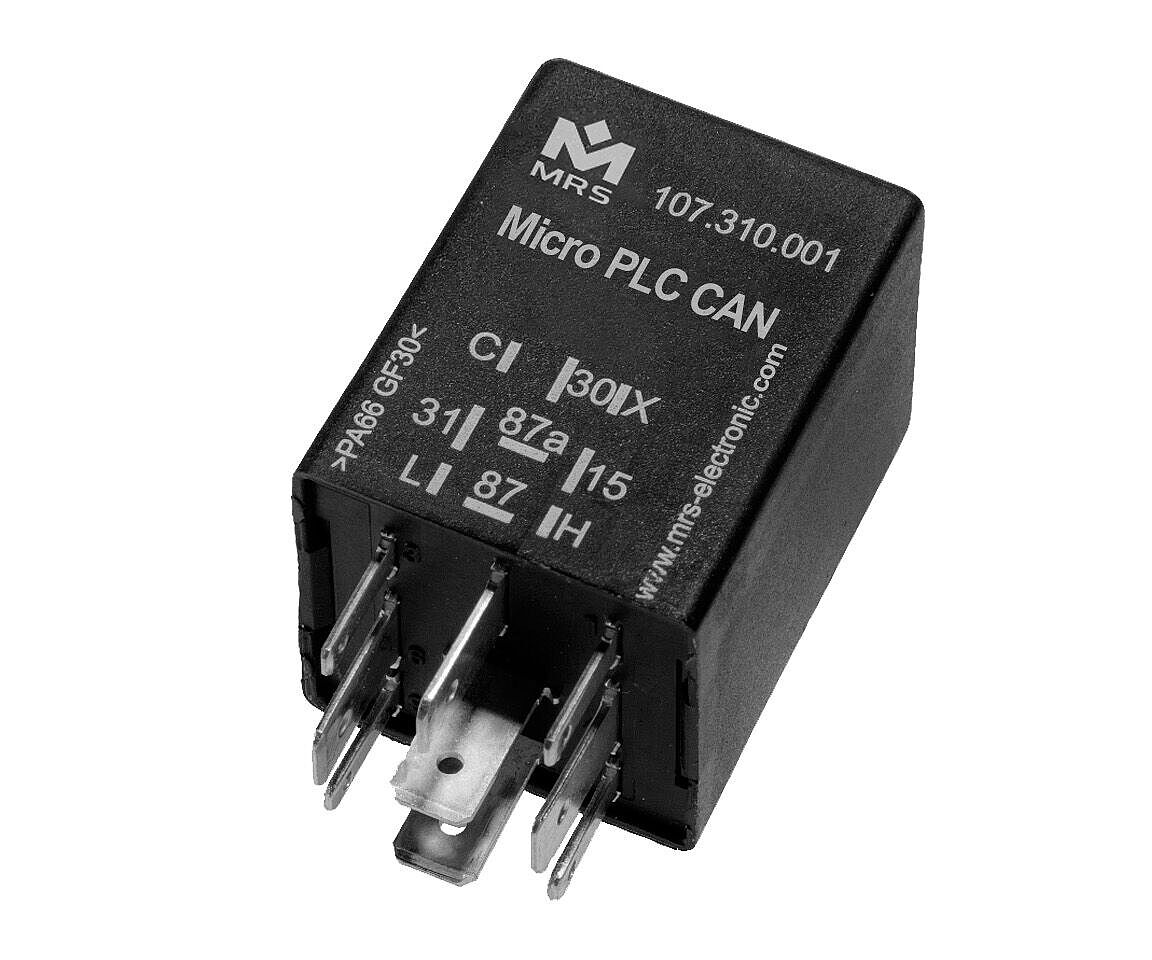

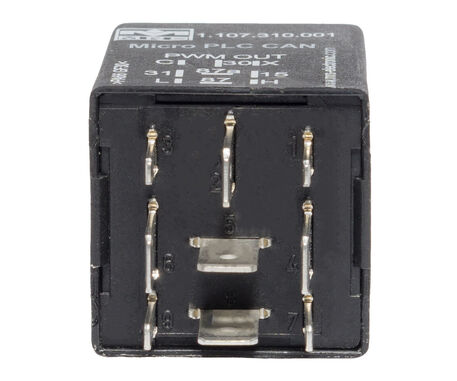

Micro PLC CAN 9 – 30 V

1.107.310.001E (choose order option)

The Micro PLC CAN is a small control system for automotive applications. Free configuration and programmability offer a wide range of applications in the automotive sector. Control and readout are done via the CAN bus (ISO 11898-2). Freescale Processor with Flash technology (option of multiple programming). There are 2 analogue and/or 1 analogue input/1 digital output and 2 overload-proof Highside power outputs (alternative relay output) available. Complex applications can be realized in C. The functions as well as the measured values are controllable and readable via the CAN bus. Programming is possible using the software Mrs Developers studio, graphically with CANgraph. The use of the powerful processor makes the Micro PLC CANopen and SAE J1939 capable.

NameValue
Weight 30.2 g
Dimensions 30 × 30 × 40 mm
Housing material Plastic
Connector type FASTON 6.3 mm, FASTON 2.8 mm
In-/Outputs (total) 5
Operating voltage 9-30 V
Protection class IP53
Type-approval number 04 7362
Type-approval E1 - ECE R10
Protocols CAN Interface 2.0 A/B ISO 11898-2, SAE J1939
NameValue
Number of pins 9
In-/Outputs (total) 5
Inputs (total) 3
Inputs (digital) 3
Inputs (analog) 3
Outputs (total) 2
Outputs (PWM capable, integrated current measurement INA) 2
Processor family Freescale HCS08
Processor 8 bit
CAN interfaces 1
Temperature range -40 to 85 °C
Protection class IP53
Operating voltage 9-30 V
Current consumption (≤) 27 mA
Max. output current (87, 87a) 5.5 A
Programming system MRS Developers Studio

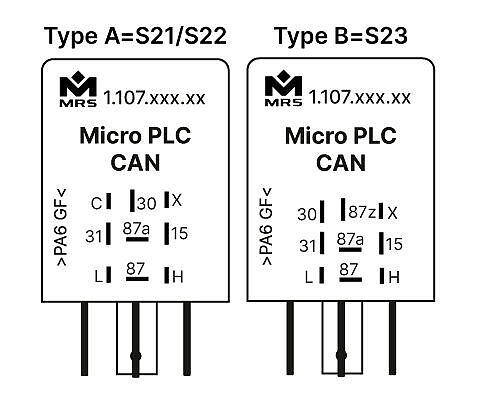

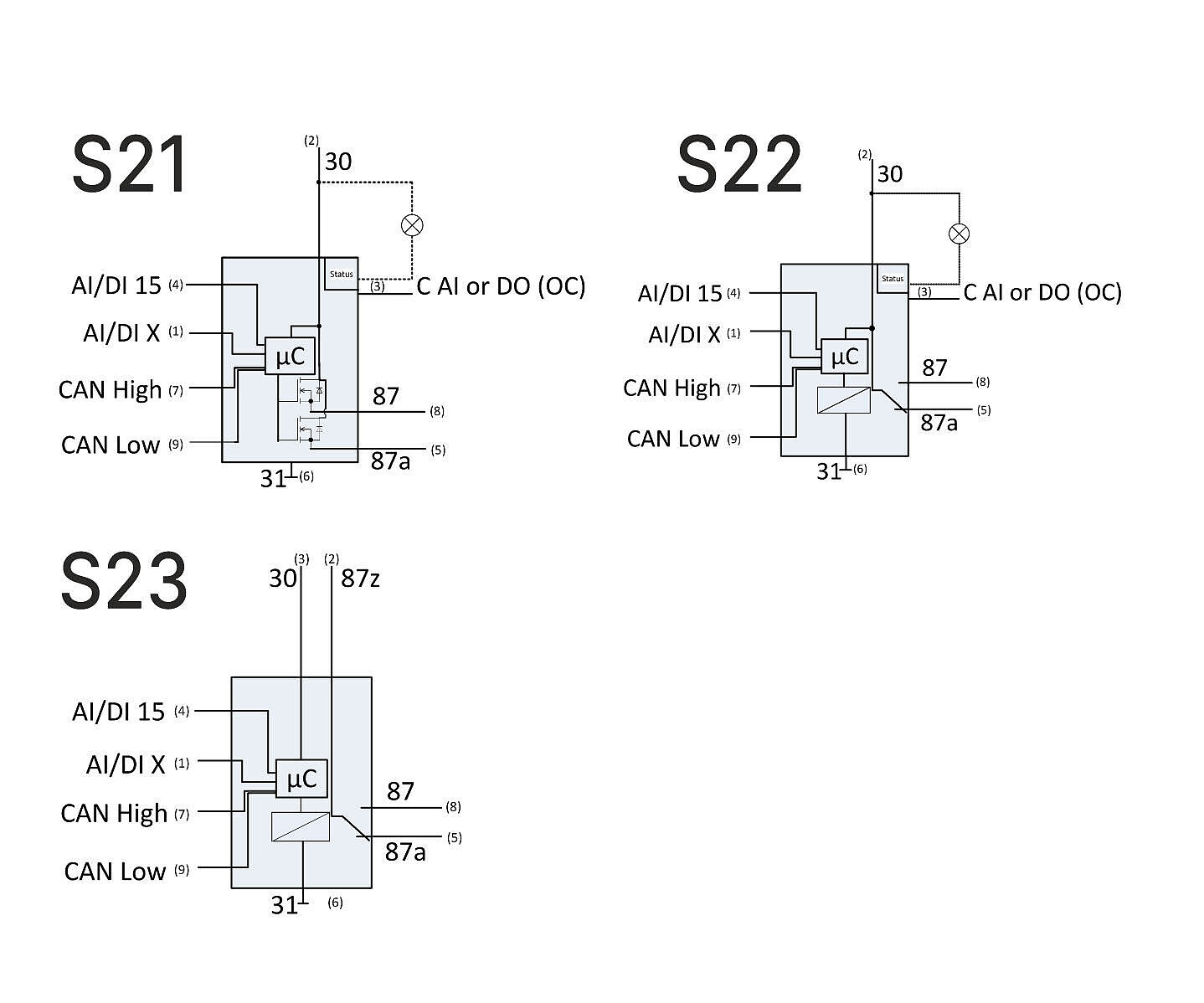

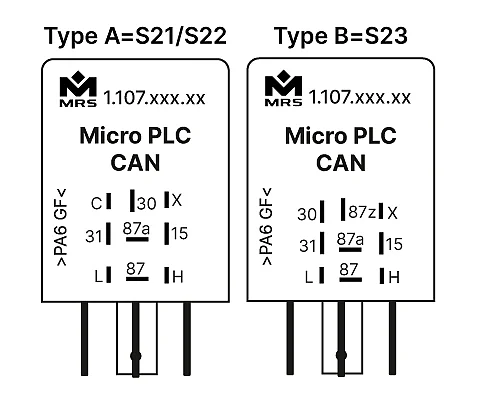

Name Type Model Connection diagram Order no.
Micro PLC CAN 9-30 V A 2 x PWM Out S1 1.​107.​310.​001E
Micro PLC CAN 9-30 V A 2 x Freq. Input / 2 x PWM Out S1 1.107.310.061E
Micro PLC CAN 9-30 V A 5 V Freq. Input / 2x PWM Out S1 1.107.310.071E
Micro PLC CAN 9-30 V A Voltage monitoring KL15 / 2x PWM Out S1 1.107.311.001E
Micro PLC CAN 9-30 V A CANopen / 2 x PWM Out S1 1.107P.310.001E
Required accessoriesArticle number
Starter Kit - Micro PLC CAN 1.​100.​110.​22
Softwaretool MRS Developers Studio Bund­le 1.​100.​100.​09
PCAN-USB Interface 105358
Cable set to programm Micro PLC CAN / PROP CAN 109446
Cable FLRY 2 x 0.50 mm² white/green SL20 113085
Socket package watertight 40 mm 114265
Socket ST FL 9-pin 5 x 6.3 / 4 x 2.8 1.​017.​002.​00
FAS­TON ter­mi­nal for latching 2.8 mm 0.5 – 1.0 mm² 105292
FAS­TON ter­mi­nal for latching 6.3 mm 1 mm² 102355
FAS­TON ter­mi­nal for latching 6.3 mm 1.5 – 2.5 mm² 103064
