CAN I/O PLC
go to order options (1033x)

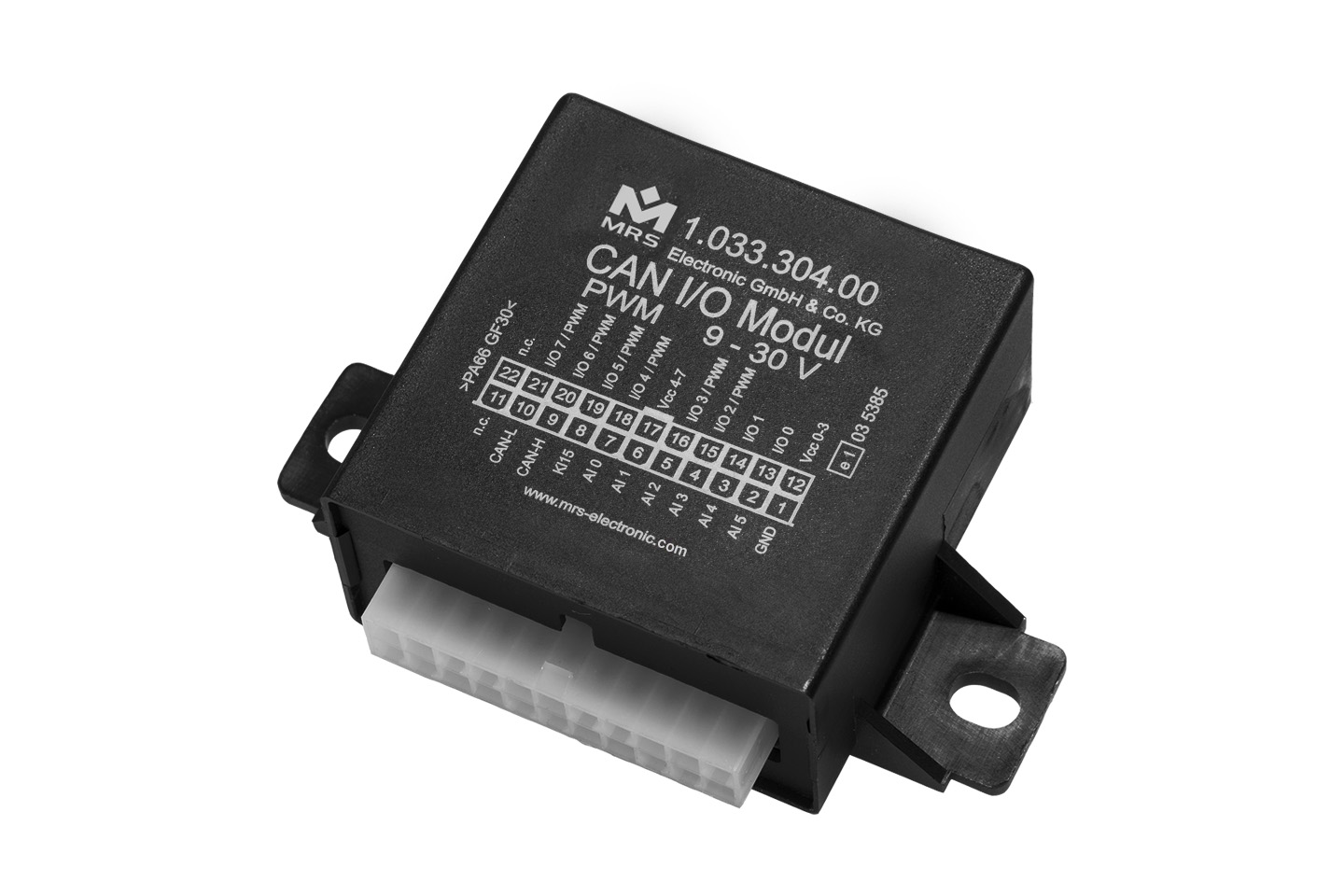

The compact CAN I/O PLC with 14 inputs and outputs and an operating voltage range of 9 to 32 V impresses with numerous assembly variants. In addition to eight I/Os that can be configured as inputs or outputs, there are six analog inputs. The practically dimensioned housing is ideally suited for tight installation spaces. The module is equipped with a CAN interface and can be expanded with an RS232 or RS485 interface. This enables data exchange (gateway) to be established between CAN and the serial interface. The CAN I/O PLC can be used as an I/O module in a CAN network as well as an independent and intelligent PLC.
Technical details
Inputs and Outputs

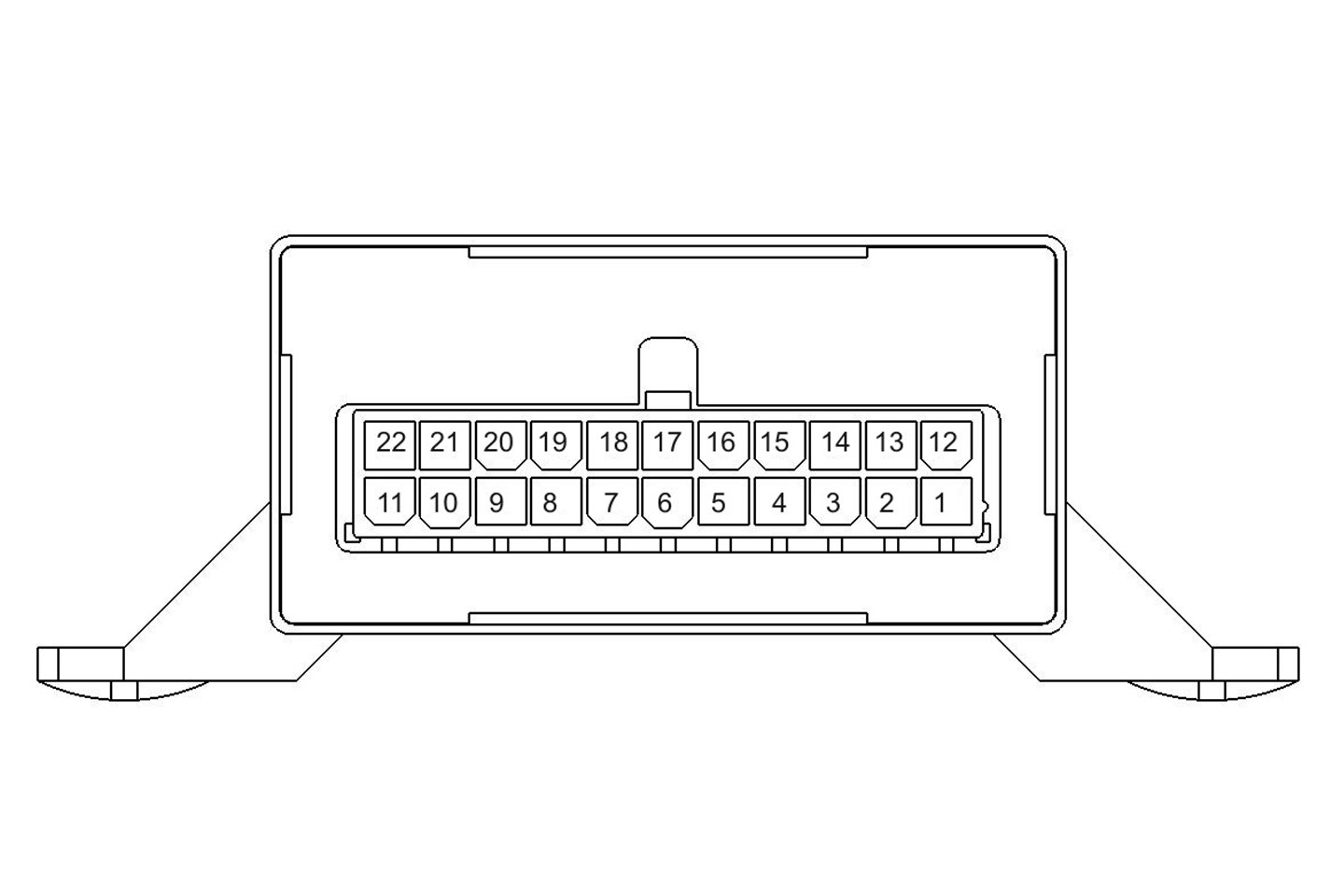

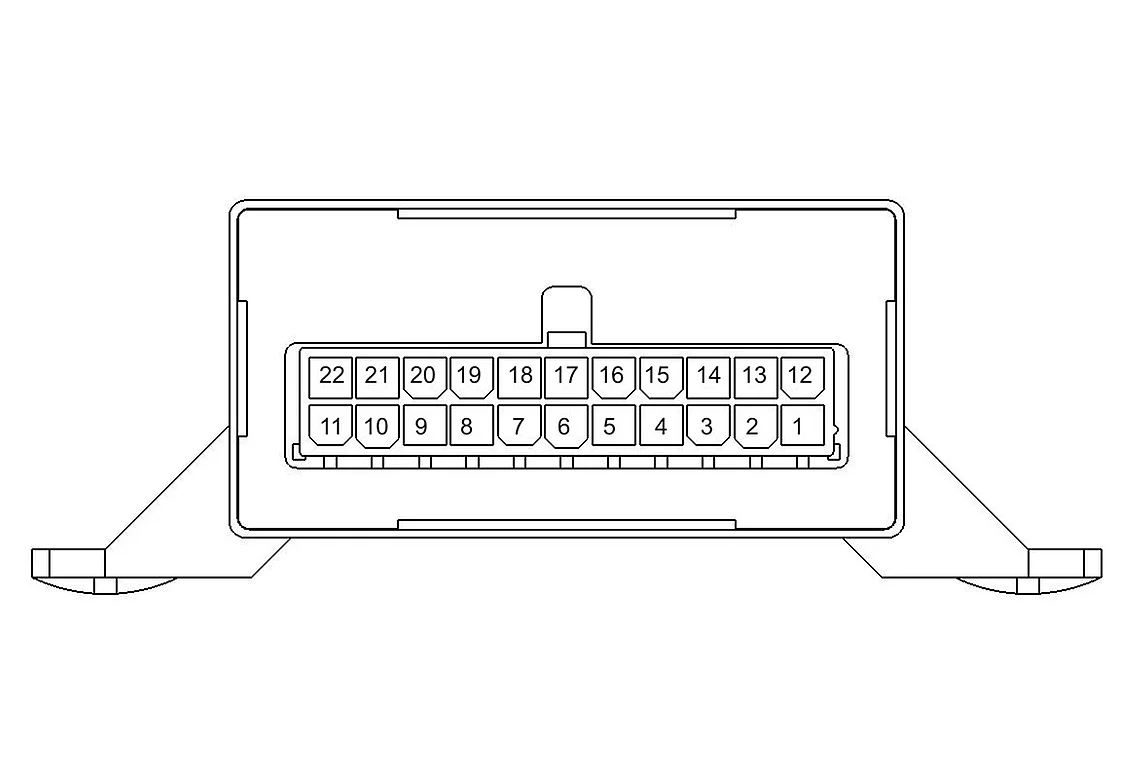

| Number of pins | 22 |
|---|---|
| In-/Outputs (total) | 14 |
| Inputs (total) | 6 |
| Inputs (analog) | 6 |
| I/Os (total) | 8 |
| I/Os (Input analog) | 6 |
| I/Os (Input digital) | 2 |
| I/O (Output PWM capable) | 6 |
| I/O (Output digital) | 2 |
| Output type high side | 8 |
| Switching current | 3 A @ 85°C |
Interfaces
| CAN interface(s) | 1 |
|---|---|
| Serial Interface(s) | 1 |
Mechanical Properties
| IP rating | IP53 |
|---|---|
| Housing material | PA66GF30 |
| Dimensions | 60 × 60 × 30 mm |
Programming
| Programming software | MRS Developers Studio |
|---|
General
| Temperature range | -40 to +85°C |
|---|---|
| Operating voltage | 9-32 V |
| Quiescent current (12V) | 40 µA |
| Quiescent current (24V) | 140 µA |
| Vref current limit | 500 mA |
| Processor architecture | 8 bit |
Markings
Order options
| Order no. | Name |
|---|---|
| 1.033.304.0001 (10333040001) |
Standard Design
|
| 1.033.305.0001 (10333050001) |
5V Ref Output
|
| 1.033.306.0001 (10333060001) |
3x Power Inputs
|
| 1.033.308.0001 (10333080001) |
30V Analog Inputs
|
| 1.033.309.0001 (10333090001) |
2x RPM-Inputs
|
| 1.033.30B.0001 (103330B0001) |
3x Pull-Ups, 5V Ref Inputs
|
| 1.033.30C.0001 (103330C0001) |
3x Pull-Up
|
| 1.033.30E.0001 (103330E0001) |
2x RPM Inputs 4.5V
(2x RPM Inputs 45V)
|
| 1.033.30K.0001 (103330K0001) |
2x RPM Inputs, 5V Ref Output
|
| 1.033.30P.0001 (103330P0001) |
3x PT1000 Inputs
|
| 1.033P.300.0001 (1033P3000001) |
CANopen
|
| 1.033P.305.0001 (1033P3050001) |
CANopen, 5V Ref Output
|
| 1.033.320.0001 (10333200001) |
RS485 Gateway
|
| 1.033.330.0001 (10333300001) |
RS232 Gateway
|
