Micro PLC CAN 4 I/O

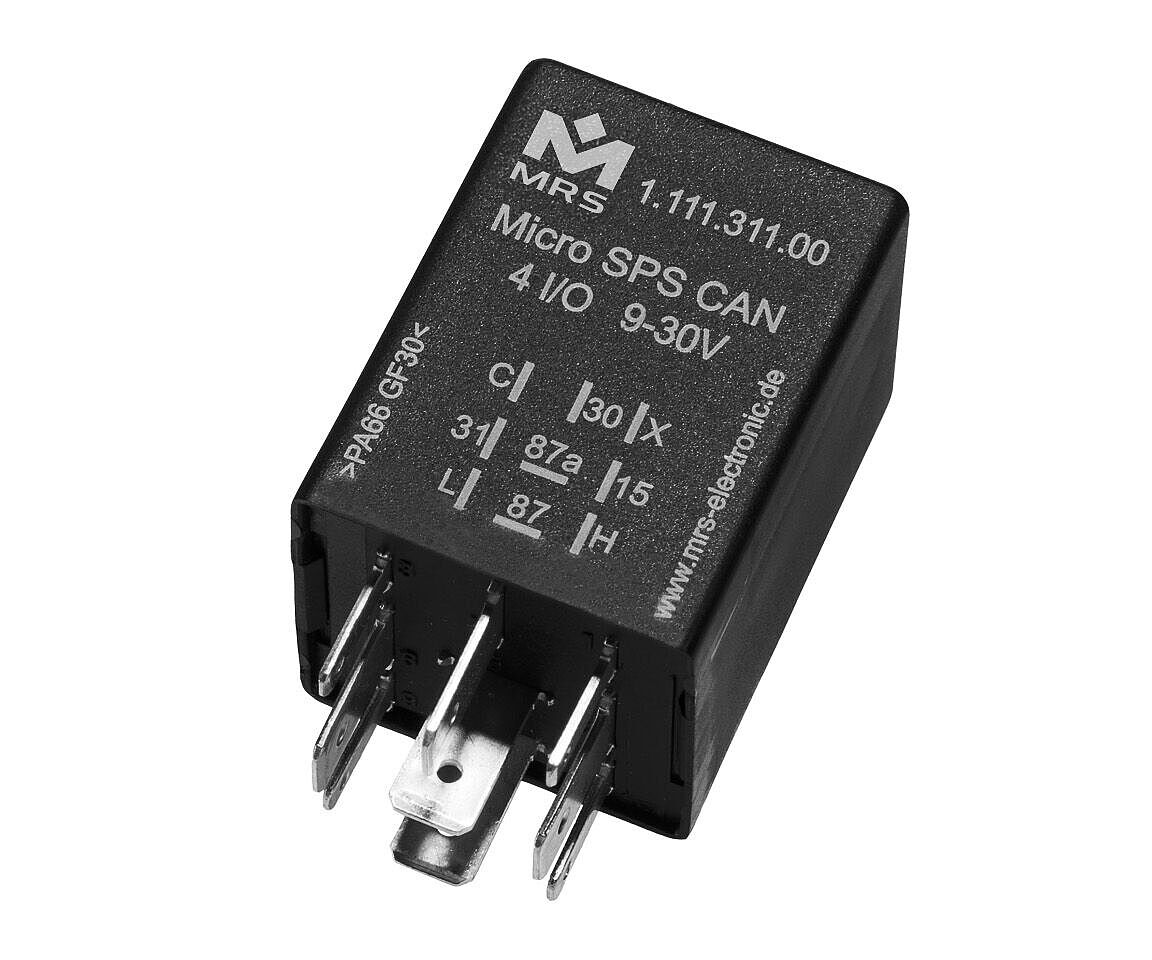

1.111.311.00E ( choose order option )(111131100E)The Micro PLC CAN 4 I/O is a very small controller for automotive applications. The module is user configurable / programmable for a wide range of automotive applications. Control and data readout is via CAN-Bus. The small controller has four input/outputs that can be programmed as input or output. The CAN-Bus module also has an analogue input and can be easily implemented in an existing can bus network.
| Name | Value |
|---|---|
| Weight | 27 g |
| Dimensions | 30 × 30 × 40 mm |
| Housing material | Plastic |
| Connector type | FASTON 6.3 mm, FASTON 2.8 mm |
| In-/Outputs (total) | 5 |
| Operating voltage | 9-30 V |
| Protection class | IP53 |
| Type-approval number | 04 7199 |
| Type-approval | E1 - ECE R10 |
| Protocols | CAN Interface 2.0 A/B ISO 11898-2, SAE J1939 |
| Name | Value |
|---|---|
| Number of pins | 9 |
| In-/Outputs (total) | 5 |
| I/Os | 4 |
| Inputs (total) | 5 |
| Inputs (analog) | 5 |
| Outputs (total) | 4 |
| Processor family | Freescale HCS08 |
| Processor | 8 bit |
| CAN interfaces | 1 |
| Temperature range | -40 to 85 °C |
| Protection class | IP53 |
| Operating voltage | 9-30 V |
| Current consumption ( ≥ ) | 25 mA |
| Quiescent current (24V) | 460 µA |
| Quiescent current (12V) | 300 µA |
| Programming system | MRS Developers Studio |

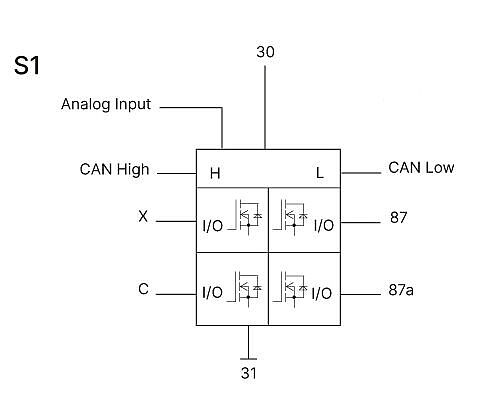

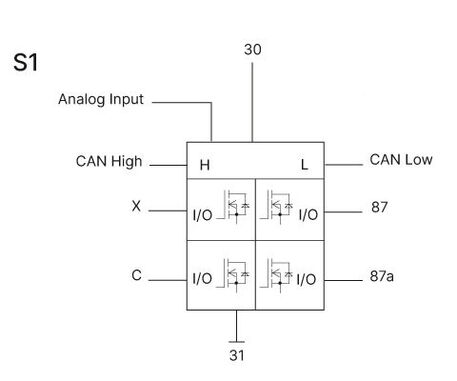

| Name | Model | Connection diagram | Order no. | ||
|---|---|---|---|---|---|

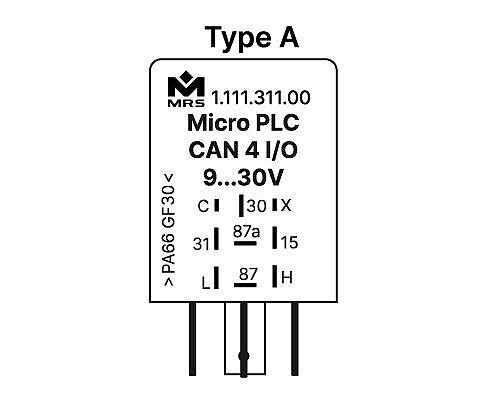

| Micro PLC CAN 4 I/O | S1 | 1.111.311.00E | |||
| Micro PLC CAN 4 I/O | CANopen (CiA401) | S1 | 1.111P.311.00E |
| Required accessories | Article number | |
|---|---|---|
| Softwaretool MRS Developers Studio Bundle | 1.100.100.09 | |
| Housing bracket | 1.017.080.00 | |
| PCAN-USB Interface | 105358 | |

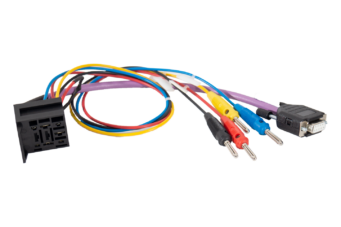

| Cable set to programm Micro PLC CAN / PROP CAN / Micro Gateway | 109446 | |
| Cable FLRY 2 x 0.50 mm² white/green SL20 | 113085 | |
| Socket package watertight 40 mm | 1.017.010.40 | |

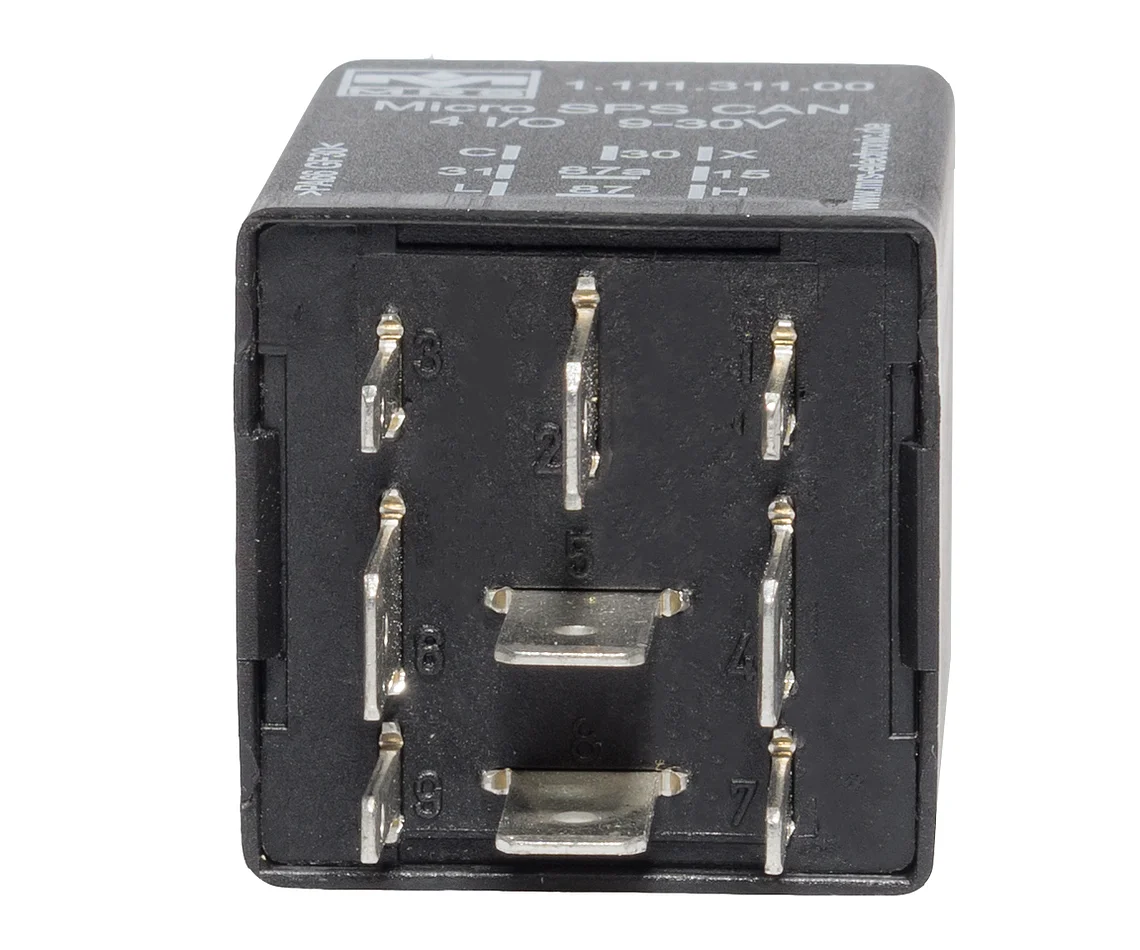

| Socket ST FL 9-pin 5 x 6.3 / 4 x 2.8 | 1.017.002.00 | |
| FASTON terminal for latching 2.8 mm 0.5 – 1.0 mm² | 105292 | |
| FASTON terminal for latching 6.3 mm 1 mm² | 102355 | |
| FASTON terminal for latching 6.3 mm 1.5 – 2.5 mm² | 103064 |
