NeuralPlex ECU
NPX (NPX)

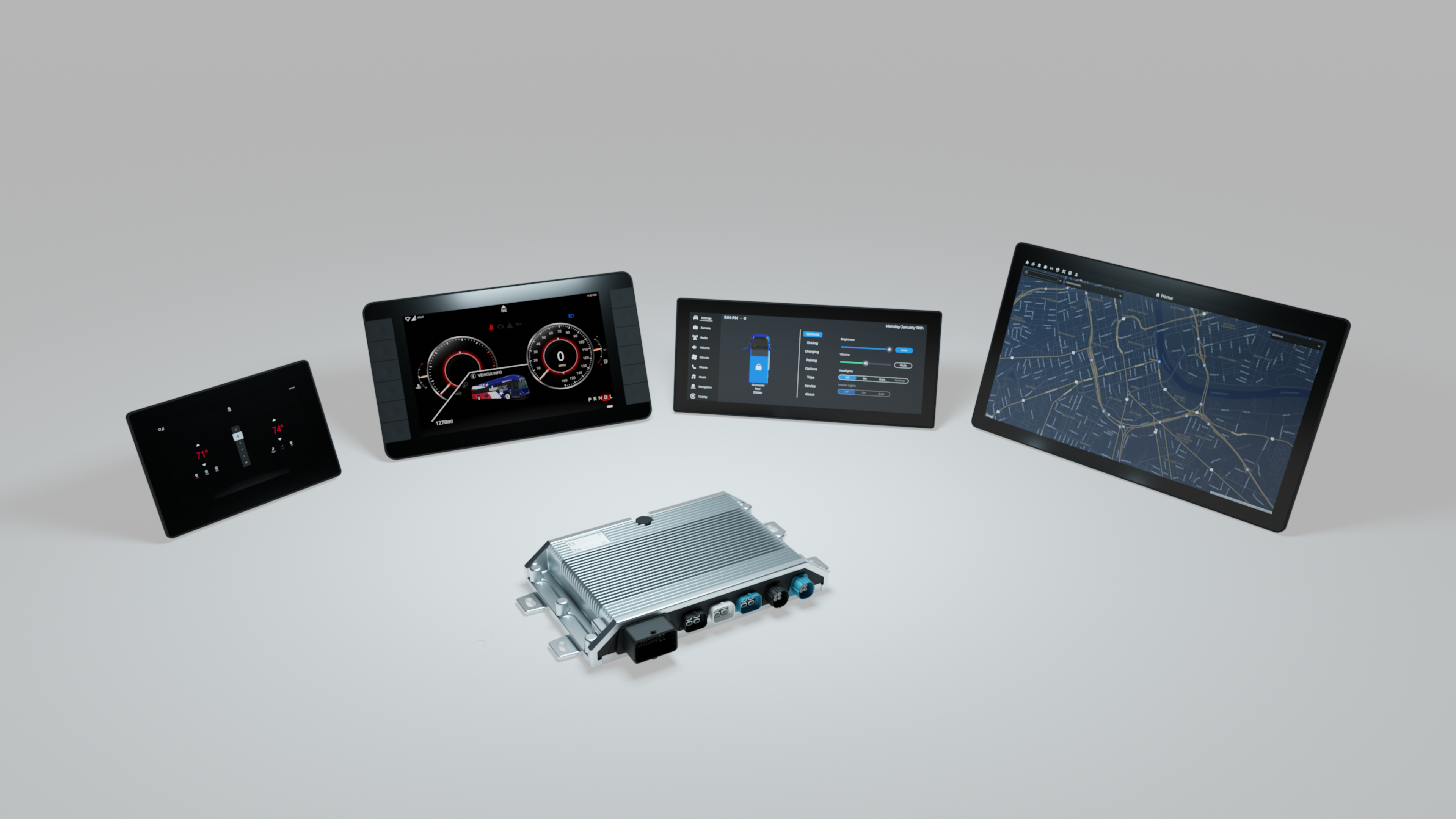

NeuralPlex is a central compute ECU that integrates system control and consolidates major cockpit related features into a single ECU. In-Vehicle Infotainment, telematics, audio, gauge cluster, vision, connectivity (Ethernet, WiFi, Bluetooth, Cellular, GPS), multiple displays with support for phone projection (Android Auto, Apple CarPlay). Readily available display sizes: 7", 10.1", 12.3", & 15.6".
For more information about NeuralPlex please reach out via email or the contact form below.
Technical details
Inputs and Outputs
| Inputs (analog) | 4 |
|---|---|
| Outputs (PWM capable) | 4 |
| Mic Inputs | 4 |
| Voltage Reference Out (0-10V) | 1 |
| Stereo Line Level Audio Outputs | 3 |
| Stereo Speaker Level Audio Output (30W) | 1 |
| HDMI Type E Output | 1 |

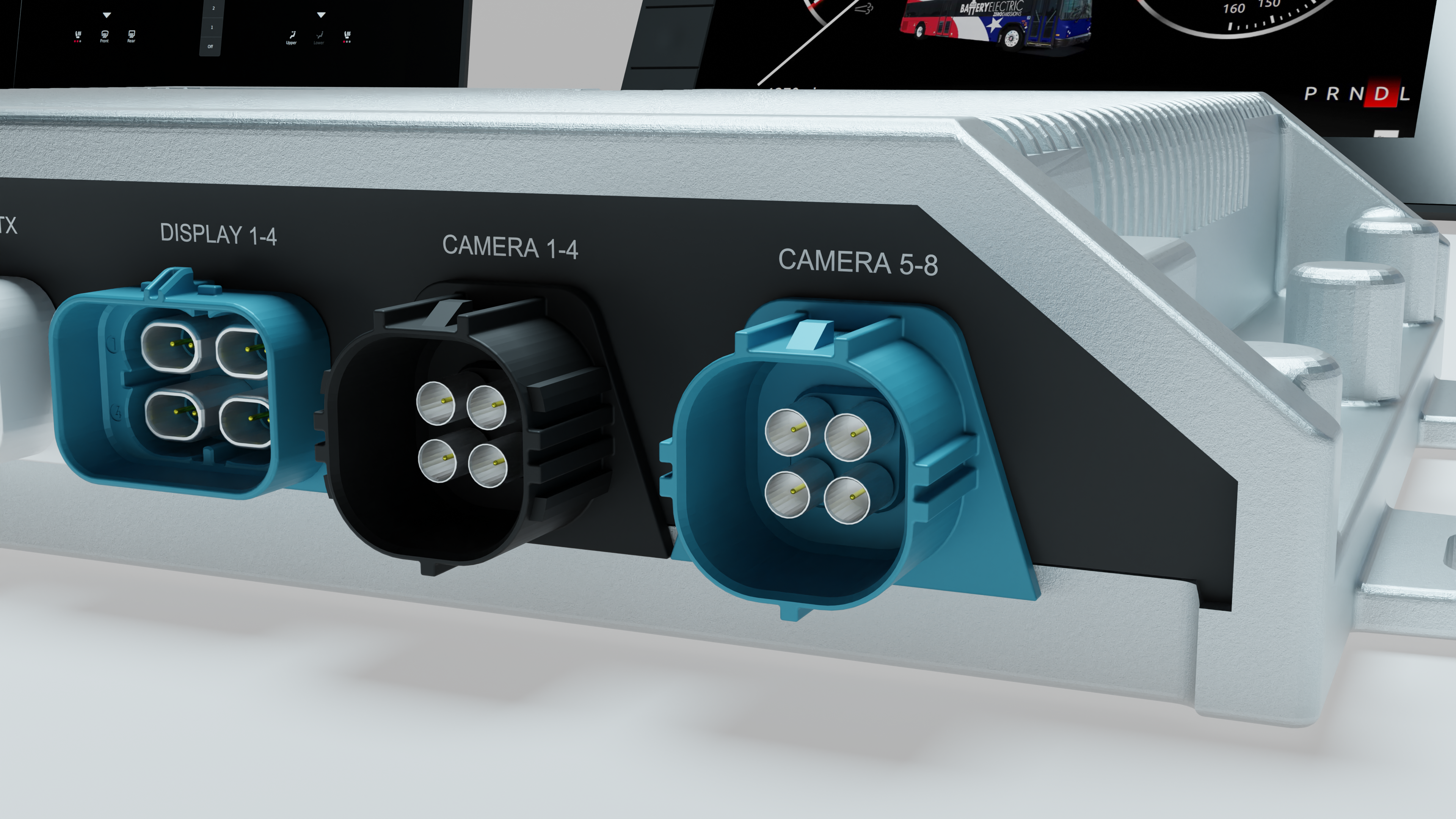

| FDP-Link III Video Outputs | 4 (4x 720p OR 2x 720p & 1x 1080p) |
| Camera Inputs (Optional) | 8 GMSL, 4 Suitable for functional safety applications |

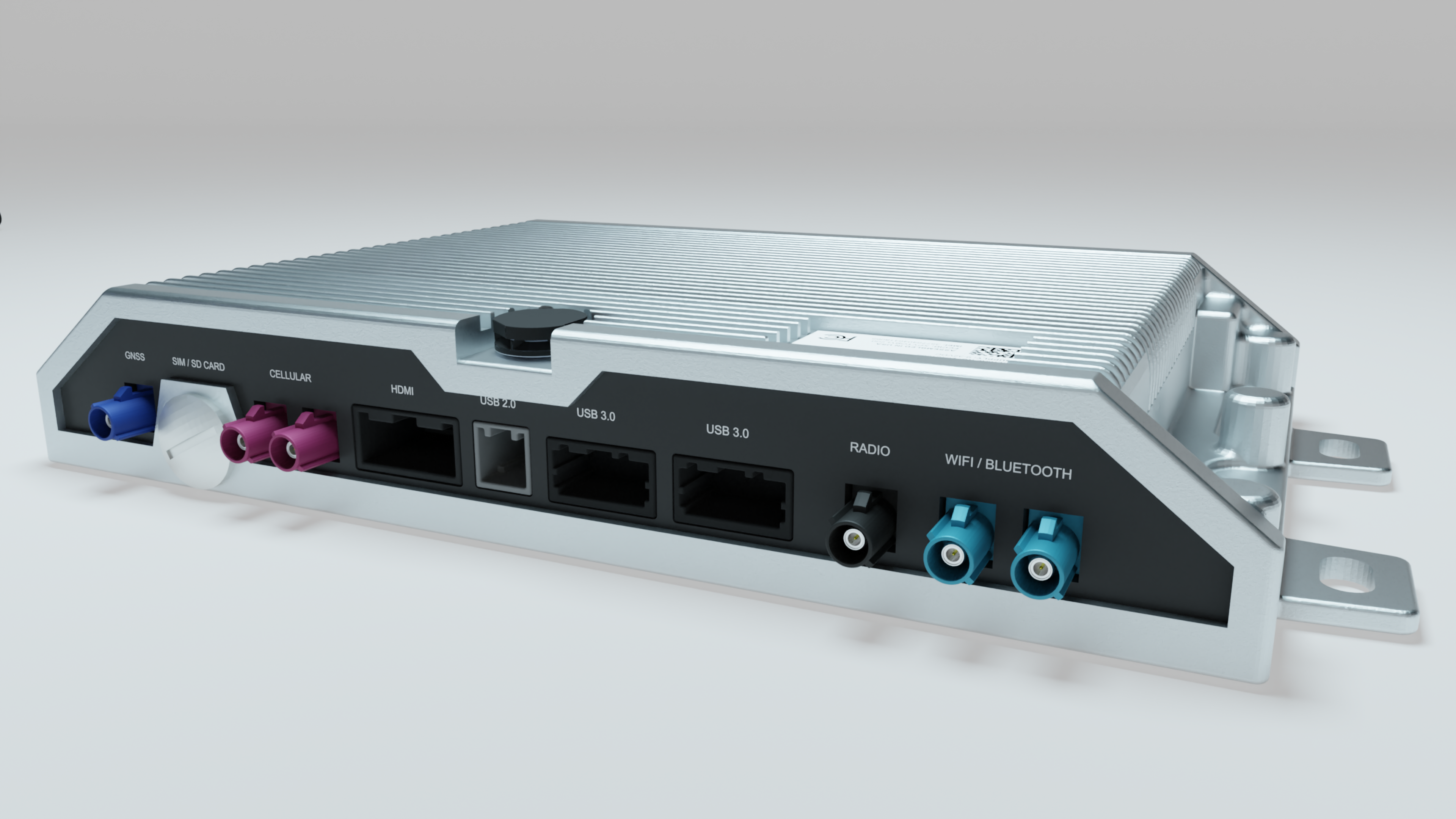

Interfaces
| CAN interface(s) | 4 |
|---|---|
| CAN FD interface(s) | 4 |
| LIN interface(s) | 1 |
| RS232 | 1 |

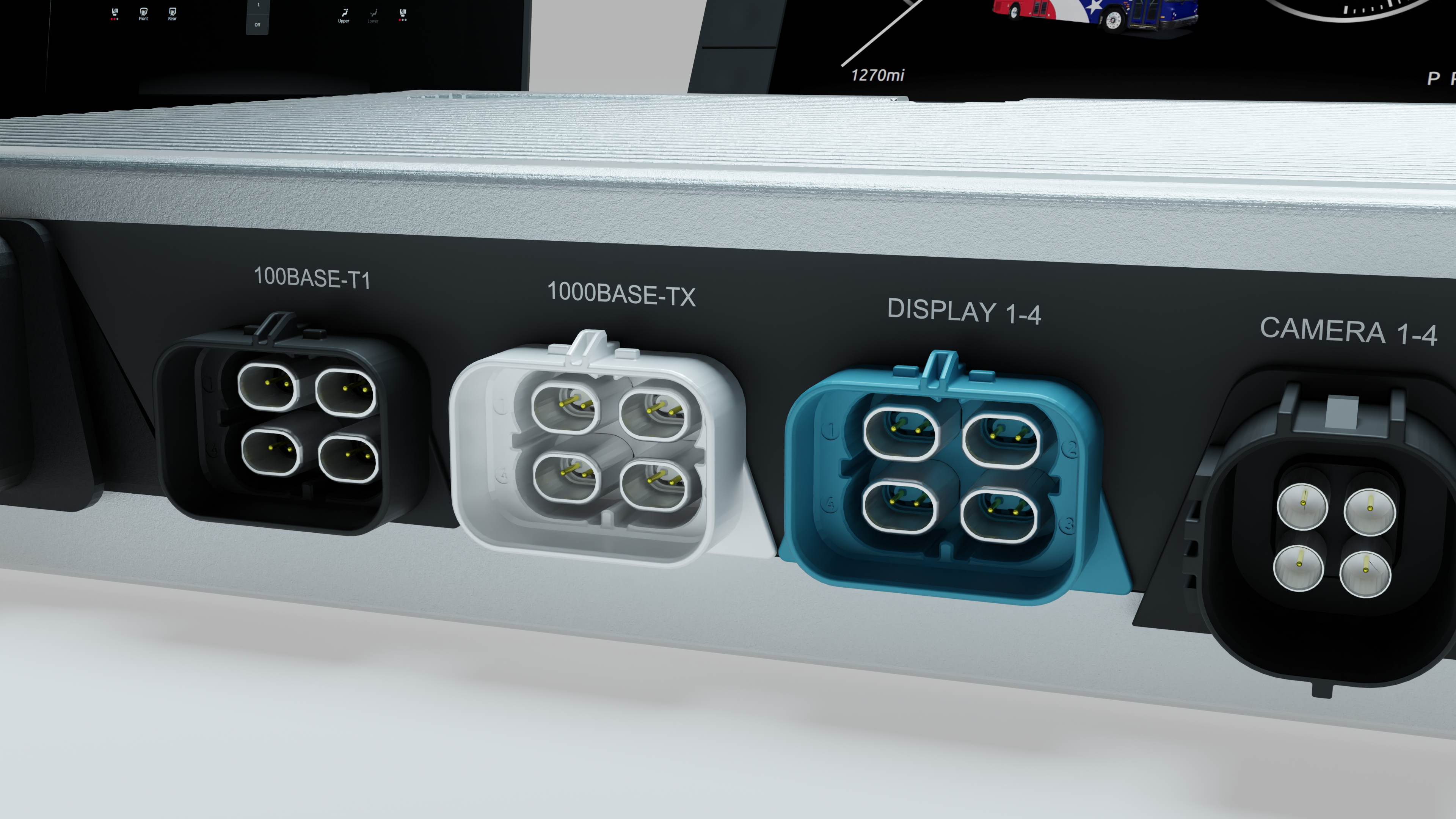

| 100Base-T1 Ethernet | 4 |
| 1000Base-TX Ethernet | 1 |
| USB 3.0 | 2 |
| USB 2.0 | 1 |

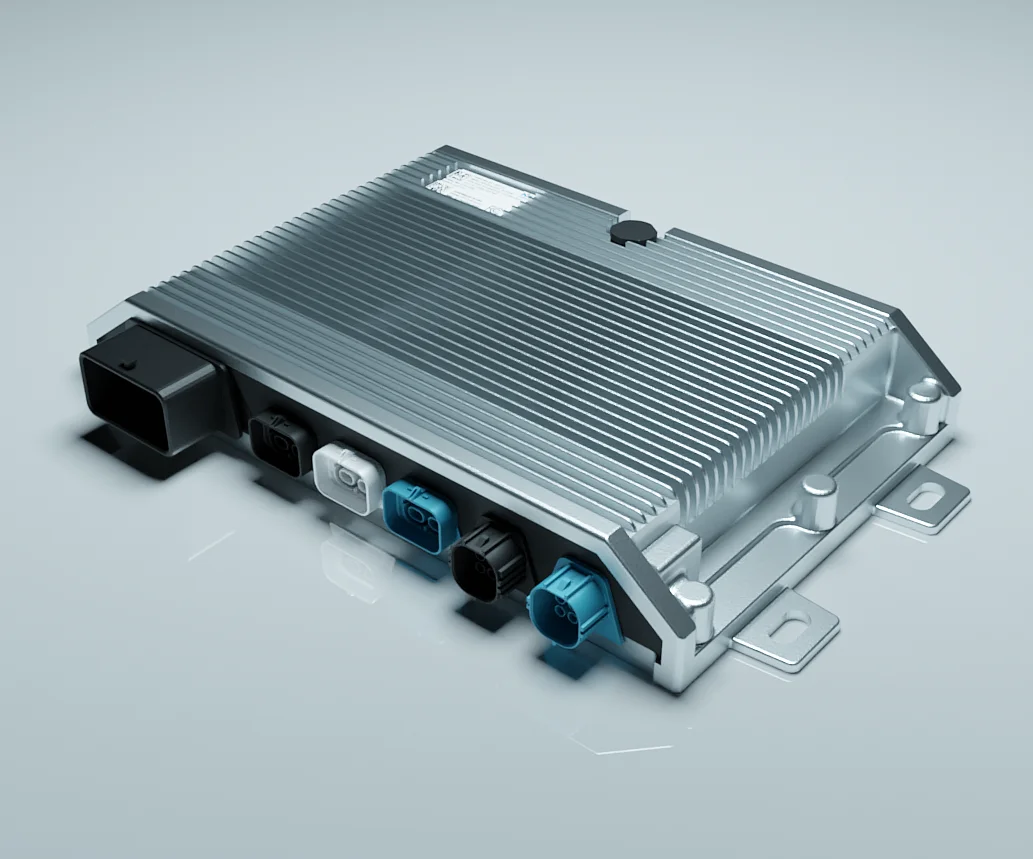

Mechanical Properties
| IP rating | IP65 |
|---|---|
| Housing material | Die Cast Alluminum Alloy |
| Dimensions | 252 × 160 × 41 mm |
Programming
| Programming System | QT 6.5.2 |
|---|
General Information
| Temperature range | -40°C–85°C |
|---|---|
| Operating voltage | 9-32V |
| Current consumption | TBD |
| Functional Safety | ASIL-B |
| External Screen Options | 7", 10.1", 12.3", 15.6" |
| Storage | M.2 SSD (optional) - M.2 2242-D5-B-M, Key standard factor |
| Storage | SATA 3 or PCIE Gen 3 x2 Lane interface |
| Storage | Micro SD Slot |
