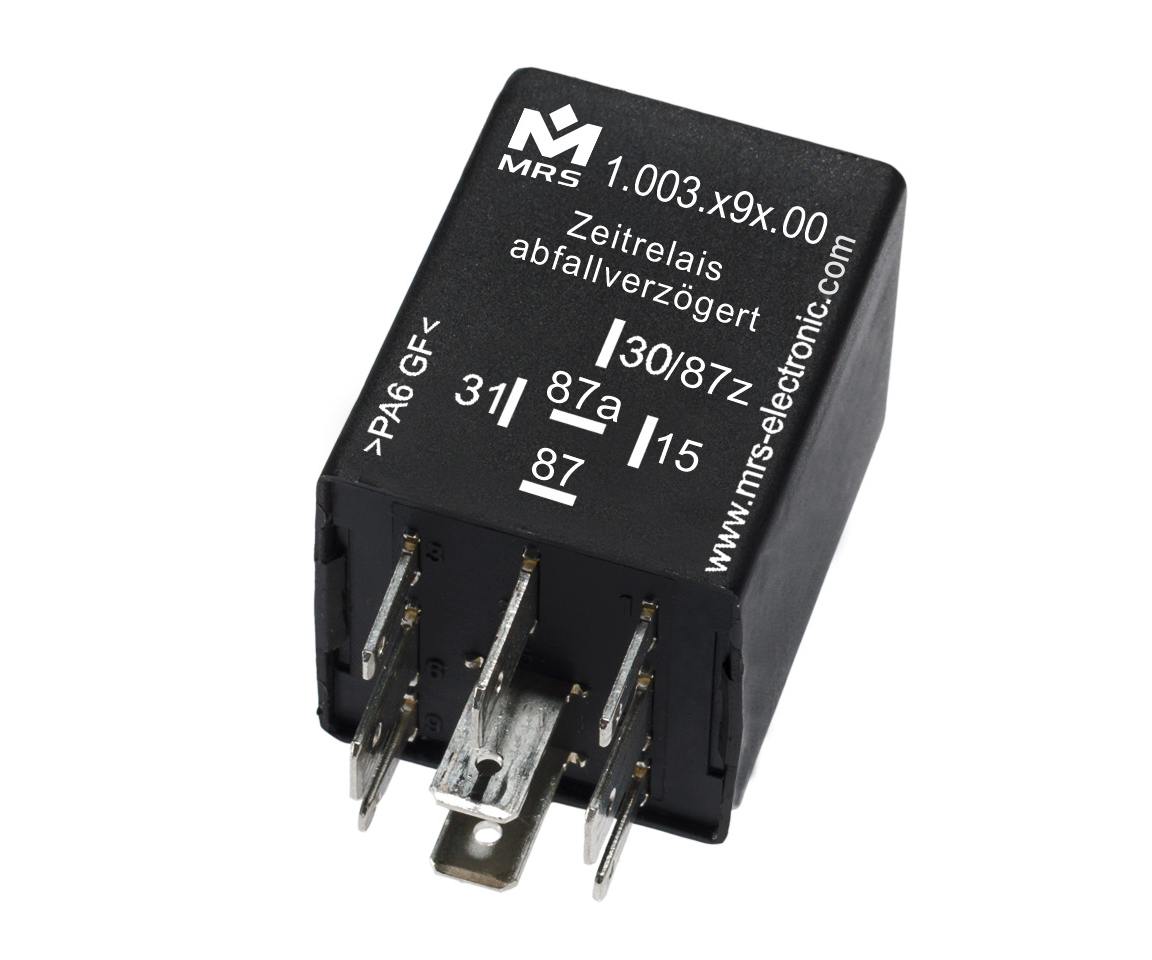

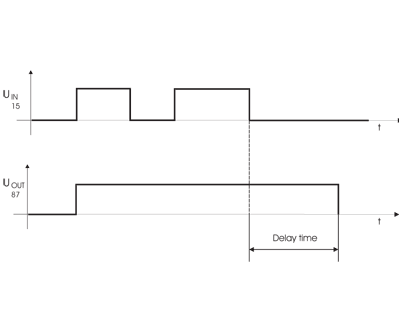

Time relays with switch-off delay switch on the load after the specified delay time has elapsed. Please specify the desired delay time when ordering. All schematics: Operating voltage is applied to terminal 30/87z. If the voltage is applied to terminal 15, the relay will immediately pull on. If the voltage is removed at Terminal 15, the relay will fall off after the specified time has elapsed.
Circuit diagram S2: The contacts are separate from the control and can therefore be used in links. In this variant, the relay contact is completely potential-free and thus capable of switching alternating voltage. Circuit diagram S3: The relay does not consume a quiescent current by the diode circuitry after the drop. Variant S3 only 10/15 A (ö/s). Housing forms can be found in the section housing and basic body.
|Number of pins||5|
|Switching current||NC 15 A / NO 15 A|
|Dimensions||30 × 30 × 40 mm|
|Programming software||MRS Realizer|
|Temperature range||-40 to +85°C|
|Operating voltage||14-32 V|
|Current consumption||2 ± 1 mA|

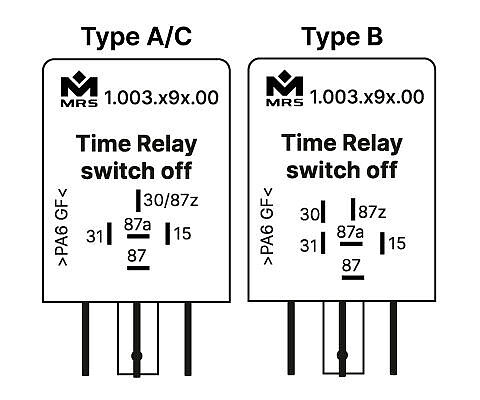

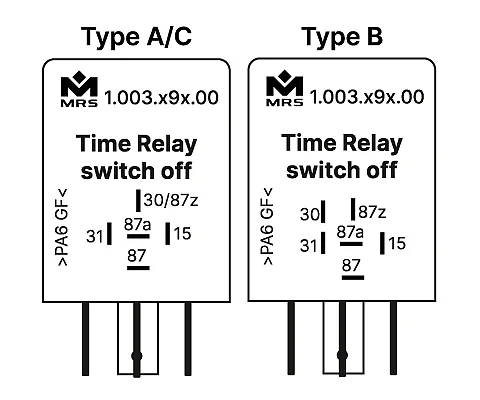

Individual delay time, Type A, Connection S1
Individual delay time, Type B, Connection S2

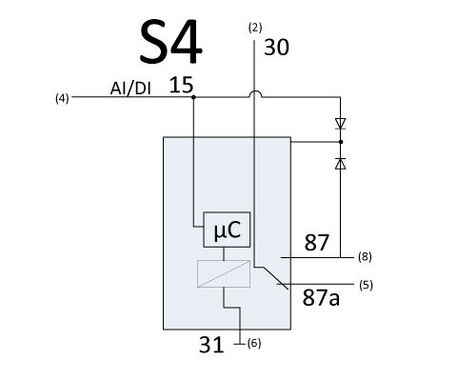

Individual delay time, Type C, Connection S4, Basis Micro PLC
