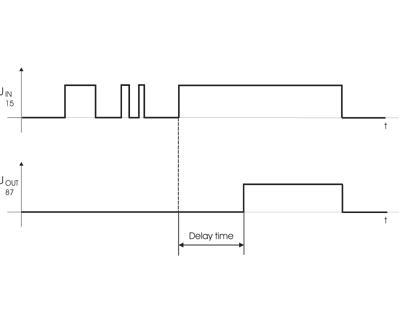

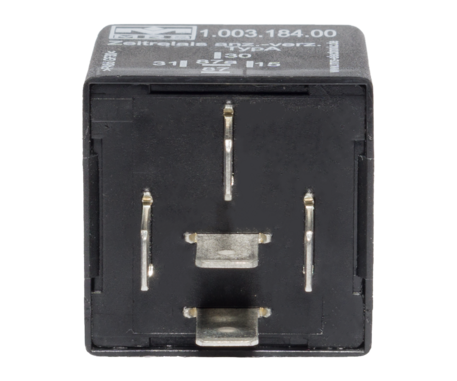

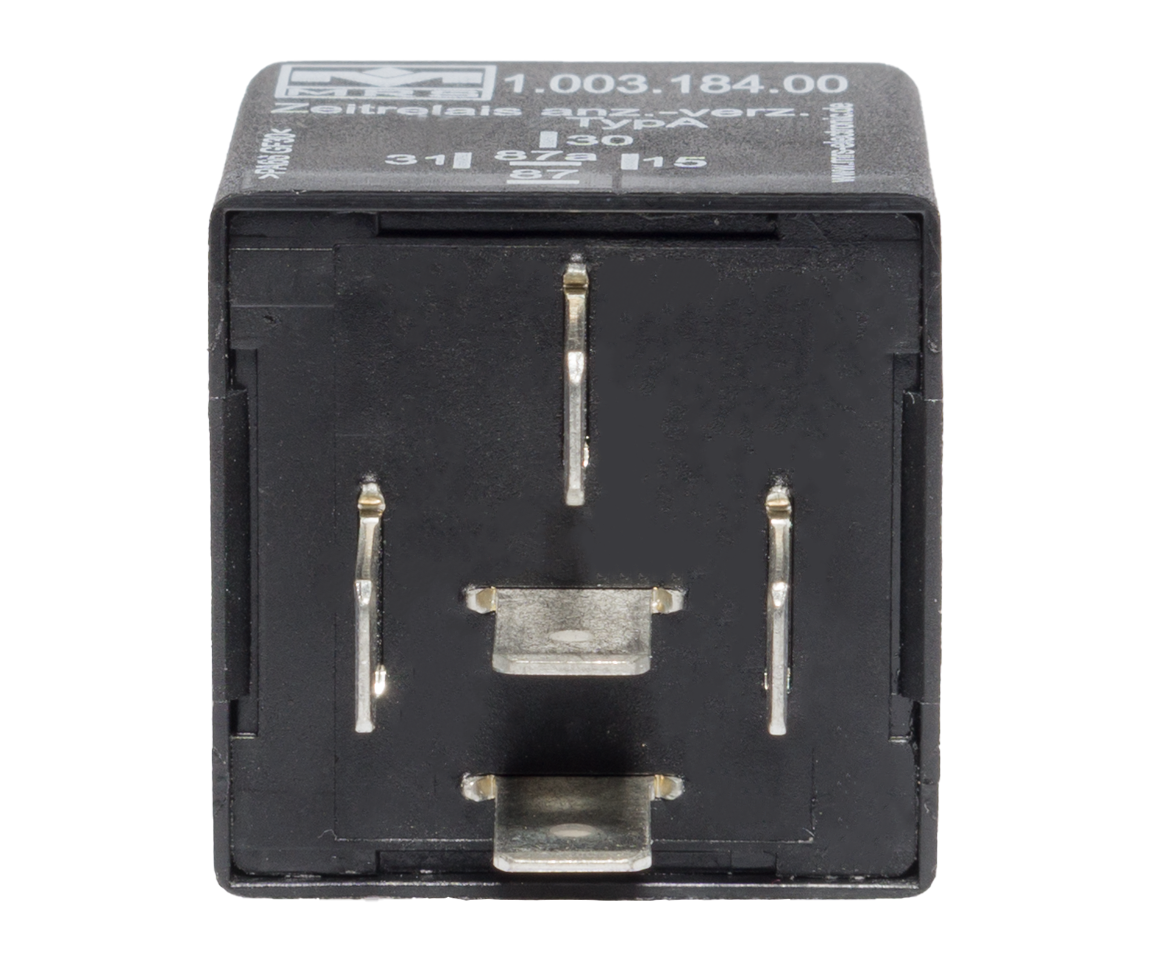

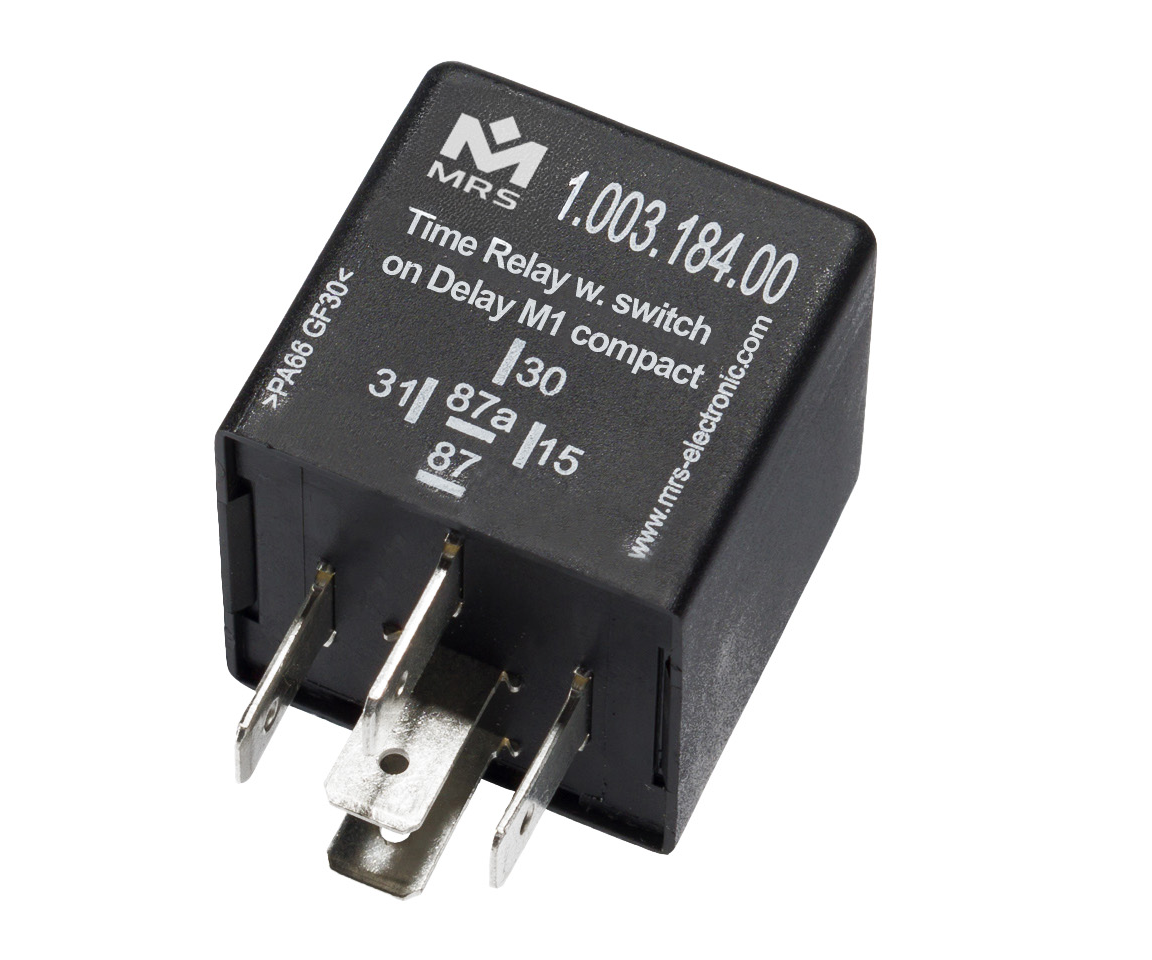

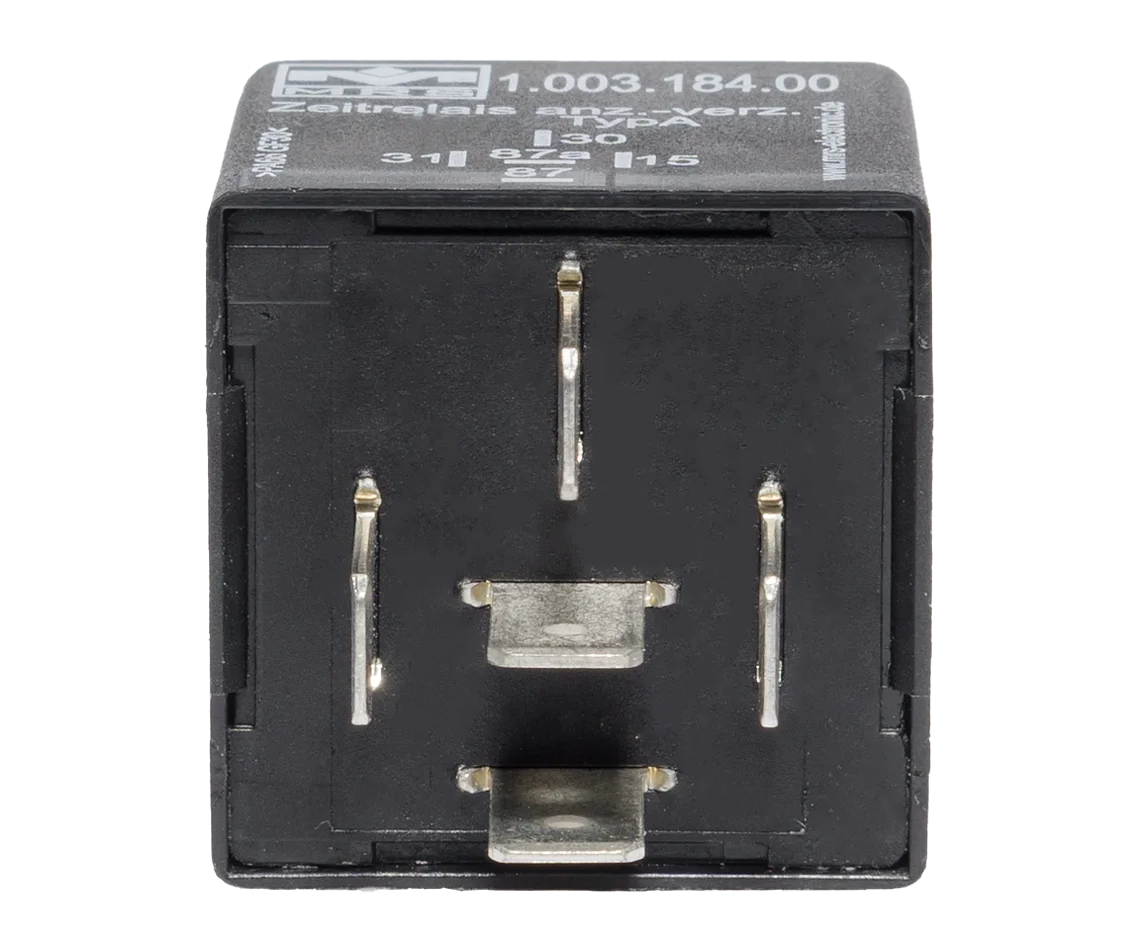

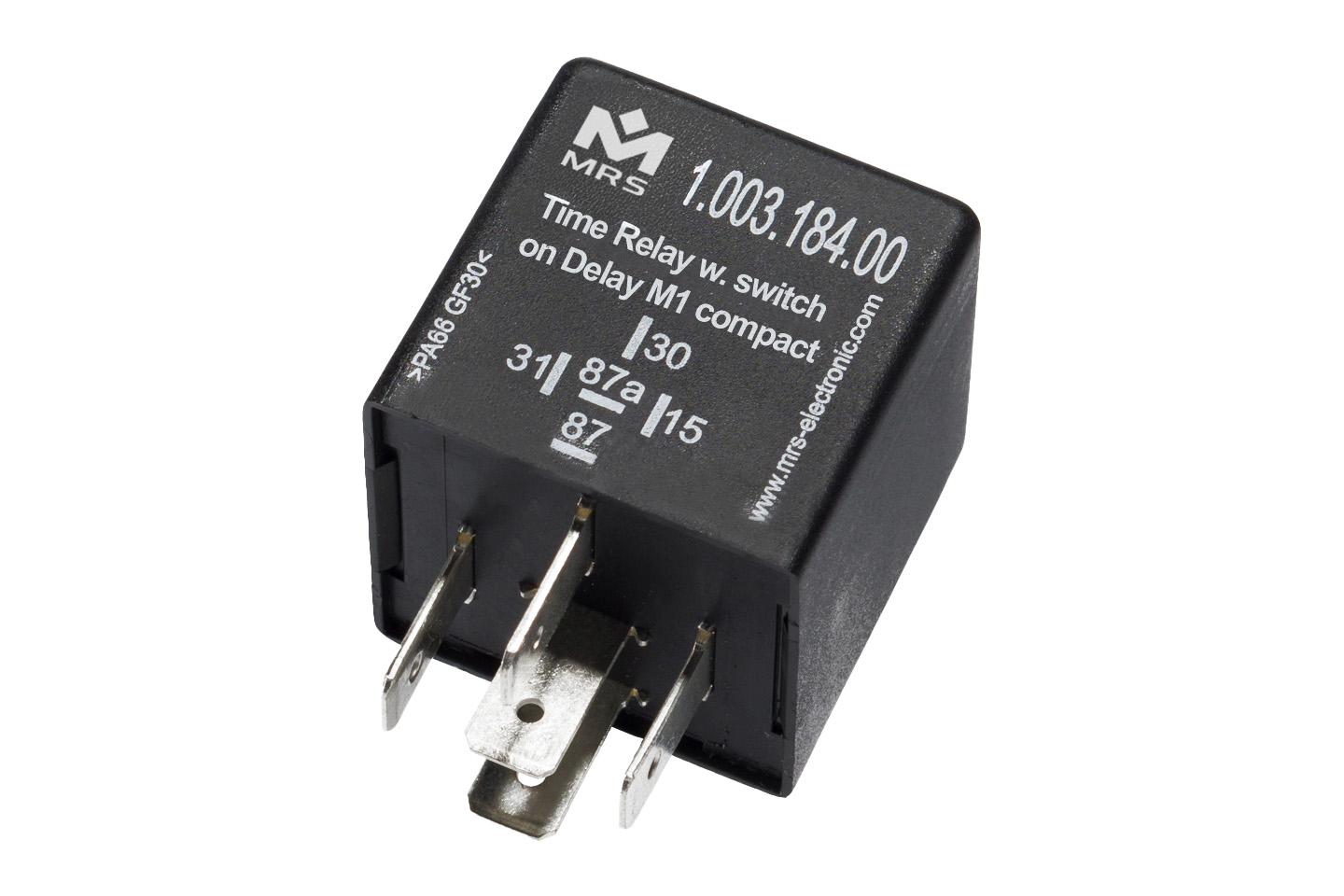

Time relays with switch on delay compact switch on the load after the specified delay time has elapsed. Please specify the desired delay time when ordering. All schematics: Operating voltage is applied to terminal 30/87z. If the voltage is set at Terminal 15, the relay will pull on at the end of the specified time. If the voltage is removed at Terminal 15, the relay immediately drops off.

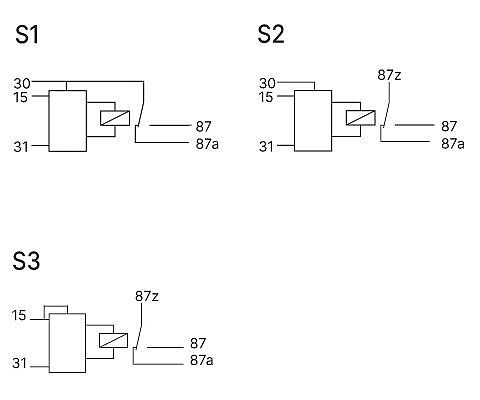

Circuit diagram S2 and S3: The contacts are separate from the control and can therefore be used in links. With the Variants S2 and S3, the relay contact is completely potential-free and thus capable of switching alternating voltage. Housing forms can be found in the section housing and basic body.
|Number of pins||5|
|Switching current||15 A NC / 15 A NO|
|Dimensions||30 × 30 × 30 mm|
|Programming software||MRS Realizer|
|Temperature range||-40 to +85°C|
|Operating voltage||16-32 V|
|Current consumption||2 mA|

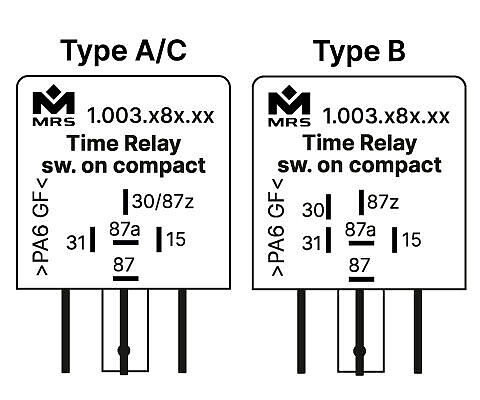

Individual time delay, Type A, Connection S1
Individual time delay, Type B, Connection S2
Individual time delay, Type C, Connection S3
