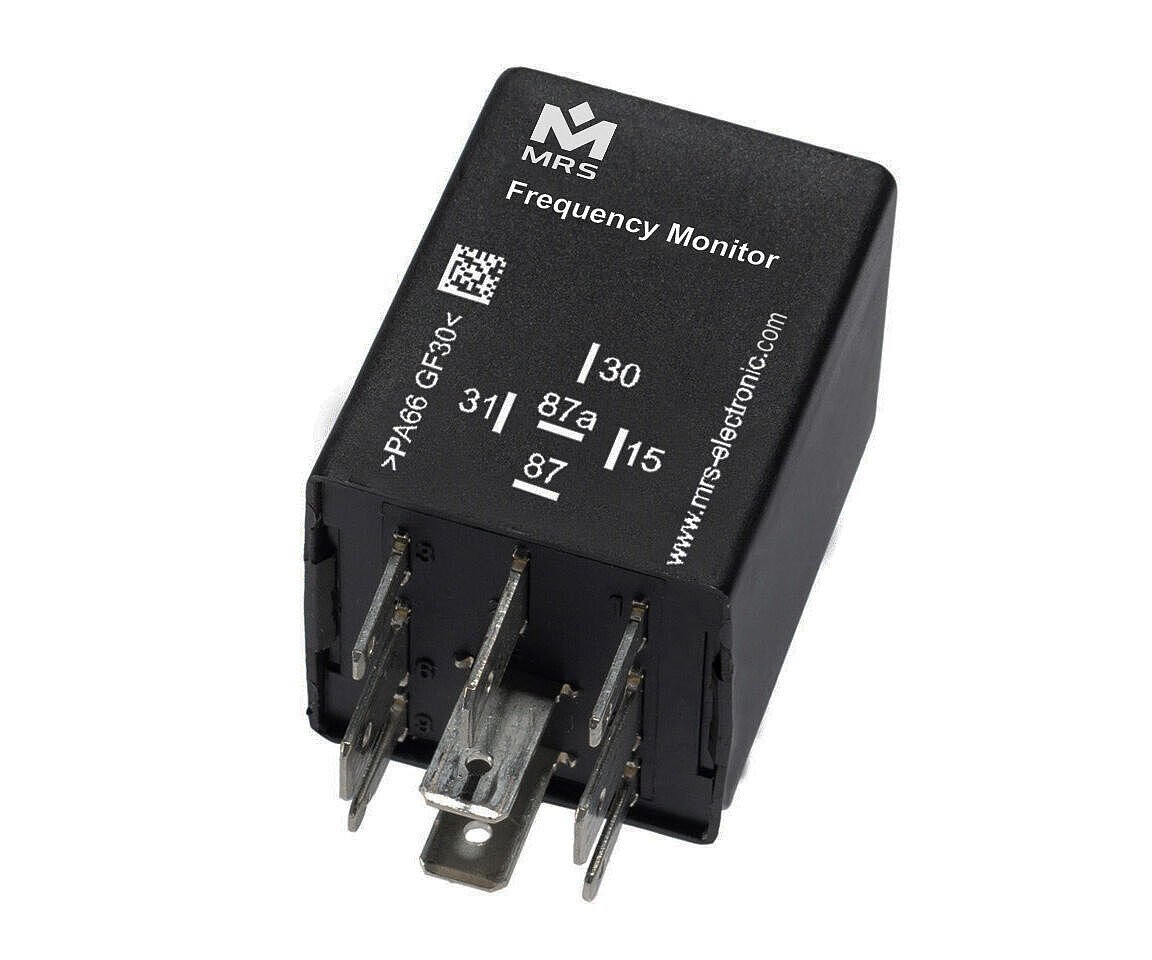

Frequency Monitor 9-30 V
1.026.311.xxxE ( choose order option )(1026311xxxE)The frequency monitor measures the input signal frequency applied to terminal 15 and energizes/deenergizes the output when the signal frequency exceeds/drops below the defined threshold frequency. The threshold frequency can be selected from the 10 - 1.000 Hz frequency range. In addition, combinations including custom delay times are possible. Please refer to the chapter housing and base plates for additional housing options.
| Name | Value |
|---|---|
| Dimensions | 30 × 30 × 40 mm |
| Housing material | Plastic |
| Type-approval number | 05 8091 |
| Type-approval | UNECE R 10 Rev. 05 |
| Number of pins | 6 |
| In-/Outputs (total) | 2 |
| Operating voltage | 9-30 V |
| Name | Value |
|---|---|
| Number of pins | 6 |
| In-/Outputs (total) | 2 |
| Inputs (total) | 1 |
| Inputs (digital) | 1 |
| Outputs (total) | 1 |
| Relay outputs | 1 |
| Processor family | Texas Instruments MSP 430 |
| Processor | 16 bit |
| Temperature range | -40 to 85 °C |
| Protection class | IP53 |
| Operating voltage | 9-30 V |
| Programming system | MRS Realizer |
| switching frequency | customer specific |
| continuous current limit | 10 A open / 15 A close |

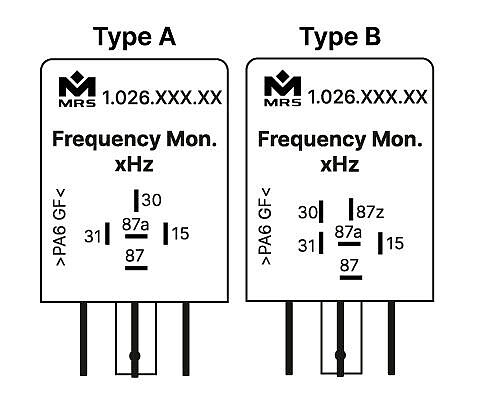

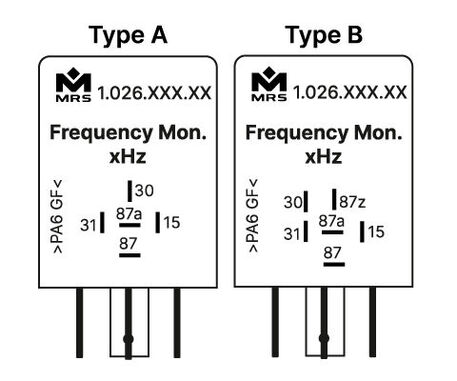

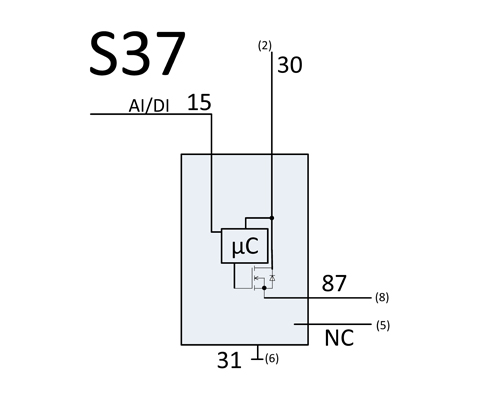

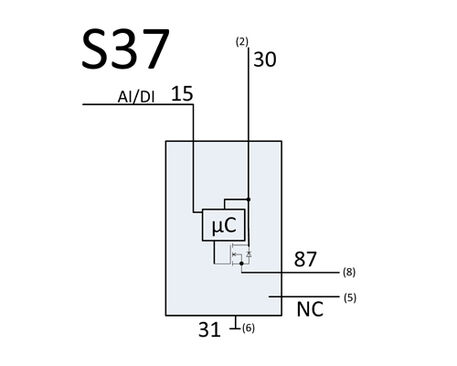

| Name | Type | Model | Connection diagram | Order no. | ||
|---|---|---|---|---|---|---|
| Frequency Monitor 9-30 V | A | xxx = frequency in hz | S3 | 1.026.311.xxxE |
| Required accessories | Article number | |
|---|---|---|
| Software programming tool MRS Realizer | 1.100.000.01 | |
| Housing bracket | 1.017.080.00 | |
| Socket ST FL 9-pin 5 x 6.3 / 4 x 2.8 | 1.017.002.00 | |
| Socket package watertight 40 mm | 1.017.010.40 | |
| FASTON terminal for latching 2.8 mm 0.5 – 1.0 mm² | 105292 | |
| FASTON terminal for latching 6.3 mm 1 mm² | 102355 | |
| FASTON terminal for latching 6.3 mm 1.5 – 2.5 mm² | 103064 |
