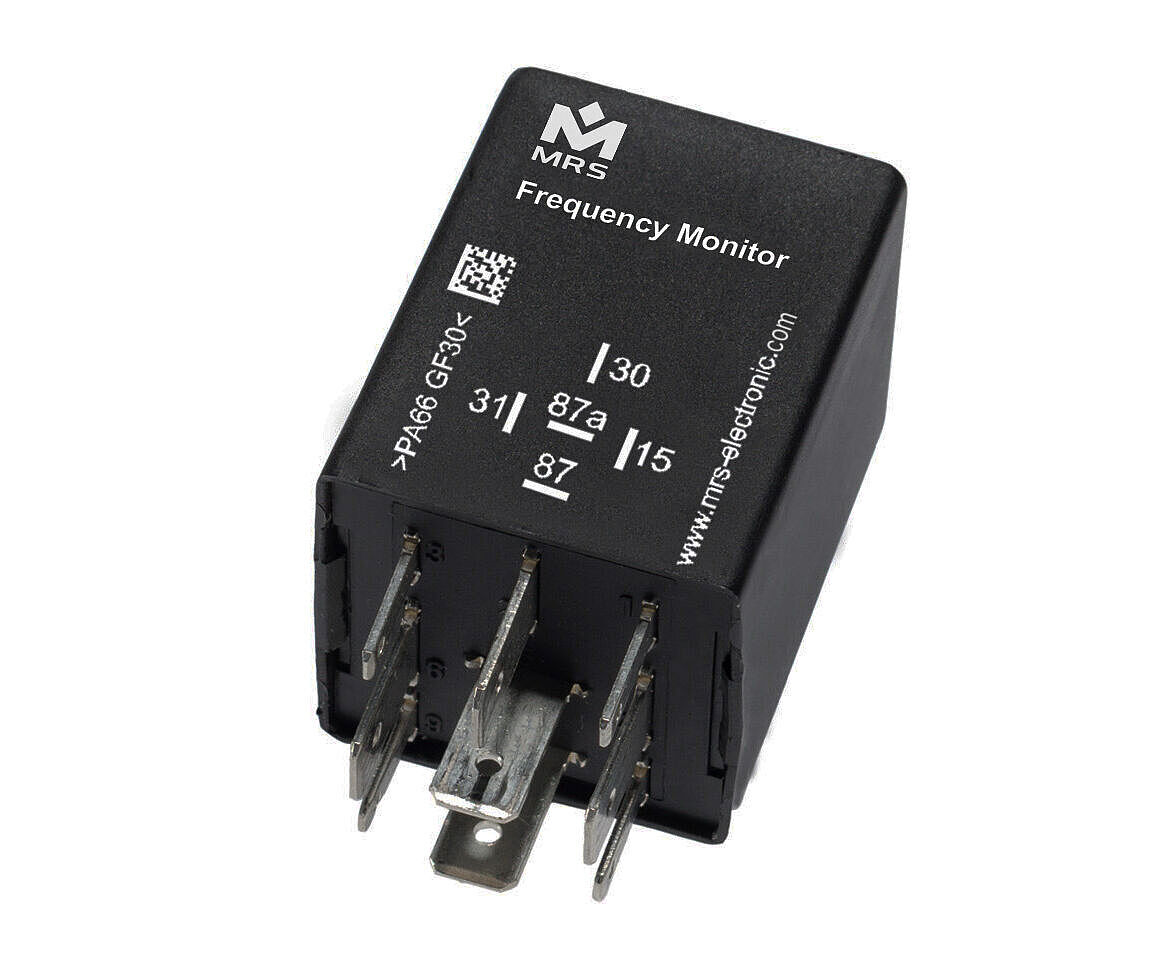

Frequency Monitor 12 V

1.026.11x.xxxE (choose order option)

The frequency monitor measures the input signal frequency applied to terminal 15 and energizes/deenergizes the output when the signal frequency exceeds/drops below the defined threshold frequency. The threshold frequency can be selected from the 10 - 1.000 Hz frequency range. In addition, combinations including custom delay times are possible. Please refer to the chapter housing and base plates for additional housing options.

NameValue
Dimensions 30 × 30 × 40 mm
Housing material Plastic
Type-approval number 05 8091
Type-approval UNECE R 10 Rev. 05
Number of pins 6
In-/Outputs (total) 2
Operating voltage 12 V
NameValue
Number of pins 6
In-/Outputs (total) 2
Inputs (total) 1
Inputs (digital) 1
Outputs (total) 1
Relay outputs 1
Processor family Texas Instruments MSP 430
Processor 16 bit
Temperature range -40 to 85 °C
Protection class IP53
Operating voltage 12 V
Quiescent current (12V) 250 µA
Programming system MRS Realizer
switching frequency cus­tomer spe­cific
continuous current limt 10 A open / 15 A close
Name Type Model Connection diagram Order no.

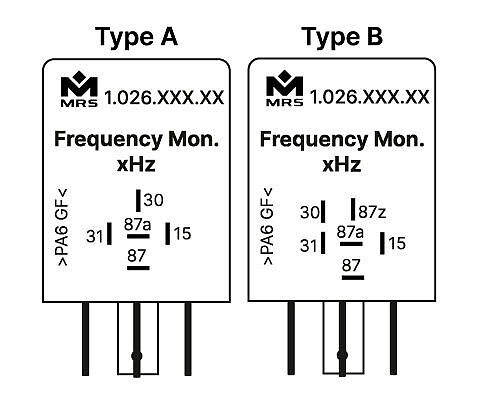

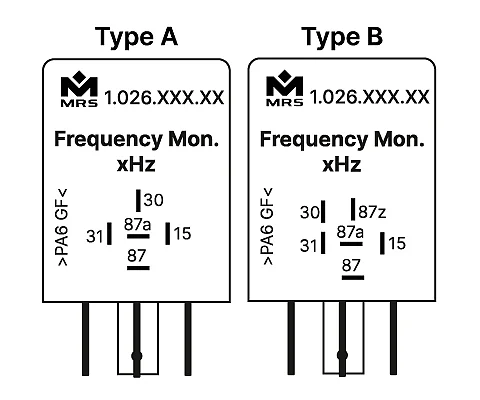

Frequency Monitor 12 V A Individual frequency (see below) S1 1.​026.​111.​xxxE

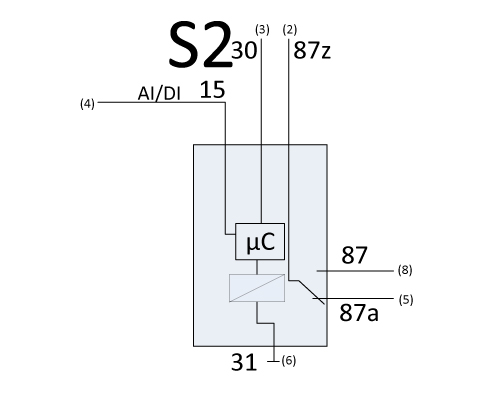

Frequency Monitor 12 V B Individual frequency (see below) S2 1.​026.​112.​xxxE
Required accessoriesArticle number
Software tool MRS Realizer 1.​100.​000.​01
Hous­ing bracket 1.​017.​080.​00
Socket ST FL 9-pin 5 x 6.3 / 4 x 2.8 1.​017.​002.​00
Socket package watertight 40 mm 114265
FAS­TON ter­mi­nal for latching 2.8 mm 0.5 – 1.0 mm² 105292
FAS­TON ter­mi­nal for latching 6.3 mm 1 mm² 102355
FAS­TON ter­mi­nal for latching 6.3 mm 1.5 – 2.5 mm² 103064

Can the frequency thresholds also be chosen freely?

Yes, that works. Please specify the desired frequency thresholds when ordering.
