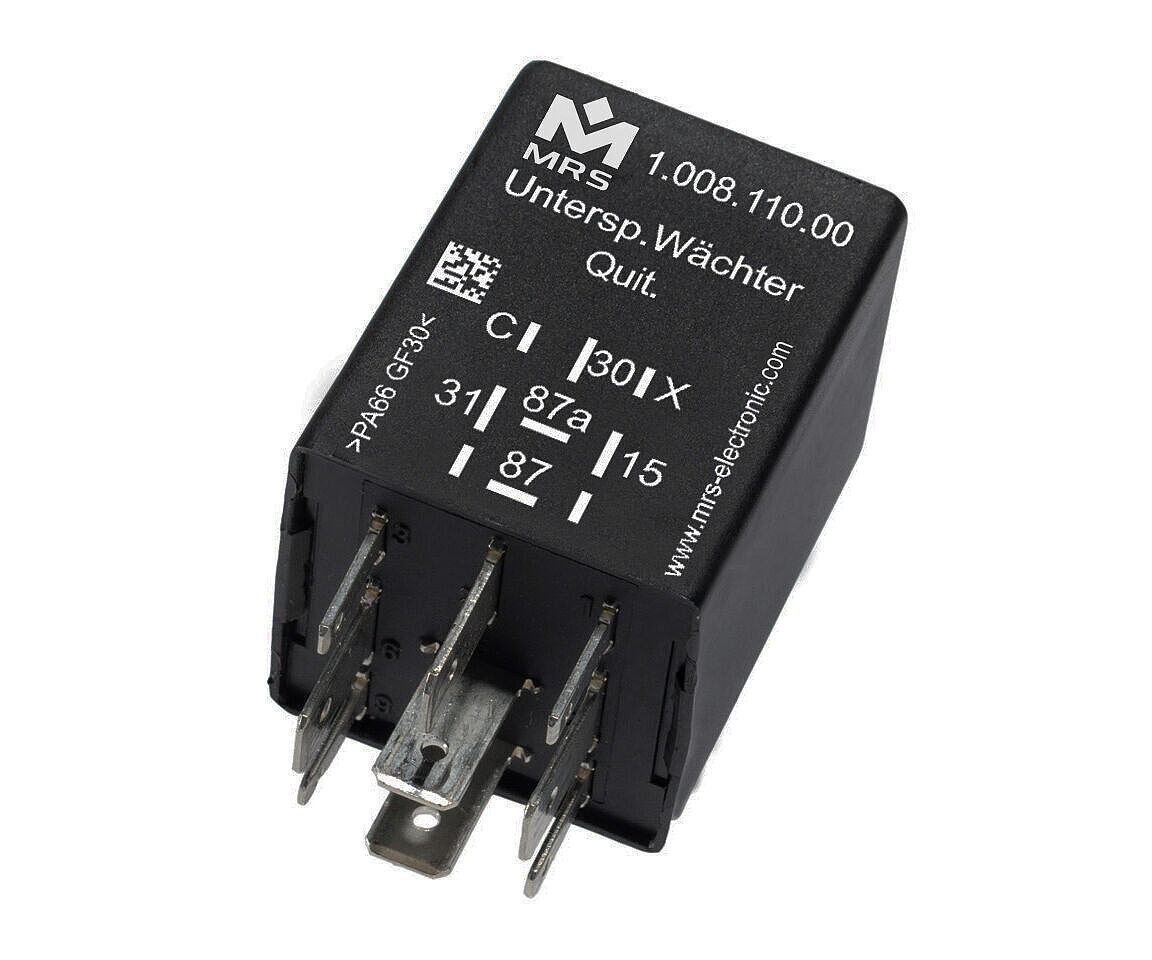

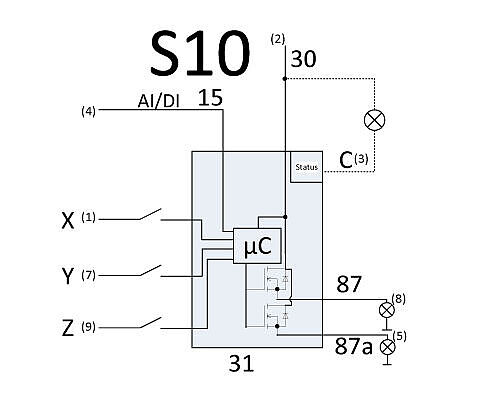

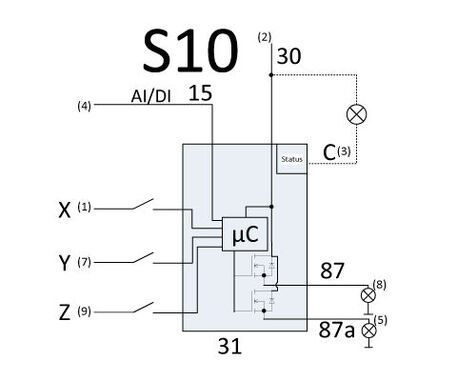

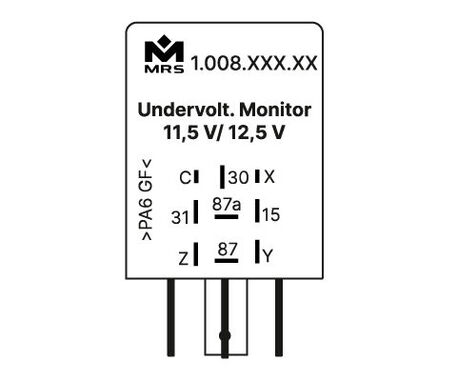

The Undervoltage Monitor With Reset (acknowledgment) has outputs for a signal, buzzer or other indicators. It can be used to turn on/off acoustic or optical warning signals when the input voltage drops below/exceeds a defined voltage level. When the input voltage applied to terminal 15 drops below the defined threshold voltage outputs 87, 87a, and C are turned on. Output 87 can be switched off again via reset input x (acknowledgement) while outputs 87a and C remain on. When the input voltage on terminal 15 exceeds the defined threshold voltage all outputs are switched off. Custom threshold voltages are available on request. Please refer to the chapter housing and base plates for additional housing options.
Name | Value |
---|---|
Dimensions | 30 × 30 × 40 mm |
Housing material | Plastic |
Type-approval number | 50 8091 |
Type-approval | UNECE R 10 Rev. 05 |
Number of pins | 7 |
In-/Outputs (total) | 1 |
Operating voltage | 12 V |
Name | Value |
---|---|
Number of pins | 7 |
In-/Outputs (total) | 1 |
Outputs (total) | 1 |
Relay outputs | 1 |
Processor family | Texas Instruments MSP 430 |
Processor | 16 bit |
Temperature range | -40 to 85 °C |
Protection class | IP53 |
Operating voltage | 12 V |
Max. output current (87, 87a) | 4 A |
Quiescent current (12V) | 250 µA |
Programming system | MRS Realizer |
Continuous current limit | 10 A/15 A (O/C) |
Switching voltage limit | 75 VDC (S2) |
Name | Model | Order no. | ||
---|---|---|---|---|
Undervoltage Monitor with Reset 12 V | Thresholds: 11,5 V / 12,5 V; Undervoltage Monitor with 87a | 1.008.110.00E | ||
Undervoltage Monitor with Reset 12 V | Thresholds: 11,5 V / 12,5 V; Undervoltage Monitor without 87a | 1.008.111.00E | ||
Undervoltage Monitor with Reset 12 V | Individual voltage range (see below); Undervoltage Monitor with 87a | 1.008.110.xxE | ||
Undervoltage Monitor with Reset 12 V | Individual voltage range (see below); Undervoltage Monitor without 87a | 1.008.111.xxE |
Required accessories | Article number | |
---|---|---|
Software programming tool MRS Realizer | 1.100.000.01 | |
Housing bracket | 1.017.080.00 | |
Socket ST FL 9-pin 5 x 6.3 / 4 x 2.8 | 1.017.002.00 | |
Socket package watertight 40 mm | 1.017.010.40 | |
FASTON terminal for latching 2.8 mm 0.5 – 1.0 mm² | 105292 | |
FASTON terminal for latching 6.3 mm 1 mm² | 102355 | |
FASTON terminal for latching 6.3 mm 1.5 – 2.5 mm² | 103064 |
