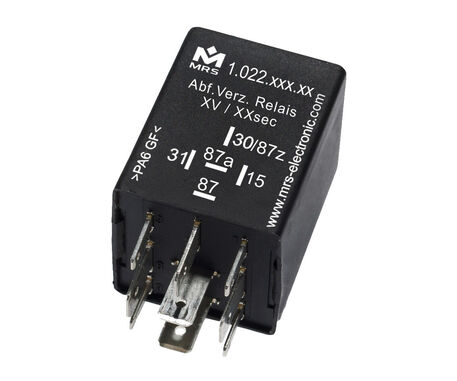

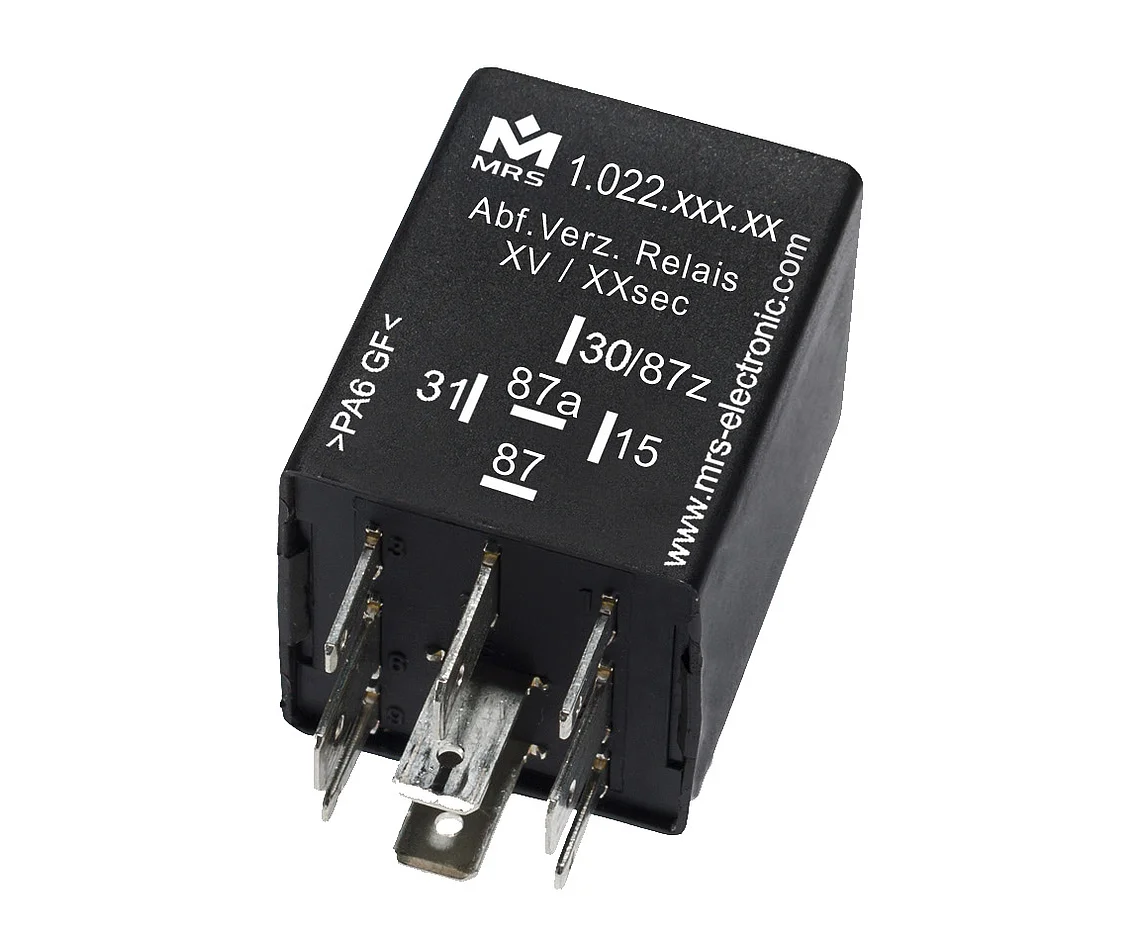

Time Relay Adjustable Swith On Delay 24V

Time Relay Adjustable Switch On Delay 24V

With adjustable time relays the exact delay time can be set via a potentiometer within the selected time range. You can choose from five time ranges by default (see table). We can realize other time ranges on request. Please specify the desired time range when ordering.

All schematics: Operating voltage is applied to terminal 30/87z. If the voltage is applied to terminal 15, the relay will move on after the set time has elapsed. If the voltage is removed at Terminal 15, the relay drops off immediately. Circuit diagram S3: The contacts are separate from the control and can therefore be used in links. Housing forms can be found in the section housing and basic body.

Downloads

Operating Instructions for Time Relays

Time Relay Adjustable Swith On Delay 24V

Connection Diagram S1

Connection Diagram S3

Design

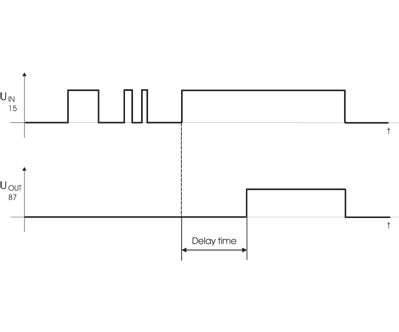

Functional Diagram

Technical details

Inputs and Outputs

Number of pins	5
In-/Outputs (total)	2
Inputs (total)	1
Inputs (digital)	1
Outputs (total)	1
Relay outputs	1
Switching current	NO 10 A / NC 5 A

Mechanical Properties

IP rating	IP53
Housing material	PA66GF30
Dimensions	30 × 30 × 40 mm
Switching cycles	50000

Programming

Programming software	MRS Realizer

General

Temperature range	-40 to +85°C
Operating voltage	16-32 V
Current consumption	0.3 mA

Markings

Order options

Order no.	Name
1.022.212.xx (1022212xx)	Individual delay time, Type A, Connection S1
1.022.212.01 (102221201)	Time range 0.5 - 5 seconds, Type A, Connection S1 (Time range 05 - 5 seconds, Type A, Connection S1)
1.022.212.02 (102221202)	Time range 1 – 30 seconds, Type A, Connection S1
1.022.212.03 (102221203)	Time range 0.5 - 60 seconds, Type A, Connection S1 (Time range 05 - 60 seconds, Type A, Connection S1)
1.022.212.04 (102221204)	Time range 30 – 900 seconds, Type A, Connection S1
1.022.210.xx (1022210xx)	Individual delay time, Type C, Connection S3
1.022.210.01 (102221001)	Time range 0.5 – 5 seconds, Type C, Connection S3 (Time range 05 – 5 seconds, Type C, Connection S3)
1.022.210.02 (102221002)	Time range 1 – 30 seconds, Type C, Connection S3
1.022.210.03 (102221003)	Time range 0.5 – 60 seconds, Type C, Connection S3 (Time range 05 – 60 seconds, Type C, Connection S3)
1.022.210.04 (102221004)	Time range 30 – 900 seconds, Type C, Connection S3
