More detailed information can be found on the website and the data sheets of the respective manufacturers.

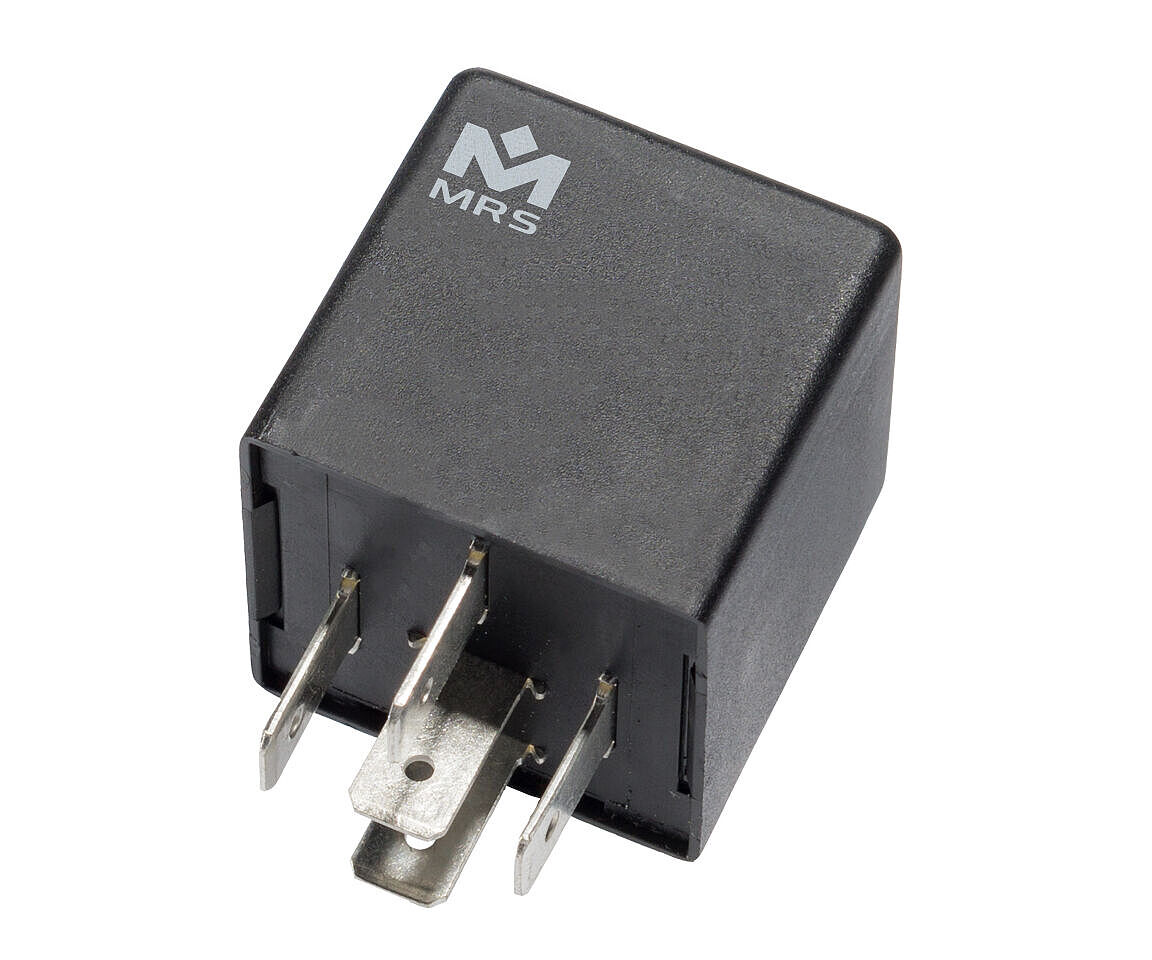

Name | Value |
---|---|
Housing material | Plastic |
Number of pins | 5 |
In-/Outputs (total) | 1 |
Operating voltage | 12 V |
Housing dimensions CB1 | 22x26x25 mm |
Housing dimensions V23134 | 26 x 26 x 25 mm |
Name | Value |
---|---|
Number of pins | 5 |
In-/Outputs (total) | 1 |
Outputs (total) | 1 |
Relay outputs | 1 |
Temperature range | -40 to 85 °C |
Protection class | IP53 |
Operating voltage | 12 V |

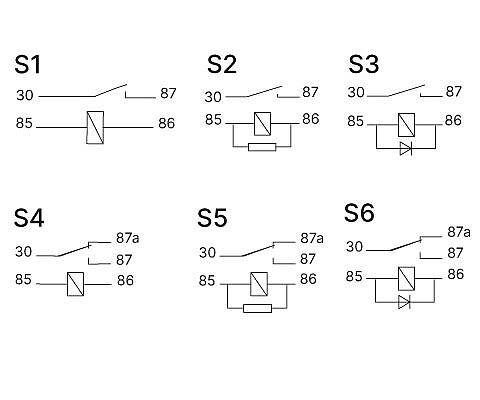

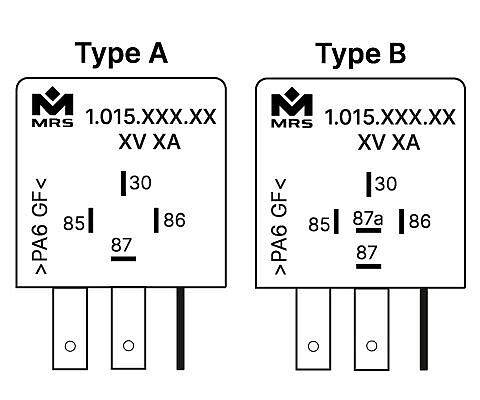

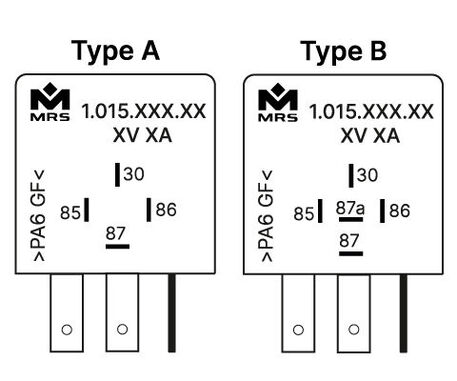

Name | Type | Model | Connection diagram | Order no. | ||
---|---|---|---|---|---|---|
Relay ST S CB1A-M-12 V 40 A | A | Normally open contact with mounting bracket | S1 | 1.015.107.00E | ||
Relay ST W CB1-12 V 40/30 A | B | Two-way contact | S4 | 1.015.100.00E | ||
Relay ST W CB1-R-12 V 40/30 A | B | Two-way contact with resistor | S5 | 1.015.102.00E | ||
Relay W HFV4/012-1Z1SGD2 | B | Two-way contact with diode | S6 | 1.015H.104.00E | ||
Relay W HFV4/012-1Z4SGD2 | B | Two-way contact with diode and mounting bracket | S6 | 1.015H.110.00E |
Required accessories | Article number | |
---|---|---|
Socket ST FL 9-pin 5 x 6.3 / 4 x 2.8 | 1.017.002.00 | |
FASTON terminal for latching 6.3 mm 1 mm² | 102355 | |
FASTON terminal for latching 6.3 mm 1.5 – 2.5 mm² | 103064 | |

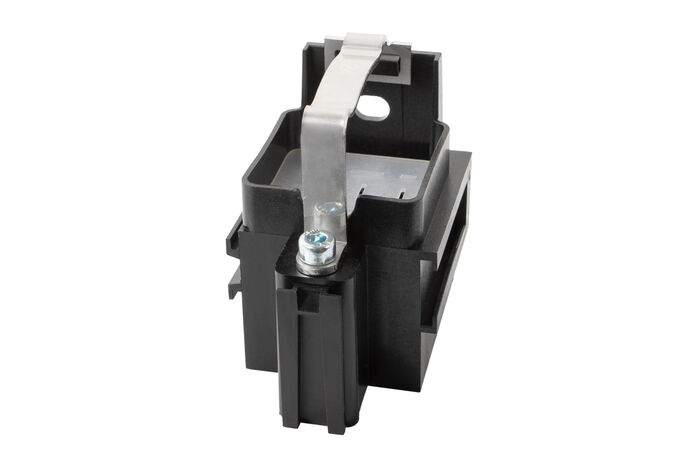

Socket package watertight 24 mm for relay type HFV4 | 1.017.010.24 | |
Socket package watertight 25 mm for relay type CB1 | 1.017.010.25 |
