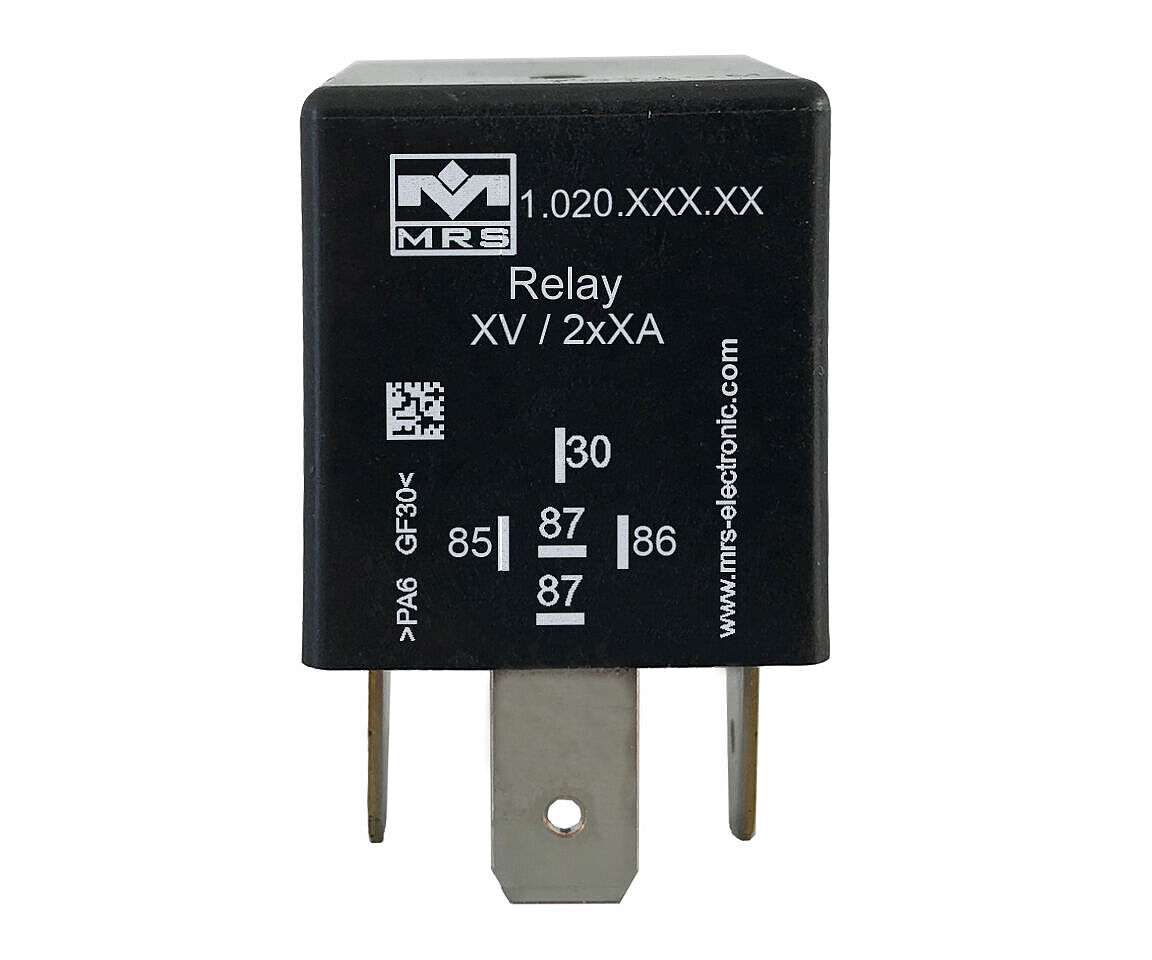

Relay with special terminals 24V
go to order options (10202xx00)
Please reach out to our MRS customer service for more information about this product.
Technical details
Mechanical Properties
| IP rating | IP53 |
|---|---|
| Housing material | PA66GF30 |
General
| Temperature range | -40 to +85°C |
|---|
Order options
| Order no. | Name |
|---|---|
| 1.020.279.00 (102027900) |

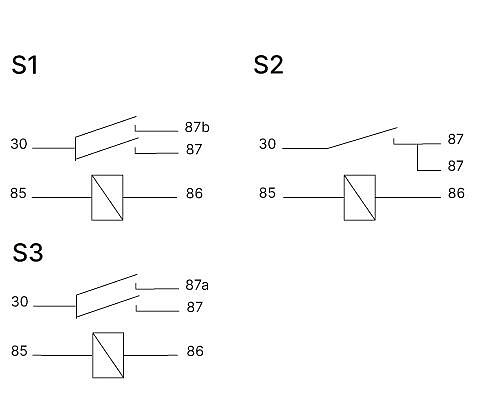

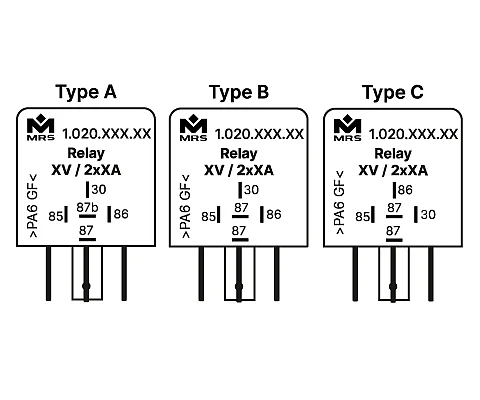

Relay ST DS RDPS/5-24 24V 2x10A Double normally open contact, Type A, Connection S1
|
| 1.020.284.00 |
Relay ST DS RDPS/5-24D 24V 2x10A Double normally open contact with diode
|
| 1.020.283.00 (102028300) |
Relay ST DS RDP/5-24 24V 2x10A Double normally open contact with mounting bracket, Type A, Connection S1
|
| 1.020.276.00 (102027600) |
Relay V23134- M0053-C642 24V 2x15A Double normally open contact, Type A, Connection S1
|
| 1.020.280.00 (102028000) |
Relay V23134- M1053-C642 24V 2x15A L, A, Double normally open contact with mounting bracket, Type A, Connection S1
|
| 1.020.270.00 (102027000) |
Relay ST S RLPS/5-24 24V 22A Normally open contact 2 x 87, Type B, Connection S2
|
