PWM-Analog-Converter
go to order options (1071x)
The PWM-to-analog converter converts a PWM signal into an analog signal. The linearized output voltage allows you to precisely control analog actuators.
An example application for the PWM analog converter is the conversion of PWM signals into an analog setpoint for PVE control units, as used in PVG valves.
Downloads
Technical details
Mechanical Properties
| Housing material | PA 66GF30 |
|---|---|
| Dimensions | 30 × 30 × 40 mm |
General
| Temperature range | -40°C bis +85°C |
|---|
Markings
Order options
| Order no. | Name |
|---|---|

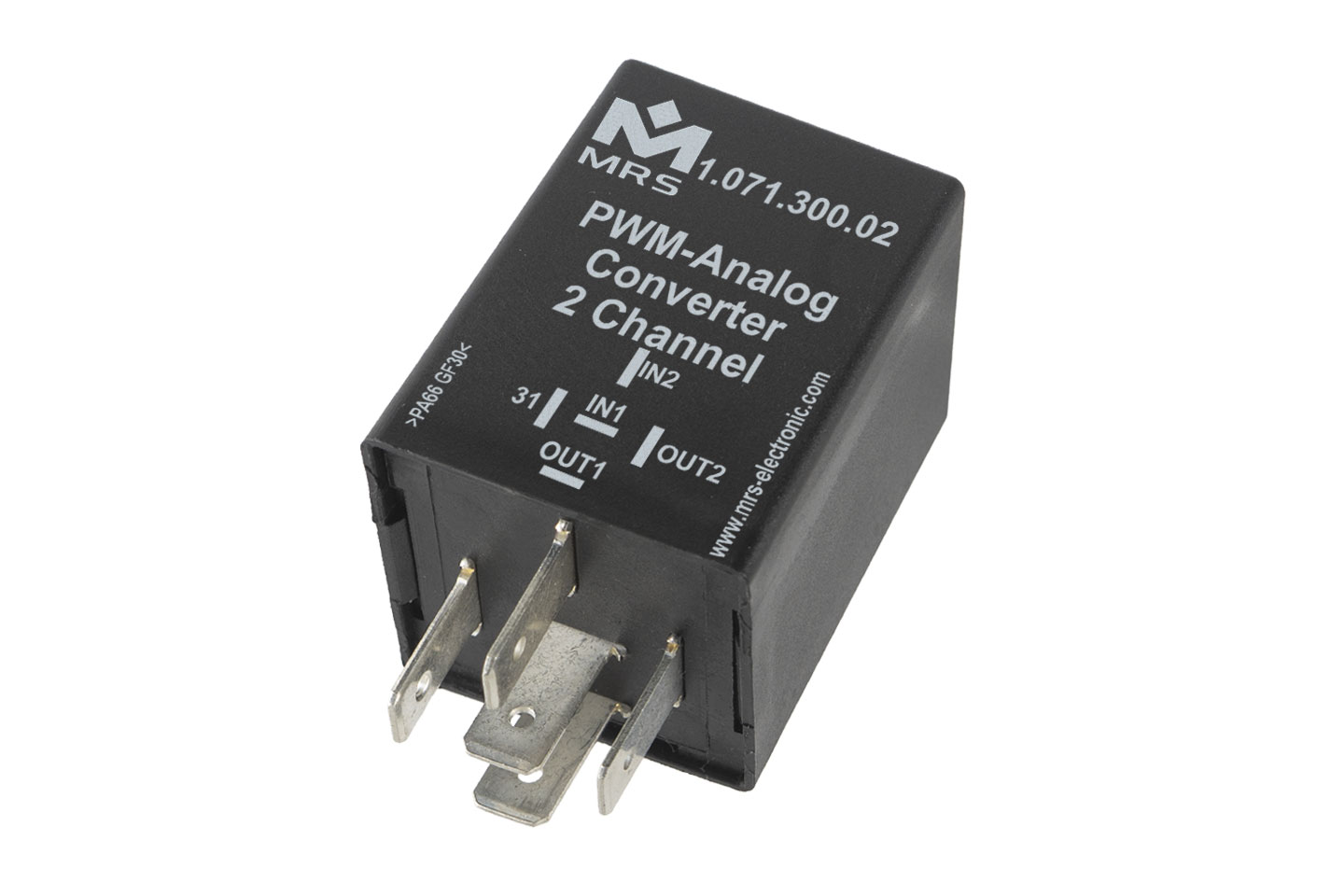

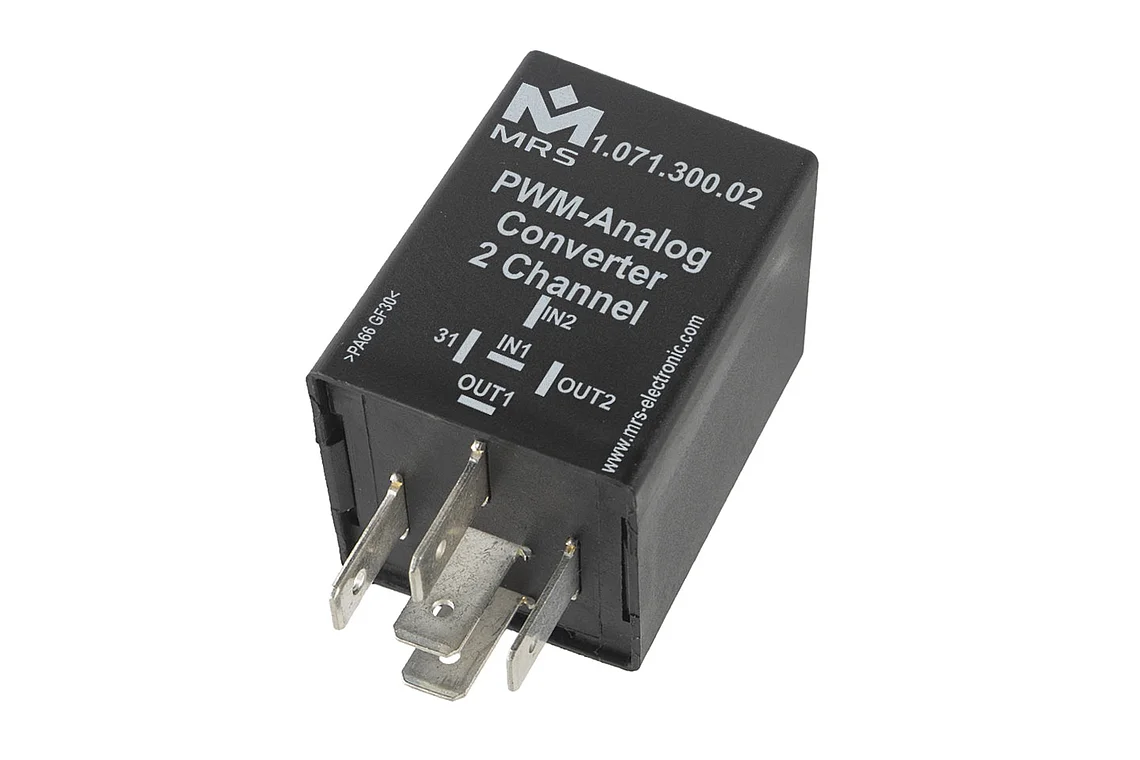

| 1.071.300.02 (107130002) |
2 Channels: 2x PWM Inputs, 2x Analog Outputs
|

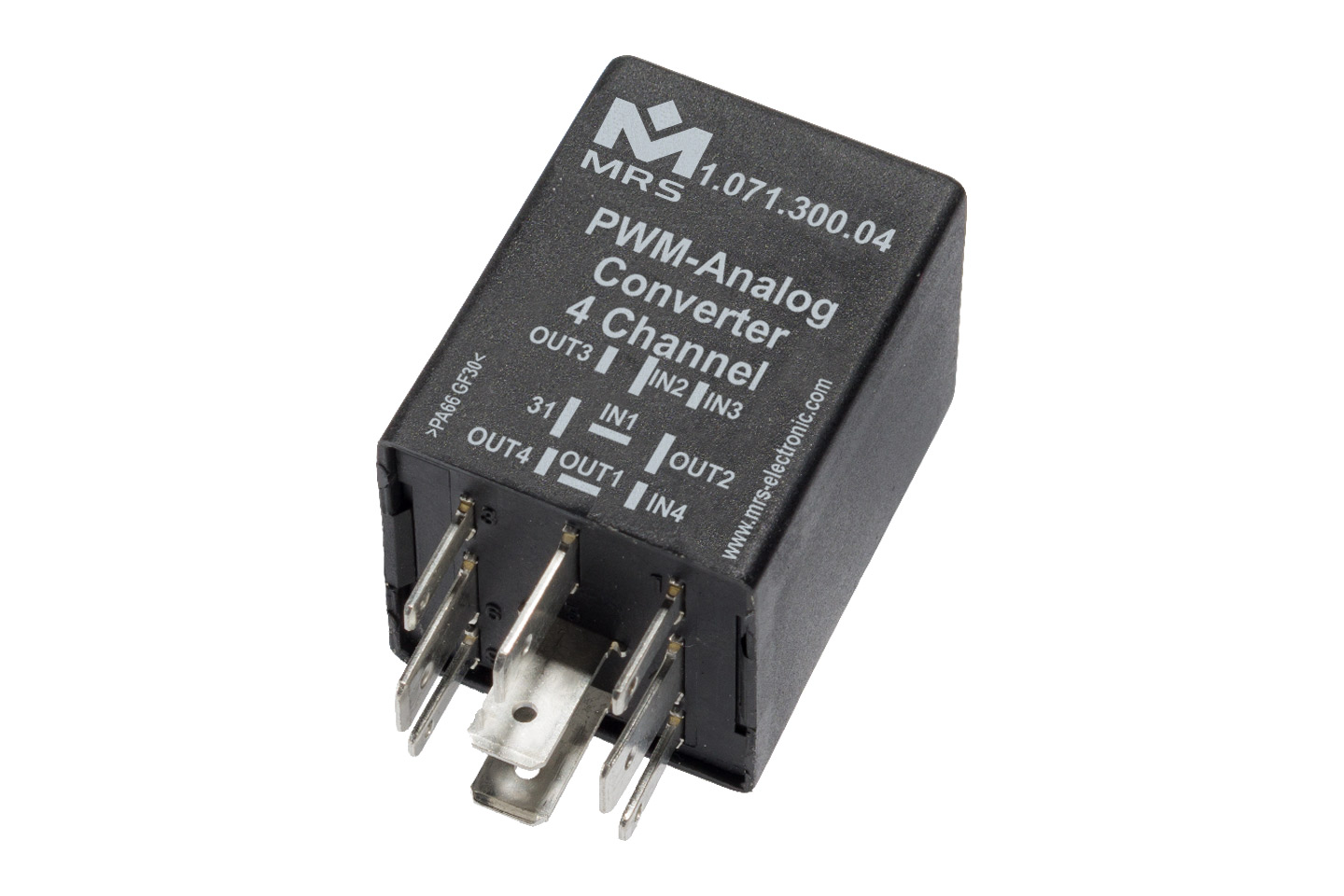

| 1.071.300.04 (107130004) |
4 Channels: 4x PWM Inputs, 4x Analog Outputs
|
