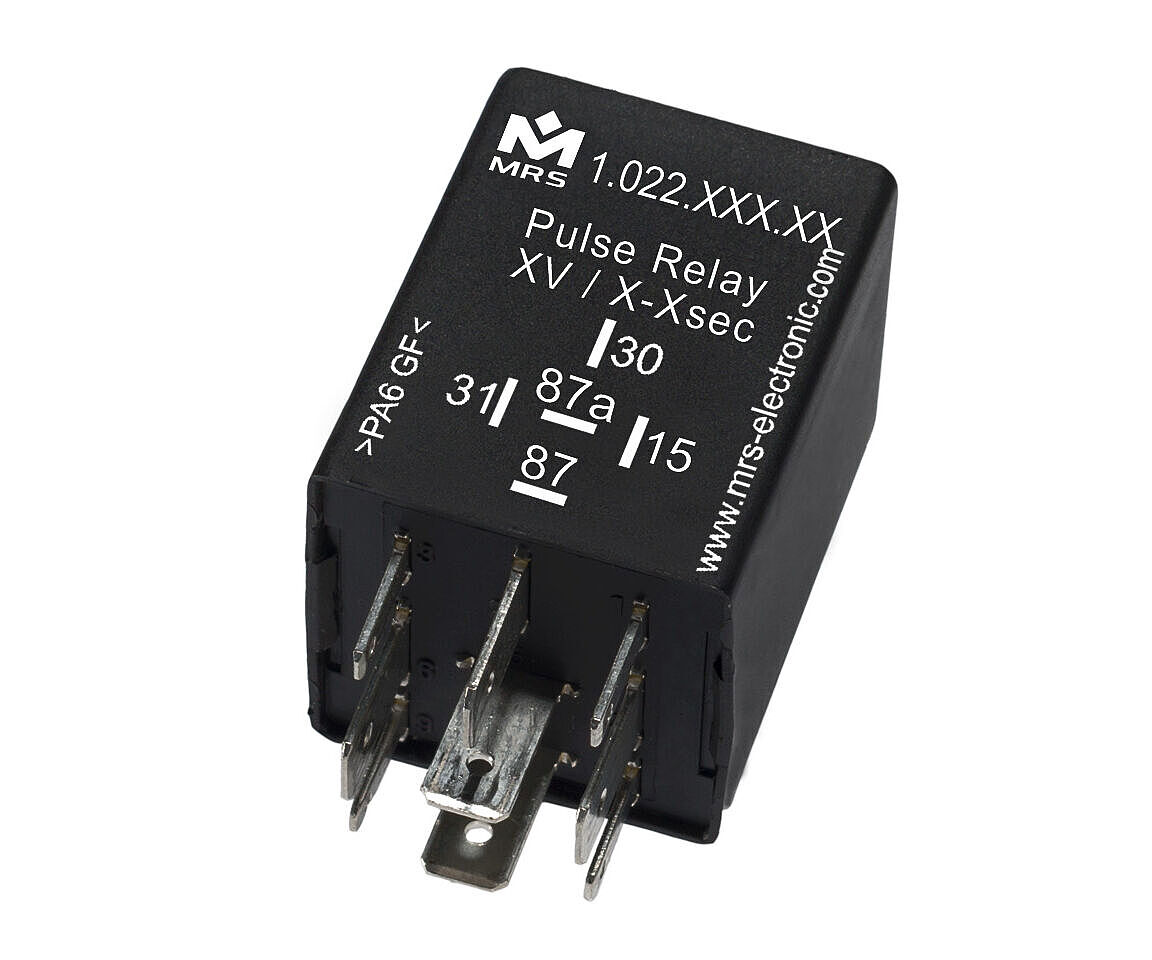

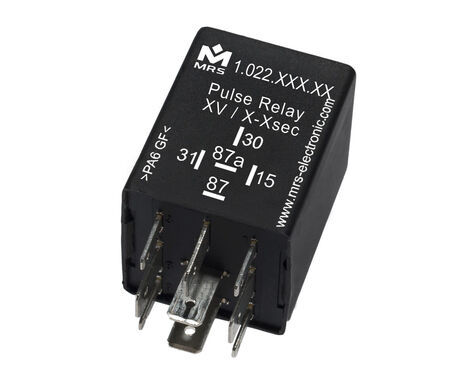

Pulse Relay adjustable 12 V

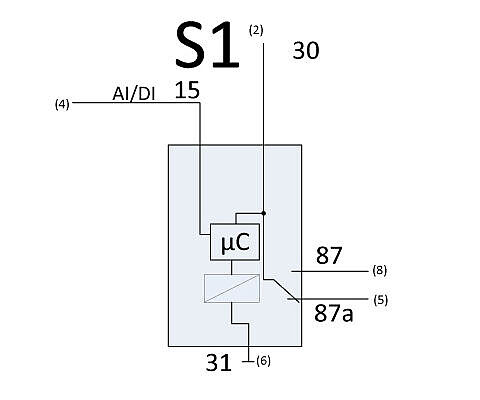

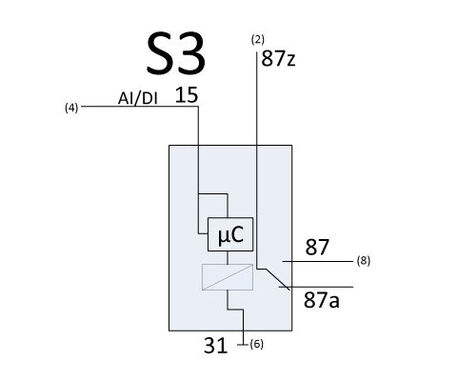

1.022.11x.xxE ( choose order option )(102211xxxE)Pulse relays can be adjusted when loads are to be switched on or off for a time-defined range. You can choose from five time ranges by default (see table). Within the selected time range, the pulse time can be changed via potentiometer. We realize other time ranges on request. Please specify the desired time range when ordering. Circuit diagram S1: Operating voltage is applied to terminal 30. If the voltage is fixed briefly or permanently at Terminal 15, the relay will immediately pull on the set time and then fall off again. Circuit diagram S2: Operating voltage is applied to terminal 87z. If the voltage is short or permanent at Terminal 15, the relay will immediately pull in for the set time and then fall off again. Control and contacts are separated from each other and can thus be placed in a chain of links. All schematics: The duration of the control signal does not affect the duration of the output pulse (i.e. the relay is not retriggerable). The exact pulse length can be set with the potentiometer within the given time interval. Housing forms can be found in the section housing and basic body.

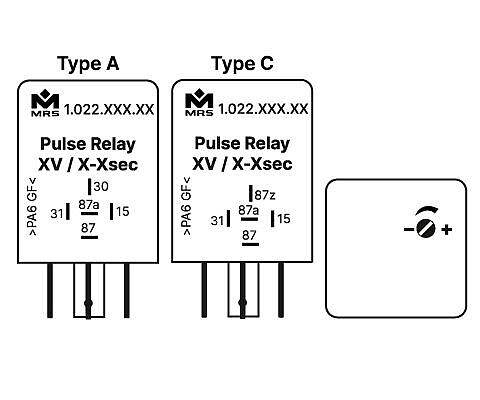

| Name | Value |
|---|---|
| Dimensions | 30 × 30 × 40 mm |
| Housing material | Plastic |
| Type-approval number | 03 3218 |
| Type-approval | e1 – 72/245/EWG |
| Number of pins | 5 |
| In-/Outputs (total) | 1 |
| Operating voltage | 12 V |
| Name | Value |
|---|---|
| Number of pins | 5 |
| In-/Outputs (total) | 1 |
| Outputs (total) | 1 |
| Relay outputs | 1 |
| Processor family | Texas Instruments MSP 430 |
| Processor | 16 bit |
| Temperature range | -40 to 85 °C |
| Protection class | IP53 |
| Operating voltage | 12 V |
| Max. output current (87, 87a) | 15 A |
| Quiescent current (12V) | 250 µA |
| Pulse duration | By customer request |
| Programming system | MRS Realizer |
| Name | Type | Model | Connection diagram | Order no. | ||
|---|---|---|---|---|---|---|
| Pulse Relay adjustable 12 V | A | Individual pulse time (see below) | S1 | 1.022.115.xxE | ||
| Pulse Relay adjustable 12 V | C | Individual pulse time (see below) | S2 | 1.022.114.xxE | ||
| Pulse Relay adjustable 12 V | A | Time Interval: 0,5 - 5 seconds | S1 | 1.022.115.01E | ||
| Pulse Relay adjustable 12 V | A | Time Interval: 1 - 30 seconds | S1 | 1.022.115.02E | ||
| Pulse Relay adjustable 12 V | A | Time Interval: 0,5 - 60 seconds | S1 | 1.022.115.03E | ||
| Pulse Relay adjustable 12 V | A | Time Interval: 30 - 900 seconds | S1 | 1.022.115.04E | ||
| Pulse Relay adjustable 12 V | A | Time Interval: 0,5 - 4000 seconds | S1 | 1.022.115.05E | ||
| Pulse Relay adjustable 12 V | C | Time Interval: 0,5 - 5 seconds | S2 | 1.022.114.01E | ||
| Pulse Relay adjustable 12 V | C | Time Interval: 1 - 30 seconds | S2 | 1.022.114.02E | ||
| Pulse Relay adjustable 12 V | C | Time Interval: 0,5 - 60 seconds | S2 | 1.022.114.03E | ||
| Pulse Relay adjustable 12 V | C | Time Interval: 30 - 900 seconds | S2 | 1.022.114.04E | ||
| Pulse Relay adjustable 12 V | C | Time Interval: : 0,5 - 4000 seconds | S2 | 1.022.114.05E |
