Micro Gateway CAN Serial
go to order options (1174x)
The compact Micro Gateway CAN Serial complements existing systems and mediates or manipulates information between local interfaces (CAN, RS232/485). It provides a 1-Wire interface that can be used to connect an iButton reader for authentication or tracking.

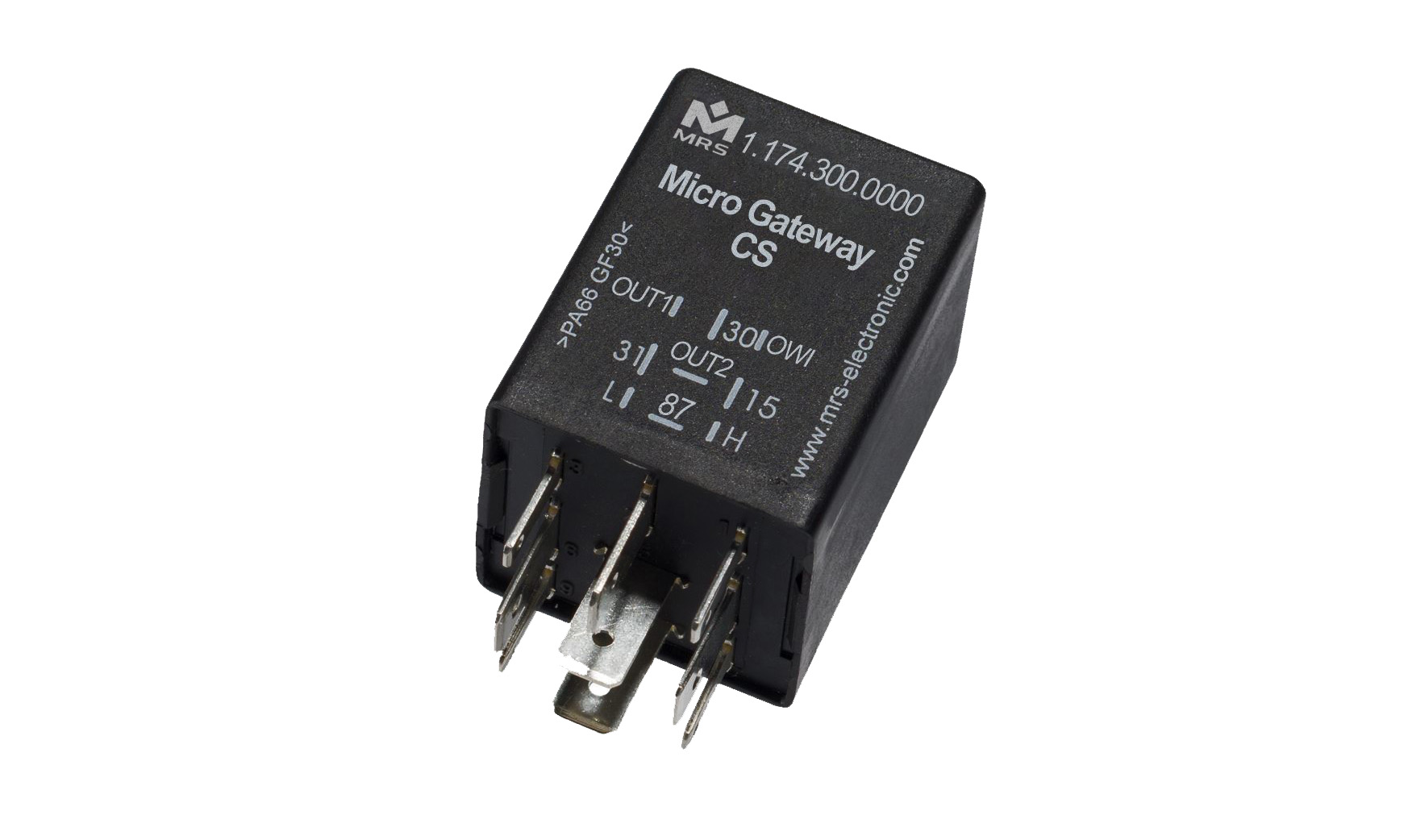

Micro Gateway CS
Technical details
Inputs and Outputs
| Number of pins | 9 |
|---|---|
| In-/Outputs (total) | 3 |
| Inputs (total) | 1 |
| Inputs (analog) | 1 |
| Inputs (digital) | 1 |
| Outputs (total) | 2 |
| Outputs (PWM capable) | 1 |
| Outputs (digital) | 1 |
| Relay outputs | 1 |
| Halfbridge | 1 |
| Output type low side | 1 |
Interfaces
| CAN interface(s) | 1 |
|---|
Mechanical Properties
| IP rating | IP6K8 |
|---|---|
| Housing material | Plastic PA 66GF30 |
| Dimensions | 30 × 30 × 40 mm |
Programming
| Programming software | MRS Developers Studio |
|---|
General
| Temperature range | 40 °C to +85 °C |
|---|---|
| Operating voltage | 9-32 V |
| Current consumption | 8 mA at 12 V and 24 V |
| Quiescent current (12V) | 30 µA |
| Quiescent current (24V) | 750 µA |
Order options
| Order no. | Name |
|---|---|
| 1.174.300.0000 (11743000000) |
One Wire Input, Relay Output
|
| 1.174.310.0000 (11743100000) |
One Wire Input, RS232 Serial Interface
|
| 1.174.320.0000 (11743200000) |
One Wire Input, RS485 Serial Interface
|
| 1.174.330.0000 (11743300000) |
One Wire Input, direct conversion RS232 to One Wire Interface, without CPU
|
