Micro Gateway

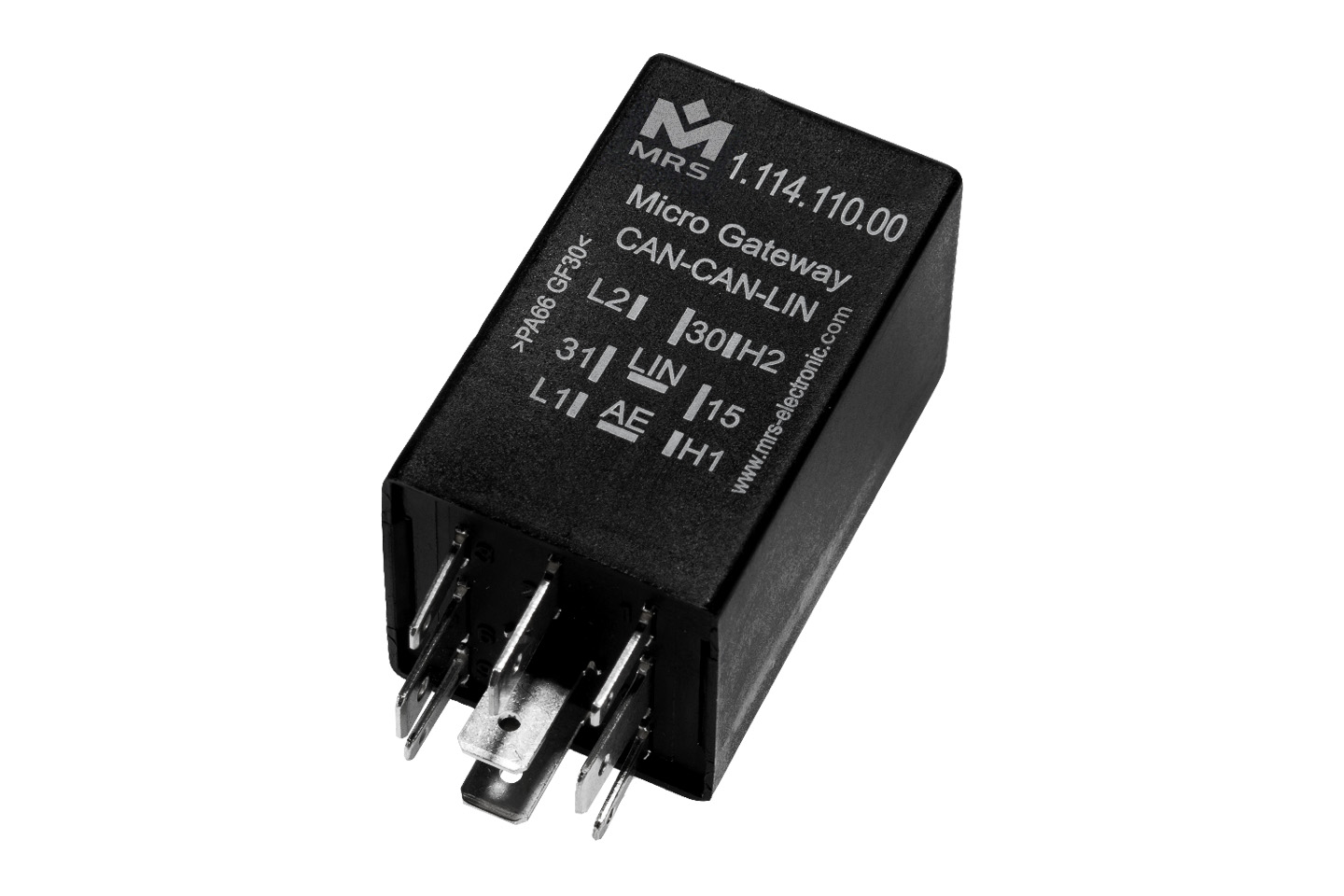

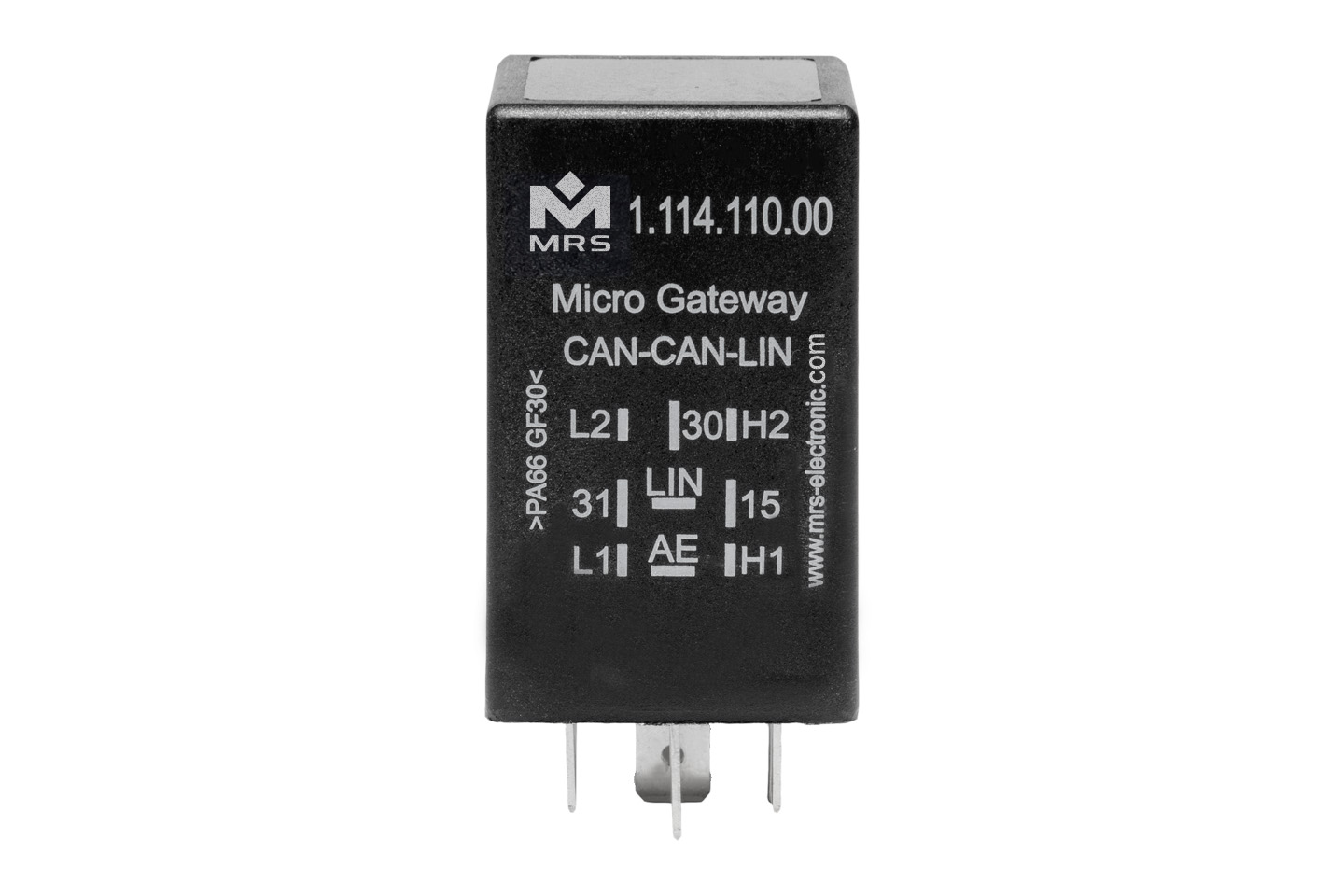

1.114.xxx.xxxxE ( choose order option )(1114xxxxxxxE)The Micro Gateway is a compact gateway for automotive applications. Due to its small size and easy installation, it offers a wide range of applications. The gateway in the 30 x 30 x 50 mm plastic housing offers four different assembly variants.
| Name | Value |
|---|---|
| Weight | 72 g |
| Dimensions | 30 × 30 × 50 mm |
| Housing material | Plastic |
| Connector type | FASTON 6.3 mm, FASTON 2.8 mm |
| In-/Outputs (total) | 2 |
| Operating voltage | 9-30 V |
| Protection class | IP53 |
| Type-approval number | 057139 |
| Type-approval | E1 - ECE R10 |
| Name | Value |
|---|---|

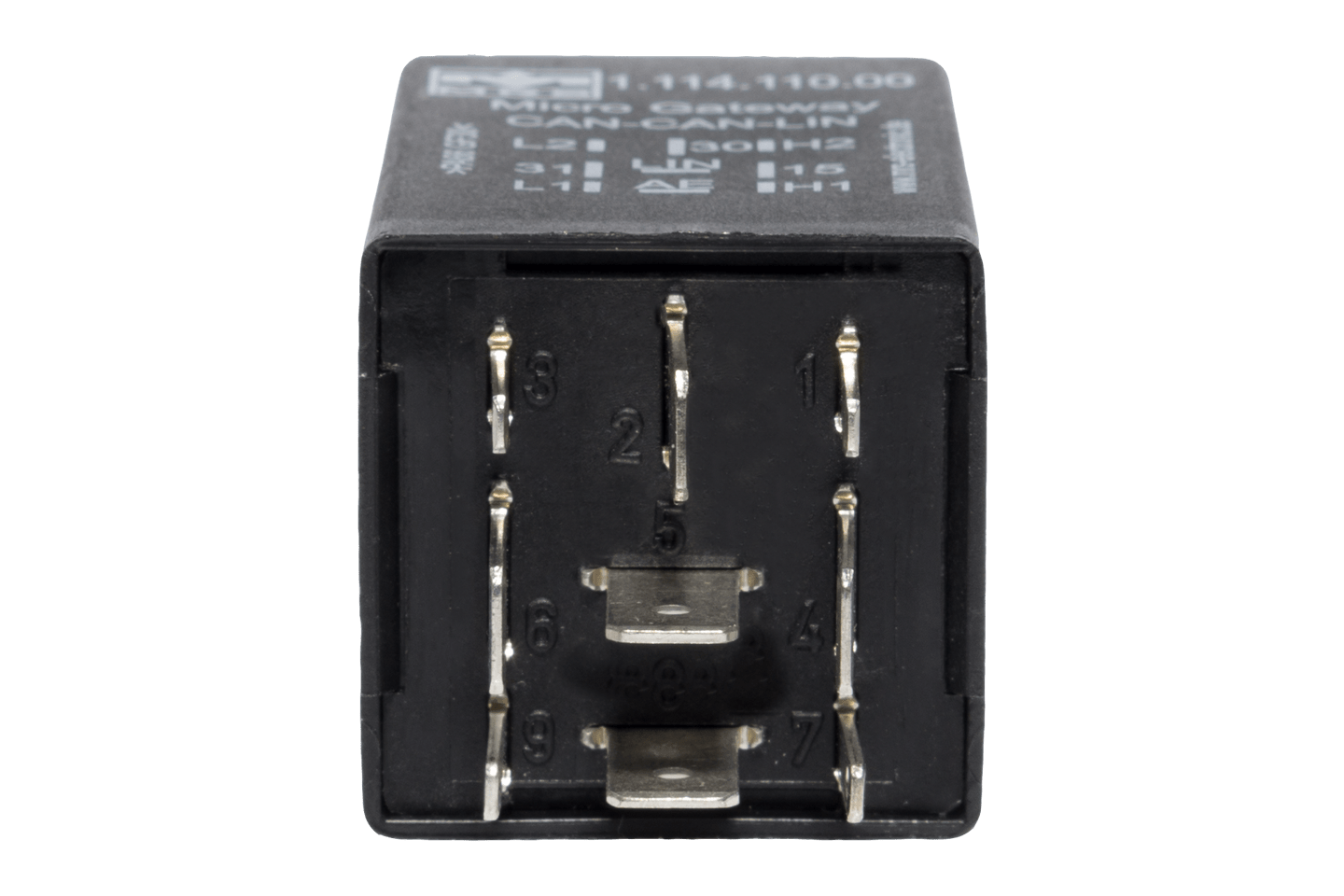

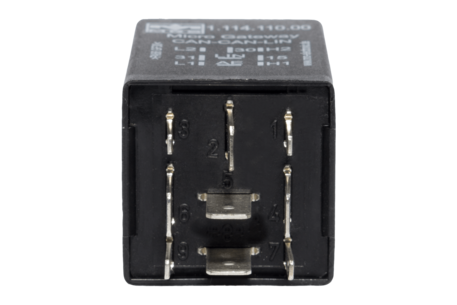

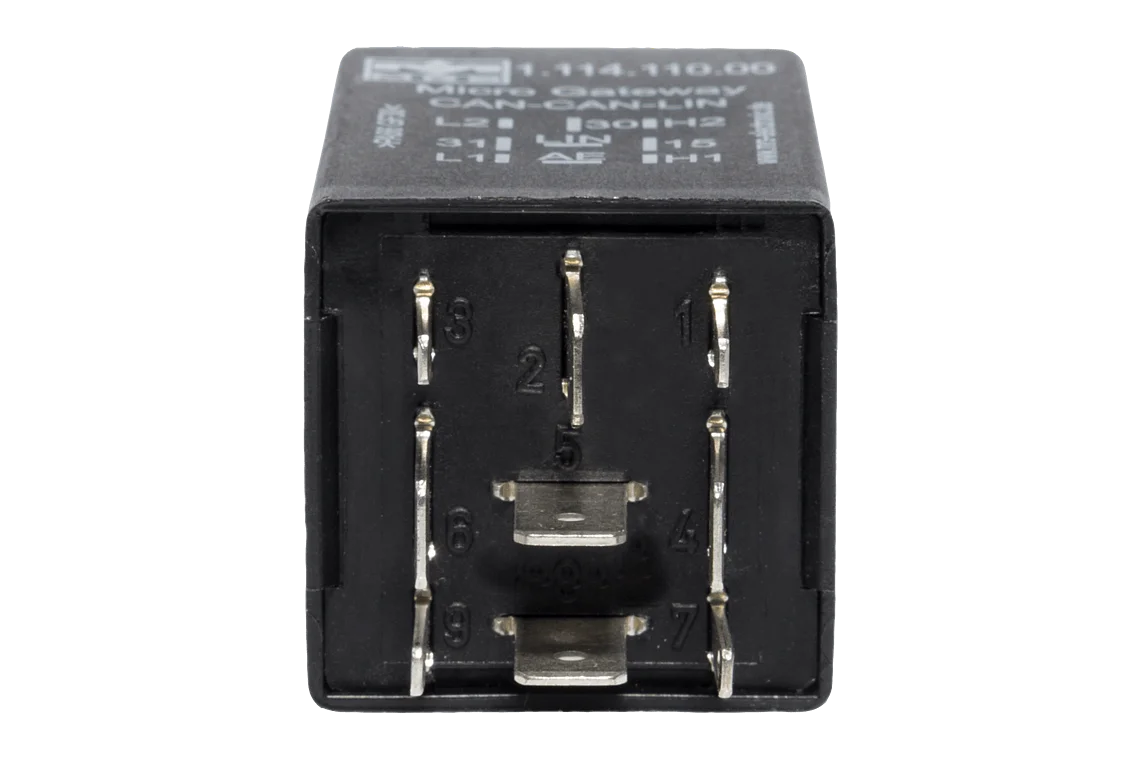

| Number of pins | 9 |
| In-/Outputs (total) | 2 |
| Inputs (total) | 1 |
| Inputs (analog) | 1 |
| Outputs (total) | 1 |
| Outputs (digital) | 1 |
| Processor family | Freescale HCS12 |
| Processor | 16 bit |
| CAN interfaces | 2 |
| LIN interfaces | 2 |
| Temperature range | -40 to 85 °C |
| Protection class | IP53 |
| Operating voltage | 9-30 V |
| Current consumption | 60 mA |
| Quiescent current (24V) | 124 µA |
| Quiescent current (12V) | 50 µA |
| Programming system | MRS Developers Studio |
| Name | Model | Connection diagram | Order no. | ||
|---|---|---|---|---|---|
| Micro Gateway | 12 V, CAN-CAN-LIN | S1 | 1.114.110.00E | ||
| Micro Gateway | 12 V, 2 x CAN-Bus (120 Ohm), LIN (12V) | S1 | 1.114.110.0012E | ||
| Micro Gateway | 12 V, CAN-CAN-LIN-LIN | S3 | 1.114.130.0000E | ||
| Micro Gateway | 24 V, 2 x CAN, LIN (24V) | S1 | 1.114.210.0012E | ||
| Micro Gateway | 24 V, 2 x CAN, 2 x LIN (24V) | S3 | 1.114.230.0012E | ||
| Micro Gateway | 9-32 V, 2 x CAN-Bus | S2 | 1.114.300.00E | ||
| Micro Gateway | 9-32 V, 2 x CAN-Bus (120 Ohm) | S2 | 1.114.300.0011E | ||
| Micro Gateway | 12V, CAN-CAN-LIN | S4 | 1.114.111.0000E |
| Required accessories | Article number | |
|---|---|---|
| Softwaretool MRS Developers Studio Bundle | 1.100.100.09 | |
| PCAN-USB Interface | 105358 | |
| Cable set to programm Micro PLC CAN / PROP CAN / Micro Gateway | 109446 | |
| Cable FLRY 2 x 0.50 mm² white/green SL20 | 113085 | |

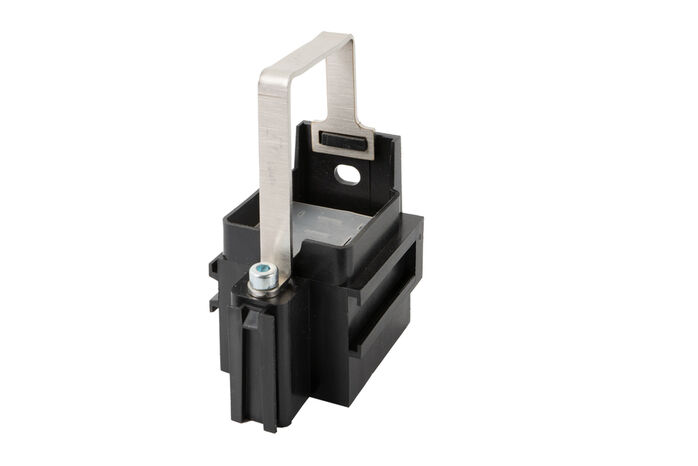

| Socket package watertight 50 mm | 1.017.010.50 | |
| Socket ST FL 9-pin 5 x 6.3 / 4 x 2.8 | 1.017.002.00 | |
| FASTON terminal for latching 2.8 mm 0.5 – 1.0 mm² | 105292 | |
| FASTON terminal for latching 6.3 mm 1 mm² | 102355 | |
| FASTON terminal for latching 6.3 mm 1.5 – 2.5 mm² | 103064 |
