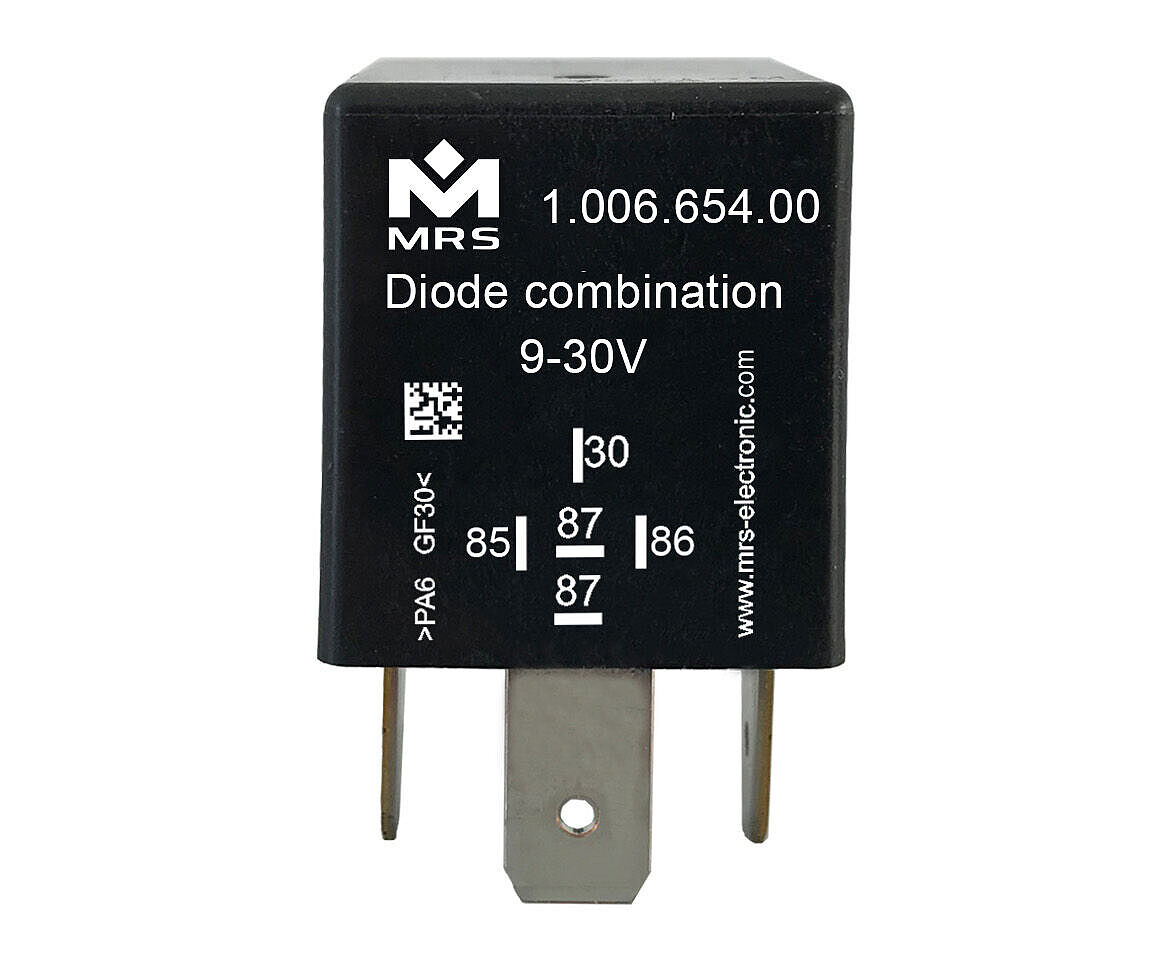

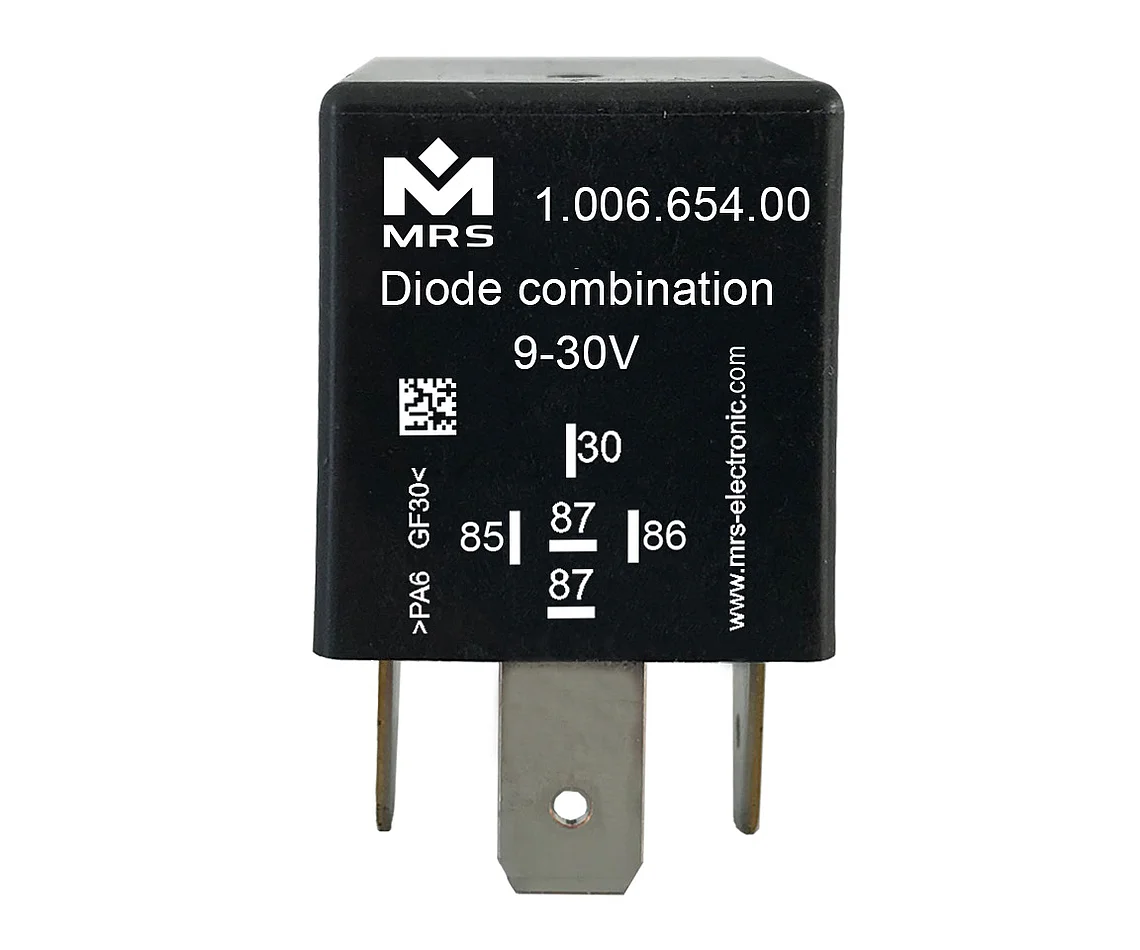

diode combination

1.006.6xx.00E ( choose order option )

Diode combination with diodes P600G. The diodes are not connected with each other. The athodes of the diodes are accessible via other flat pins.

Name Value
Housing material Plastic
Operating voltage 9-30 V
Name Value
Temperature range -40 to 85  °C
Protection class IP53
Operating voltage 9-30 V
Maximum continuous current 3 A

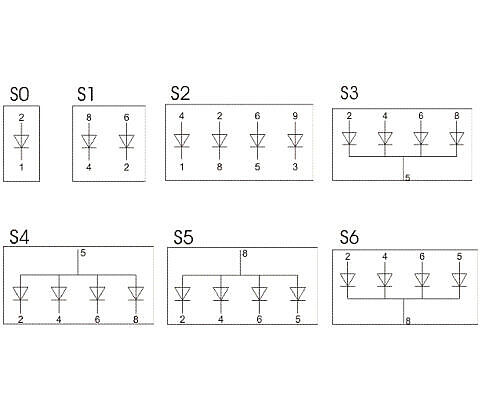

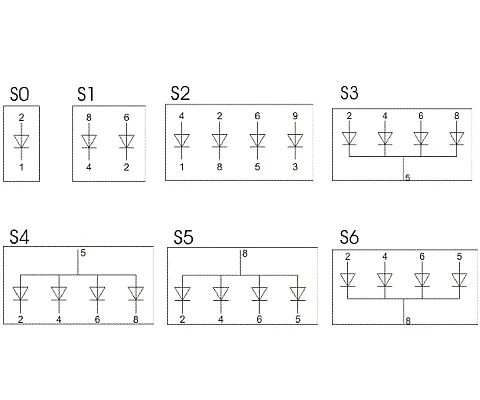

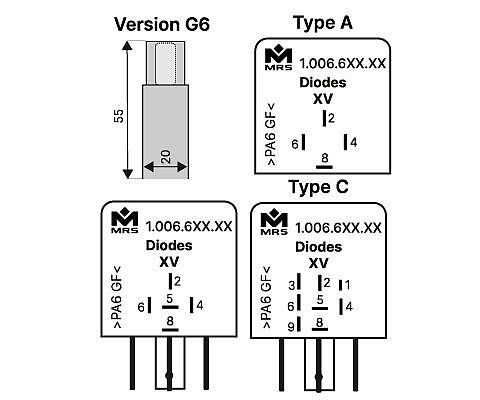

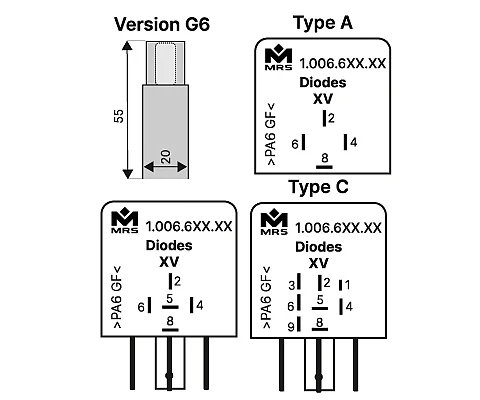

Name Type Model Casing Connection diagram Order no.
Diode combination 1x single 3 A/1300 V 3A G6 S0 1.006.600.00E
Diode combination 2x single 6 A/400 V Type A 6A G1 S1 1.006.654.00E
Diode combination 2x single 3 A/1300 V Type A 3A G1 S1 1.006.652.00E
Diode combination 4x single 3 A/1300 V Type C 3A G1 S2 1.006.660.00E
Diode combination 4x common Cathode 3 A/1300 V Pin5 Type B 3A G1 S3 1.006.661.00E
Diode combination 4x common Anode 3 A/1300 V Pin5 Type B 3A G1 S4 1.006.662.00E
Diode combination 4x common Cathode 3 A/1300 V Pin8 Type B 3A G1 S6 1.006.663.00E
Diode combination 4x common Anode 3 A/1300 V Pin8 Type B 3A G1 S5 1.006.664.00E
Required accessories Article number
Socket ST FL 9-pin 5 x 6.3 / 4 x 2.8 1.​017.​002.​00
FAS­TON ter­mi­nal for latching 6.3 mm 1.5 – 2.5 mm² 103064
FAS­TON ter­mi­nal for latching 6.3 mm 1 mm² 102355
FAS­TON ter­mi­nal for latching 2.8 mm 0.5 – 1.0 mm² 105292
Hous­ing bracket 1.​017.​080.​00
