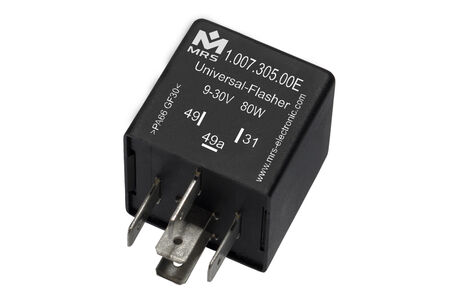

Universal Flasher Unit 9-30V
go to order options (100730x)

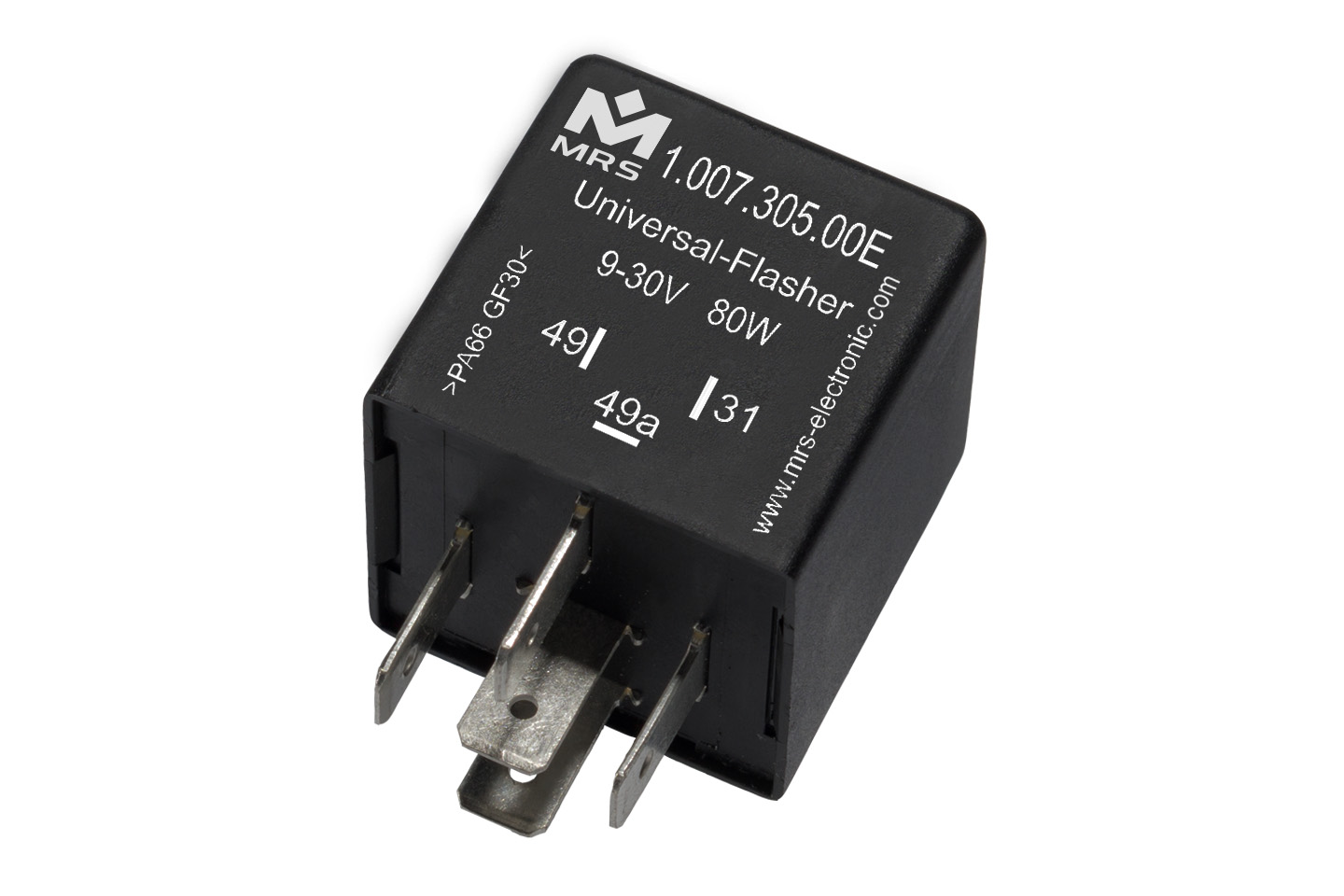

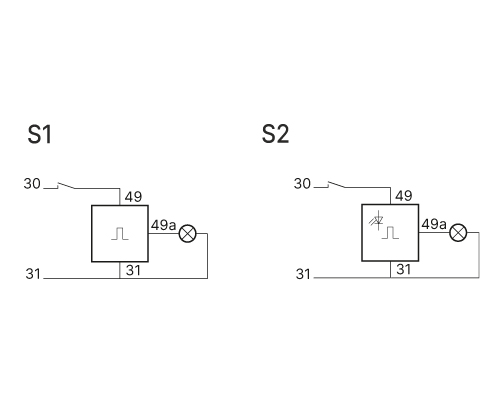

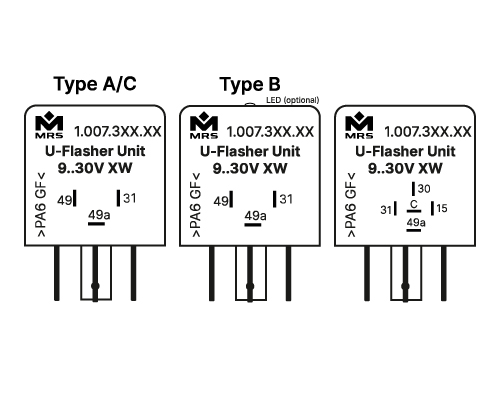

The electronic Universal Flasher Unit is used for turn signal and hazard warning light applications. The flasher unit can be used in various vehicle types. Versions with indicator LED (additional function indication) or start/stop feature are available. Circuit diagram S1: If the operating voltage is applied to Terminal 49, the blinker starts immediately. It generates 90 +/-30 pulses per minute during operation. The output is resilient to up to 10 w, higher loads can also be operated by a downstream load relay. Circuit diagram S2: On request, the flashing sensor is also available with status LED. Housing forms can be found in the section housing and basic body.
Technical details
Inputs and Outputs
| Number of pins | 3 |
|---|---|
| In-/Outputs (total) | 2 |
| Inputs (total) | 1 |
| Inputs (digital) | 1 |
| Outputs (total) | 1 |
| Outputs (digital) | 1 |
| Output type high side | 1 |
| Switching current | 800mA bei 10W |
Mechanical Properties
| IP rating | IP53 |
|---|---|
| Housing material | PA66GF30 |
| Dimensions | 30 × 30 × 30 mm |
Programming
| Programming software | MRS Realizer |
|---|
General
| Temperature range | -40 to +85°C |
|---|---|
| Operating voltage | 9-30V |
| Blink frequency | 90 +/-30 Impulse/min |
Order options
| Order no. | Name |
|---|---|
| 1.007.300.00 (100730000) |
10 W, Type A, Connection S1
|
| 1.007.305.00 (100730500) |
80 W, Type A, Connection S1
|
| 1.007.306.00 (100730600) |
80W with Top-LED, Type B, Connection S2
|
