TConn 7
go to order options (1503x)

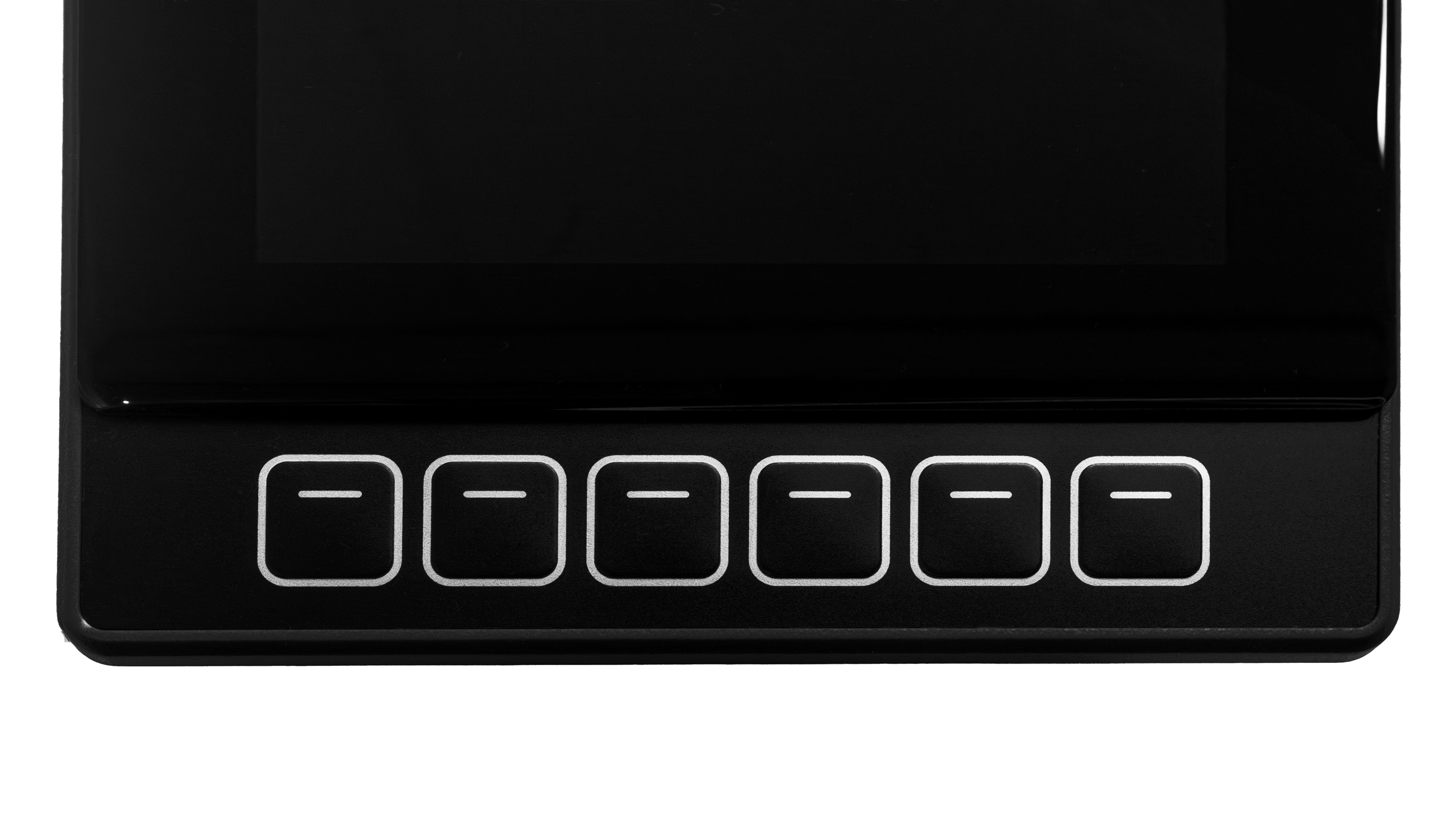

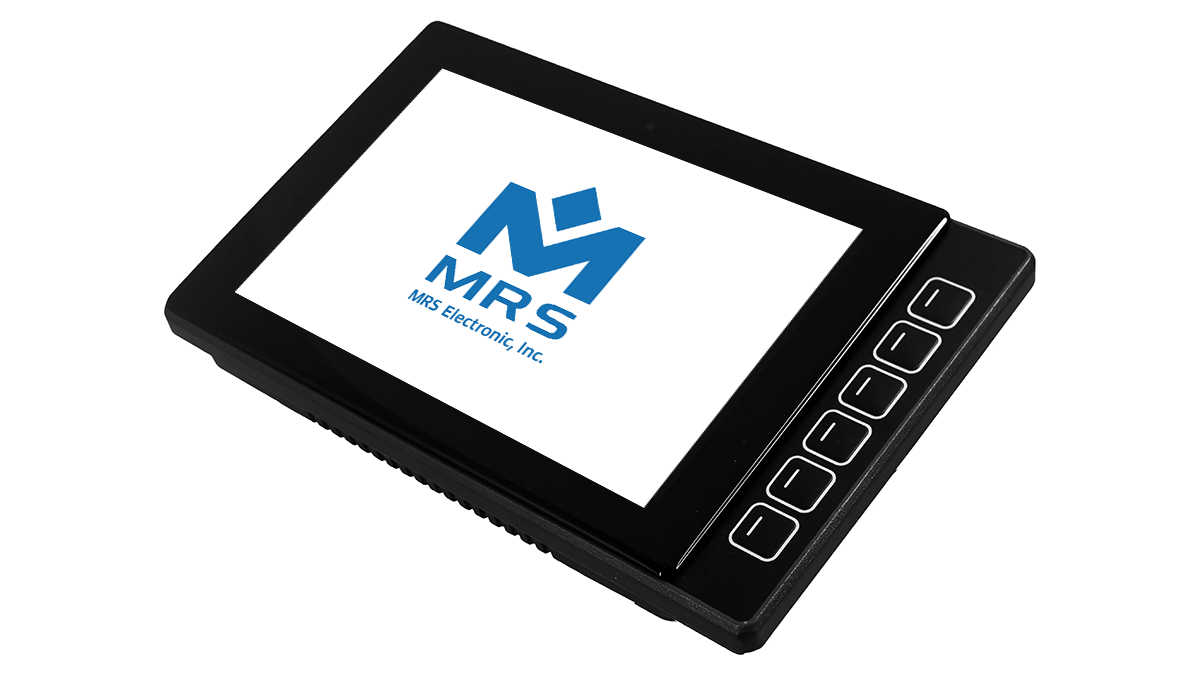

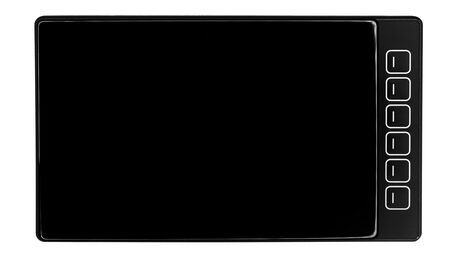

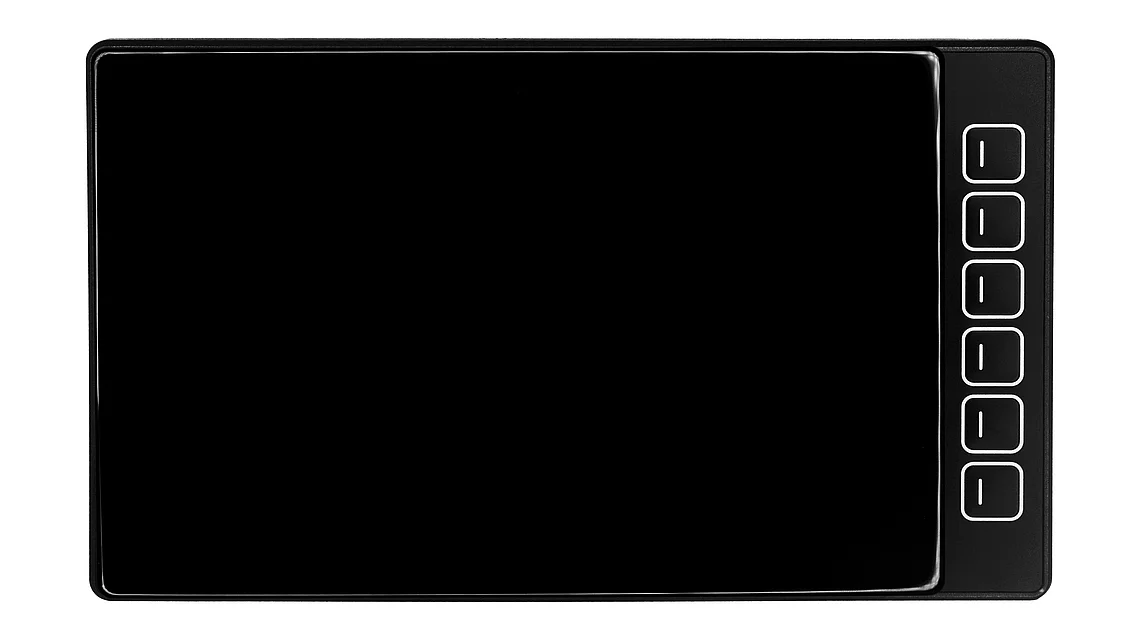

The TConn 7 is a cost-effective CAN display with a 7-inch screen diagonal. It has an optical bonded display with a brightness of up to 850 nits. This means you can use it even in direct sunlight and it can be read optimally from any angle. The display has a resolution of 800 x 480 pixels. The capacitive touchscreen and the four buttons with fluorescent print enable particularly user-friendly operation. Thanks to the multi-touchscreen, it can even be operated with gloves.

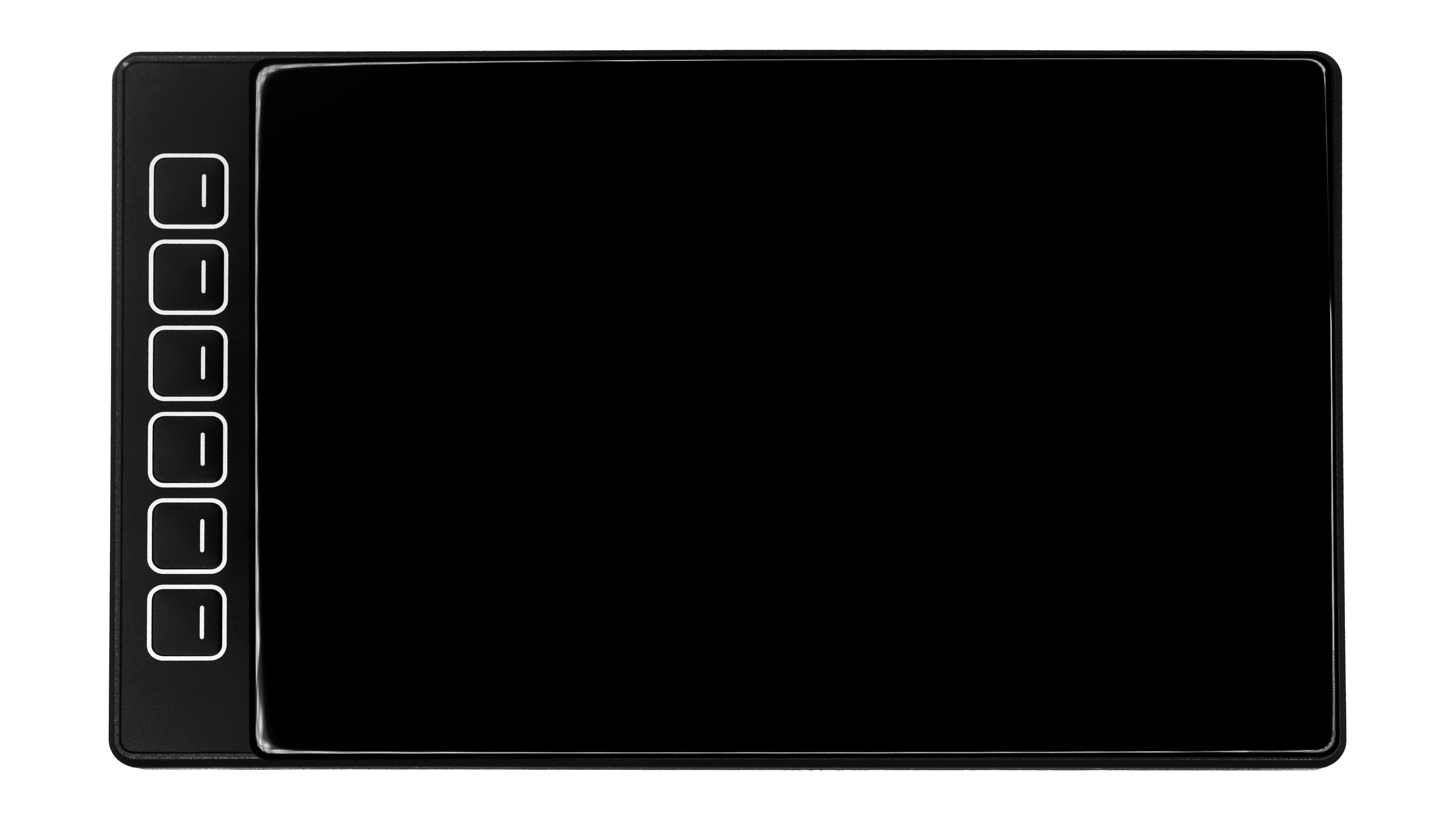

Powered by a 528 MHz i.MX6 processor, 2 GB storage and 256 MB RAM, the TConn HMI system ensures reliable performance in the voltage range from 9 to 36 volts and runs on a Linux operating system. Application programming is done with C++, Projector, or Qt/QML. With its polycarbonate and ABS housing, it is particularly shockproof and heat-resistant. You can mount the TConn 7 according to your needs, with the buttons on the right or left side or in portrait format.
Downloads
Technical details
Interfaces
| CAN interface(s) | 2 |
|---|---|
| CAN FD interface(s) | 2 |
| USB interface(s) | USB, Type C |
Mechanical Properties
| IP rating | IP66 and IP67 |
|---|---|
| Housing material | PC/ABS, Autotex XEF200 |
| Dimensions | 210.4 × 128.4 × 37.5 mm |
Programming
| Programming Software | C++, Projector, Qt |
|---|
General
| Temperature range | -30°C to +75°C |
|---|---|
| Operating voltage | 9-36 V |
| Type | Optical bonded |
| Screen size | 7” |
| Resolution | 800 x 480 |
| Brightness | 850 nits |
| CPU | 32-bit |
| Storage | 2 GB |
| RAM | 256 MB |
| Operating System | Linux |
Order options
| Order no. | Name |
|---|---|
| 1.503.303.0000 (15033030000) |
With Buttons & Touch Function
|
OPUS Projektor Software Demo & Operating System & C++ Development Kit
