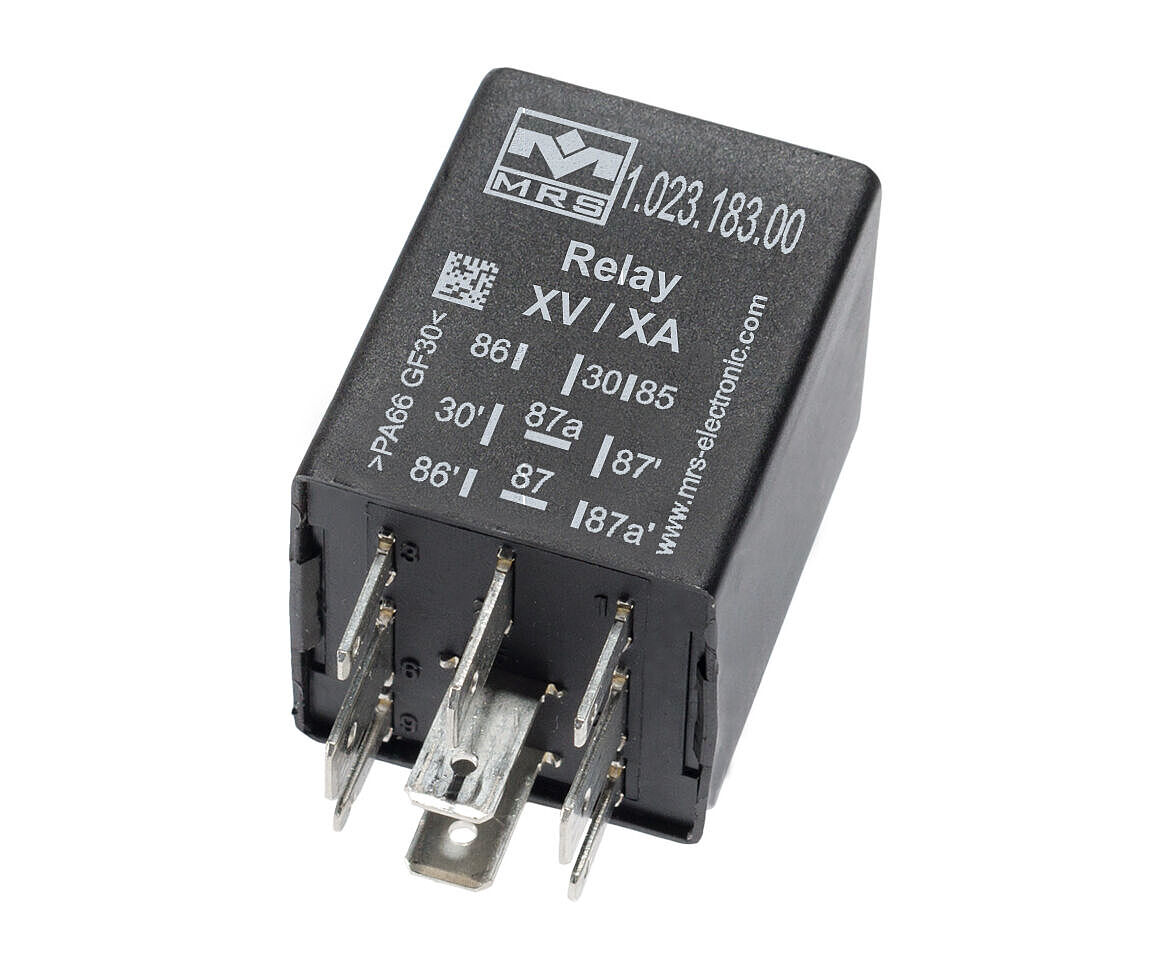

Special Relays
go to order options (1023x)
Special Relays include all relay versions which are not offered as part of our standard product program. By way of example, several specialty relays that can be ordered with various types of snubber circuits e.g. decoupling diode and/or recovery diode are shown below. Other designs are possible on request.
Technical details
Mechanical Properties
| IP rating | IP53 |
|---|---|
| Housing material | PA66GF30 |
General
| Temperature range | -40 to +85°C |
|---|
Markings
Order options
| Order no. | Name |
|---|---|
| 1.023.154.00 (102315400) |

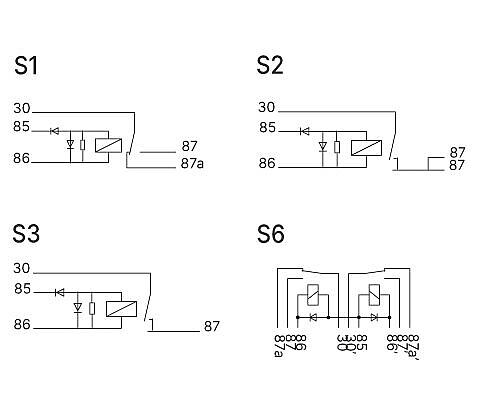

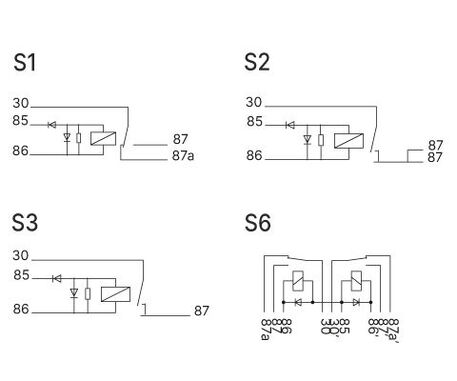

W 12V 20 A, Twoway contact, recovery decoupling diode, Connection S1
|
| 1.023.180.01 (102318001) |
DR 12V 2x 10 A, Double relay, standard, Connection S6
|
| 1.023.182.01 (102318201) |
DR 12V 2x 10 A, Double relay, recovery diode, Connection S6
|
| 1.023.280.01 (102328001) |
DR 24V 2x 10 A, Double relay, standard, Connection S6
|
| 1.023.282.01 (102328201) |
DR 24V 2x 10 A, Double relay, recovery diode, Connection S6
|
