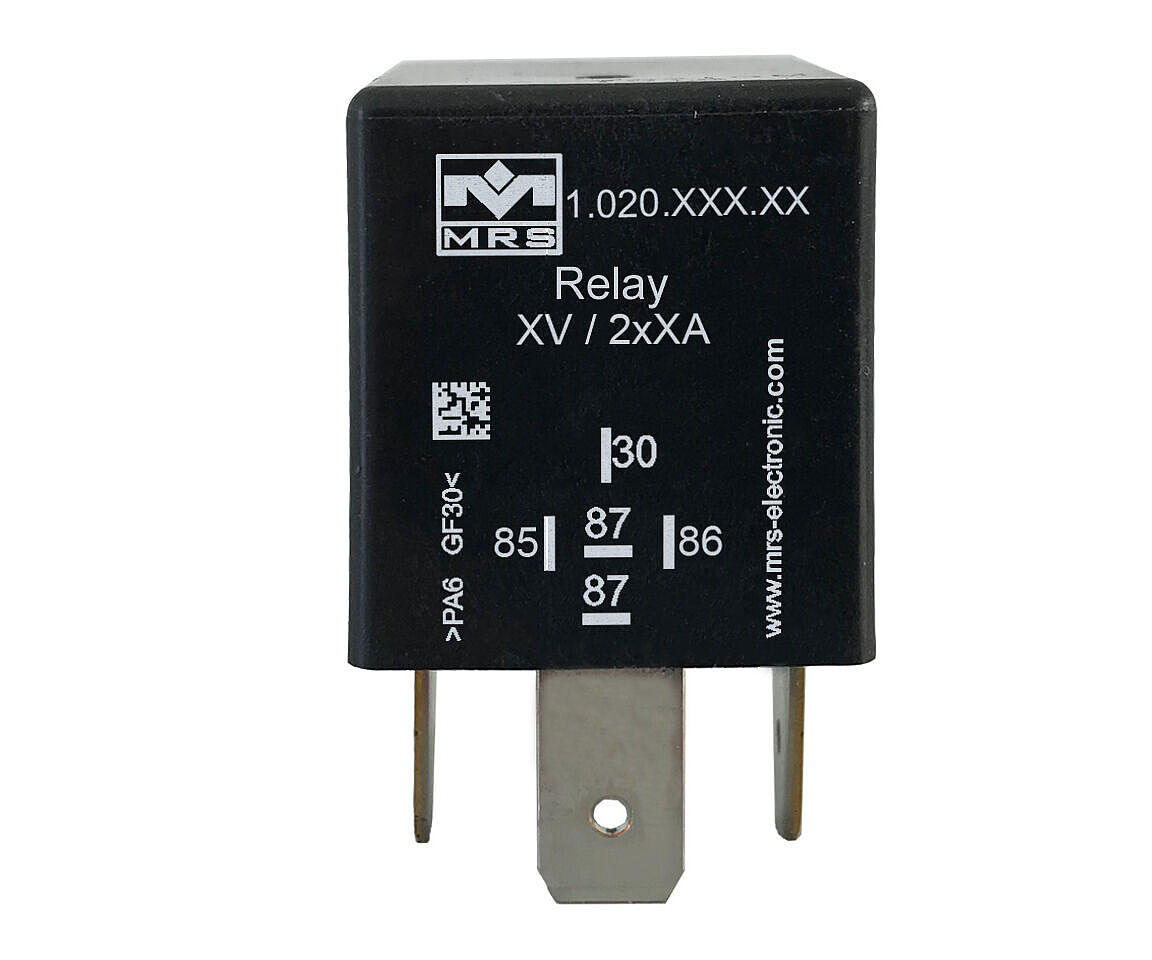

Relay with special terminals 12 V

1.020.1xx.00E ( choose order option )

More detailed information can be found on the website and the data sheets of the respective manufacturers.

Name Value
Number of pins 5
In-/Outputs (total) 1
Operating voltage 12 V
Name Value
Number of pins 5
In-/Outputs (total) 1
Outputs (total) 1
Relay outputs 1
Temperature range -40 to 85  °C
Protection class IP53
Operating voltage 12 V

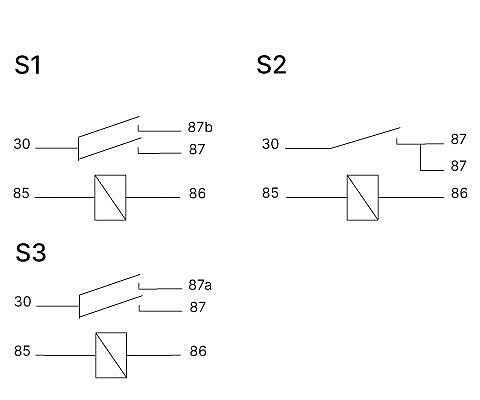

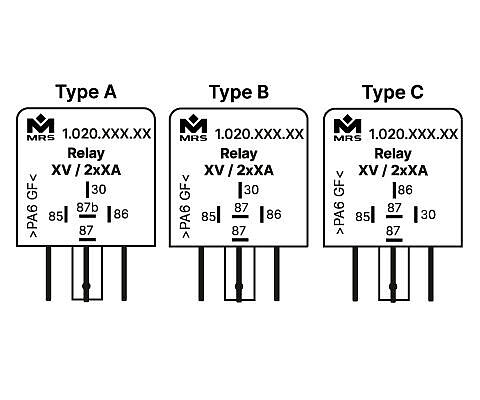

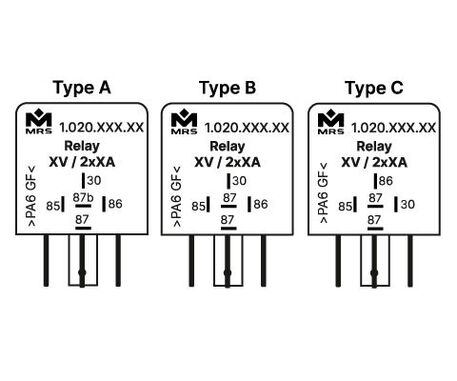

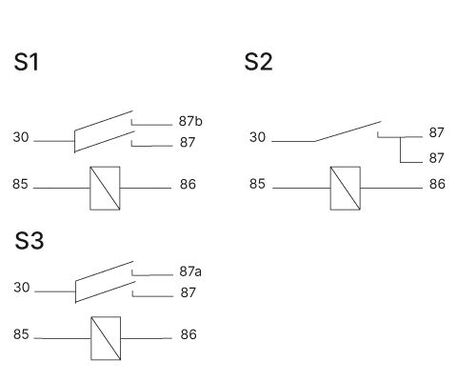

Name Type Model Connection diagram Order no.
Relay ST DS RDPS/5-12 12 V 2x20 A A Dou­ble nor­mally open con­tact S1 1.​020.​179.​00E
Relay ST DS RDPS/5-12R 12 V 2x20 A A Dou­ble nor­mally open con­tact with re­sis­tor 1.​020.​186.​00E
Relay ST DS RDP/5-12 12 V 2x20 A A Dou­ble nor­mally open con­tact with mount­ing bracket [Translate to American English:] S1 1.​020.​183.​00E
Relay V23134- M0052-C642 12 V 2x25 A A Dou­ble nor­mally open con­tact S1 1.​020.​176.​00E
Relay V23134- M1052-C642 12 V 2x25 A L A Dou­ble nor­mally open con­tact with mount­ing bracket S1 1.​020.​180.​00E
Relay ST S RLP/5-12 12 V 40 A B Nor­mally open con­tact 2 x 87 with mount­ing bracket S2 1.​020.​187.​00E
Required accessories Article number
Socket ST FL 9-pin 5 x 6.3 / 4 x 2.8 1.​017.​002.​00
FAS­TON ter­mi­nal for latching 6.3 mm 1 mm² 102355
FAS­TON ter­mi­nal for latching 6.3 mm 1.5 – 2.5 mm² 103064
