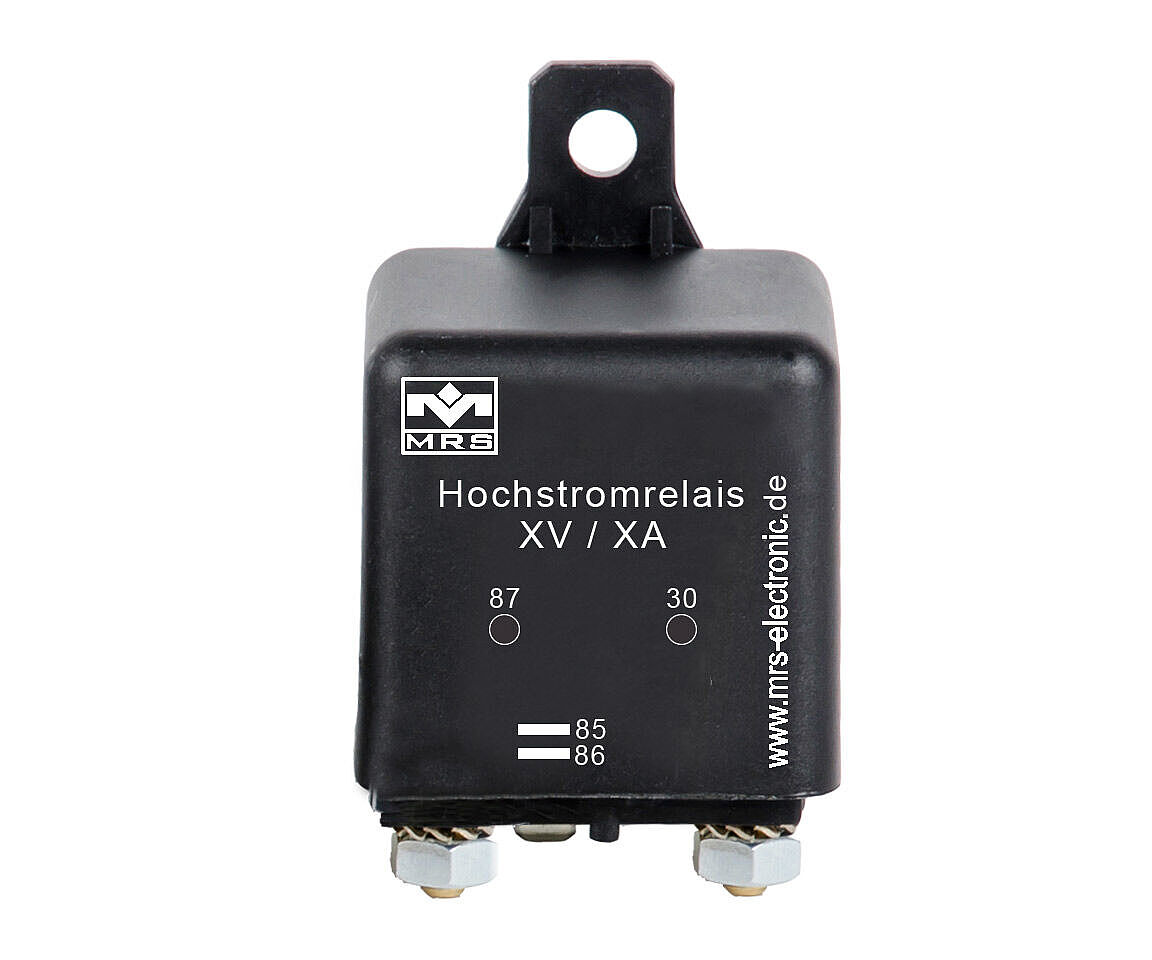

Power Relay 24V
go to order options (10162xx00)
Please reach out to our MRS customer service for more information about this product.
Technical details
Mechanical Properties
| IP rating | IP53 |
|---|---|
| Housing material | PA66GF30 |
General
| Temperature range | -40 to +85°C |
|---|
Markings
Order options
| Order no. | Name |
|---|---|
| 1.016.252.00 (101625200) |

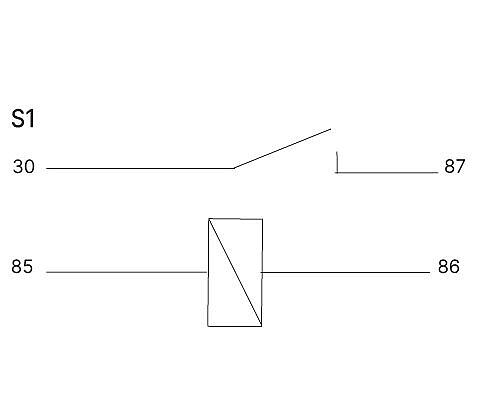

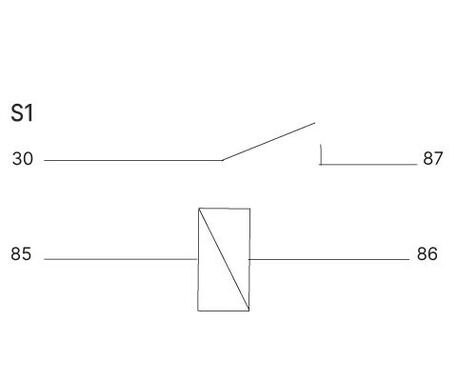

Relay H S RLACS/4-24 24V 40 A, Normally open contact, Connection S1
|
| 1.016.200.00 (101620000) |
Relay V23134-J0053-D642 24 V, Normally open contact, Connection S1
|
| 1.016.201.00 (101620100) |
Relay V23134-J0053-D642 24V R, Two way contact with resistor, Connection S2
|
| 1.016.202.00 (101620200) |
Relay V23134-J0053-D642 24V D, Two way contact with diode, Connection S3
|
| 1.016.203.00 (101620300) |
Relay V23134-J1053-D642 24V L, Normally open contact with mounting bracket, Connection S1
|
| 1.016.254.00 (101625400) |

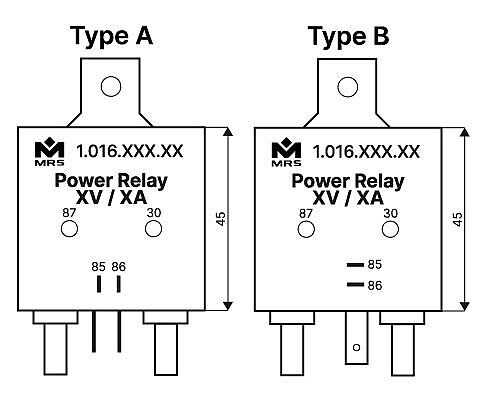

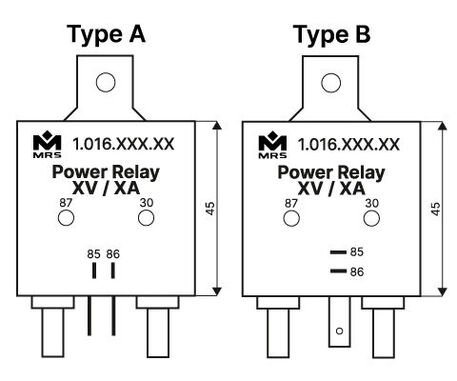

Relay H S RL/80-24 24V 60A Normally open contact with screwing terminals and mounting bracket, Type A, Connection S1
|
| 1.016.258.00 (101625800) |
Relay H S RP/100-24 24V 100A Normally open contact with screwing terminals and mounting bracket, Type B, Connection S1
|
