More detailed information can be found on the website and the data sheets of the respective manufacturers.
Name | Value |
---|---|
Number of pins | 4 |
In-/Outputs (total) | 1 |
Operating voltage | 12 V |
Name | Value |
---|---|
Number of pins | 4 |
In-/Outputs (total) | 1 |
Outputs (total) | 1 |
Relay outputs | 1 |
Temperature range | -40 to 85 °C |
Protection class | IP53 |
Operating voltage | 12 V |

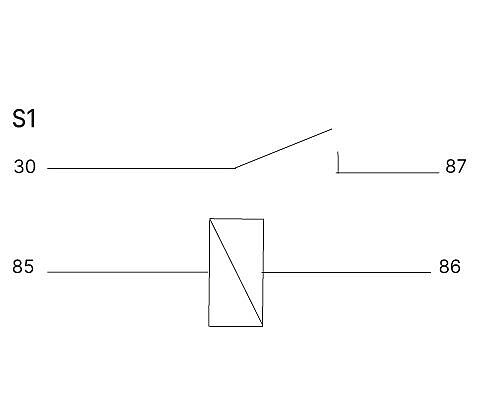

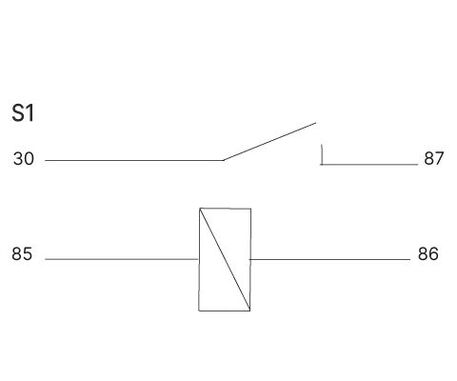

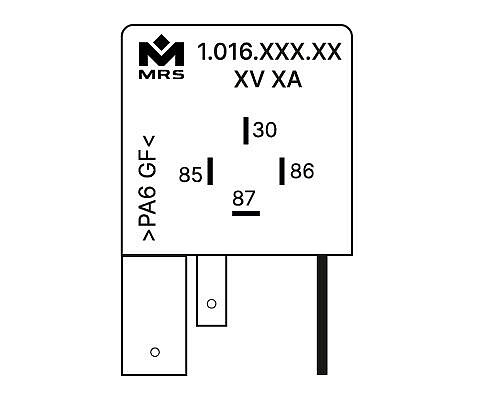

Name | Type | Model | Connection diagram | Order no. | ||
---|---|---|---|---|---|---|
Relay H S CB1A-H-12 12 V 50 A | Normally open contact | S1 | 1.016.155.00E | |||
Relay H S RLACS/4-12 12 V 70 A | Normally open contact | S1 | 1.016.152.00E | |||

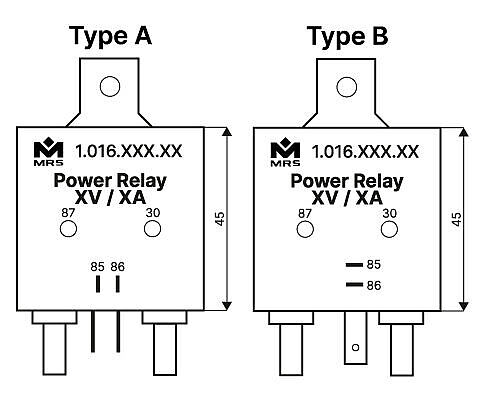

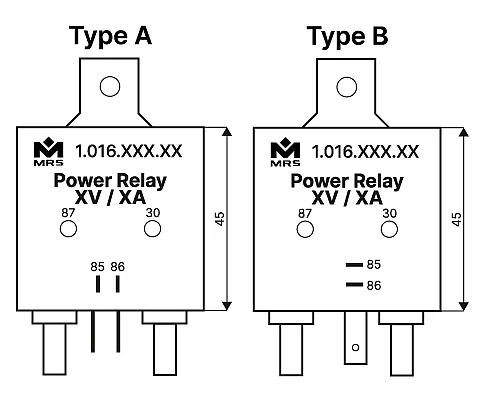

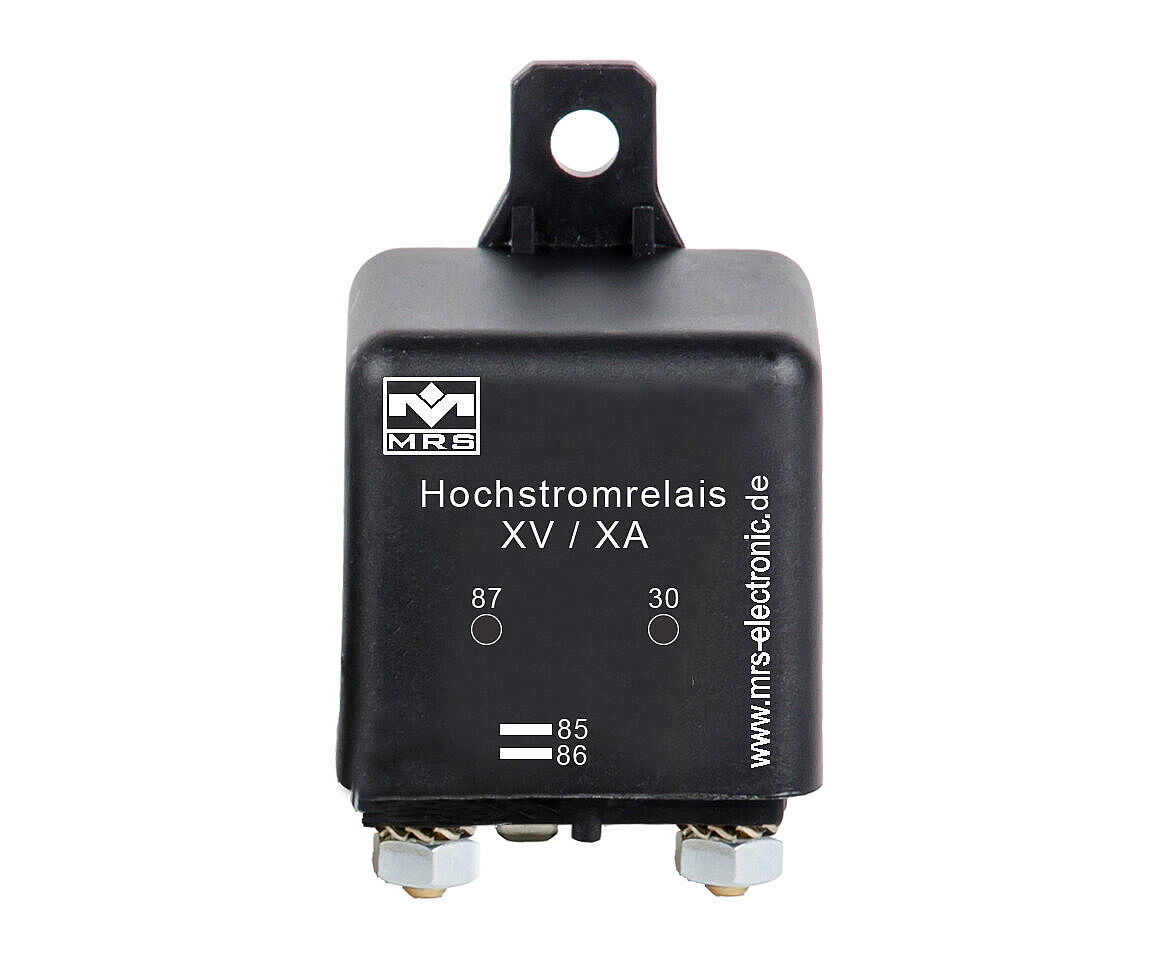

Relay H S RL/180-12 12 V 100 A | A | Normally open contact with screw terminals and mounting bracket | S1 | 1.016.154.00E | ||
Relay H S RP/120-12 12 V 120 A | B | Normally open contact with screw terminals and mounting bracket | S1 | 1.016.158.00E |
Required accessories | Article number | |
---|---|---|
Socket H FL 9-pin 2 x 9.5 / 3 x 6.3 / 4 x 2.8 | 1.017.001.00 | |
FASTON terminal for latching 6.3 mm 1.5 – 2.5 mm² | 103064 | |
FASTON terminal for latching 9.5 mm 4 – 6 mm² | 103066 | |
Note: For relays with screw contacts, only the accessory with article number 103064 is required. |
