Motor Controller 5A CAN
go to order options (1037)

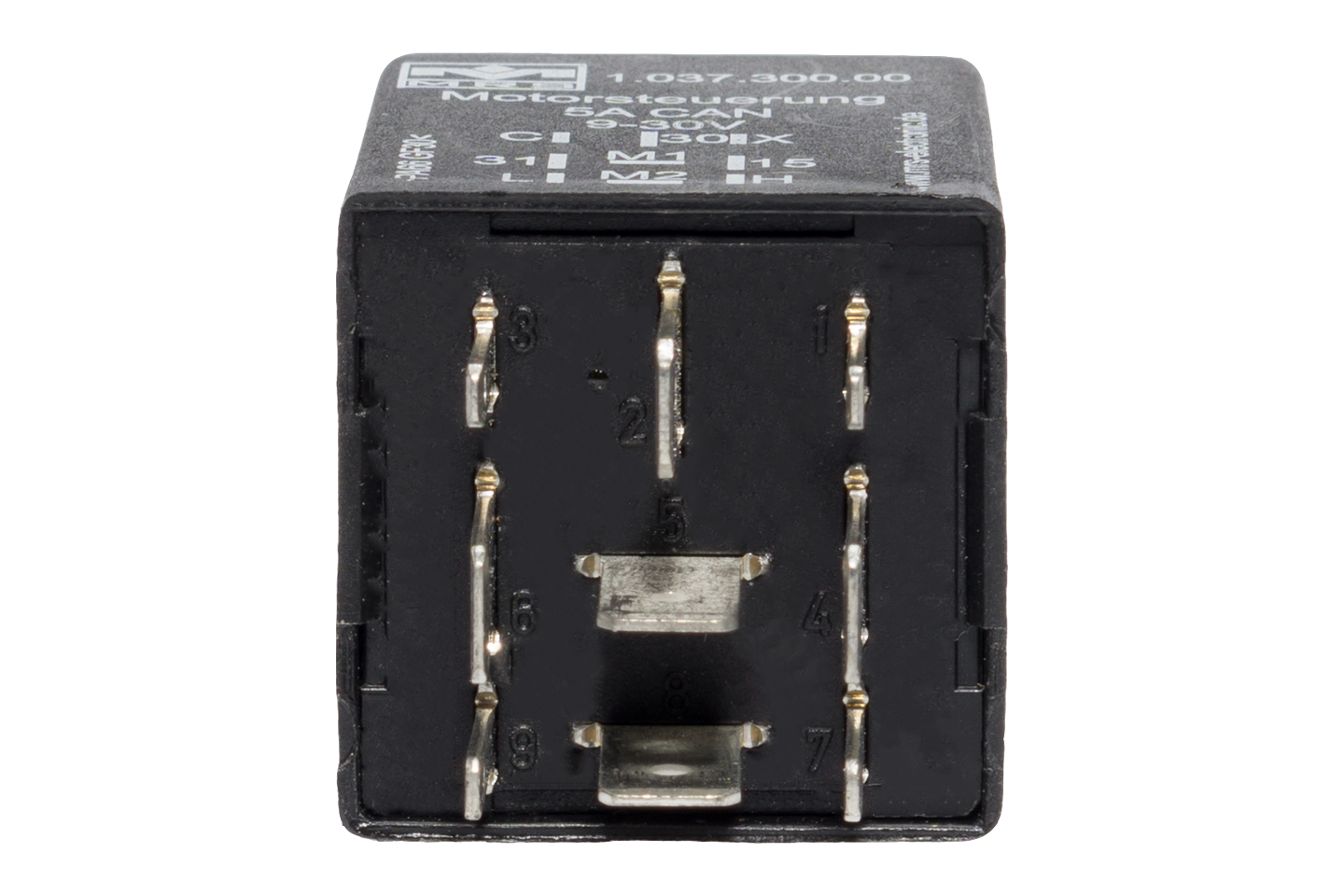

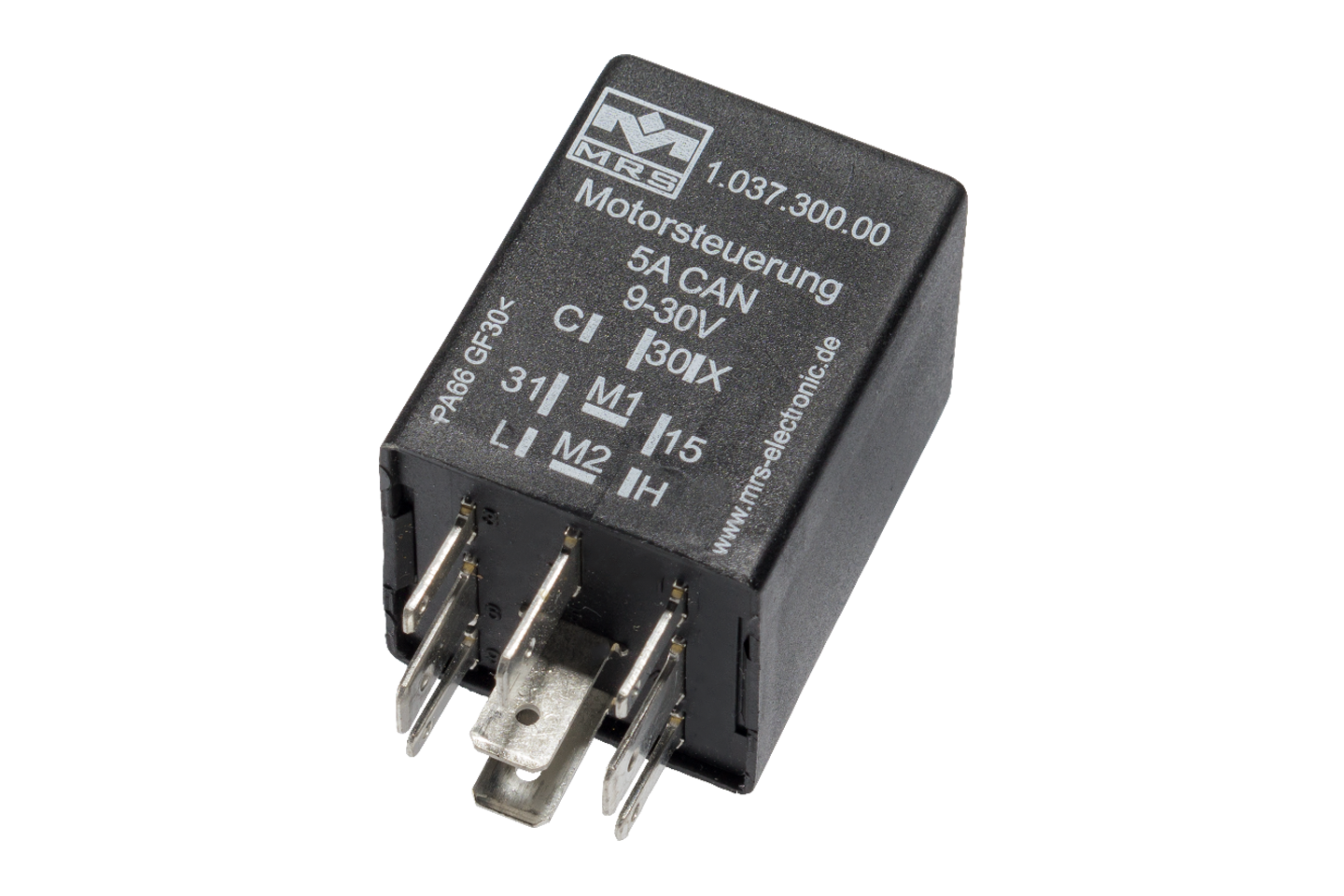

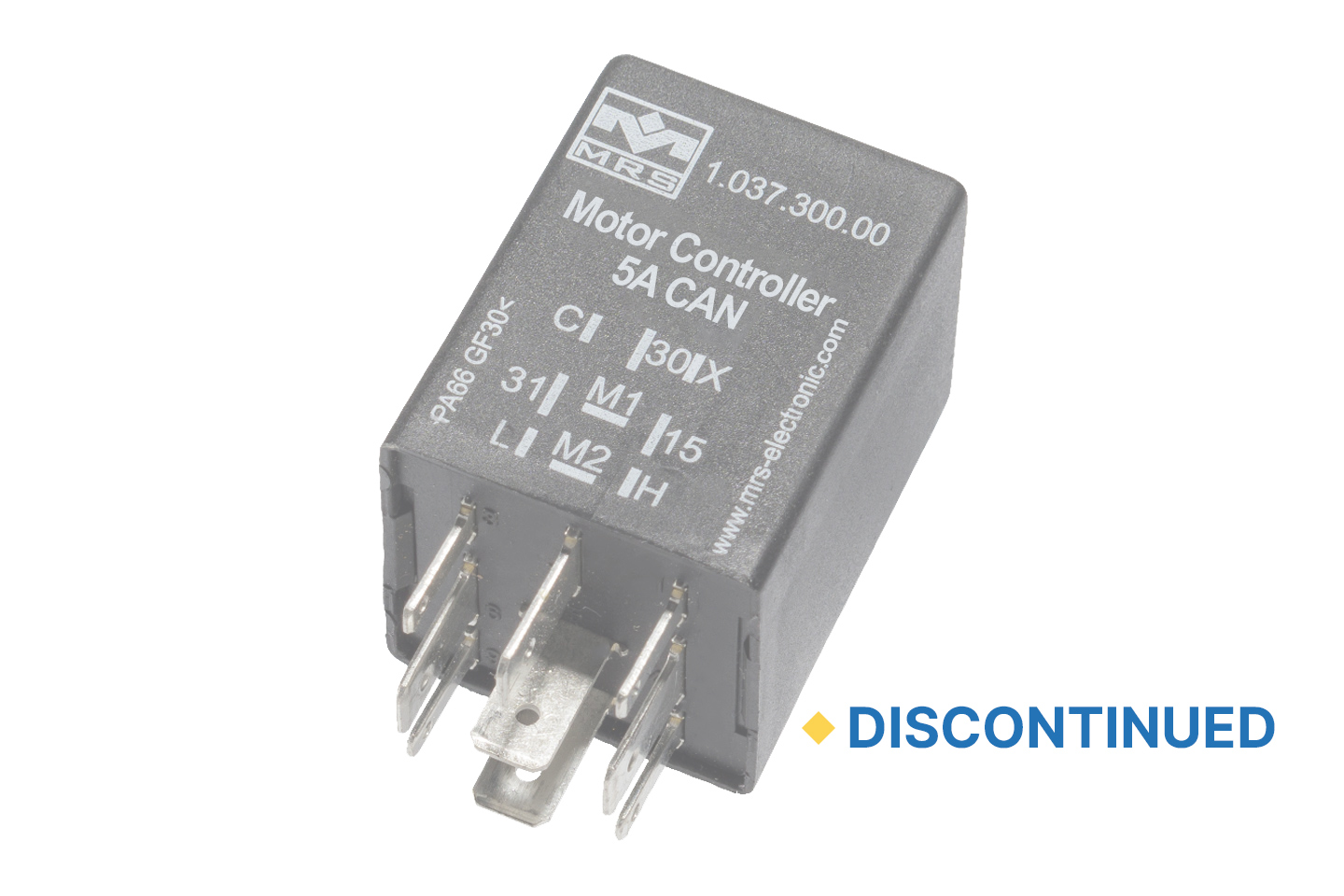

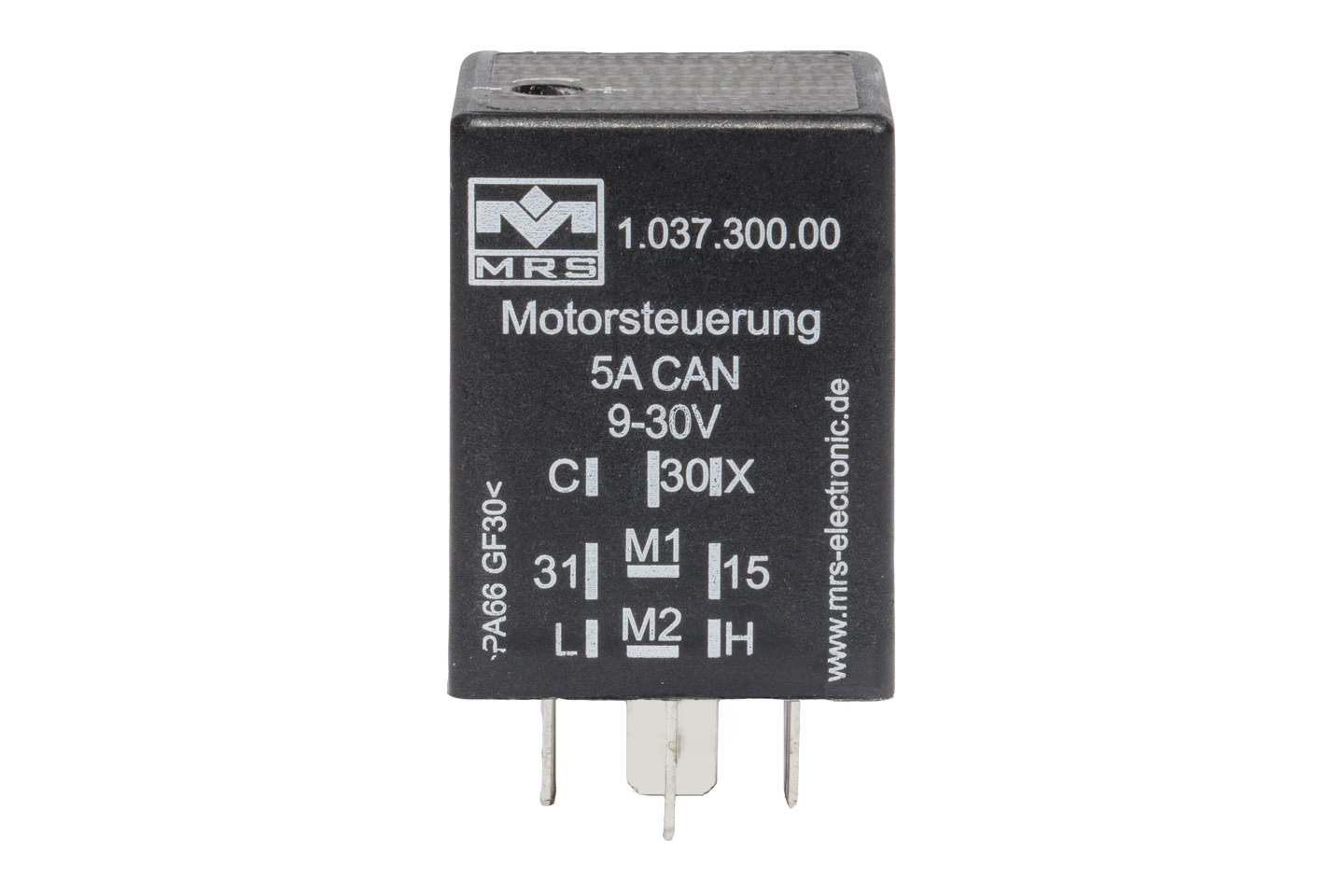

The 5A CAN controller is a microcontroller controlled module for automotive applications, among other things. Its compact size makes it quite versatile and it has 3 analog inputs and a full bridge with motor output for up to 5A power.
Note: This product is a discontinued model, so only a limited number is available. If you have any questions, then please contact us.
Downloads
Technical details
Inputs and Outputs
| Number of pins | 9 |
|---|---|
| Inputs (total) | 3 |
| Inputs (analog) | 3 |
| Outputs (total) | 1 |
| Fullbridge | 1 |
Interfaces
| CAN interface(s) | 1 |
|---|
Mechanical Properties
| IP rating | IP53 |
|---|---|
| Housing material | PA66GF30 |
| Dimensions | 30 × 30 × 40 mm |
Programming
| Programming software | MRS Developers Studio |
|---|
General
| Temperature range | -40 to 85°C |
|---|---|
| Operating voltage | 9-30 V |
| Quiescent current (12V) | 0.8 mA |
| Quiescent current (24V) | 1.5 mA |
Order options
| Order no. | Name |
|---|---|
| 1.037.300.00 (103730000) |
Motor Controller 5 A CAN
|
| 1.037P.300.00 (1037P30000) |
Motor Controller 5 A CAN – CANopen
|
