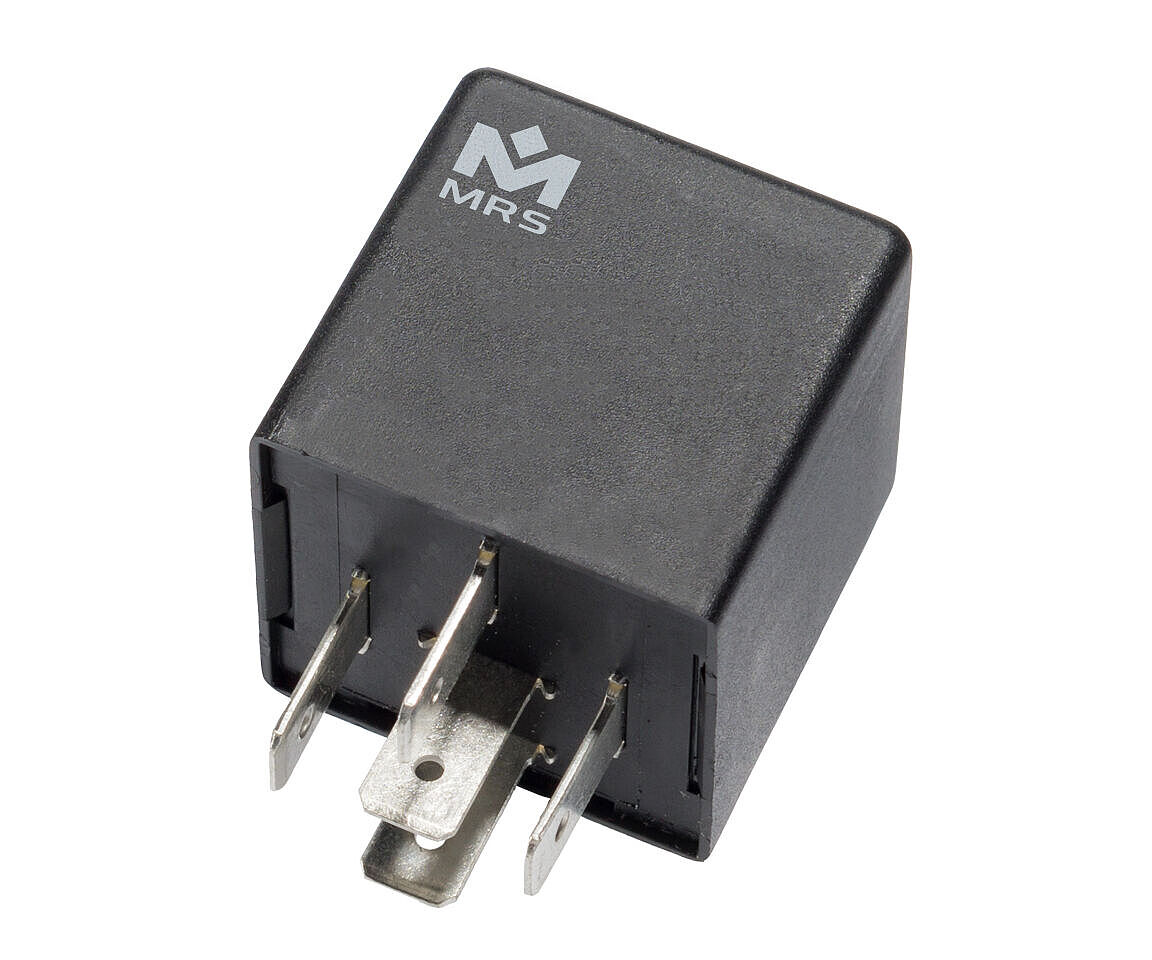

Micro Relay 12 V

1.014.1xx.00E ( choose order option )

More detailed information can be found on the website and the data sheets of the respective manufacturers.

Name Value
Housing material Plastic
Number of pins 5
In-/Outputs (total) 1
Operating voltage 12 V
Name Value
Number of pins 5
In-/Outputs (total) 1
Outputs (total) 1
Relay outputs 1
Temperature range -40 to 85  °C
Protection class IP53
Operating voltage 12 V

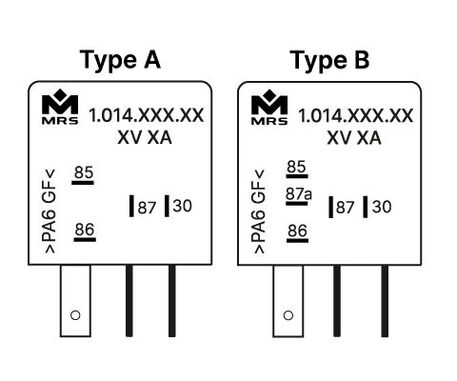

Name Type Model Connection diagram Order no.

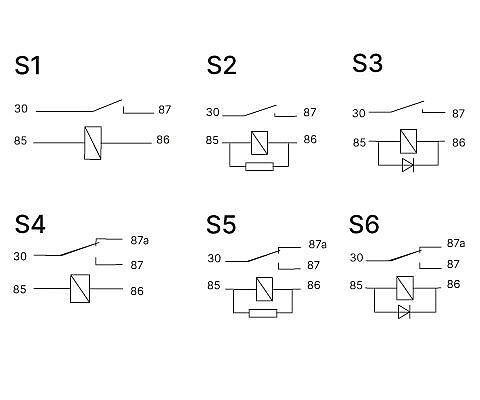

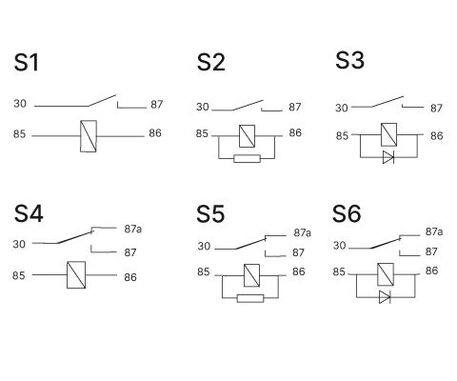

Relay MI W CM1-12 V 35/20 A B Two-way con­tact S4 1.​014.​100.​00E
Relay MI W CM1-R-12 V 35/20 A B Two-way con­tact with re­sis­tor S5 1.​014.​102.​00E
Relay MI S CM1A-R-12 V 35 A A Nor­mally open con­tact with re­sis­tor S2 1.​014.​103.​00E
Relay W HFV6/024-ZSTD A Two-way con­tact with diode S3 1.014H.204.00E
Required accessories Article number
Socket MI FL 5-pin. 2 x 6.3 / 3 x 4.8 1.​017.​000.​00
FAS­TON ter­mi­nal for latching 6.3 mm 1.5 – 2.5 mm² 103064
FAS­TON ter­mi­nal for latching 6.3 mm 1 mm² 102355
FAS­TON ter­mi­nal for latching 4.8 mm 0.5 – 1mm² 108304
FAS­TON ter­mi­nal for latching 4.8 mm 1.0 – 2.5 mm² 108305
